EK Water Blocks, Ljubljana based premium computer liquid cooling gear manufacturer, is releasing a new Full-Cover water block, designed and engineered specifically for MSI® RADEON™ R9 390X GAMING 8G graphics card – the EK-FC R9-390X TF5.

EKFC-R9-390X-TF5_NP_fill1_1200

EK-FC R9-390X TF5 is a high-performance Full-Cover water block, intended to replace the original TwinFrozr V cooler that comes with the graphics card out-of-the-box. The EK-FC R9-390X TF5 actively cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas, thus allowing the graphics card and it’s VRM to remain stable under high overclocks.

EKFC-R9-390X-TF5_NP_front_1200EKFC-R9-390X-TF5_NA_front_1200

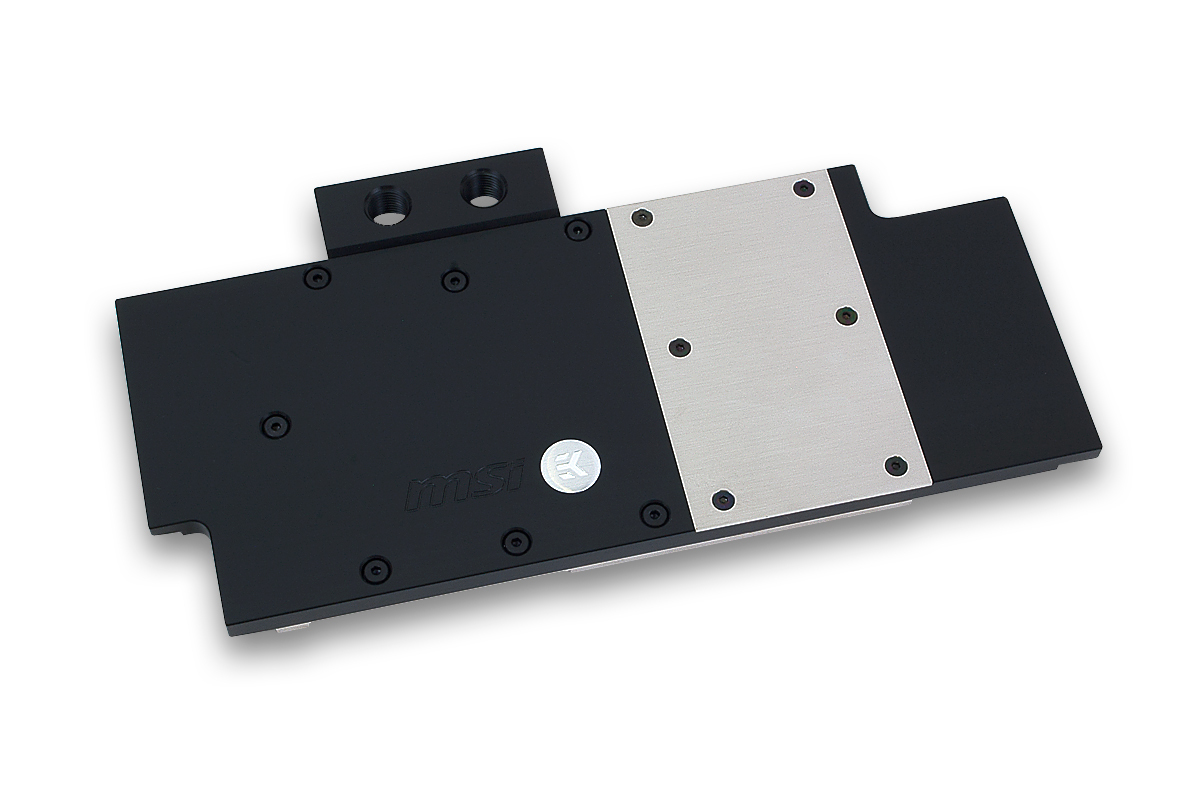

EK-FC R9-390X TF5 – Nickel (left) and EK-FC R9-390X TF5 – Acetal+Nickel (right)

The base is made of nickel-plated electrolytic copper while the top is made of quality POM Acetal or acrylic (depending on the variant). Screw-in brass standoffs are pre-installed and allow for safe installation procedure.

EK-FC R9-390X TF5 water block features EK unique central inlet split-flow cooling engine design for best possible cooling performance, which also works flawlessly with the reversed water flow without adversely affecting the cooling performance. Moreover, such design offers great hydraulic performance, allowing this product to be used in liquid cooling systems using weaker water pumps.

EKFC-R9-390X-TF5_NP_fill2_1200

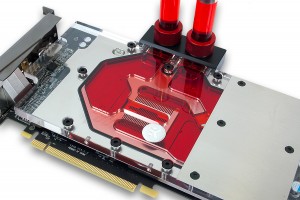

Central inlet split-flow cooling engine

 An aesthetic retention backplate made of black anodized aluminum, which also cools the backside of the circuit board (namely around VRM area), is also available for purchase.

EKFC-R9-390X-TF5_backplate_front_1200

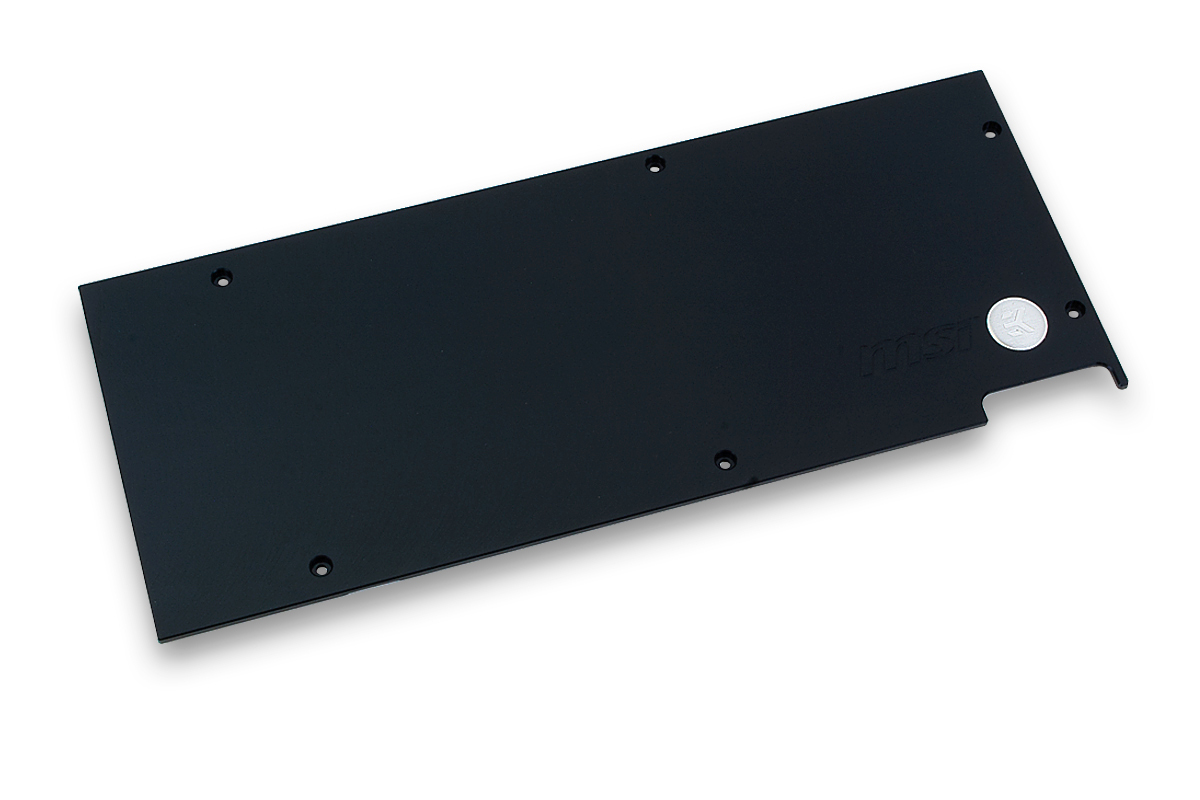

EK-FC R9-390X TF5 Backplate – Black

In order to simplify the search for suitable and compatible water block EK is adding newly released graphics cards and motherboards from various manufacturers to EK Cooling Configurator database and compatible graphics cards are being added to the list on a daily basis:

These water blocks are made in Slovenia, Europe and are readily available for purchase through EK Webshop and Partner Reseller Network.

Name Interconnectivity method
MSRP (incl. VAT)
EK-FC R9-390X TF5 – Nickel FC Terminal / HD Tube 122.95€
EK-FC R9-390X TF5 – Acetal+Nickel FC Terminal / HD Tube 122.95€
EK-FC R9-390X TF5 – Backplate – Black 29,95€
