EK®, the premium liquid cooling gear manufacturer, is now introducing the ultimate water cooling solution for Zotac® AMP Extreme AIRO and Trinity GeForce® RTX™ 4080 and 4090 graphics cards. Zotac’s RTX 4090 cards get a water block with a passive backplate or a cooling solution with an active backplate that’s sandwiching the card between two water blocks for the best possible cooling results. Zotac’s RTX 4080 AMP Extreme and Trinity graphics cards get only a standard water block solution with a passive backplate and no active backplate.

EK-Quantum Vector² AMP/Trinity RTX 4090 and 4080 D-RGB GPU Water Blocks

The EK-Quantum Vector² AMP/Trinity RTX 4090 and EK-Quantum Vector² AMP/Trinity RTX 4080 are single-package liquid cooling solutions consisting of a Vector² series water block and a black-anodized aluminum backplate. As with the previous 30-series Vector² water blocks, its aesthetics are dominated by minimalistic straight lines and the backplate coming around the side of the GPU to cover the PCB completely.

The Vector² cooling engine combines the jet plate with a 3D-machined Plexi insert to improve flow distribution and thermal performance. This cooling engine is based on an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings and still achieve top performance. EK took great care to achieve a symmetrical flow domain by utilizing an internal bridge to secondary components. This was done to ensure the cooling of secondary components without sacrificing flow distribution over the GPU core.

All Vector² GPU water blocks use an 11mm-thick copper coldplate with a directly attached acetal terminal and a robust single O-ring top design. This simple construction provides confidence during customization and maintenance. Both 4080 and 4090 AMP/Trinity water blocks include a black-anodized aluminum backplate and a base that is CNC-machined out of nickel-plated electrolytic copper.

The D-RGB LED lighting is deployed on the longest edge of the water block for improved uniformity and brightness. The PCB and diodes are concealed inside a clean aluminum extrusion.

Tactile magnetic covers are used to conceal the terminal screws, which allows the rotation of the badge when the GPU is inverted inside the case.

These GPU water blocks have a specific cutout that enables the use of the included multi-use tool for decoupling the PCIe safety on the motherboard and easy unplugging of the GPU. The same tool can also be used to detach the power cable more easily and tighten the standoffs.

EK-Quantum Vector² Backplate

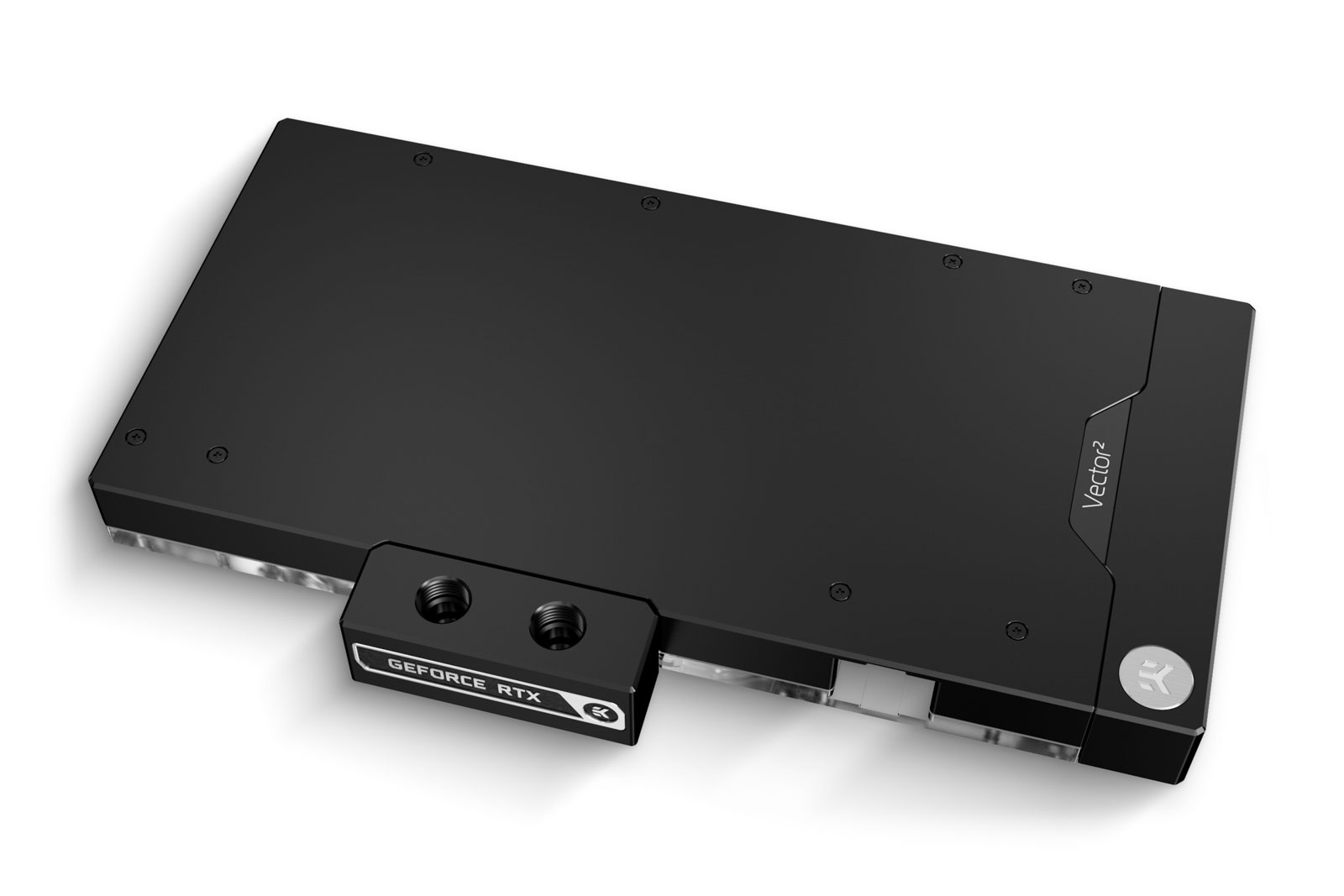

Each Vector² water block comes with a CNC-machined black-anodized backplate. Captive nickel-plated mounting screws are included to replace the original black screws. The backplate has a new L-shaped profile that comes in contact with the water block’s base and encloses the entire GPU while increasing the cooling surface. This connection between the backplate and the water block improves the performance even more by boosting the heat transfer efficiency.

Captive backplate screws simplify installation, ensuring the correct length is always used where it’s needed to avoid user errors and second-guessing.

EK-Quantum Vector² AMP/Trinity RTX 4090 D-RGB ABP Set

This ultimate cooling set consists of a high-performance GPU water block and the latest generation Active Backplate cooling solutions in a single enclosure. Although Zotac AMP Extreme and Trinity RTX 4090 GPUs don’t have VRAM on the backside, the active backplate still helps lower the temperatures by cooling the PCB behind the core, VRM, and VRAM. Since there’s a lot of copper in the PCB, it soaks a significant amount of heat and transfers it across its surface, thus warming other components. By effectively cooling the PCB, the entirety of the GPU becomes cooler.

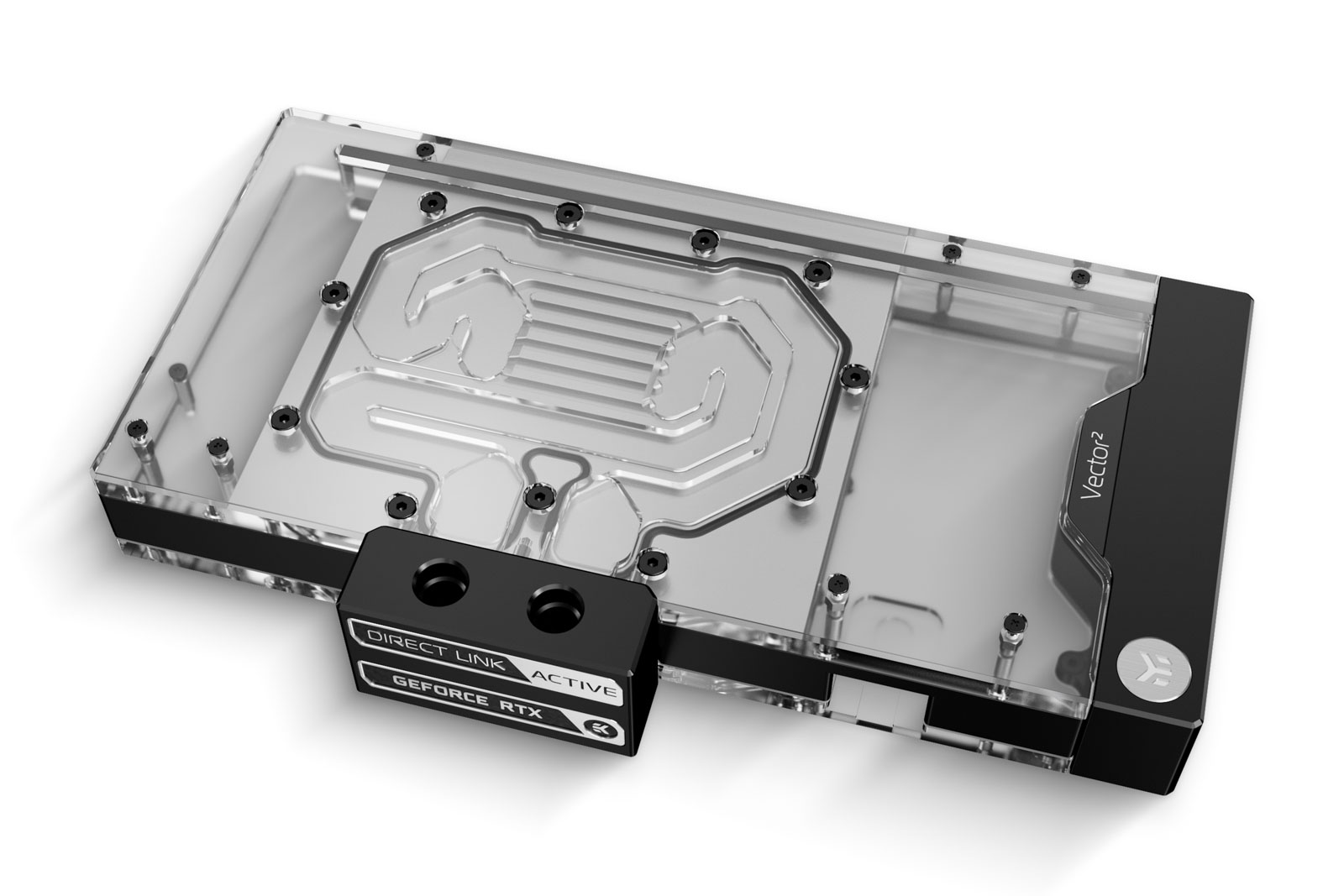

The active backplate is a full-blown water block with its own copper coldplate and a full-length acrylic top. The connectivity is also taken to another level with “Direct Link” terminals that implement a conventional 4-port layout, allowing serial and parallel connections from adjacent or opposing sides of the block.

This is the ultimate combination of a Vector² water block, an Active Backplate, and a mounting mechanism, available in a Nickel + Plexi version. It comes with an included EK-Quantum Vector² AMP/Trinity RTX 4090 D-RGB ABP Side Cover in the anodized black finish. The side cover is placed between the GPU water block and the active backplate to conceal the GPU PCB. This allows users to buy the ultimate all-around cooling set for their GPU, ensuring the best possible cooling and performance uplift.

The combination of the EK-Quantum Vector² AMP/Trinity RTX 4090 water block, the EK-Quantum Vector² AMP/Trinity RTX 4090 Active Backplate, and the EK-Quantum Vector² AMP/Trinity RTX 4090 ABP side cover envelops the GPU from all sides.

EK-Matrix7 Standard

EK-Matrix7 standardizes the dimensions of products, including the port position and spacing, thus making liquid cooling loop assembly easier and more intuitive. All Vector² products feature full EK-Matrix7 compliance in every axis, ensuring easy integration and alignment with other EK-Matrix7 products. This perfect alignment of ports in both horizontal and vertical positions means less time is spent planning the loop and bending the tubes, with the end result being an epic build.

Availability and Pricing

The EK-Quantum Vector² AMP/Trinity RTX 4090 water blocks and ABP Sets, as well as EK-Quantum Vector² AMP/Trinity RTX 4080 water blocks, are available for pre-order through the EK Webshop and Partner resellers. These products are expected to ship out in late December 2022. The table below shows the manufacturer-suggested retail price (MSRP), VAT included.
