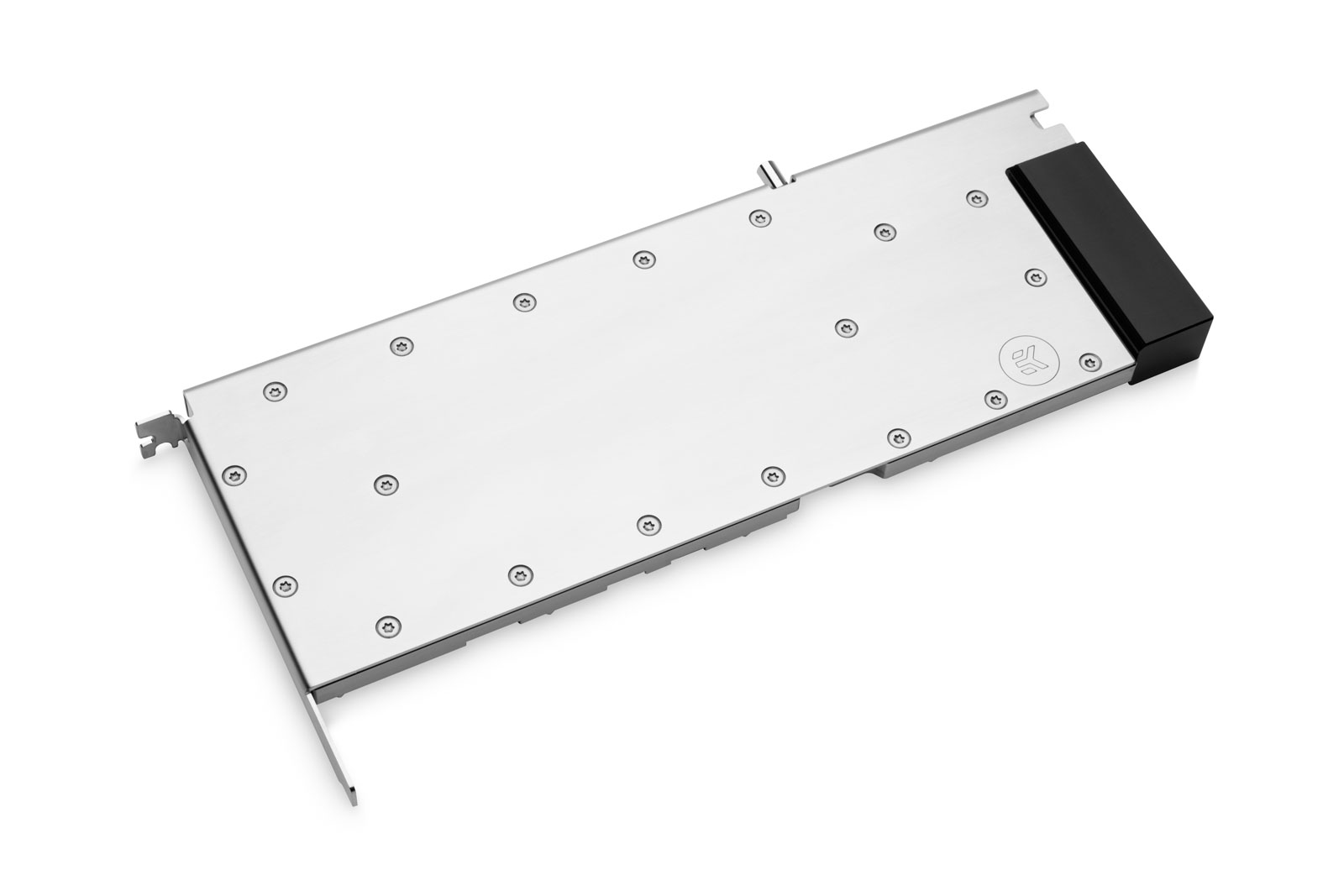

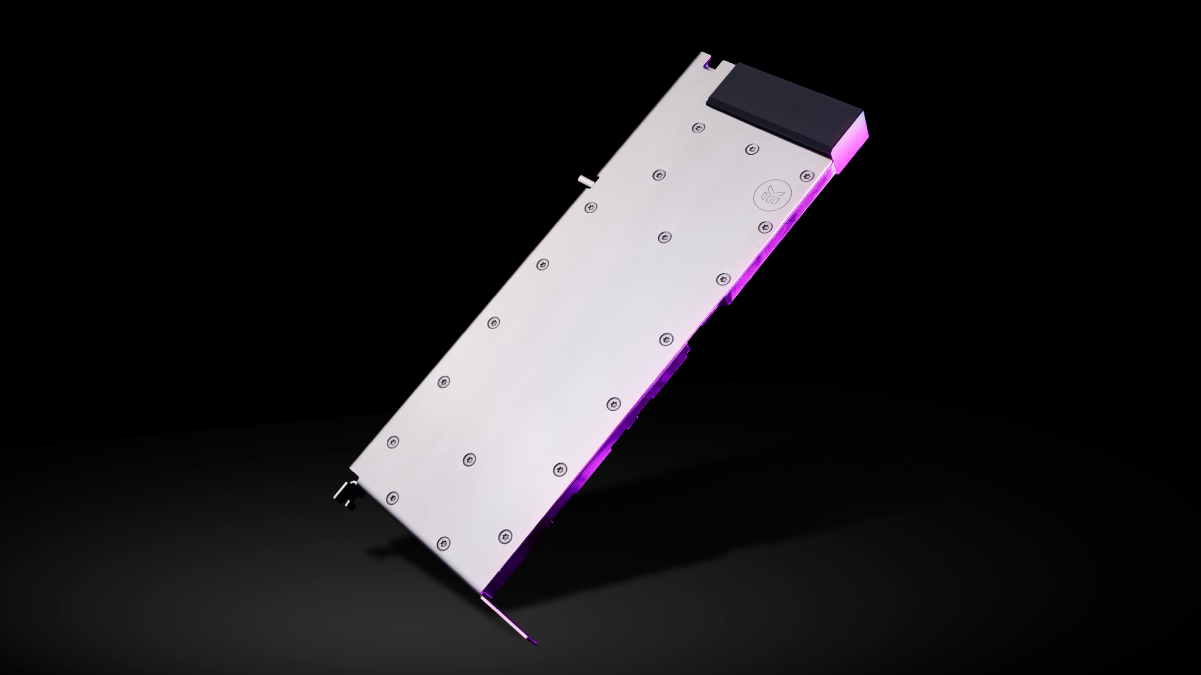

EK®, the leading computer cooling solutions provider, is now offering an enterprise-grade GPU water block for PNY® NVIDIA® A100 80GB PCIe data center GPUs. The EK-Pro GPU WB A100 80GB Rack – Nickel + Inox is a high-performance water block specifically engineered to make the entire GPU and water block assembly as thin as possible, effectively allowing it to consume only a single PCIe slot width-wise. The water block is equipped with a rack-style terminal, considerably reducing the assembly height and increasing the chassis compatibility.

By spanning the entire PCB, the water block directly cools the GPU, HBM VRAM, and the VRM (voltage regulation module) as the cooling liquid is channeled directly over these critical areas.

EK-Pro GPU WB A100 80GB Rack – Nickel + Inox water blocks use an Open Split-Flow cooling engine design which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, which means it can be used with weaker water pumps or pumps running on low-speed settings and still achieve top performance. The lowered coolant flow requirement makes it an ideal solution for multi-GPU workstations and servers. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performances even when used in reversed water flow scenarios.

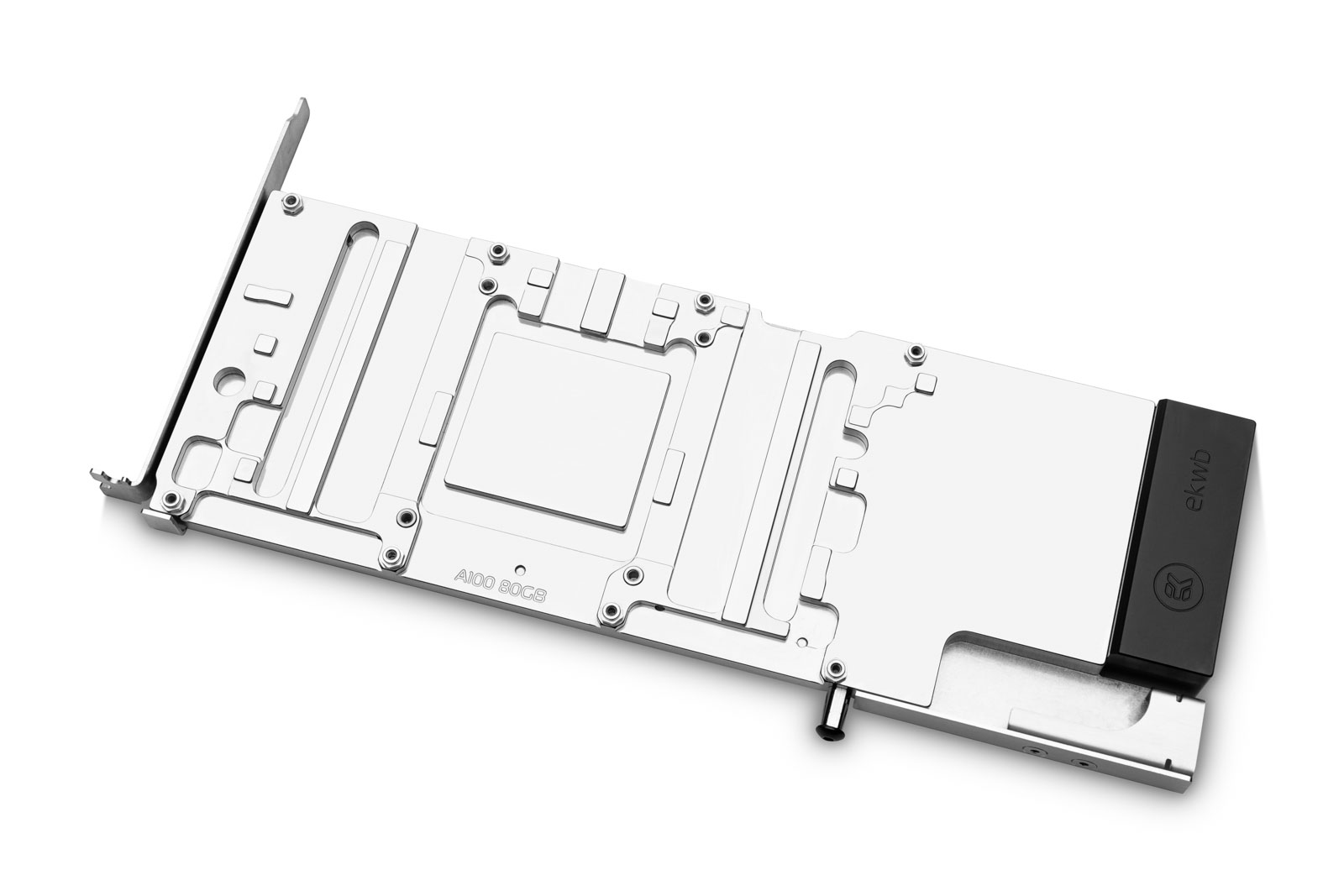

The base of the block is CNC machined out of nickel-plated electrolytic copper, while the top is laser-cut out of industry-grade stainless steel. The sealing is ensured by high-quality EPDM O-Rings. The brass standoffs are already pre-installed and allow for a safe and easy installation procedure.

For added stability and protection of the graphics card, the I/O plate is now an integral part of the water block top itself, which means the block replaces the stock I/O shield and adds more sturdiness to the whole assembly. The integrated single-slot I/O plate also benefits more compact workstation and server environments, where space and PCIe slot spacing is at a premium. This design enables the card only to consume a single PCIe x16 slot, leaving the surrounding slots available for other add-in cards. The EK-Pro Rack GPU water blocks conform to the standard Full Height Full Width (FHFW) server chassis form factor, making them a drop-in replacement for active and passive dual-slot air coolers.

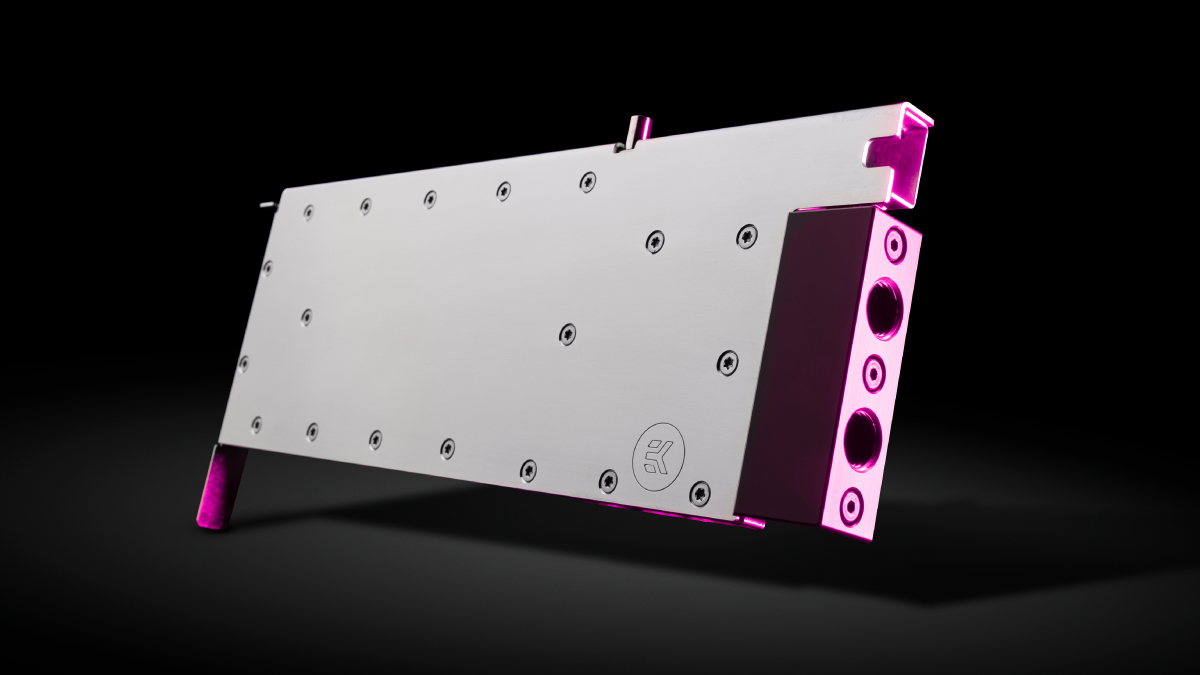

The EK-Pro GPU WB A100 80GB Rack water block features a POM-machined terminal block at the back and features two G1/4” ports, enabling easy integration with EK-Pro QDC kits and manifolds for high compute density applications.

We recommend you refer to the EK Cooling Configurator for a precise compatibility match. We are checking compatible graphics cards and adding them to the database daily.

Availability and Pricing

EK-Pro GPU WB A100 80GB Rack – Nickel + Inox water block is manufactured and assembled in Slovenia, Europe, and is available for pre-order through the EK Webshop and Partner Reseller Network. The product is expected to start shipping in late December 2022. The table below shows the manufacturer-suggested retail price (MSRP), VAT included.
