EK®, the leading manufacturer of premium water-cooling equipment, is delighted to introduce their latest creation, the EK-Quantum Reflection² ROG Hyperion D5 PWM D-RGB – Plexi distribution plate, specially designed for the new ASUS® ROG Hyperion GR701 chassis. This cutting-edge distribution plate incorporates state-of-the-art water-cooling technology, featuring the latest 3rd generation SATA-powered D5 pump, eliminating the need for additional 4-pin Molex cables. Being EK-Matrix7 compatible, the Reflection² series distribution plates ensure seamless compatibility, effortless integration, and unrivaled aesthetics.

Exquisite Craftsmanship and Stunning Visuals

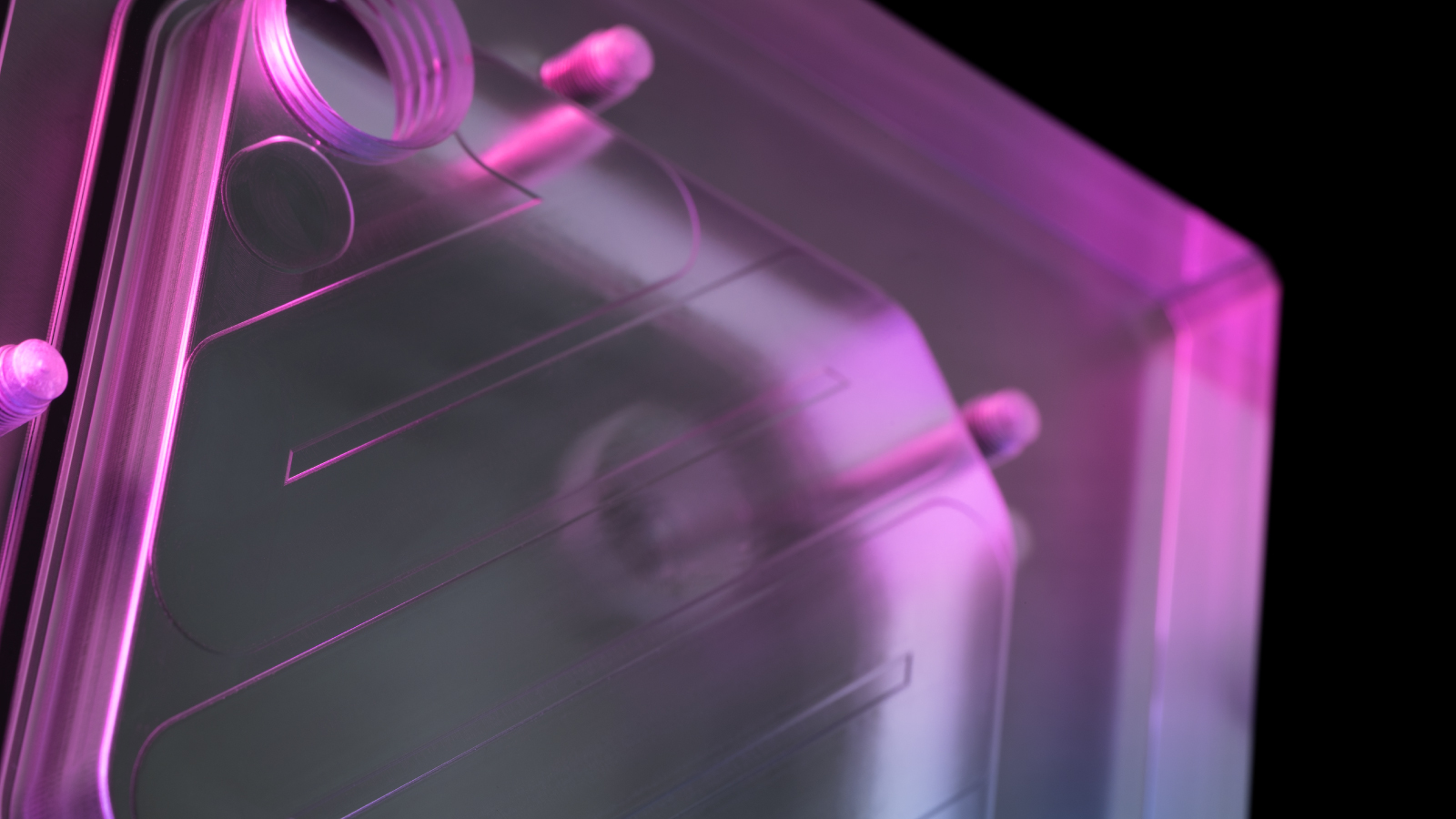

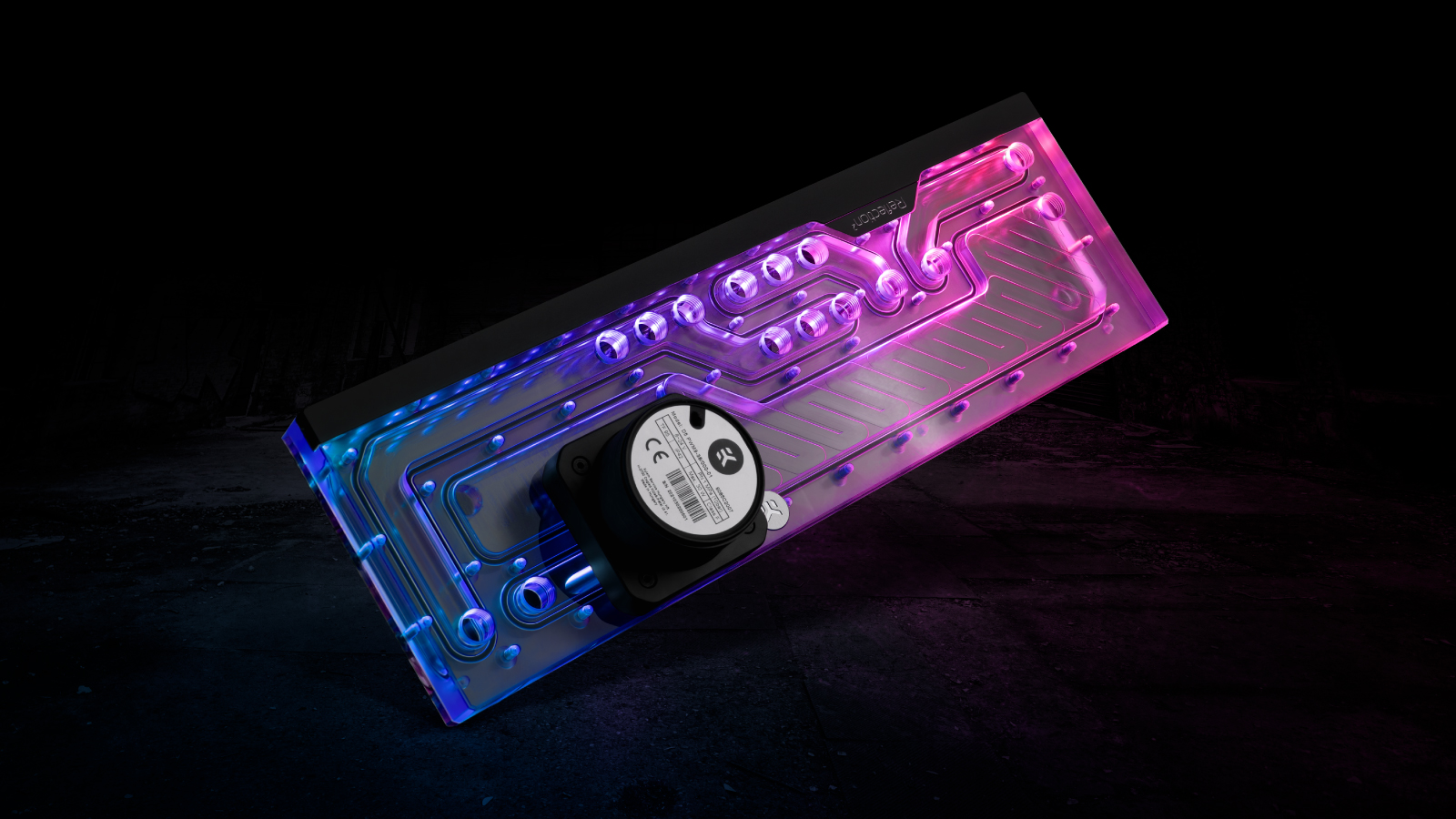

With its sleek design and transparent plexiglass construction, the EK-Quantum Reflection² ROG Hyperion D5 PWM D-RGB – Plexi offers an all-in-one custom water-cooling solution that combines a reservoir, routing system, and a pump.

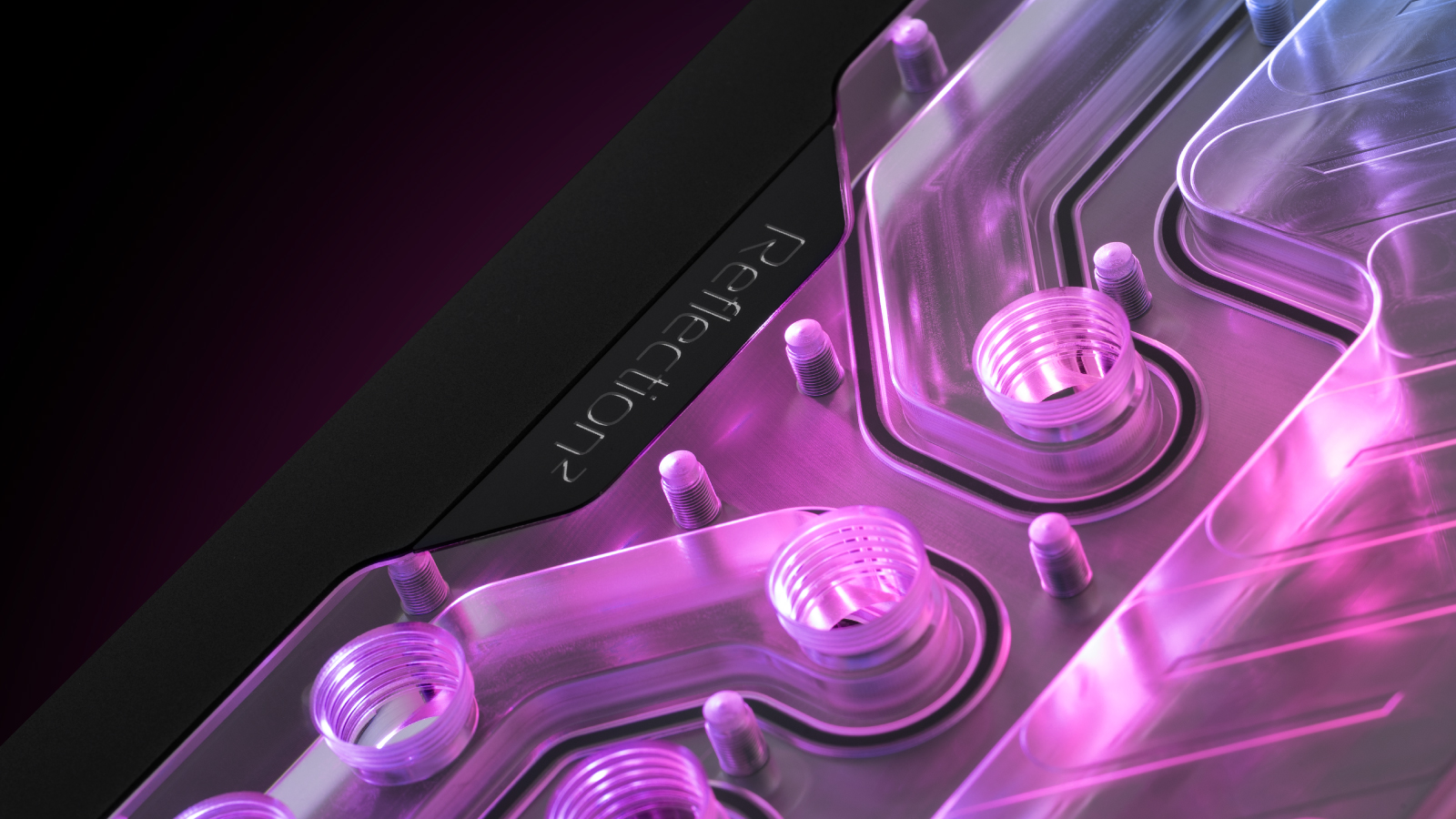

Meticulously crafted using advanced CNC machining techniques and with the use of high-quality acrylic material, you know this distro is made with impeccable accuracy and an immaculate finish, showcasing outstanding water-cooling capabilities, unmatched craftsmanship, and great attention to detail.

Smooth Integration and Radiator Compatibility

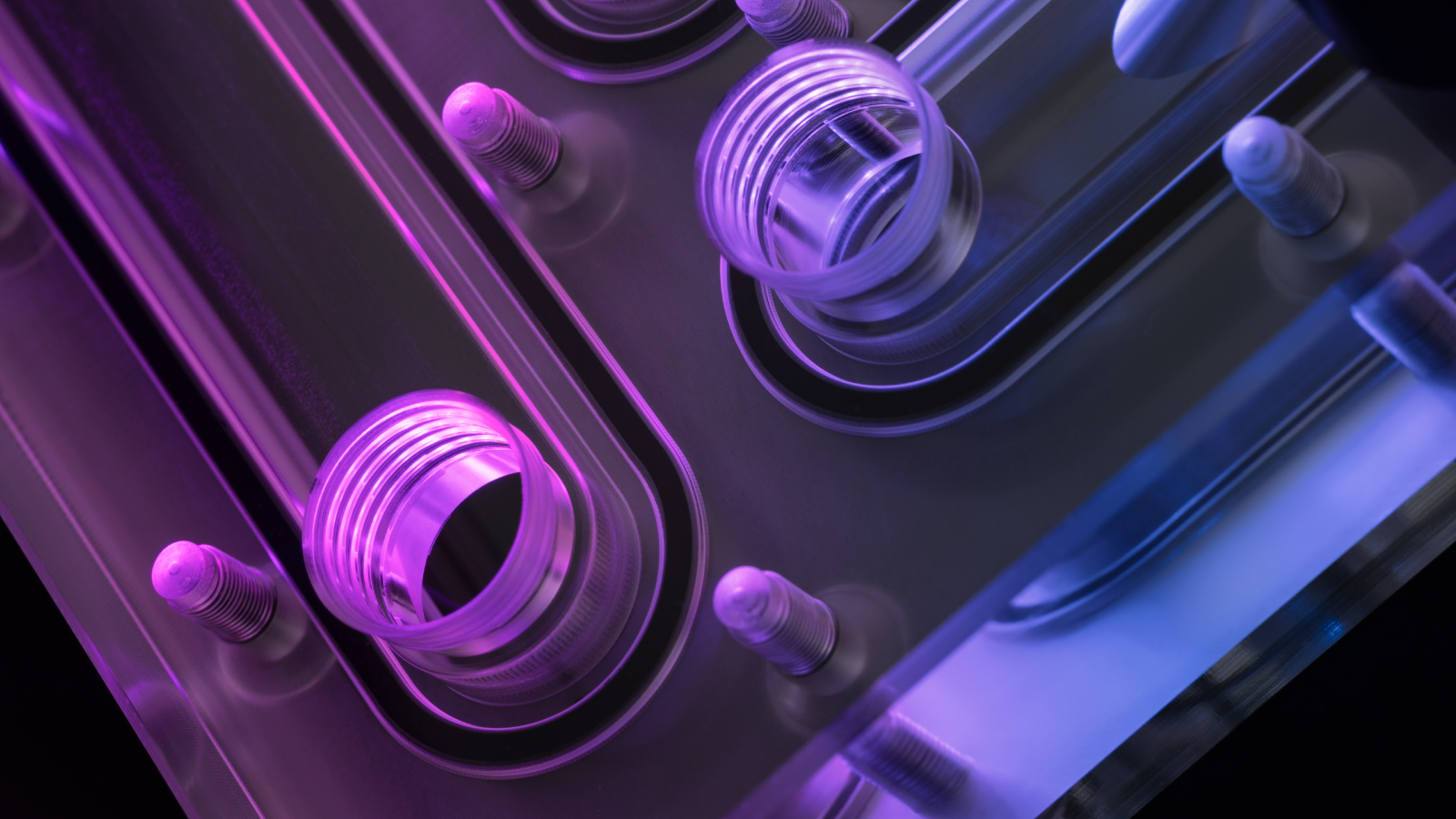

In addition to its remarkable aesthetics, this advanced all-in-one waterway solution stands out for its user-friendliness, effortless integration, and outstanding performance. It includes a pump, reservoir, straightforward mounting mechanism, and multiple G1/4″ threaded inlets and outlets, adhering to the highest industry standards within the liquid-cooling landscape. The precise alignment of inlets and outlets with other EK products, thanks to the EK-Matrix7 concept, minimizes the challenges of tube routing. This ensures a streamlined and highly organized loop, allowing users to easily achieve perfectly straight tubes and maintain a clean and orderly setup.

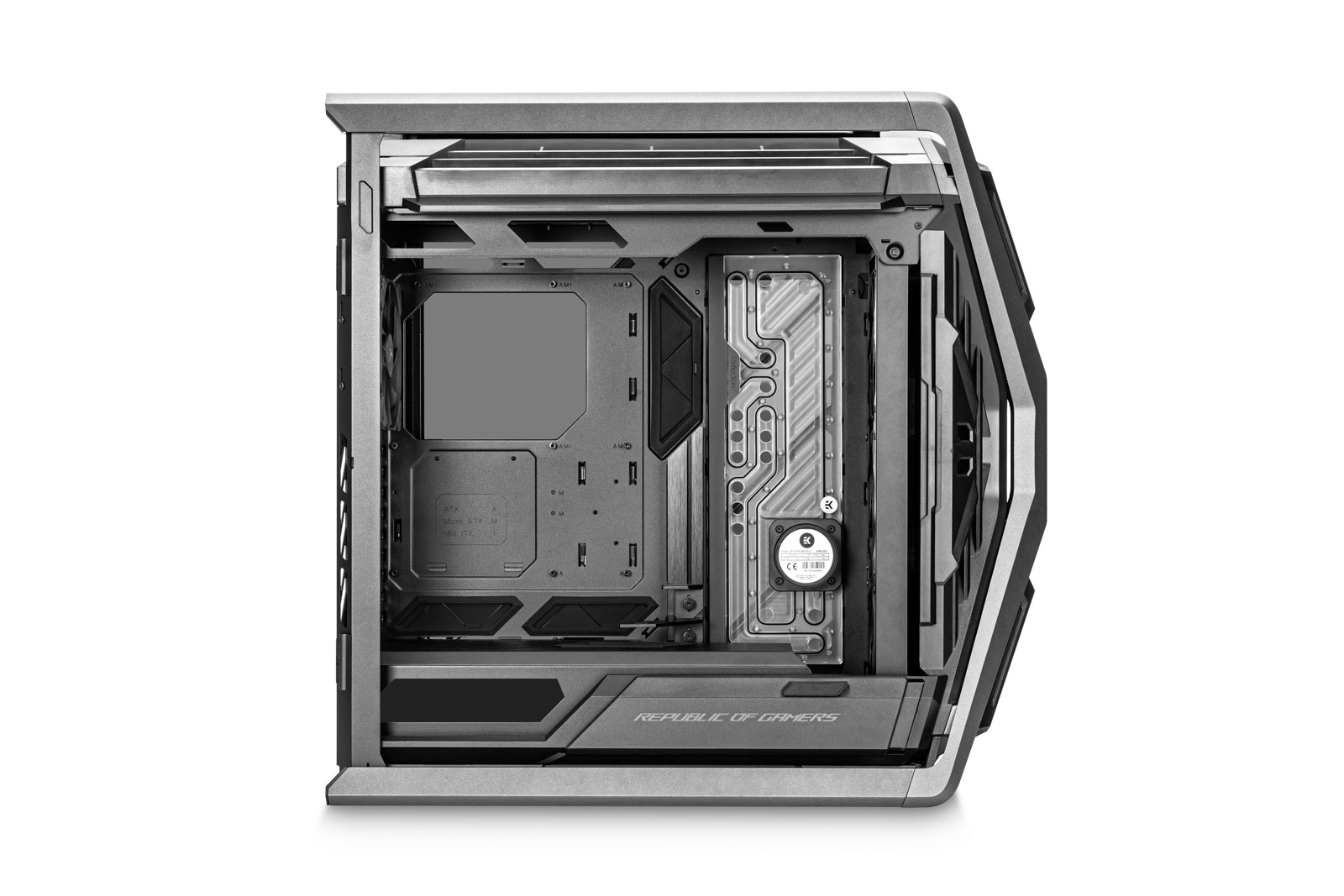

Engineered to be mounted on the side of the case next to the motherboard, the EK-Quantum Reflection2 ROG Hyperion D5 PWM D-RGB – Plexi seamlessly blends with the ASUS ROG Hyperion GR701 chassis, elevating the overall appearance of your system.

Once the distribution plate is installed, you have the flexibility to accommodate the maximum radiator sizes in two formats: 120mm and 140mm.

Maximum radiator size for the 120mm format:

• Top: EK-Quantum Surface P360
• Front: EK-Quantum Surface S360

Maximum radiator size for the 140mm format:

• Top: EK-Quantum Surface S420
• Front: EK-Quantum Surface S420

Endless D-RGB Possibilities

With an array of 23 LEDs, this product offers a rich and fully customizable lighting experience for countless D-RGB possibilities.

The addressable D-RGB LED strip spans the entire length of the unit, casting a radiant glow that can be synchronized with other RGB components in your setup. Concealed beneath an anodized black aluminum cover, any undesired LED hotspots are eliminated, ensuring clean and customizable illumination.

The integrated addressable LED strip can be connected to your motherboard’s 5V header or a dedicated D-RGB controller. It seamlessly integrates with popular RGB synchronization software, including MSI MYSTIC LIGHT SYNC, ASROCK POLYCHROME SYNC, ASUS AURA SYNC, and GIGABYTE RGB FUSION 2, enabling you to achieve cohesive lighting effects throughout your entire system.

3rd-Gen PWM-Controlled D5 Pump

This water distribution plate comes with a powerful yet silent PWM-controlled D5 pump. The goal was to make a product with enough power to offer excellent reliability and outstanding performance with multiple blocks and radiators while keeping the noise down to a minimum. The D5 pump has been updated with the latest G3 (Generation 3) variant. It comes with a SATA power connector, following the latest PC industry trend of a decreased use of 4-pin Molex cables.

EK-Matrix7 Support

The EK-Matrix7 standardizes the products’ dimensions, including the port position and spacing, making liquid cooling loop assembly much easier and more intuitive. EK-Quantum Reflection² distro-plates follow the EK-Matrix7 standard, enabling them to seamlessly integrate with the Vector² GPU water blocks, active backplates, and Quantum Surface radiators. This means you’ll spend less time planning the loop and bending the tubes, resulting in an epic, sleek-looking, liquid-cooled build.

Technical Details

Reservoir:

• Dimensions with the attached pump (W x D x H): 130 x 28 x 398 mm
• Reservoir volume: ~283 ml
• D-RGB LED count: 23
• D-RGB cable length: 500mm
• D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

Pump Motor Technical Specifications:

• Motor: electronically commuted spherical motor
• Rated voltage: 12V DC
• Power consumption: 23W
• Maximum pressure head: 3.9m
• Maximum flow: 1500L/h
• Maximum system temperature: 60°C
• Materials: Stainless Steel, PPS-GF40, EPDM O-rings, Aluminum Oxide, Hard Coal
• Power connector: SATA and 4-pin PWM FAN connector

Operational Regime:

• PWM duty cycle: ~ 20-100%
• Default behavior: runs at 100% duty cycle when no PWM feedback signal is present

Availability and Pricing

The EK-Quantum Reflection² ROG Hyperion D5 PWM D-RGB – Plexi distribution plate is available for pre-order through the EK Webshop and partner reseller network. This product is expected to ship out in late June 2023. The table below shows the manufacturer suggested retail price (MSRP), VAT included.
