EK®, the premium liquid cooling solutions manufacturer, is launching a wide range of EK-Loop OmniLink cables to support its fans, pumps, D-RGB, and 12V and 5V power distribution connections. EK’s OmniLink solutions allow daisy chaining of multiple fans, reducing cable clutter and greatly easing cable management. These cables perfectly complement EK-Loop FPT and EK-Quantum Impulse fans and all products with standard D-RGB and 4-pin fan connectors. This product series contains splitters, extenders, and cables with specific requirements that act as replacements for PSU cables.

OMNILINK INPUT ADAPTERS:

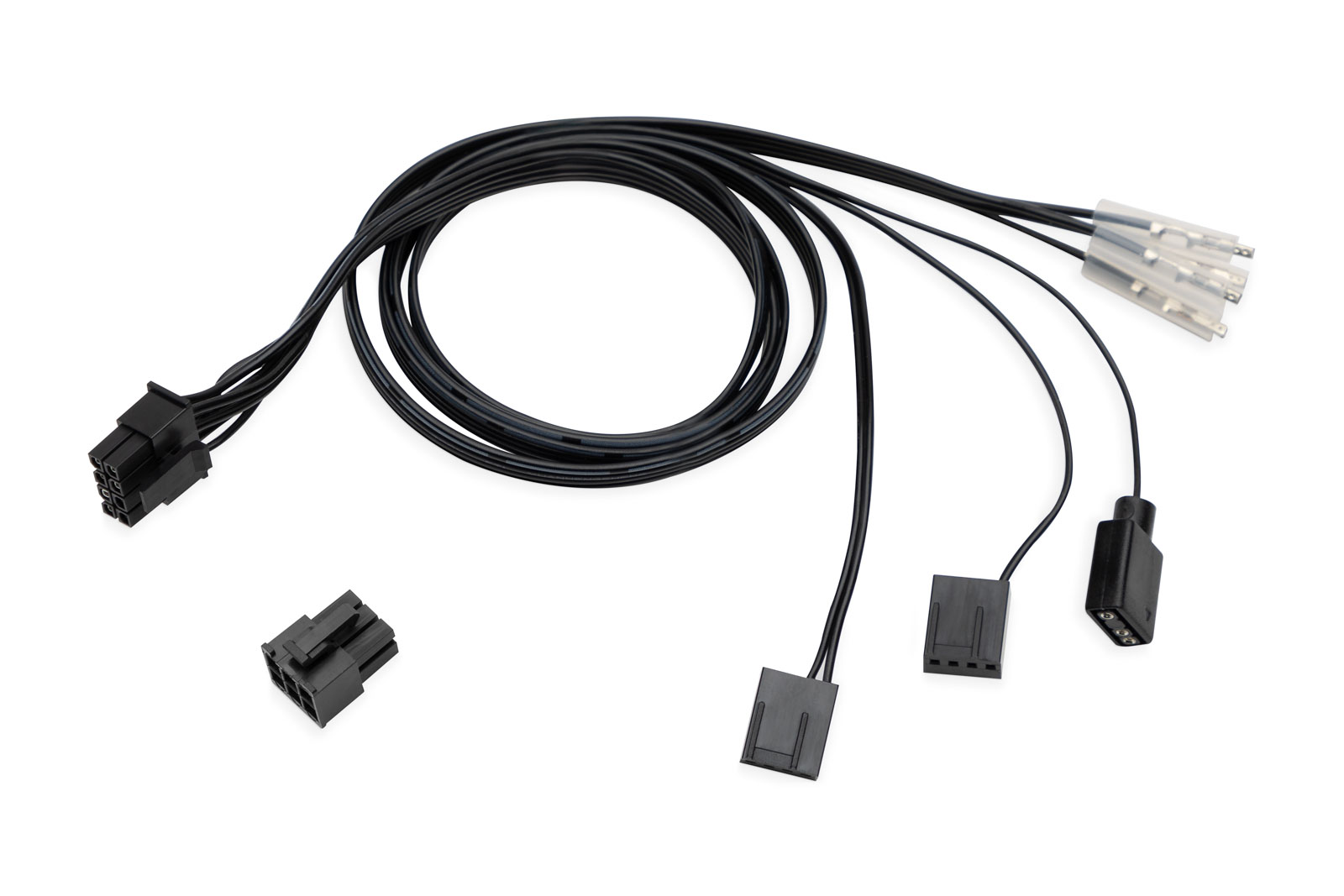

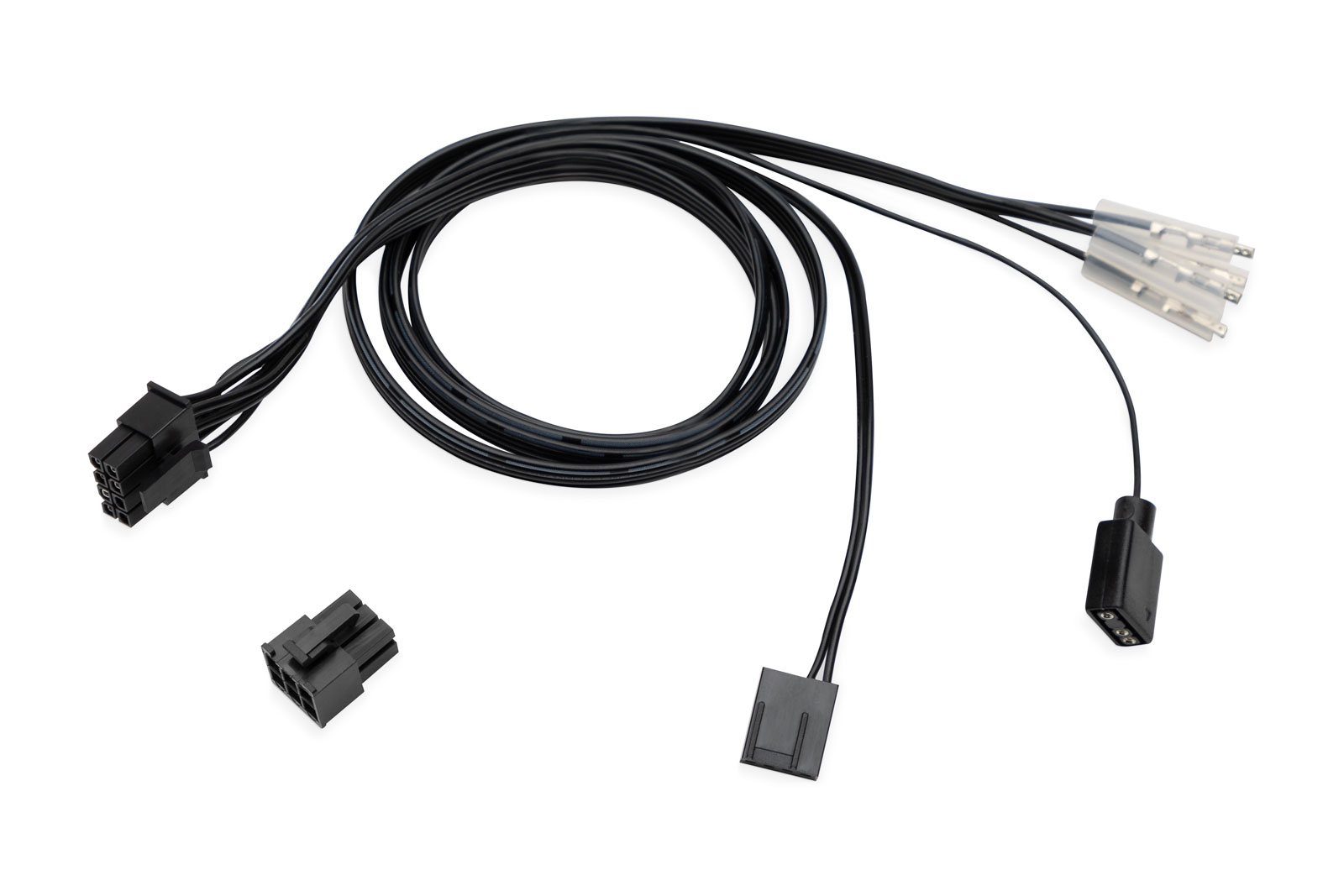

EK-Loop OmniLink 6-Pin Power (Dual PWM) Cable

EK-Loop OmniLink 6-Pin Power (Dual PWM) cable is the starting point of the OmniLink cable harness with the necessary 6-Pin power, D-RGB, and dual 4-Pin PWM connectors. The OmniLink cable allows for easy transmission and distribution of +12V and +5V Power, PWM, TACHO, and D-RGB signals. The cable features a black ribbon style for easy build integration and cable management.

Molex Micro-Fit 3.0 8-Pin Female Connector to:

• 1x 6-Pin Power Connector (Pinout PSU Dependent)
• 1x 4-Pin PWM 1 Source Fan Female Connector (TACHO, PWM)
• 1x 4-Pin PWM 2 Source Fan Female Connector (PWM Signal Only)
• 1x 3-Pin D-RGB LED Source Female Source Connector (Data Line Only)

EK-Loop OmniLink 6-Pin Power (Dual PWM) cable is compatible with all EK-Loop OmniLink products, standard 4-pin PWM fan/pump motherboard headers, and standard 5V D-RGB (ARGB) connectors used by most major motherboard manufacturers. The cable 6-pin Power connector must be assembled manually by following the desired PSU pinout diagram, as it connects directly to the modular PSU Peripheral/SATA power output. This cable will not draw any power from your motherboard/controller headers since +5V and +12V are connected directly to the PSU. Thus raising the maximum current available to 8.5A for D-RGB and 8.5A for fans/pumps.

EK-Loop OmniLink 6-Pin Power Cable

EK-Loop OmniLink 6-Pin Power cable is the starting point of the OmniLink cable harness with the necessary 6-Pin power, D-RGB, and 4-Pin fan connectors. The OmniLink cable allows for easy transmission and distribution of +12V and +5V Power, PWM, TACHO, and D-RGB signals. The cable features a black ribbon style for easy build integration and cable management. This cable will not draw any power from your motherboard/controller headers since +5V and +12V are connected directly to the PSU. Thus raising the maximum current available to 8.5A for D-RGB and 8.5A for fans/pumps.

Molex Micro-Fit 3.0 8-Pin Female Connector to:

• 1x 6-Pin Power Connector (Pinout PSU Dependent)
• 1x 4-Pin PWM 1 Source Female Fan Connector (Blank, Blank, TACHO, PWM)
• 1x 3-Pin D-RGB LED Source Female Connector (5V, Data, Blocked, Ground)

The cable 6-pin Power connector must be assembled manually by following the desired PSU pinout diagram, as it connects directly to the modular PSU Peripheral/SATA power output.

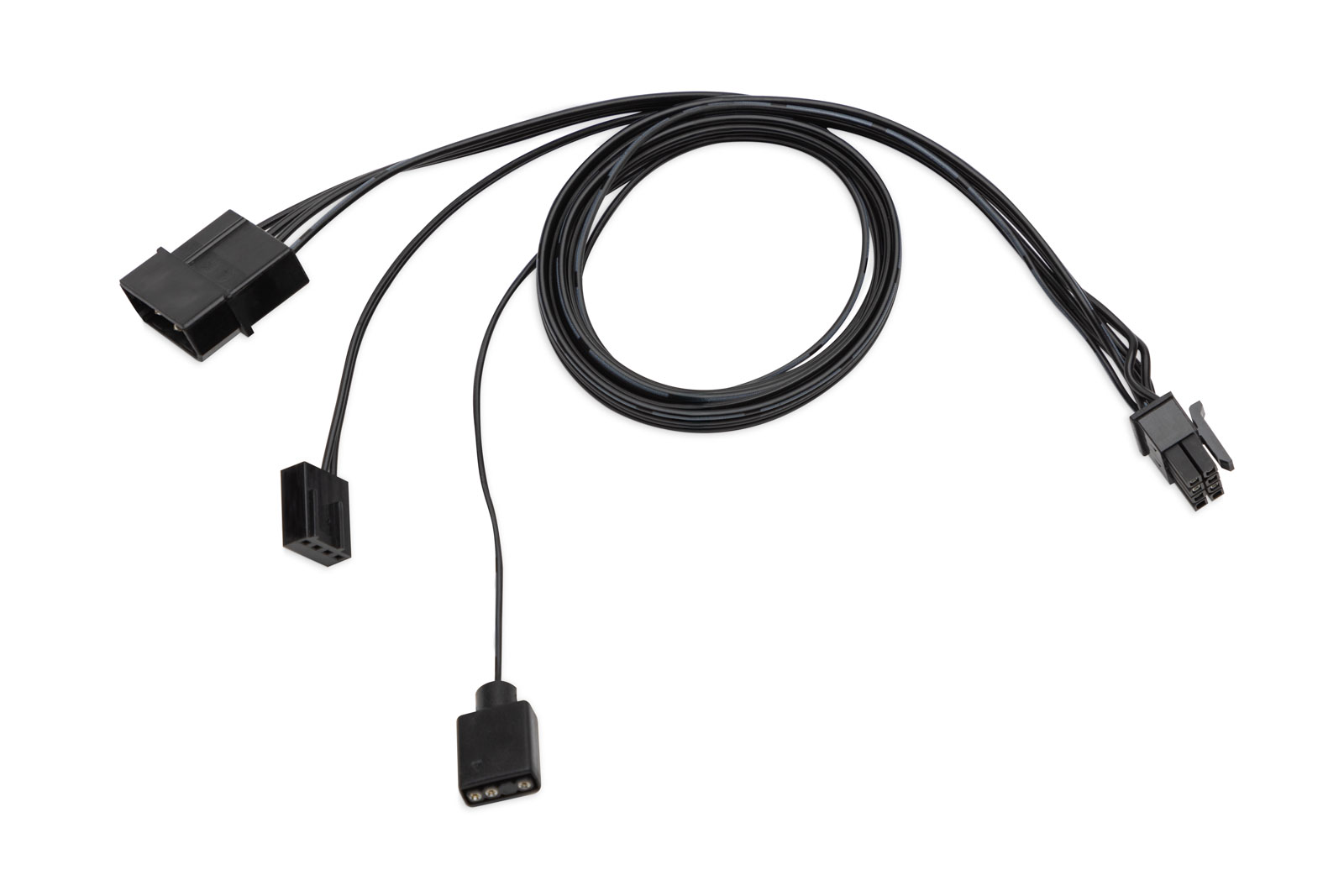

EK-Loop OmniLink Molex Power Cable

EK-Loop OmniLink Molex Power cable is the starting point of the OmniLink cable harness with the necessary Molex power, D-RGB, and 4-Pin fan connectors. The OmniLink cable allows for easy transmission and distribution of 12V and 5V Power, PWM, TACHO, and D-RGB signals. The cable features a black ribbon style for easy build integration and cable management. This cable can be installed without any modifications/re-pinning with any PSU while still providing the maximum 8.5A available on 5V and 12V by utilizing the Molex connector.

Molex Micro-Fit 3.0 8-Pin Female Connector to:

• 1x Molex Connector 4pin (Power)
• 1x 4-Pin PWM 1 Source Female Fan Connector (TACHO, PWM)
• 1x 3-Pin D-RGB LED Source Female Connector (5V, Data, Blocked, Ground)

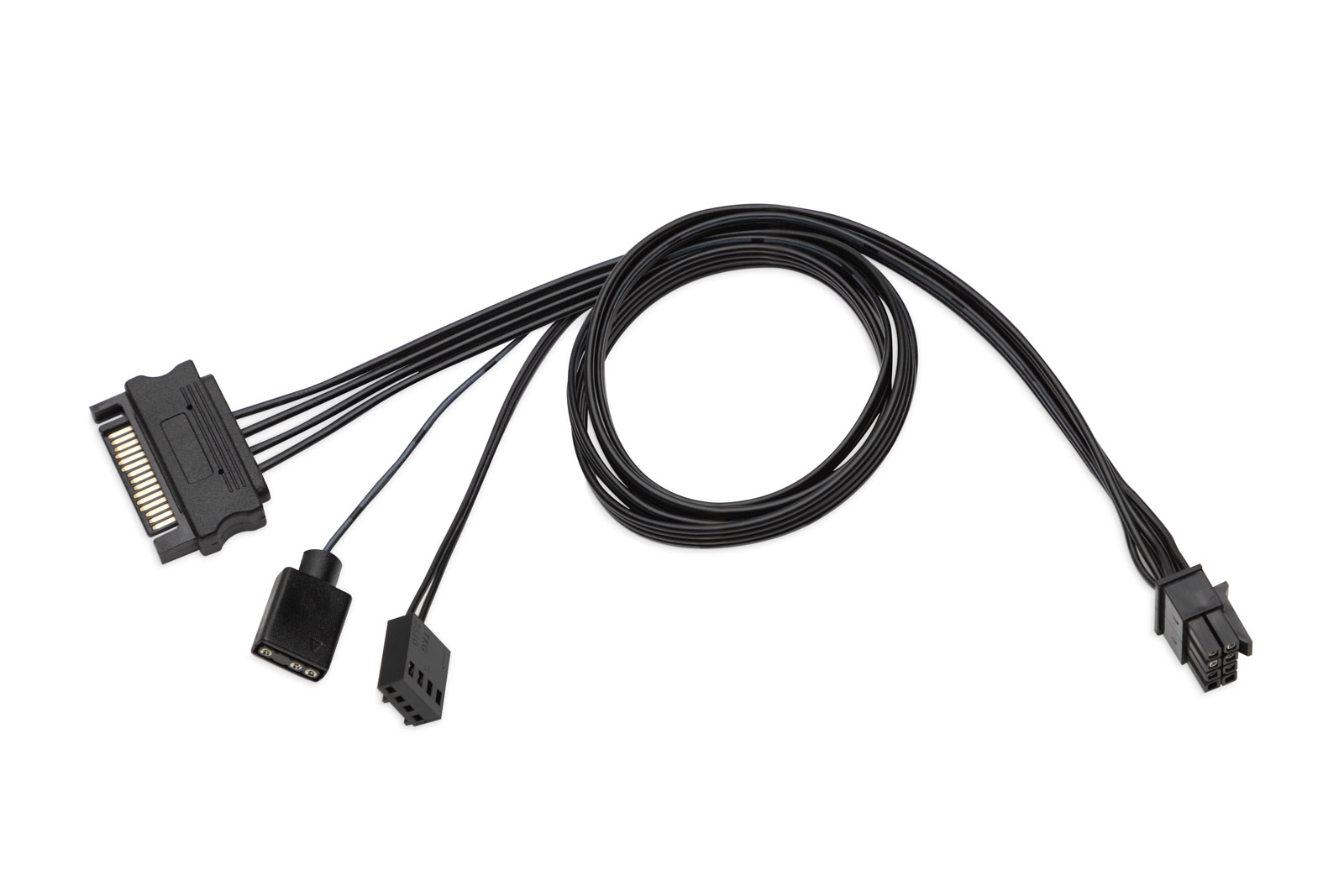

EK-Loop OmniLink SATA Power Cable

EK-Loop OmniLink SATA Power cable is the starting point of the OmniLink cable harness with the necessary SATA power, D-RGB, and 4-Pin fan connectors. The OmniLink cable allows for easy transmission and distribution of 12V and 5V Power, PWM, TACHO, and D-RGB signals. The cable features a black ribbon style for easy build integration and cable management. This cable can be installed without any modifications/re-pinning with any PSU while still providing the 4.5A available on 5V and 12V by utilizing the SATA connector, which has a lower power output than the Molex.

Molex Micro-Fit 3.0 8-Pin Female Connector to:

• 1x SATA Power Male Connector
• 1x 4-Pin PWM 1 Source Female Fan Connector (TACHO, PWM)
• 1x 3-Pin D-RGB LED Source Female Connector (5V, Data, Blocked, Ground)

OMNILINK EXTENDERS:

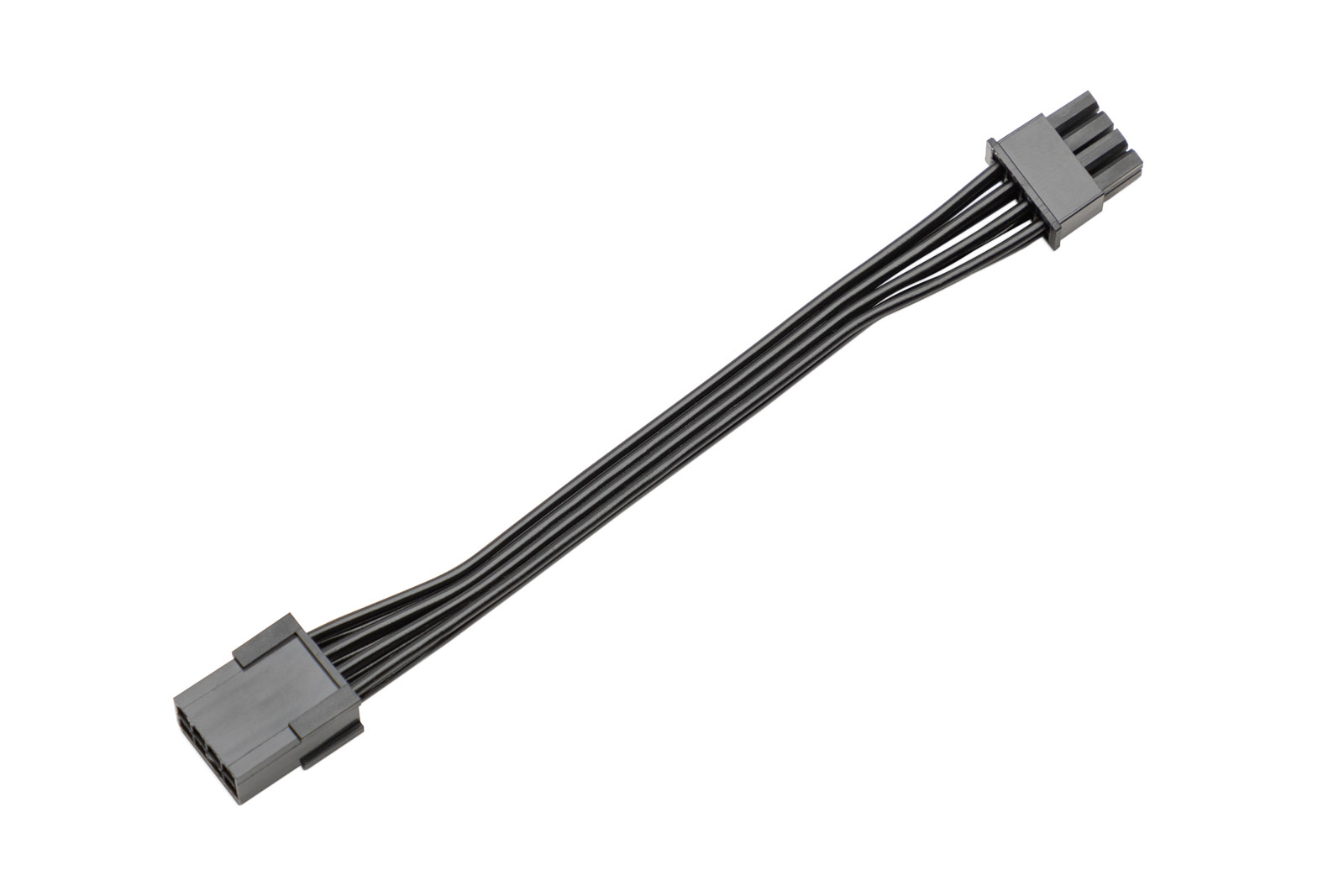

EK-Loop OmniLink MF Extension – 100mm Cable

This EK-Loop OmniLink MF Extension cable allows the user to extend the reach of the OmniLink cable harness by 100mm. The OmniLink cable allows for easy transmission and distribution of 12V and 5V Power, PWM, TACHO, and D-RGB signals. The cable features a black ribbon style for easy build integration and cable management. Allows full 8.5A of power through the extension.

EK-Loop OmniLink MF Extension – 500mm Cable

This EK-Loop OmniLink MF Extension cable allows the user to extend the reach of the OmniLink cable harness by 500mm. The OmniLink cable allows for easy transmission and distribution of 12V and 5V Power, PWM, TACHO, and D-RGB signals. The cable features a black ribbon style for easy build integration and cable management. Allows full 8.5A of power through the extension.

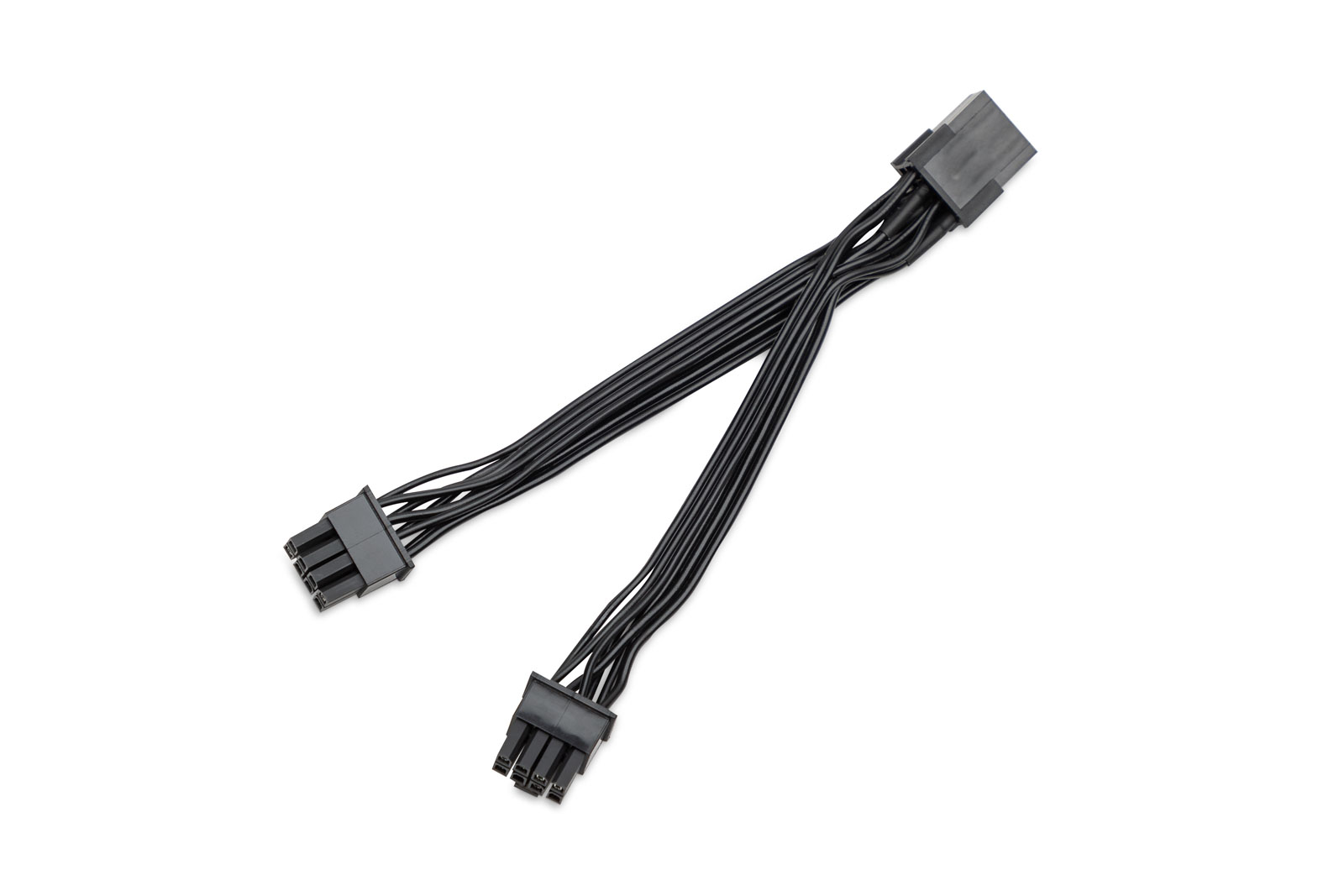

EK-Loop OmniLink 2-Way Splitter – 100mm Cable

The EK-Loop OmniLink 2-Way Splitter cable allows the user to connect up to two OmniLink products or to connect two separate OmniLink cable harnesses. The OmniLink cable allows for easy transmission and distribution of 12V and 5V Power, PWM, TACHO, and D-RGB signals. The cable features a black ribbon style for easy build integration and cable management. This cable will not double the current capacity, as it will remain 8.5A in total. The power load may be unequal due to the split.

OMNILINK OUTPUT ADAPTERS:

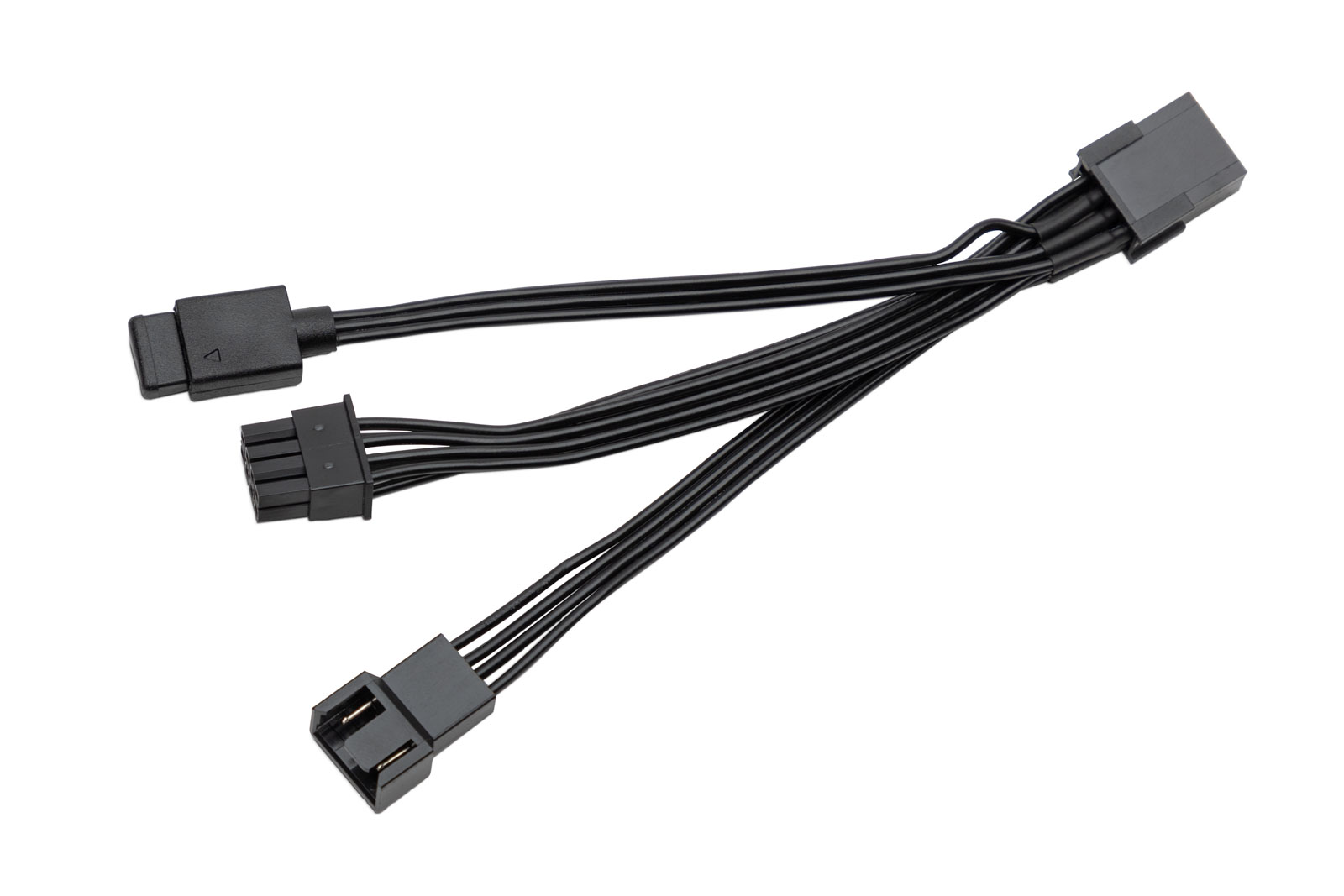

EK-Loop OmniLink Fan PWM D-RGB Signal Splitter Cable

EK-Loop OmniLink Fan PWM D-RGB Signal Splitter cable allows users to connect D-RGB LED devices and 4-Pin PWM fans to the OmniLink cable harness using the standard connectors. It is primarily used for connecting legacy fans into the omnilink system. The OmniLink cable allows for easy transmission and distribution of +12V and +5V Power, PWM, TACHO, and D-RGB signals. The cable features a black ribbon style for easy build integration and cable management.

Molex Micro-Fit 3.0 8-Pin Male Connector to:

• 1x Molex Micro-Fit 3.0 8-Pin Female Connector
• 1x 4-Pin PWM 1 Fan Male Connector (Ground, +12V, TACHO, PWM)
• 1x 3-Pin D-RGB LED Female Connector (+5V, Data, Blocked, Ground)

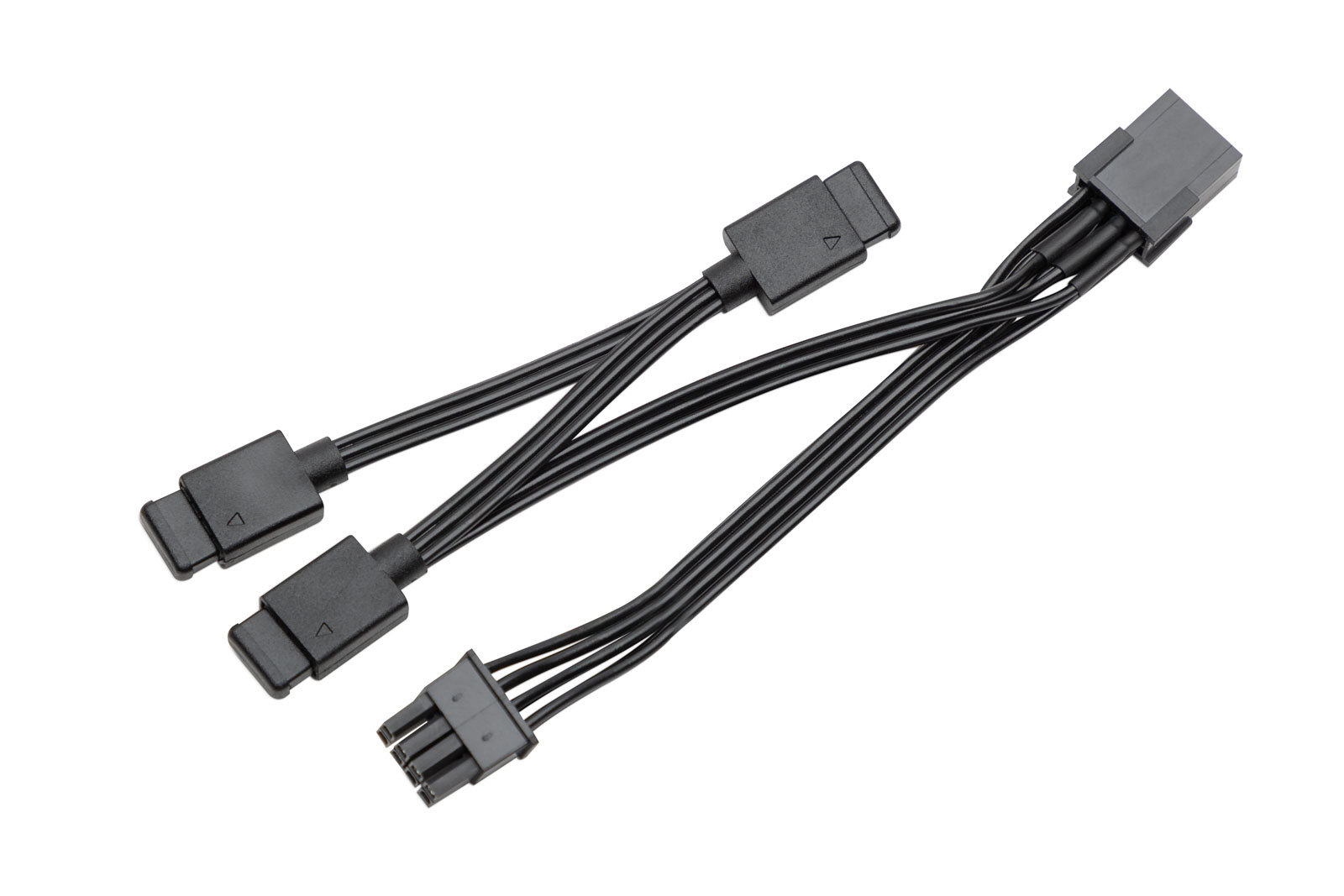

EK-Loop OmniLink D-RGB 3-Way Signal Splitter Cable

The EK-Loop OmniLink D-RGB 3-Way Signal Splitter cable allows the user to connect and power up to three D-RGB LED devices and continue the OmniLink cable harness. The OmniLink cable allows for easy transmission and distribution of 12V and 5V Power, PWM, TACHO, and D-RGB signals. The cable features a black ribbon style for easy build integration and cable management. Suitable for adding EK D-RGB water blocks, reservoirs, distribution plates, and other D-RGB LED products to an OmniLink cable harness.

Molex Micro-Fit 3.0 8-Pin Male Connector to:

• 1x Molex Micro-Fit 3.0 8-Pin Female Connector
• 3x 3-Pin D-RGB LED Female Connector (+5V, Data, Blocked, Ground)

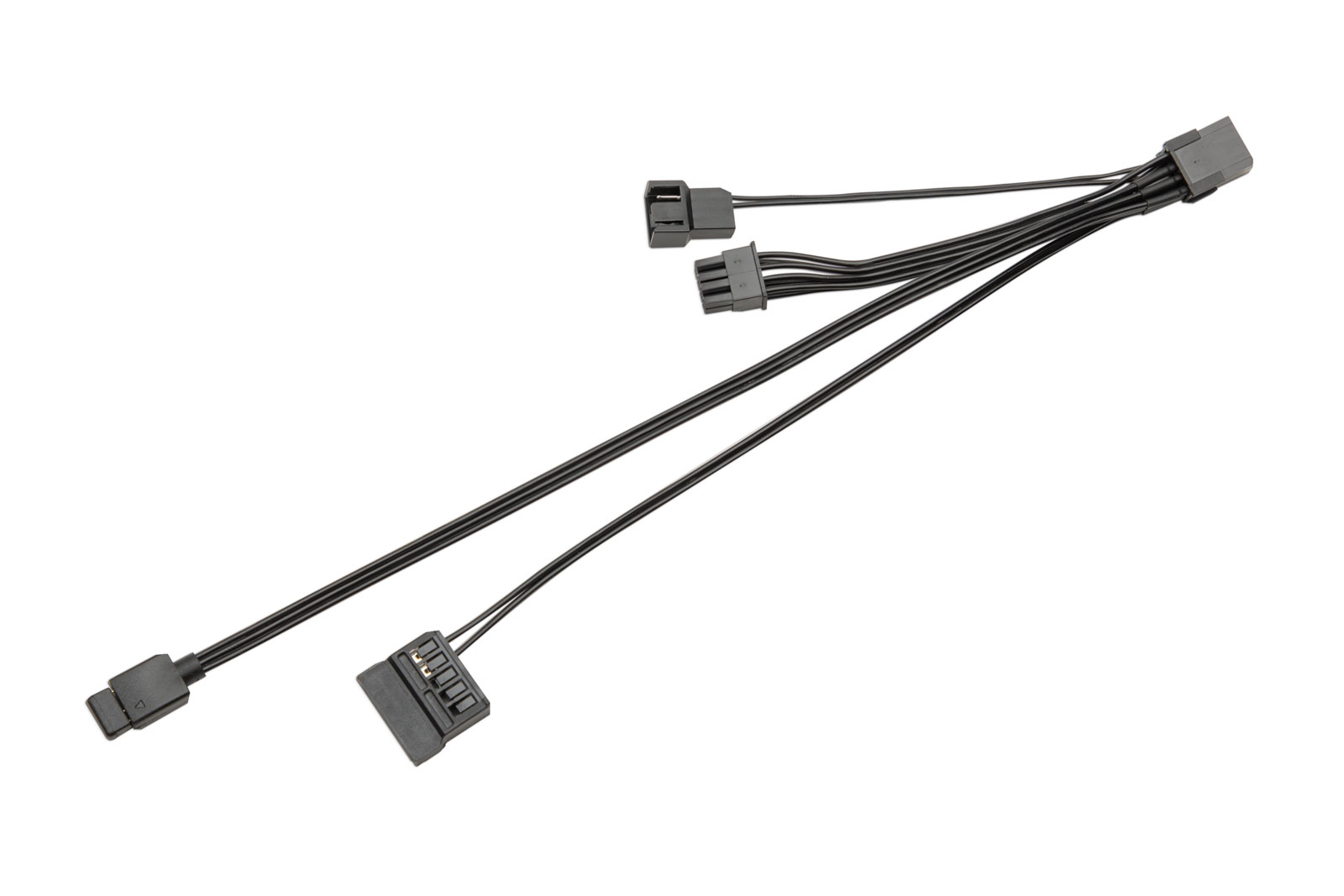

EK-Loop OmniLink Pump SATA PWM D-RGB Signal Splitter Cable

EK-Loop OmniLink Pump SATA PWM D-RGB Signal Splitter cable allows users to connect D-RGB LED devices, SATA-powered pumps, and 4-Pin PWM fans to the OmniLink cable harness using the standard connectors. The OmniLink cable allows for easy transmission and distribution of +12V and +5V Power, PWM, TACHO, and D-RGB signals. The cable features a black ribbon style for easy build integration and cable management.

Molex Micro-Fit 3.0 8-Pin Male Connector to:

• 1x Molex Micro-Fit 3.0 8-Pin Female Connector
• 1x SATA Power Female Connector (Ground, +12V)
• 1x 4-Pin PWM 2 Fan Male Connector (Ground, +12V, TACHO, PWM)
• 1x 3-Pin D-RGB LED Female Connector (+5V, Data, Blocked, Ground)

Only the PWM 2 signal is accessible with this OmniLink splitter cable, which is intended to control the pump speed. For the PWM2 signal to work, the EK-Loop OmniLink 6-Pin Power (dual PWM) cable must also be used. It’s primarily used for adding a distro plate/combo into omnilink and consolidating all of the connectors into the harness.

Availability and Pricing

All EK-OmniLink solutions are available for purchase through the EK Webshop and Partner Reseller Network. In the table below, you can find the manufacturer-suggested retail price (MSRP), VAT included.
