EK®, the leading computer cooling solutions provider, is introducing the EK-Pro GPU WB RTX 4090 WindForce V2 – Nickel + Inox, an enterprise-grade full-cover water block designed specifically for the NVIDIA® GeForce RTX™ 4090 WindForce V2 24G graphics card.

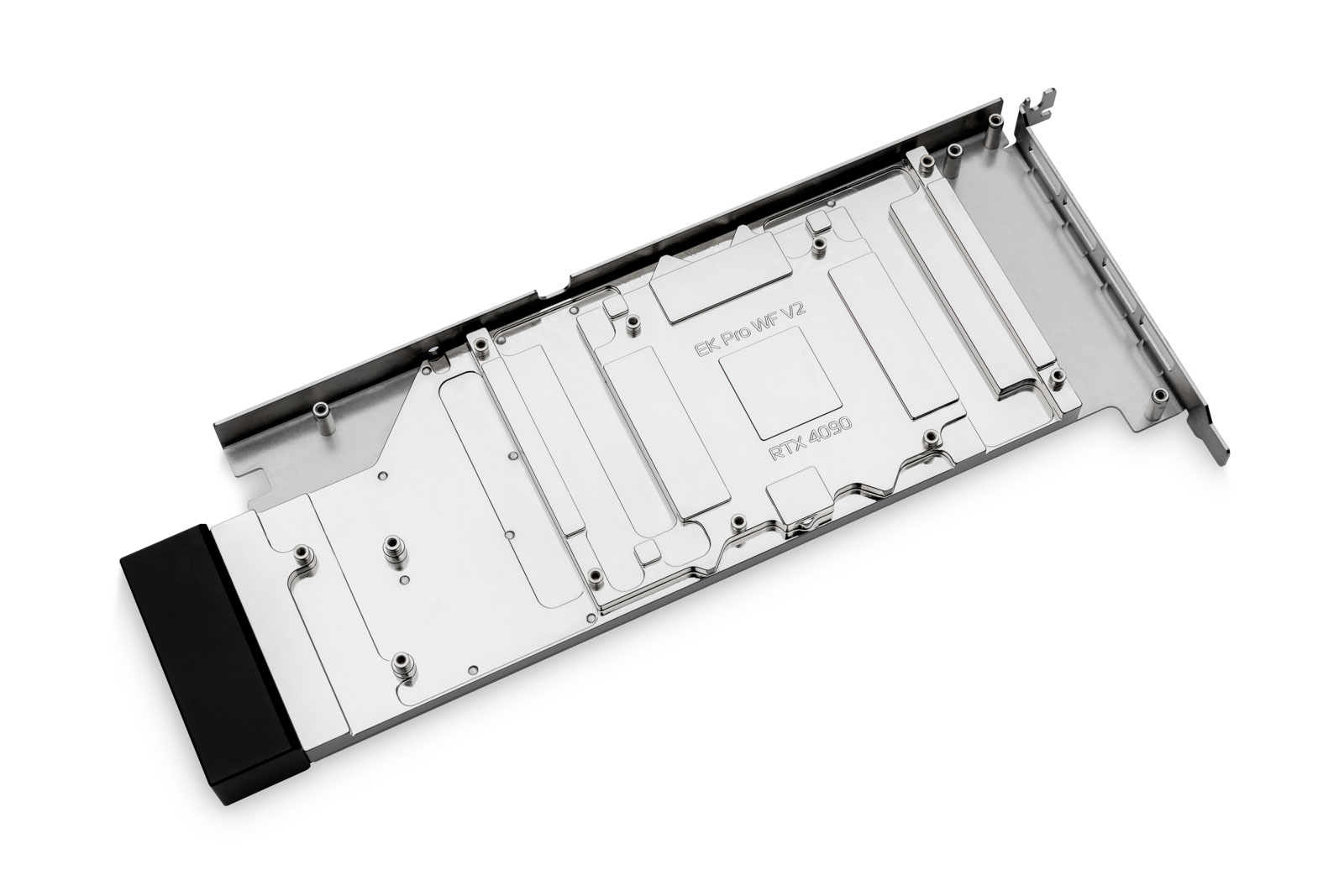

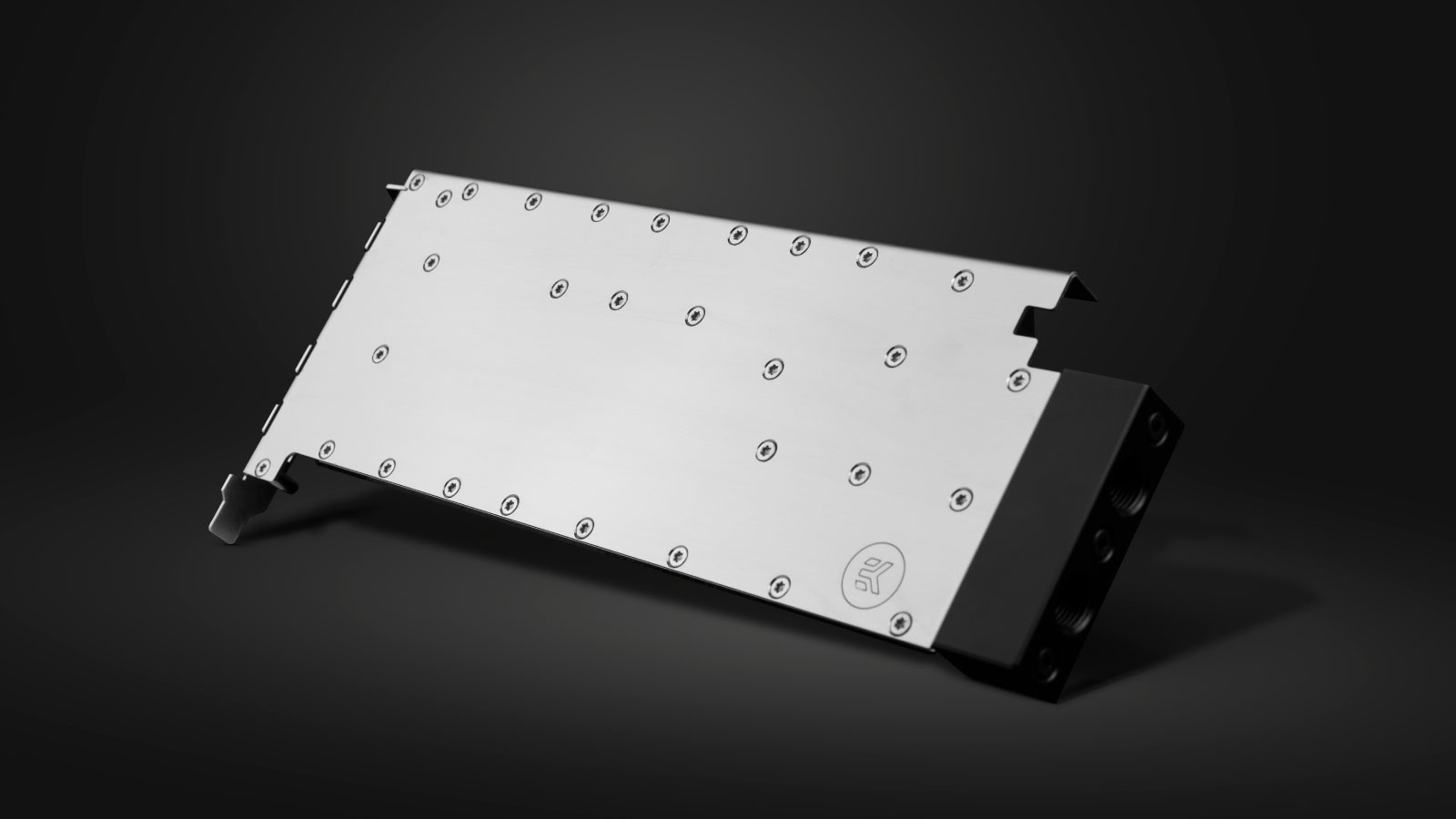

The water block features a CNC-machined nickel-plated copper base paired with a precision laser-cut stainless-steel top, ensuring both durability and superior liquid cooling efficiency. It fully covers and cools the GPU, VRAM, and VRM components by directing the cooling liquid over these essential areas to efficiently dissipate heat.

Open Split-Flow Design

Utilizing the Open Split-Flow cooling engine design, this water block delivers exceptional cooling performance. It boasts minimal hydraulic flow restriction, making it compatible with lower-powered water pumps or those running at reduced speeds without compromising efficiency. The jet plate and fin structure geometry are meticulously optimized to ensure uniform flow distribution with minimal loss, achieving optimal cooling efficiency. Remarkably, this water block maintains outstanding cooling performance even when the water flow is reversed, consistently surpassing expectations. It also features a single-slot I/O bracket.

Machining Composition of EK-Pro Water Blocks

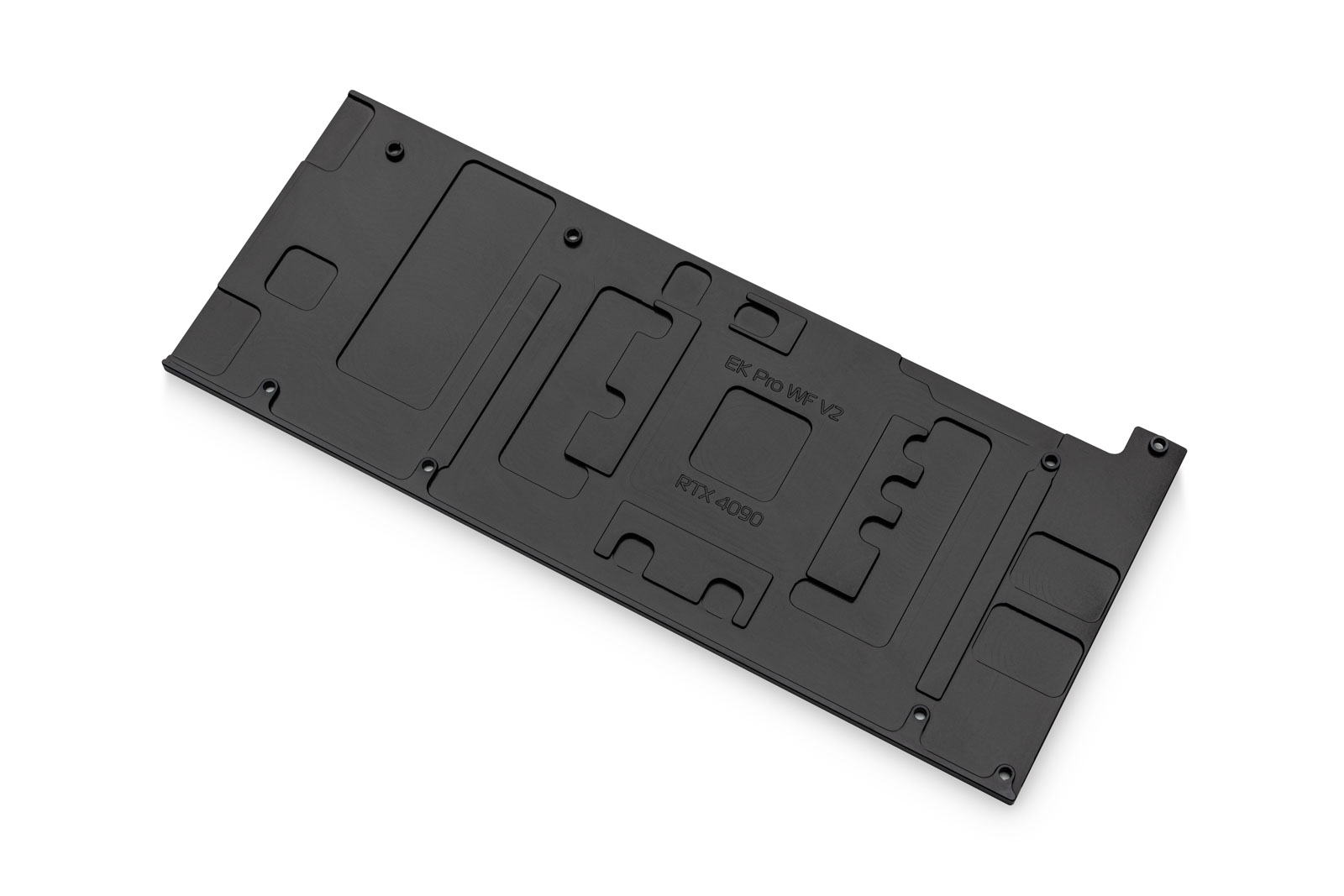

The EK-Pro GPU WB RTX 4090 WindForce V2 water block is specifically engineered to enhance integration and stability. It spans the entire length of the PCB and includes a black anodized aluminum retention backplate that improves structural rigidity while providing passive cooling for the backside of the PCB, effectively cooling both the VRAM and the VRM.

The connection terminal for G ¼” fittings is located on the front side of the water block, enabling optimal loop installation in restricted spaces. This feature makes it an excellent choice for high compute-density applications.

Compatibility

Compatibility-wise, the EK-Pro GPU WB RTX 4090 WindForce V2 – Nickel + Inox is compatible with the following GPU:

• NVIDIA® GeForce RTX™ 4090 WindForce V2 24G

For accurate compatibility information, it is recommended to use the EK Cooling Configurator, which is regularly updated to verify and add compatible graphics cards.

Availability and Pricing

The EK-Pro GPU WB RTX 4090 WindForce V2 – Nickel + Inox water block is available for order through the EK Webshop and partner resellers. The table below shows the manufacturer’s suggested retail price (MSRP), VAT included.
