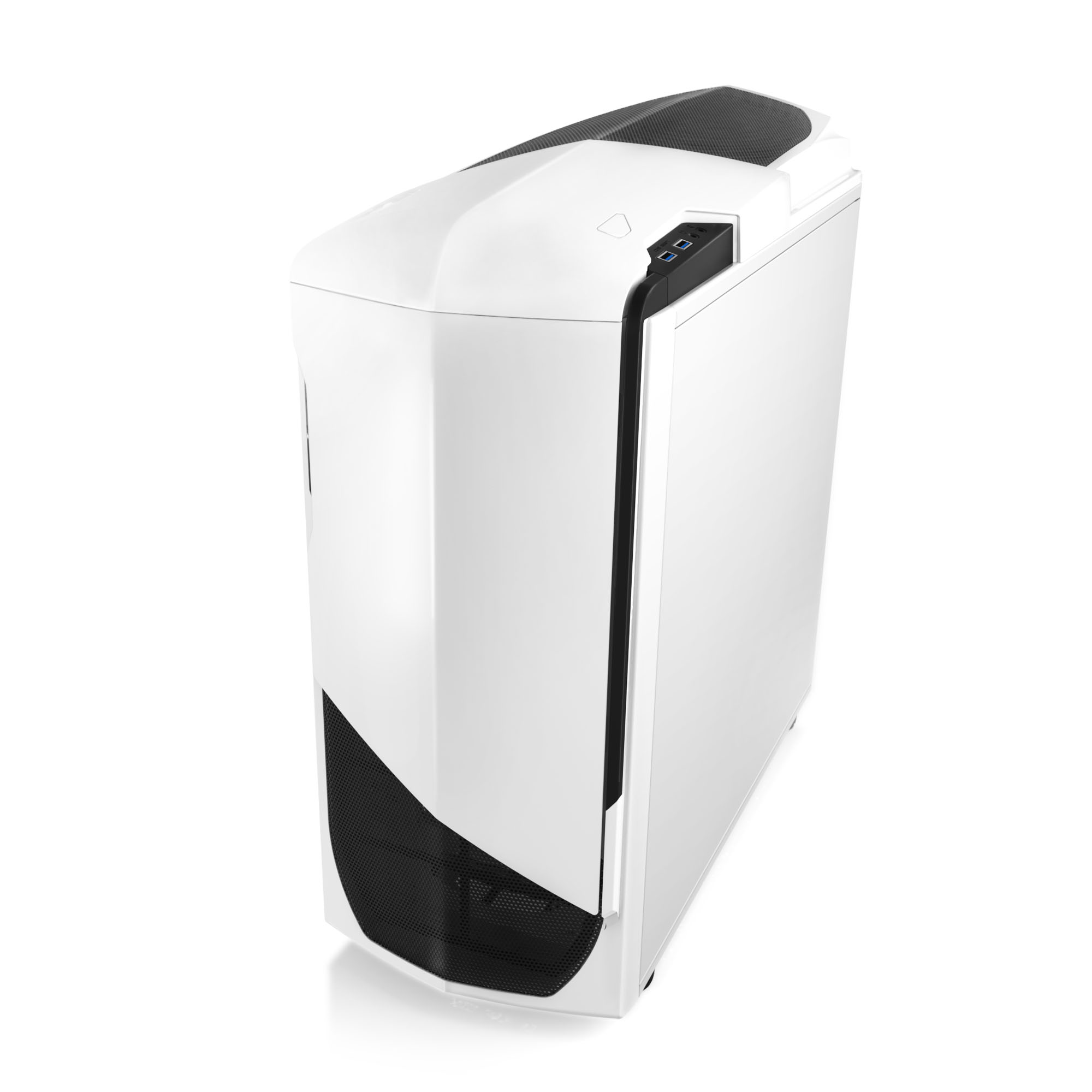

It's one day after H230 premiere and California manufacturer already surprise us with another new model. This time it’s Phantom 530 with characteristic sport design, which is available in three colors – white, black and red. Inside we can mount up to three watercooling radiators, one 240mm at the bottom, second 240mm at the front and third with a maximum size of 360mm at the top. NZXT Phantom supports latest motherboards including E-ATX and ATX form factor. Maximum length of graphic cards is 444mm, so we can build inside this case a real gaming monster.

Interesting news is a built-in hub for cooling fans, which is mounted near the cable management system. It allows us to easily organize work of maximum ten fans with a single button at the top panel. Behind the front door, which opens to the right, we can find three 5.25” bays for our Blu-Ray writer, watercooling reservoir or control panels.

On the back of NZXT Phantom 530 we can find embedded LEDs, which are very useful especially when we want to plug-in anything to our computer in the evening or at night and this lighting also gives the whole construction more sporty and gaming look.

Technical details:
Name: NZXT Phantom 530 with window
Colors: White / Black / Red
Manufacturer code:
CA-PH530-W1 White
CA-PH530-B1 Black
CA-PH530-R1 Red
EAN code: 5060301690824, 5060301690831, 5060301690893
Dimensions: 235mm x 572mm x 543mm (WxHxD)
Weight: 10.5 kg
Material: Steel, ABS
Motherboard support: ATX, E-ATX, microATX, ITX
PSU support: ATX
Expansion slots: 8
Antidust filters: Yes
Preinstalled fans
- 1x 200mm (front)
- 1x 140mm (rear)
Fan bays:
- 2x 140mm / 2x 120mm / 1x 200mm (front)
- 1x 140mm / 1x 120mm (rear)
- 2x 120mm (bottom)
- 1x 140mm (side panel)
- 2x 200mm / 2x 140mm / 3x 120mm (top)
- 1x 120mm / 1x 140mm (interior)
Drive bays:
- 3x 5.25” (external)
- 6x 3.5” / 2.5” (internal)
- 1x 2.5” (internal, under motherboard tray)
I/O Panel:
- 2x USB 3.0
- 1x Audio Out
- 1x Audio In
Watercooling holes: Yes
Maximum graphic card lenght: 310 / 444 mm (with HDD cage / without)
Maximum CPU cooler height: 182mm
Watercooling radiator bays:
- 1x 360mm (top)
- 1x 240mm (front)
- 1x 240mm (bottom)
Cable management system: Yes
Built in fan hub: Yes
Suggested reseller price: 119 Euro (incl. VAT)

SOURCE : Caseking.de
