THE MACHO 120 SBM

The Macho 120 SBM keeps the same length we've seen with several other Macho models (130mm) but it's slightly shorter (150.15mm), thinner (86mm) and weighs considerably less (560g without the fan).

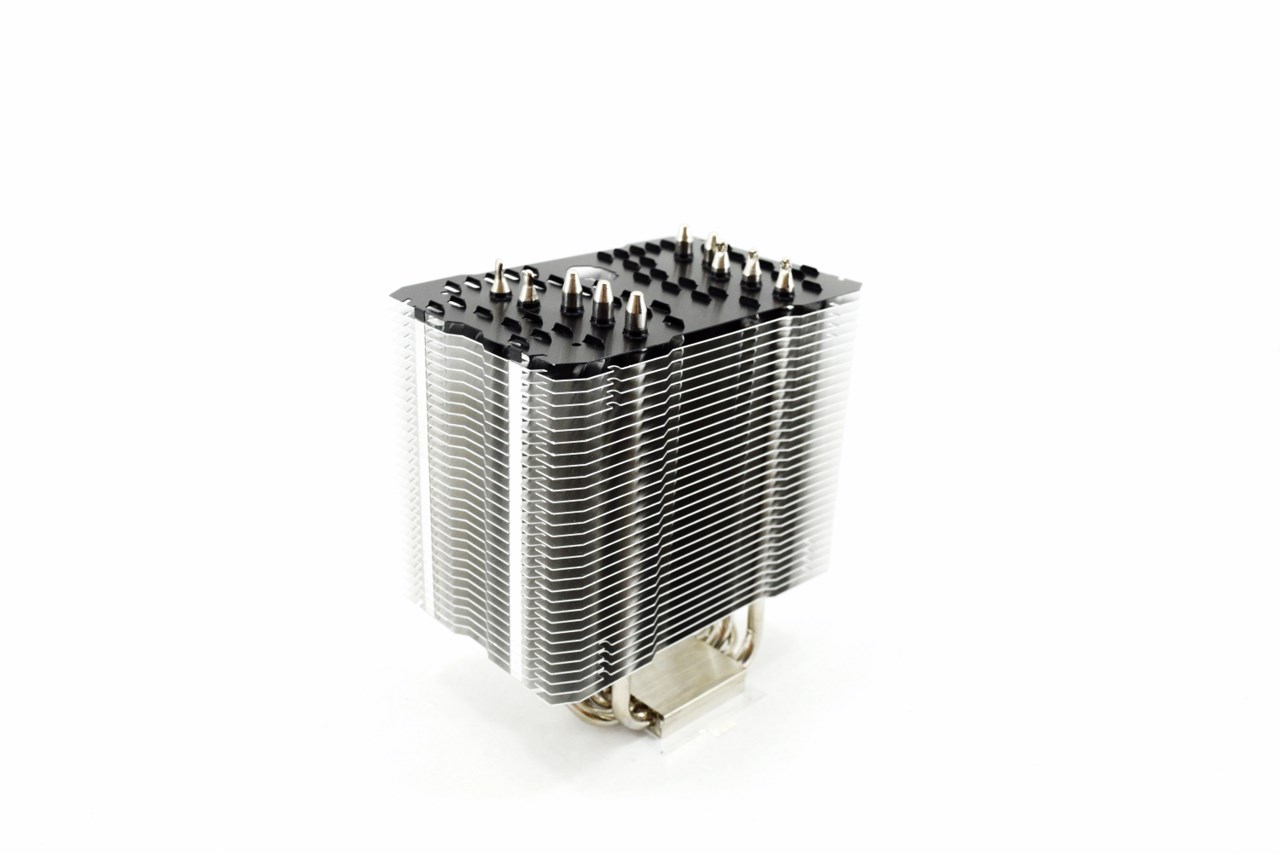

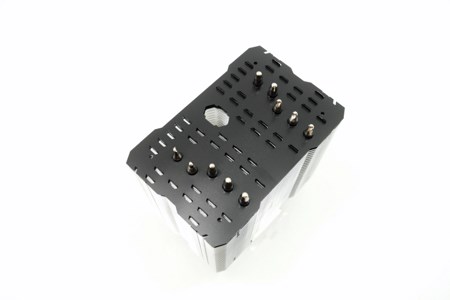

Just like with previous Macho models the top fin is painted black to improve the overall feeling of the heatsink.

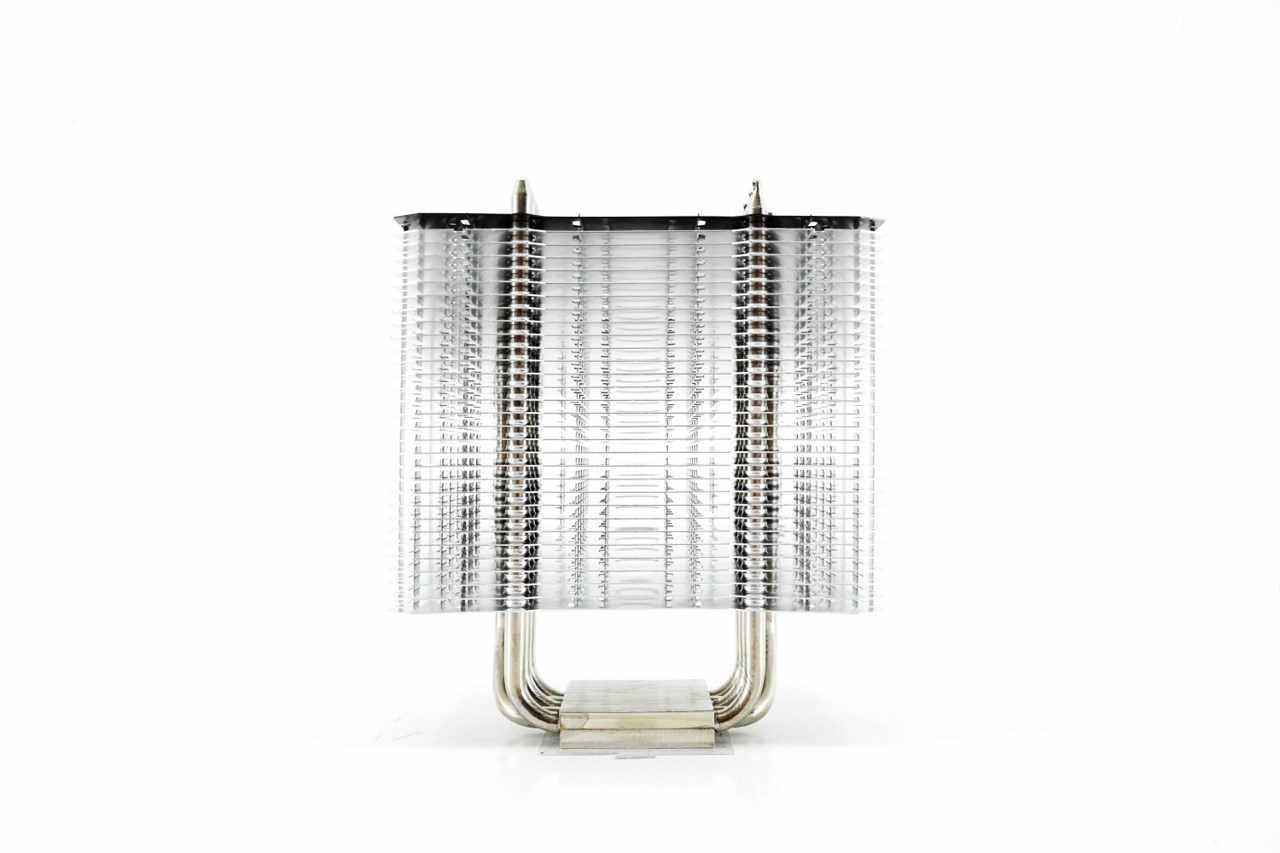

The heatsink of the Macho 120 SBM features a total of 31 aluminum fins.

Part of the fins is bend inwards to keep air from leaking to the sides.

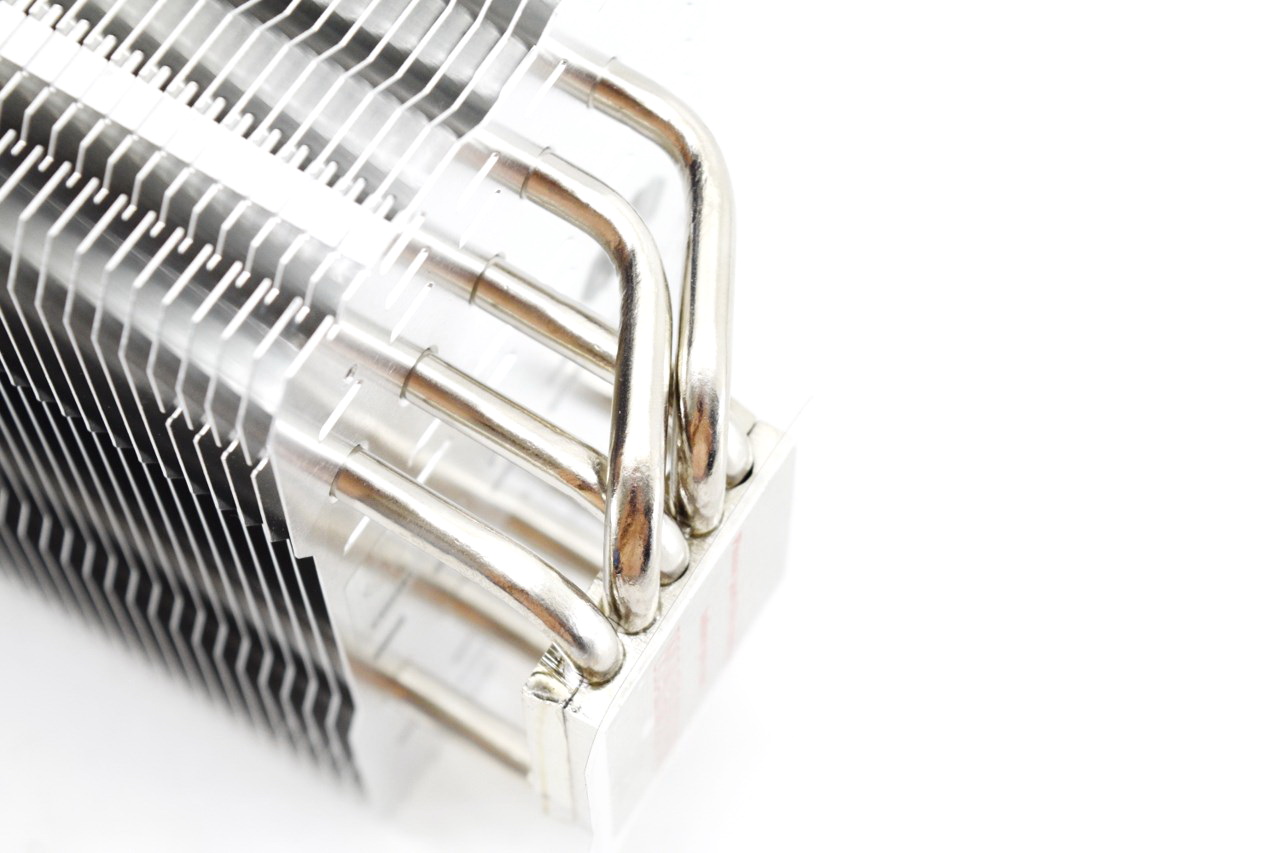

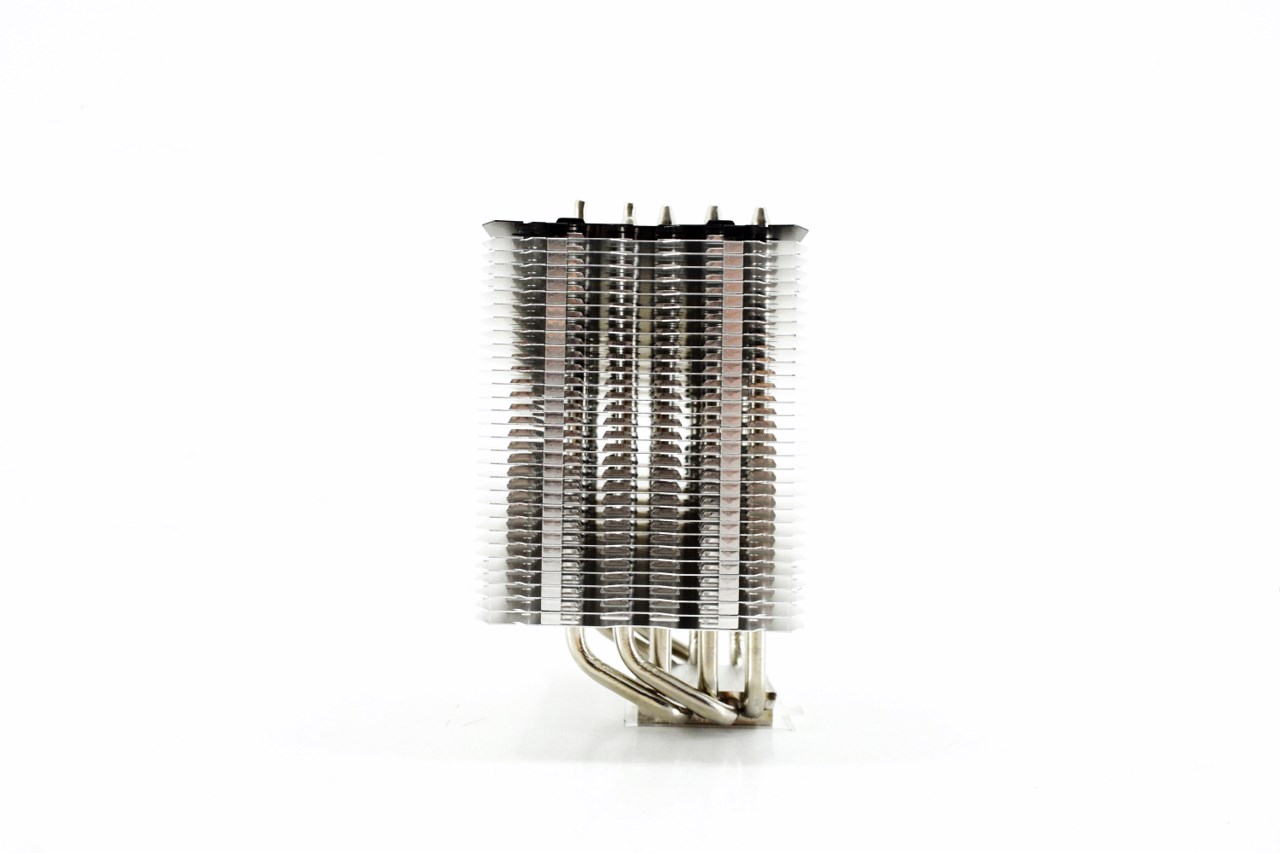

Just like most Macho coolers the five 6mm nickel plated copper heatpipes are placed in such a way (offset) to allow for zero clearance issues with memory modules and mainboard components.

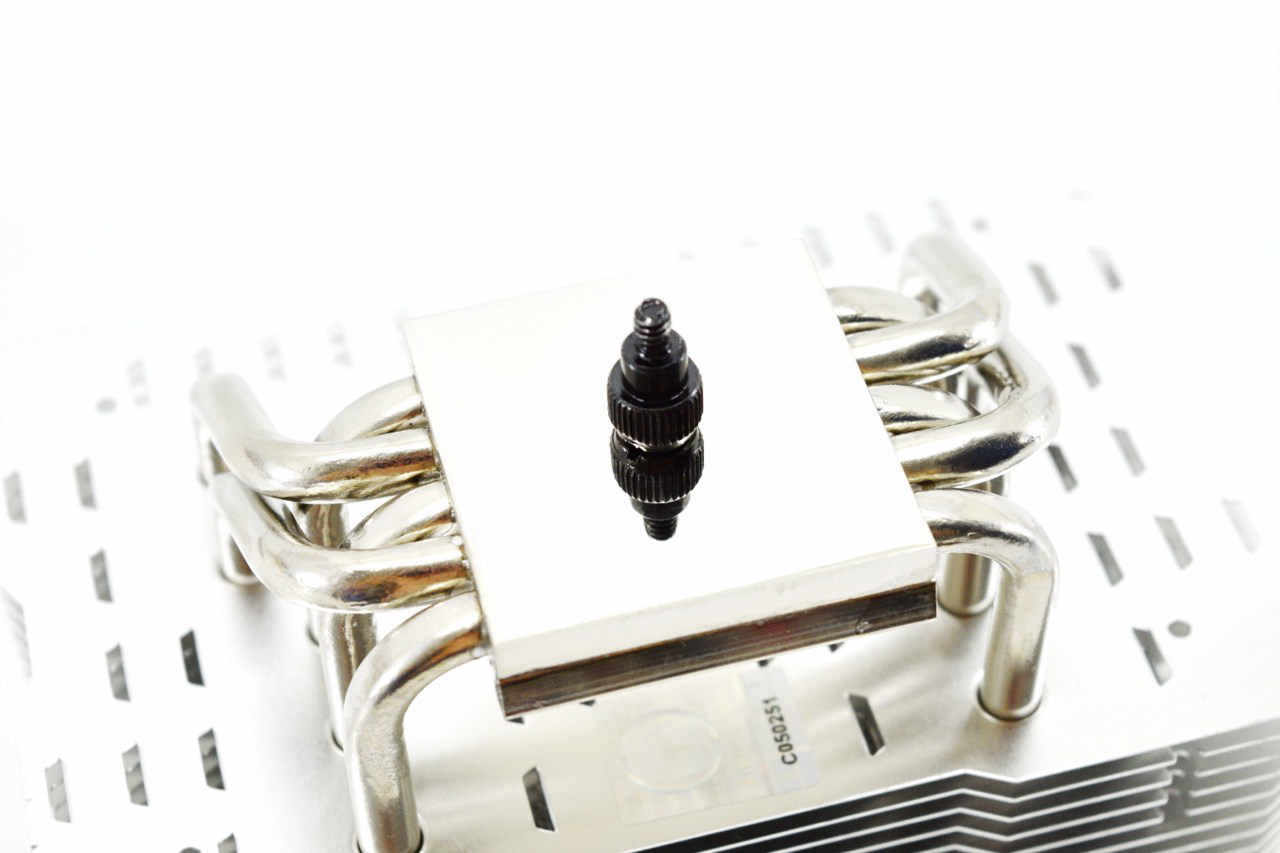

The pure copper nickel plated base has the same mirror-like finish we've learned to always expect from a Thermalright CPU cooler.

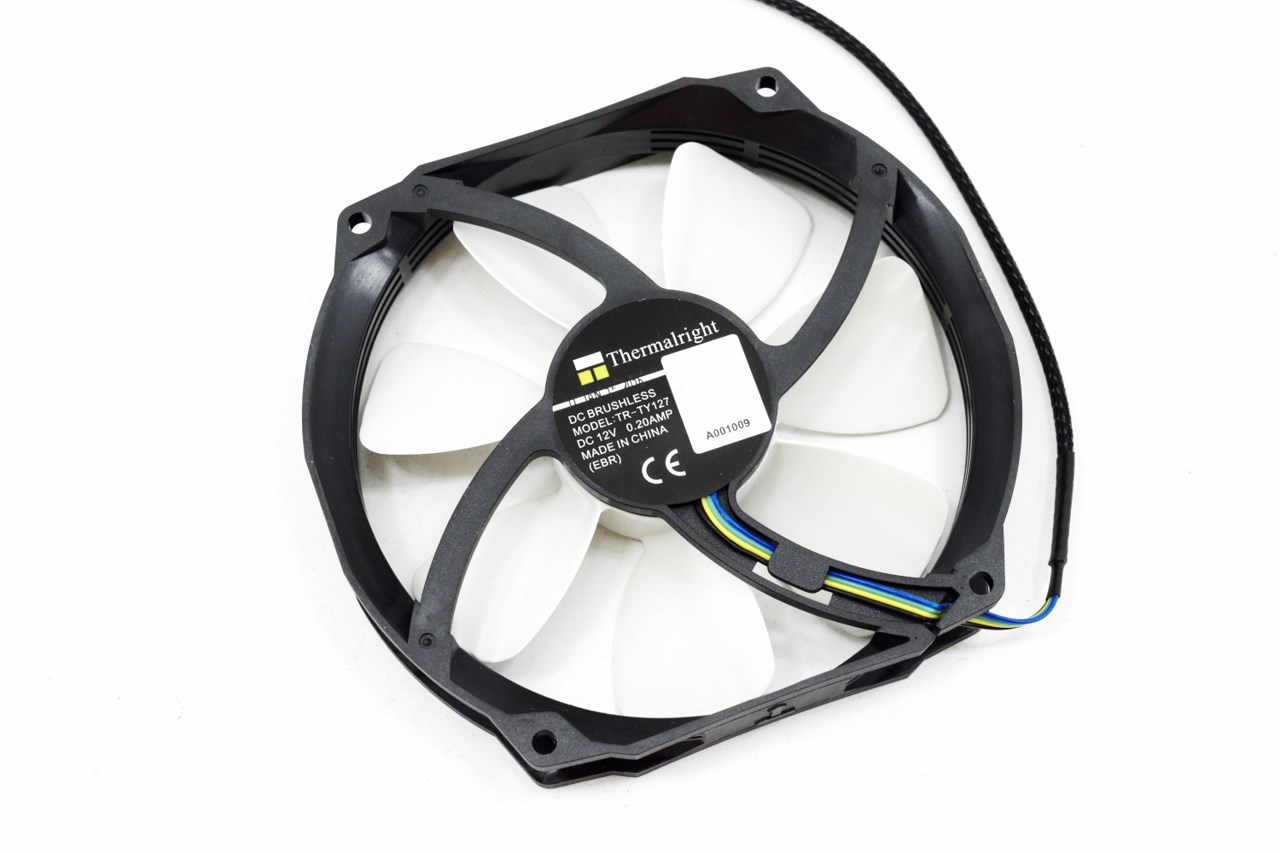

One TR-TY127 130mm PWM fan capable of speeds up to 1300RPM and airflow levels up to 55.81CFM with just 33.dBA of noise is bundled with the Macho 120 SBM.

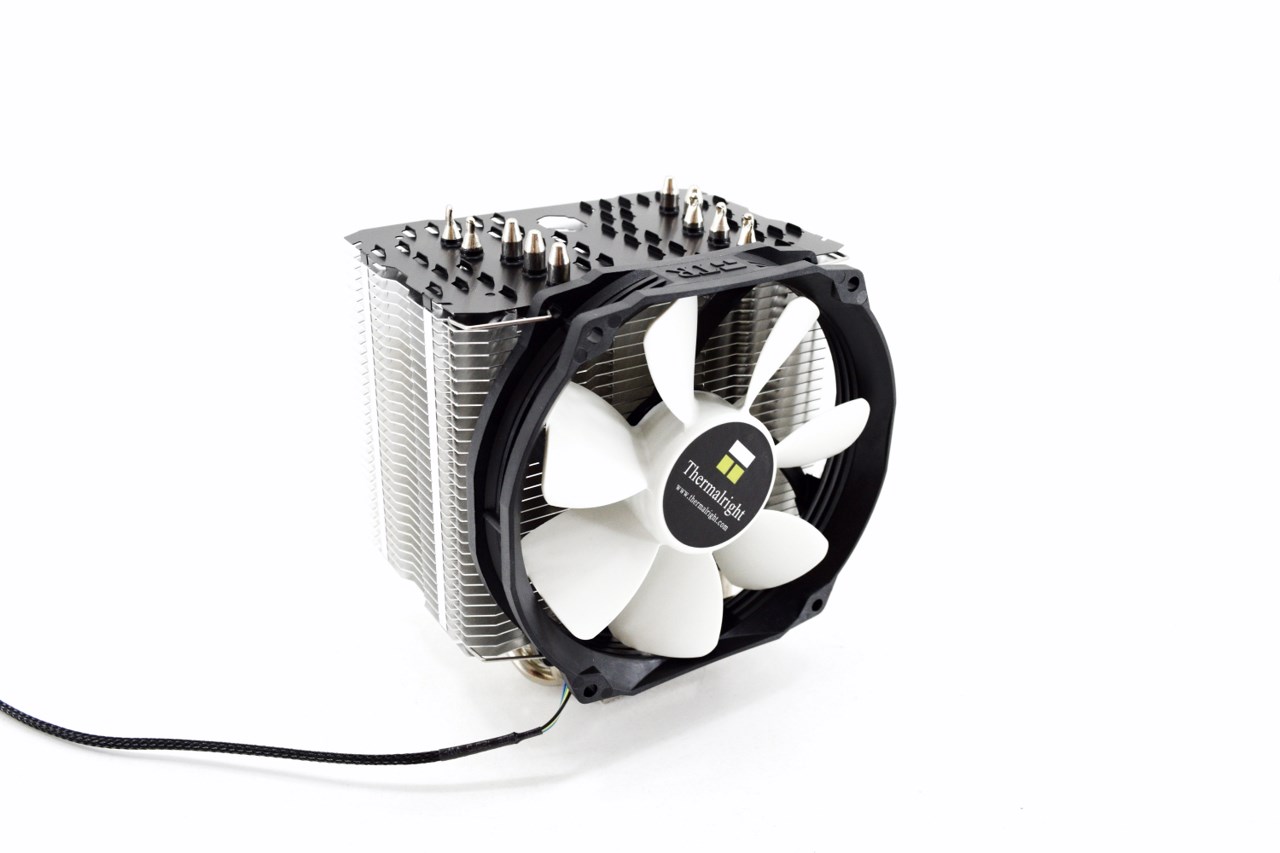

With the fan mounted the Macho 120 SMB measures 111mm in width and weighs 690g.
