INTRODUCTION

   Many people that i know often wonder the reason as to why most manufacturers are producing fully modular power supply units lately when its granted that people will be using the 20/24pin power cable either way. Well since this is considered one of the main/top features of such PSU models usually the reason stands out in both the manufacturers websites and the packages so we all know that they main reason they choose to do so is as a "failsafe" (future proof) just in case the power standard changes in the near future from the current 24pin one to something newer and better so instead of getting a new PSU and thus spending twice as much in the long run consumers will just be required to get a new power cable. A few months back with us we had the latest EDGE 550W fully modular PSU by Antec and since we were very satisfied with its performance we just had to take a look at the top of the line 750W model.

   Antec, Inc., is the leading global brand of high-performance computer components and accessories for the gaming, PC upgrade and Do-It-Yourself (DIY) markets. Founded in 1986, Antec is recognized as a pioneer in these industries and has maintained its position as a worldwide market leader and international provider of efficient, quiet, and reliable products. Antec has also achieved great success in the distribution channel, meeting the demands of quality-conscious system builders, VARs and integrators. Antec’s offering of enclosures includes a large range of cases, such as its technically advanced Performance One Series, cost-effective New Solution Series and server grade cases designed for the needs of all workstation and server markets. Antec’s products also include front line power supplies such as its TruePower Quattro Series and EarthWatts, the most environmentally friendly power supplies available. PC gamers are an increasingly significant consumer of performance components, and many Antec products are geared toward the gaming demographic, like the Nine Hundred, the premier gamer enclosure. Antec also offers a computing accessories line comprised of many original products, including its patented LED Fans and Notebook Cooling solutions. Antec is headquartered in Fremont, California, with additional offices in Rotterdam, The Netherlands, as well as in Germany, China and Taiwan. The company’s products are sold in more than 40 countries throughout the world. Please visit www.antec.com for more information.

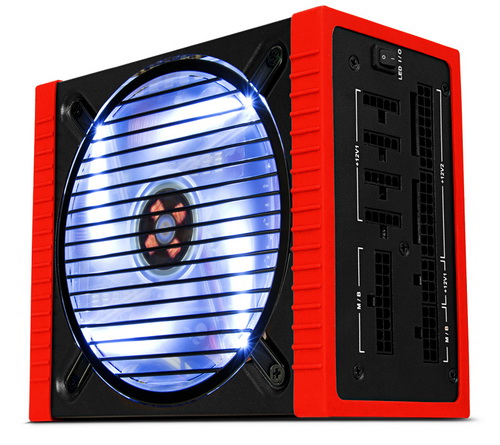

   Antec released the EDGE line of power supply units roughly 6 months ago and all of them including the 750W variant which we'll be testing today are 80 Plus Gold Certified and feature a fully modular design, 16pin power connectors (future-proof design), 135mm fluid-dynamic bearing fans, thermal managers, two high-current +12v rails, Japanese made capacitors, flat "stealth" black modular cables and an assortment of industrial grade protections (Antec calls this feature the CircuitShield) such as over current protection (OCP), over voltage protection (OVP), no load operation (NLO), short circuit protection (SCP), over power protection (OPP), over temperature protection (OTP) and surge & Inrush Protection (SIP). However unlike the 550W variant which had two +12v rails which could use up to 98.2% of its total power output with up to 30A each the two +12V rails of the 750W variant can use up to 99.2% with up to 40A each. Of course the entire EDGE line is covered by Antec’s 5 year warranty and since we all did like the 550W model it's time for us to see how the 750W variant does.
