THE ENDER-3 V3

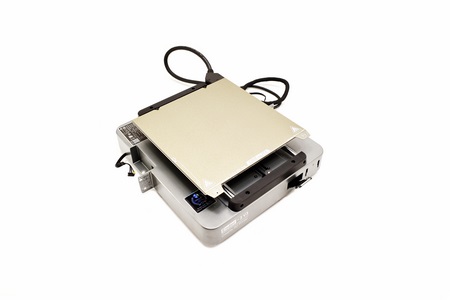

The lower part of the Ender-3 V3 is includes the mainboard, power supply unit, PEI flexible build plate, build plate motor and the touch screen mount with its signal cable.

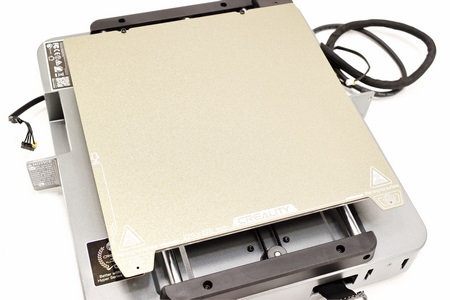

At 220x220x250mm the PEI flexible build plate may not be large but during the 2 months of testing I had no issues with it (on the contrary, it's probably the easiest I've used to date).

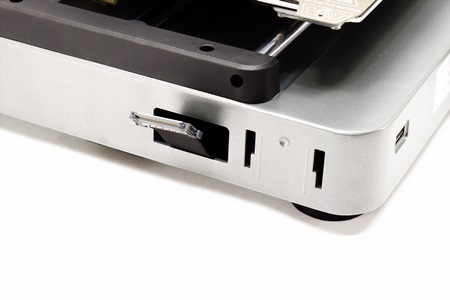

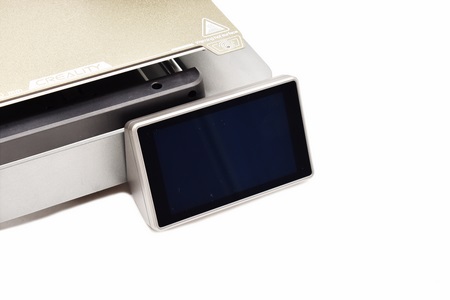

The 4.3" touch screen mount is located on the front right as seen above.

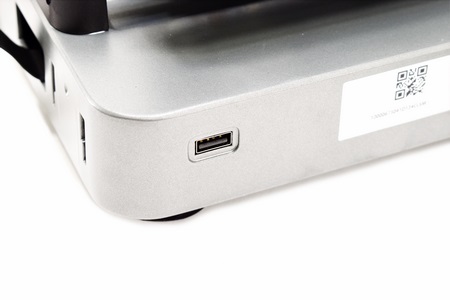

On the right side we also find a USB port.

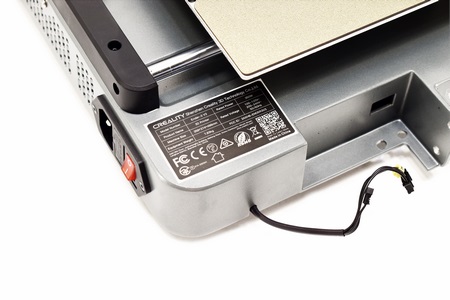

A sticker with the specifications of the Ender-3 V3 is located at the rear left.

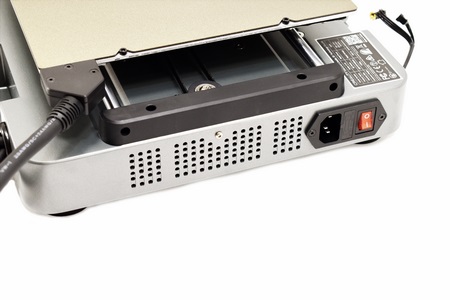

The 350W power supply unit is located at the rear right behind a perforated area.

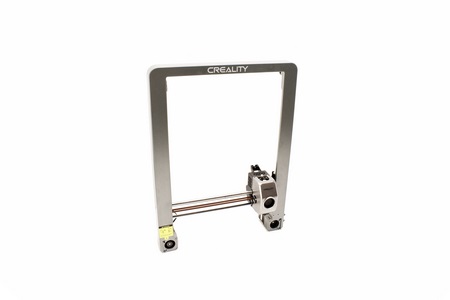

Creality has used ADC12 aluminum alloy for the entire 3D printer, this also includes the top end.

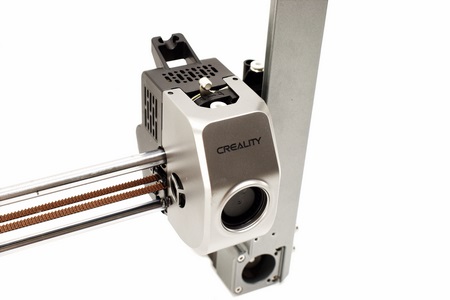

The direct extruder has the company logo at the front (illuminated) and a plastic cover.

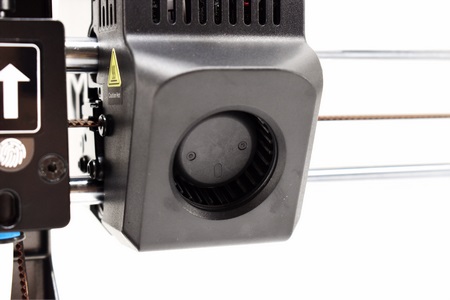

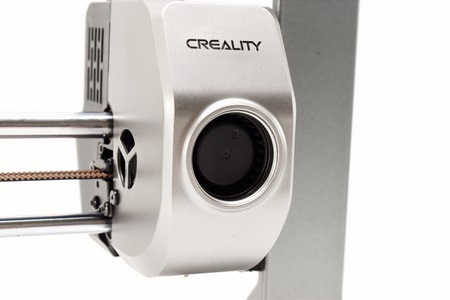

It also has two blowers one at the front and one at the rear.

Typically, the filament hole along with the lock/unlock button is located at the top.

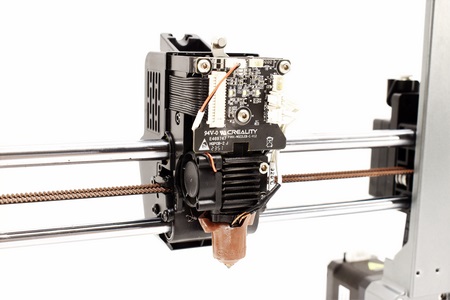

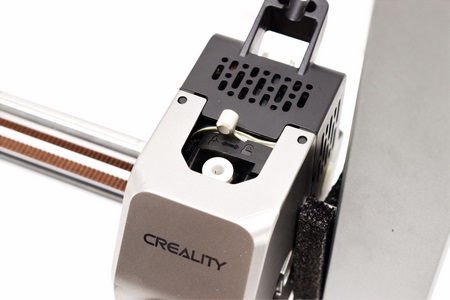

Removing the cover to reveal the interior is easy.

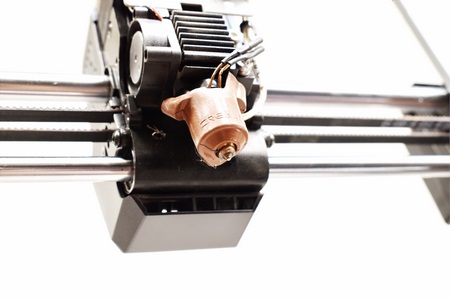

The tri-metal nozzle has a diameter of 0.4mm.

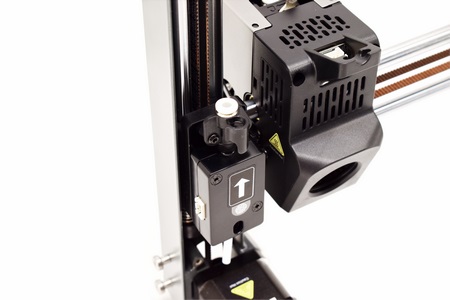

Creality has placed the filament sensor on the right side as seen above.

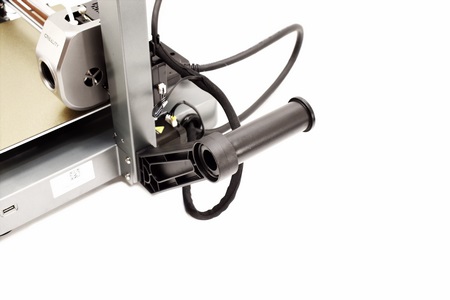

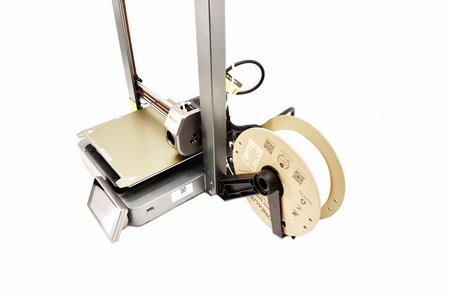

After the top mounting the 4.3" HD touch screen was the first thing to attach onto the Ender-3 V3  followed by the filament holder.

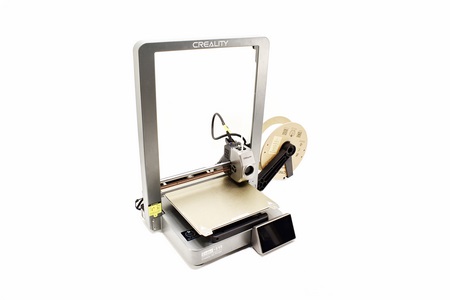

With the Ender-3 V3 assembled and a Hyper PLA filament mounted it's time for the setup procedure.
