THE MUGEN 5 BLACK RGB

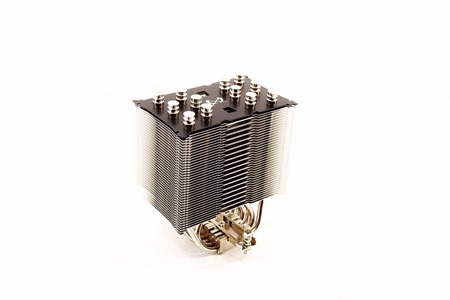

Just like the regular Mugen 5 the main body (heatsink) of the Mugen 5 Black RGB measures 130mm in width (136mm with the fan clips), 85mm in length and 154.5mm in height (weighs 761g).

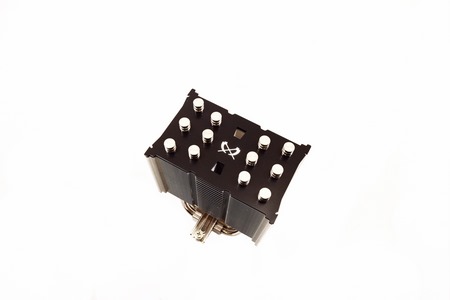

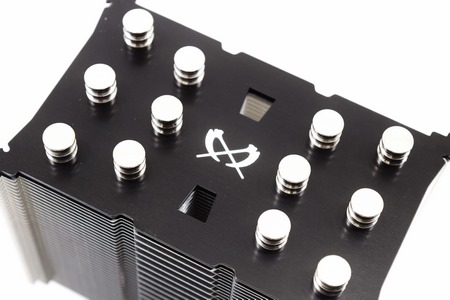

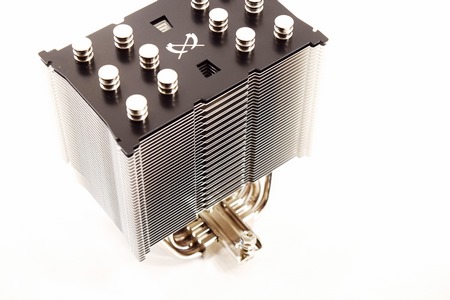

The top black anodized aluminum fin at the top is the only difference found on the heatsink.

As with previous models these two holes are where you will insert the bundled screwdriver in order to secure the H.P.M.S II mounting system.

Once again, we see that the heatsink is made by a grand total of 39 aluminum fins.

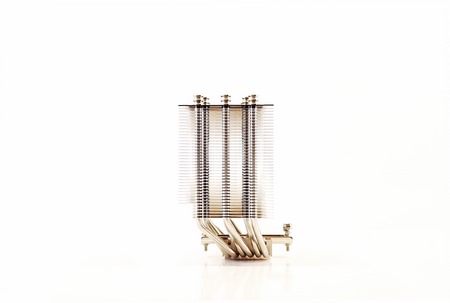

The asymmetric design of the cooler allows for easy installation and zero clearance issues with both mainboard components and memory modules.

According to Scythe the design of the fins should increase airflow inside the heatsink.

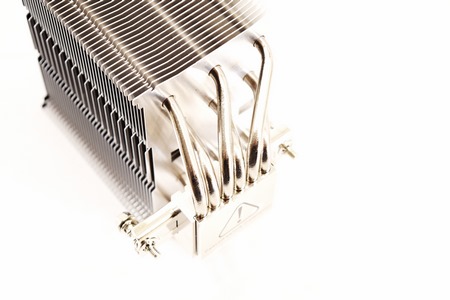

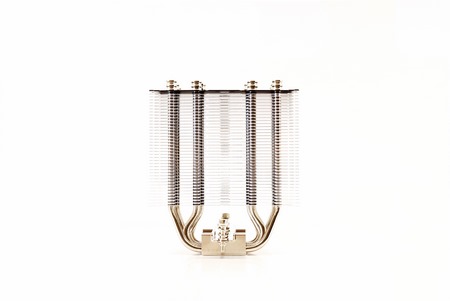

As with the original Mugen 5 the Mugen 5 Black RGB features a total of six 6mm nickel-plated copper heatpipes.

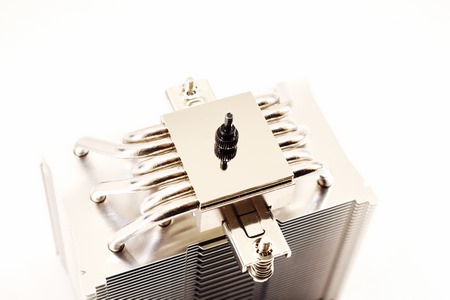

The large copper base features a mirror like finish (nickel plated) as you can see from the above picture.

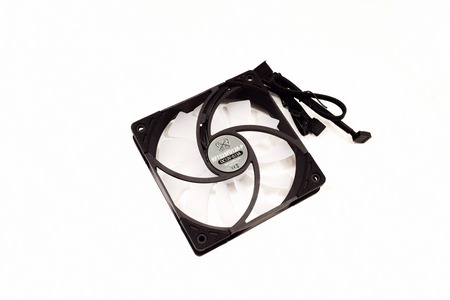

Scythe has used their brand new Kaze Flex 120 RGB PWM fan which can spin up to 1200RPM to produce up to 51.17CFM of airflow and 1.05mmH2O if static pressure with just 24.9dBA of noise.

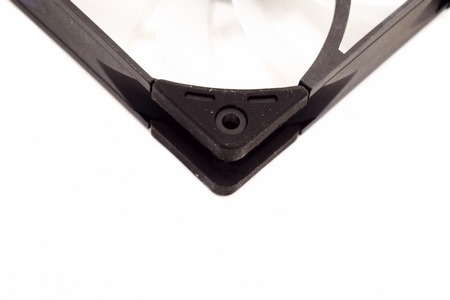

This fan also features rubber vibration absorbing pads on each of its 4 corners.

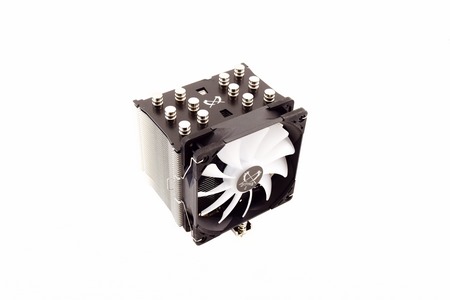

With the Kaze Flex 120 RGB PWM fan installed the Mugen 5 Black RGB now measures 110mm in length and weighs 890g.

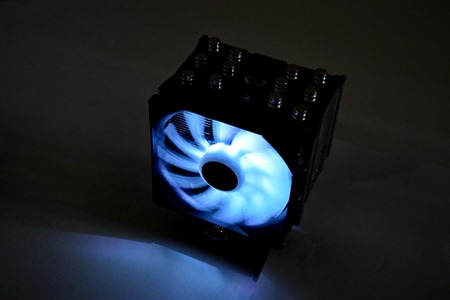

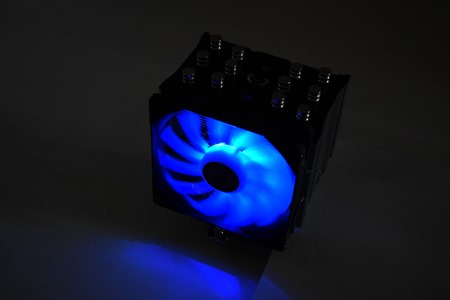

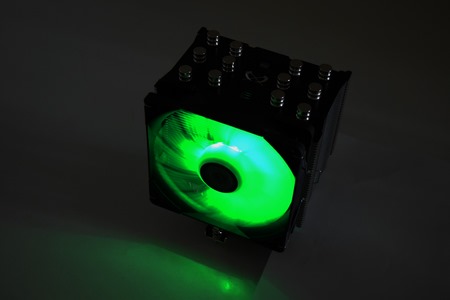

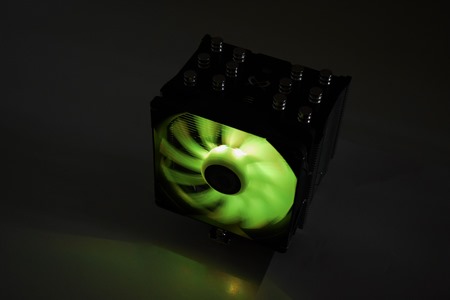

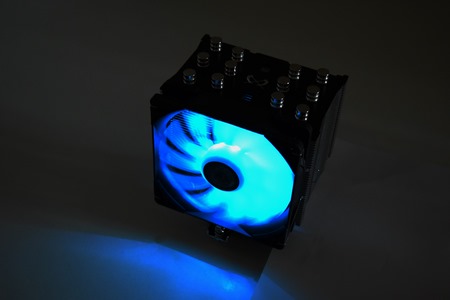

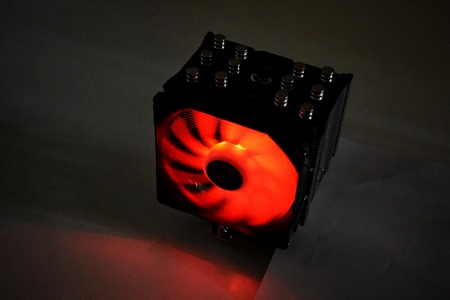

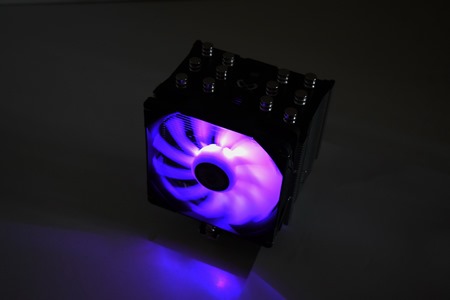

Here you can see some of the colors of the Kaze Flex 120 RGB PWM fan.
