THE MUGEN 5 TUF GAMING ALLIANCE

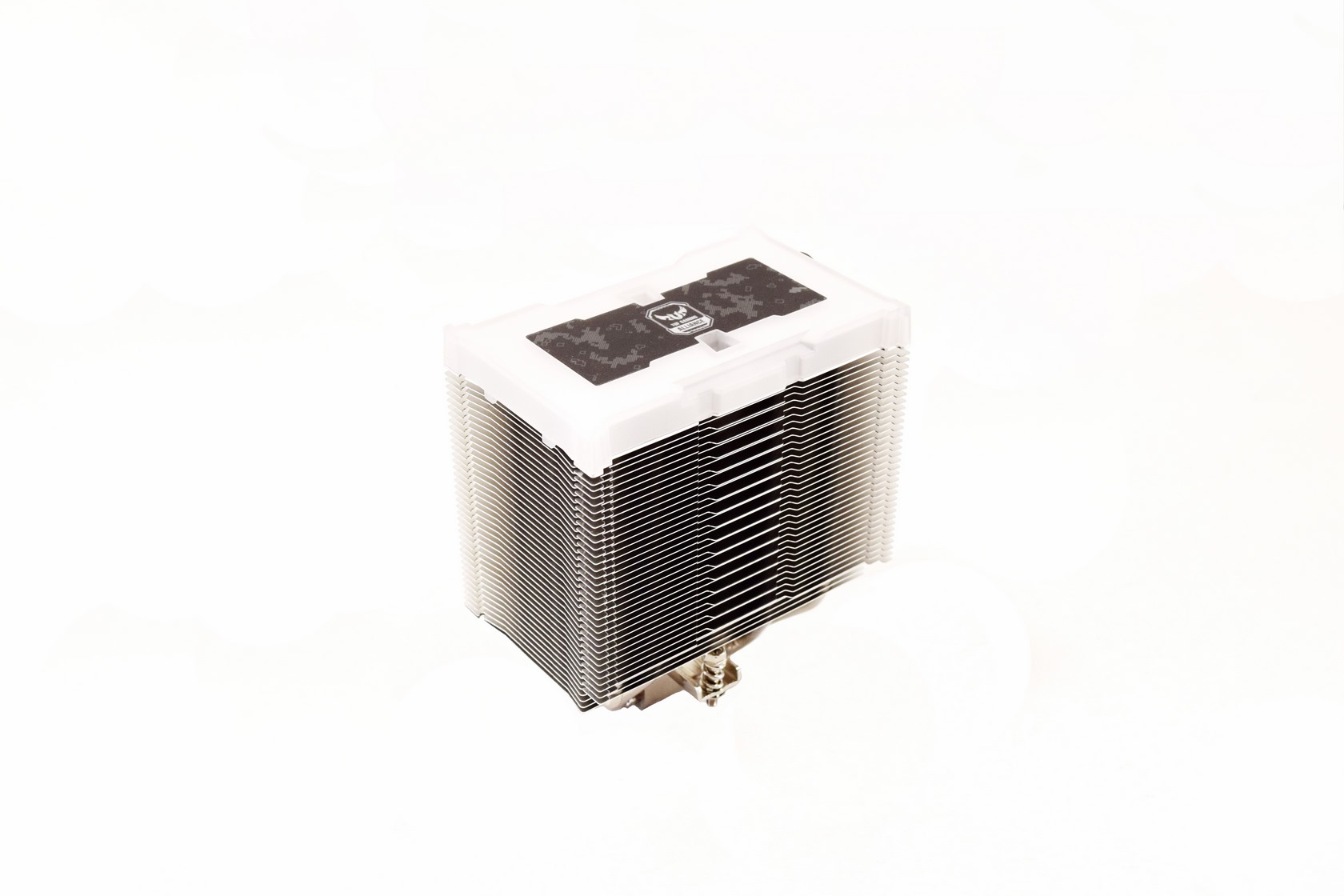

As mentioned earlier the Mugen 5 TUF Gaming Alliance model features an 157.5mm tall, 83.5mm long and 130mm wide heatsink.

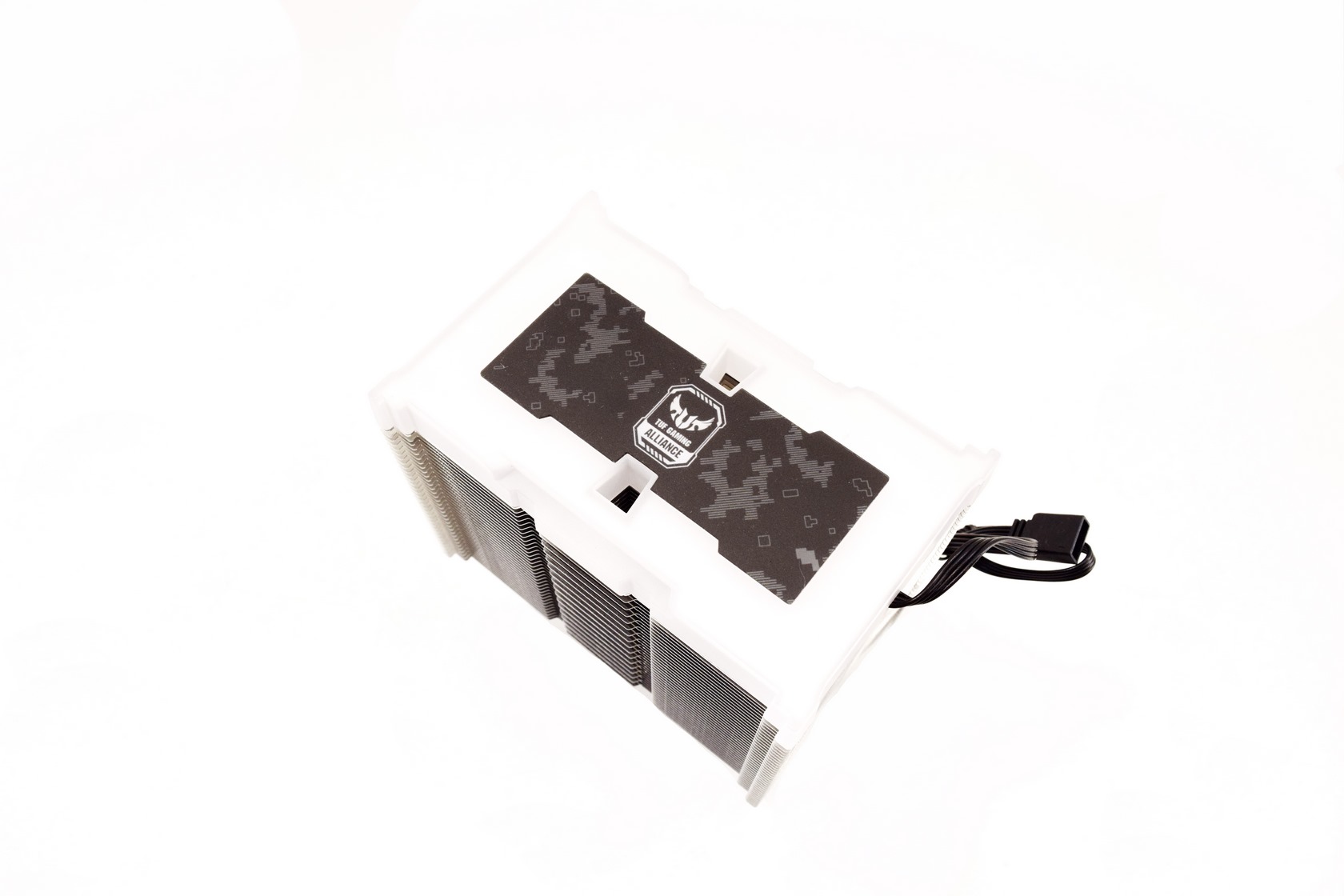

Scythe chose the same path as with the ARGB model so they've placed an RGB illuminated plastic cover at the top (the two holes at the top can be used with the bundled screwdriver to mount the cooler onto your mainboard).

Just like the other three Mugen 5 models to arrive in the lab the heatsink of the TUF model is also made out of 39 aluminum fins.

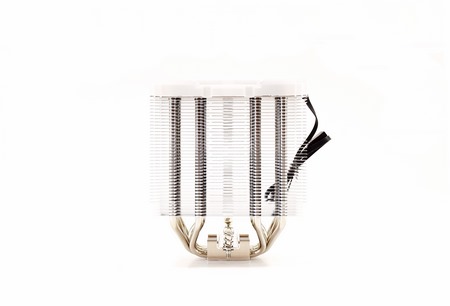

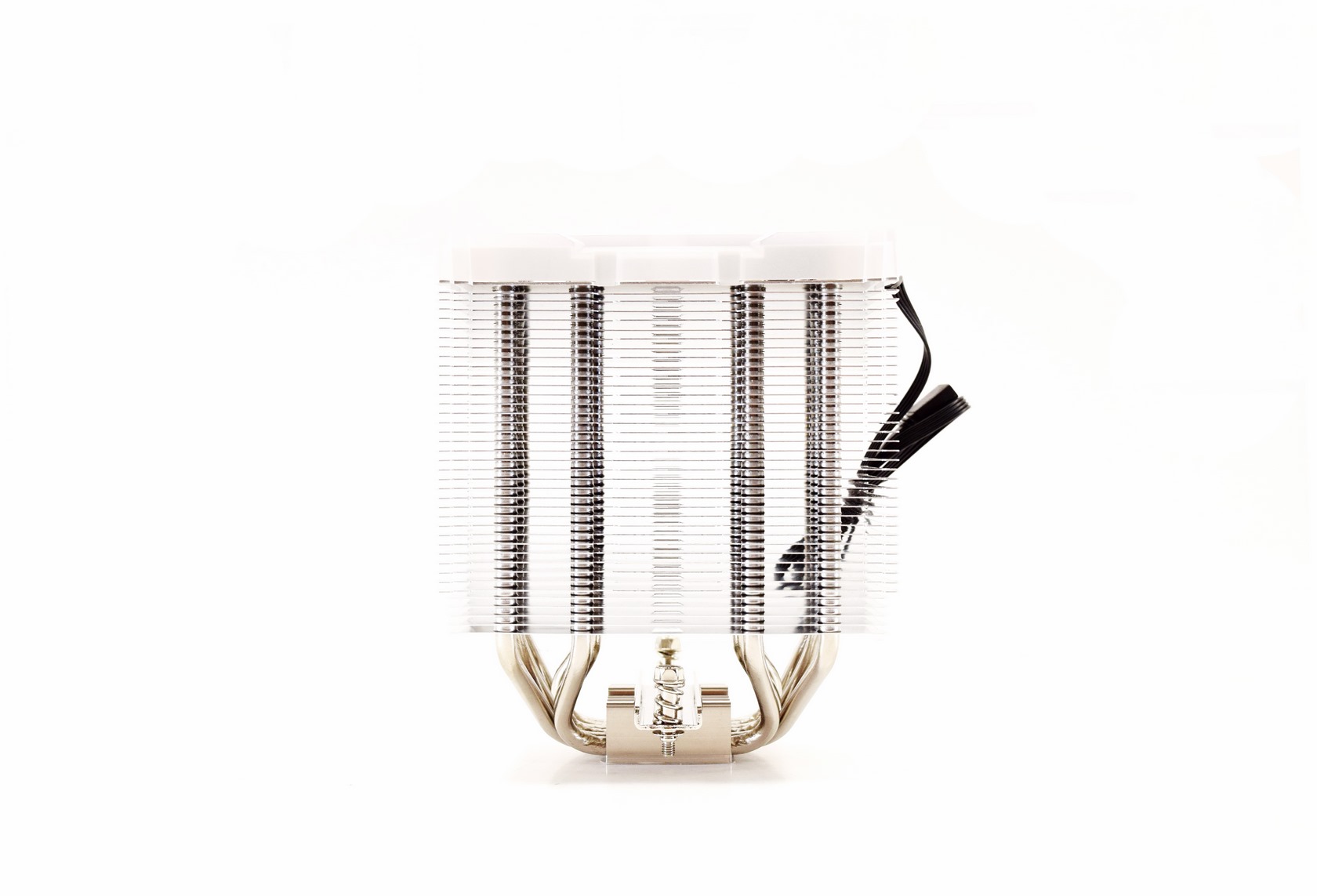

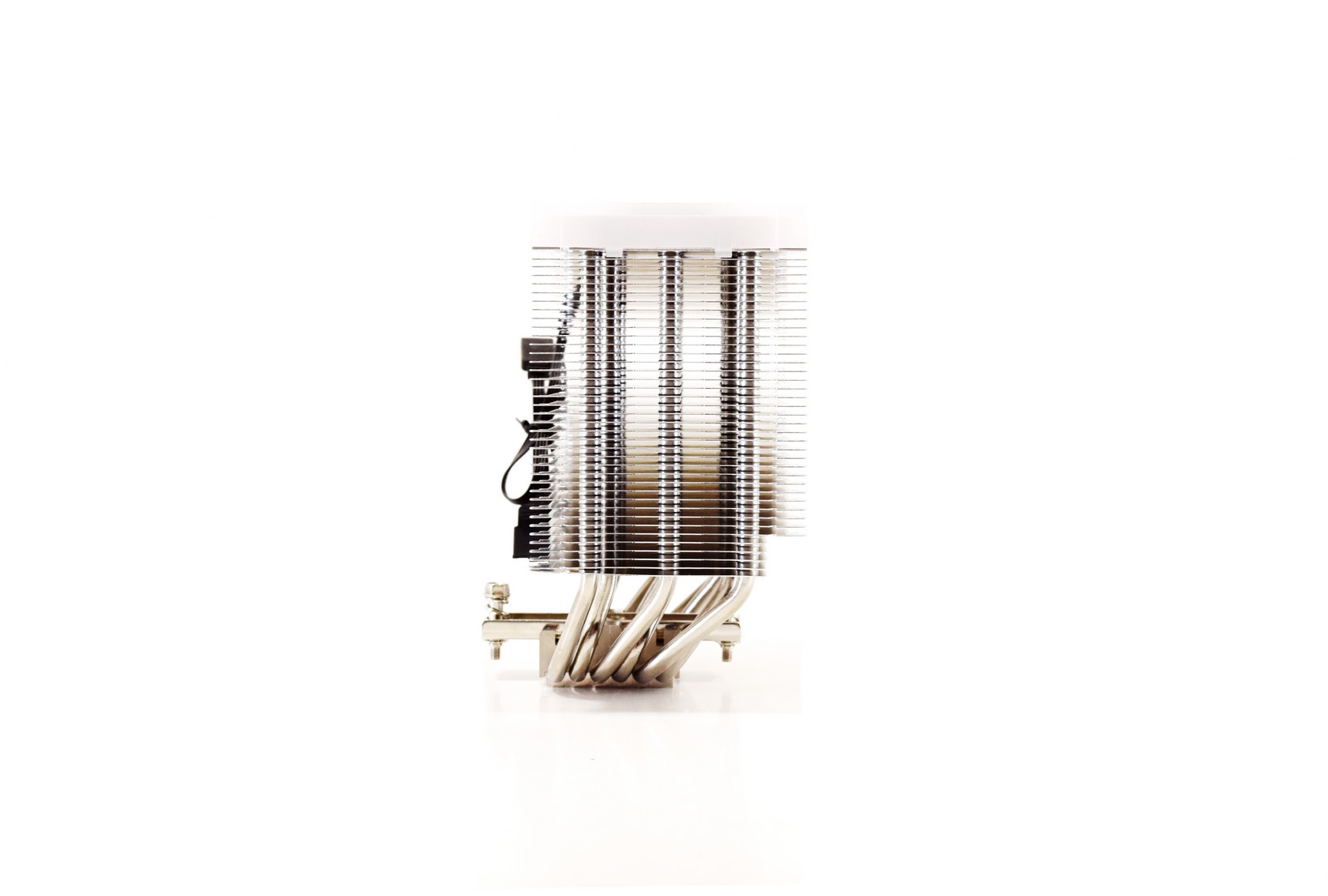

The asymmetric design of the heatsink not only allows for easier installation but also ensures zero clearance issues with both mainboard components and memory modules.

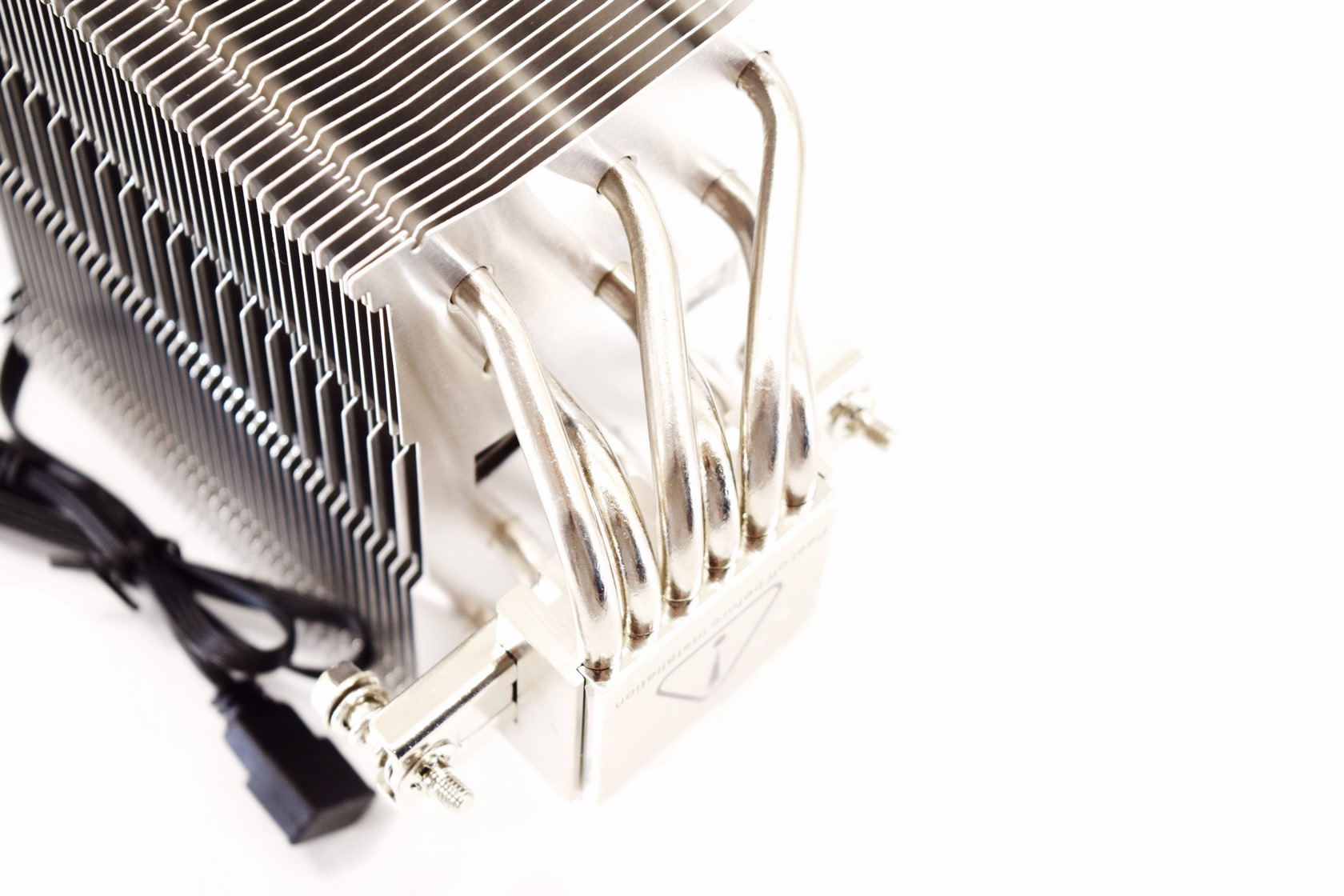

As usual the Mugen 5 TUF features a total of six 6mm nickel-plated copper heatpipes.

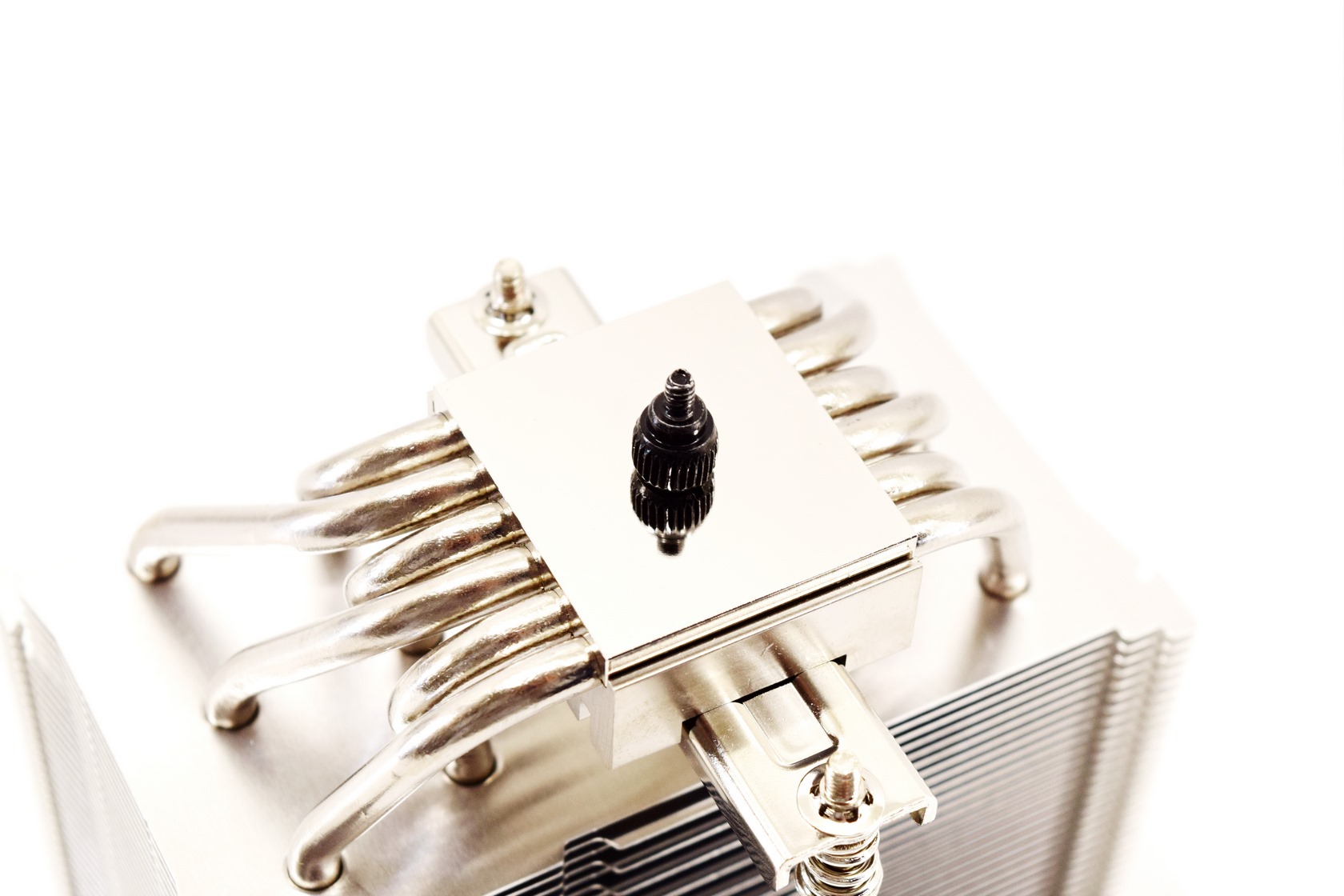

The large copper base features a mirror like finish (nickel plated) as you can see from the above picture.

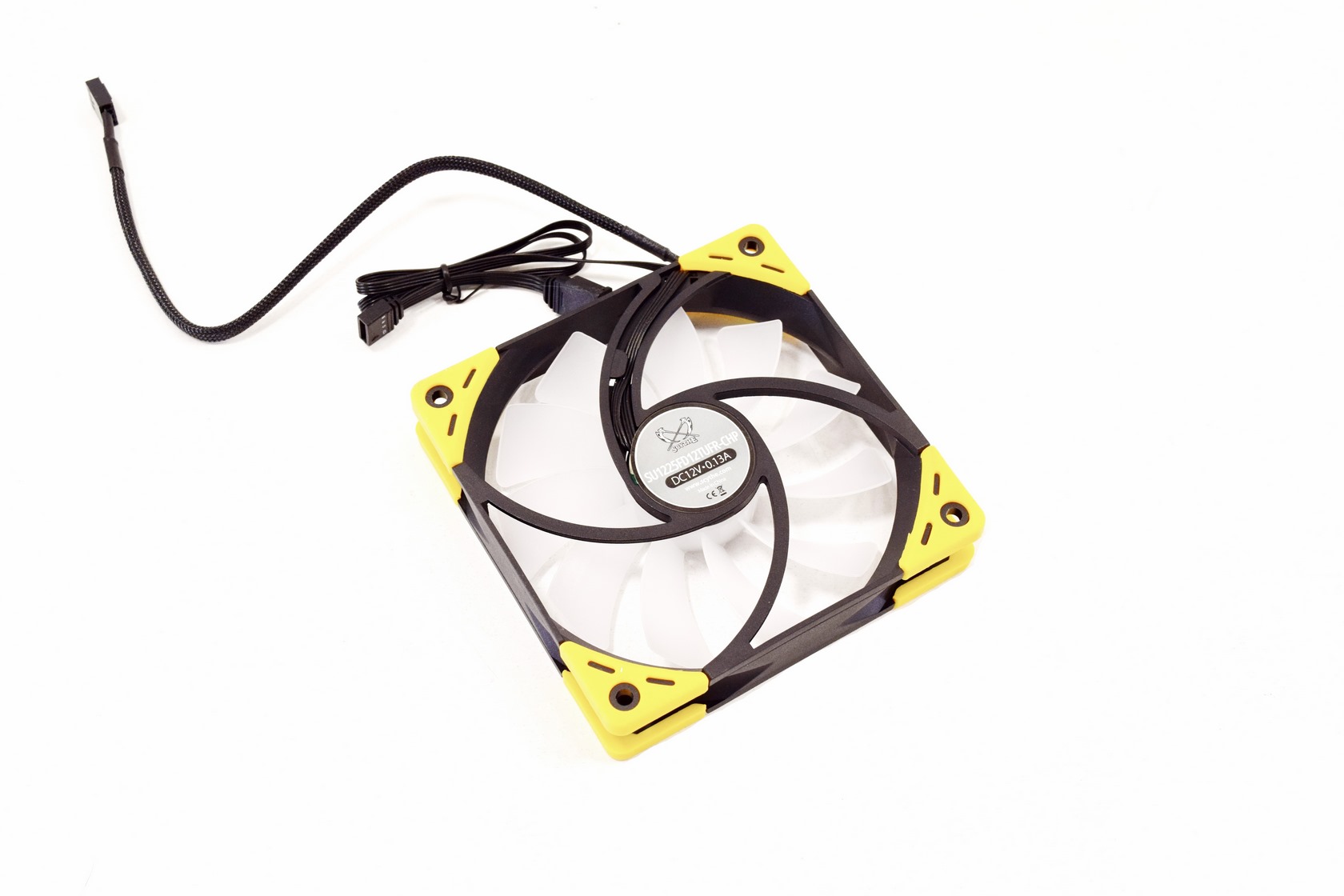

Scythe has once again used their brand new Kaze Flex 120 RGB PWM fan (this time with yellow rubber pads however on all 4 corners) which can spin up to 1200RPM to produce up to 51.17CFM of airflow and 1.05mmH2O if static pressure with just 24.9dBA of noise.

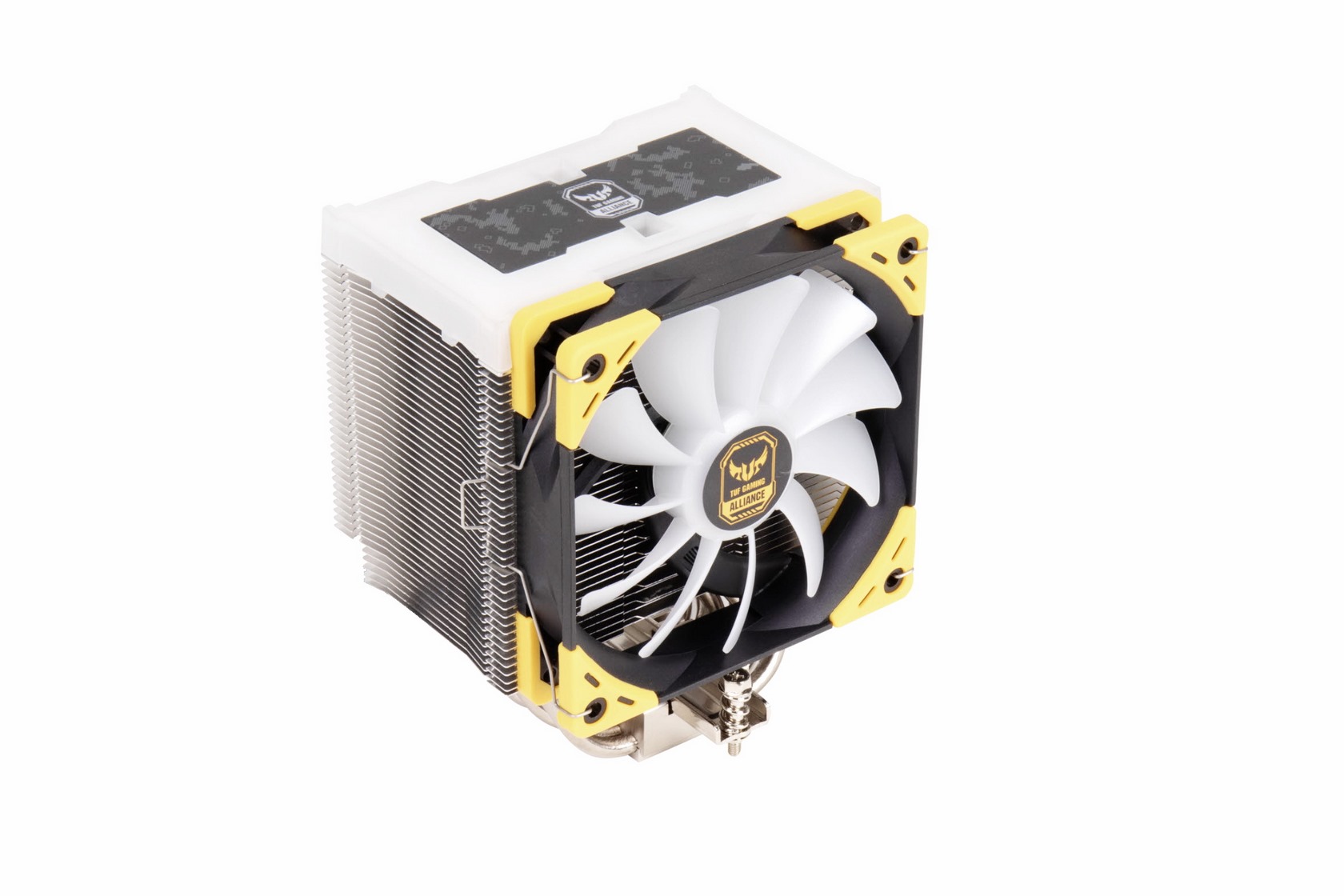

With the Kaze Flex 120 RGB PWM fan installed the Mugen 5 TUF Gaming Alliance model measures 110.5mm in length and weighs 950g.
