THE NH-P1

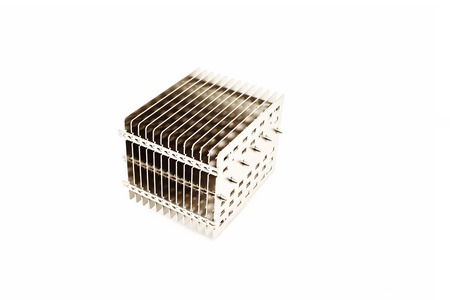

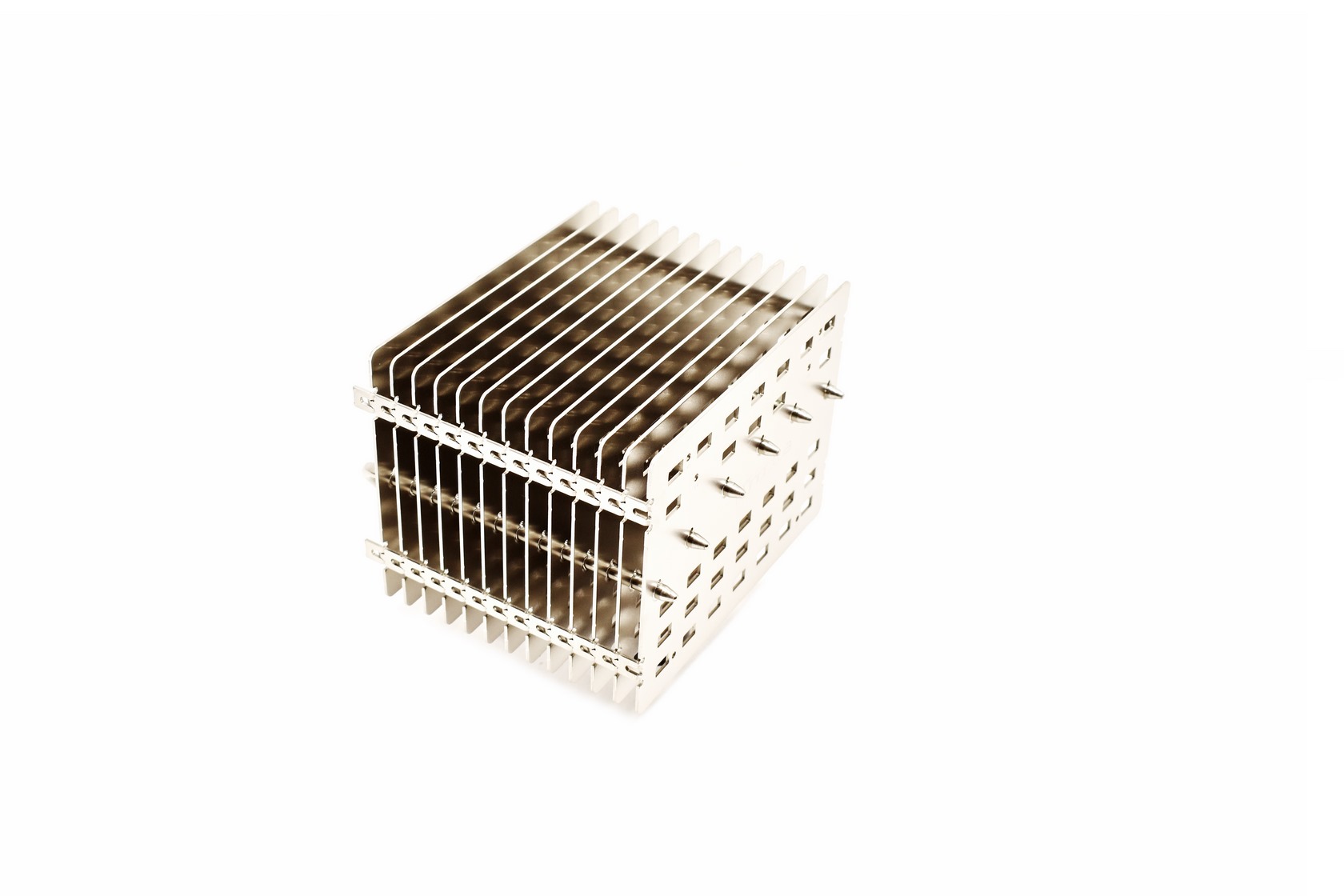

As mentioned earlier the 1180g heavy body of the NH-P1 stands 158mm tall, 154mm wide and 152mm long.

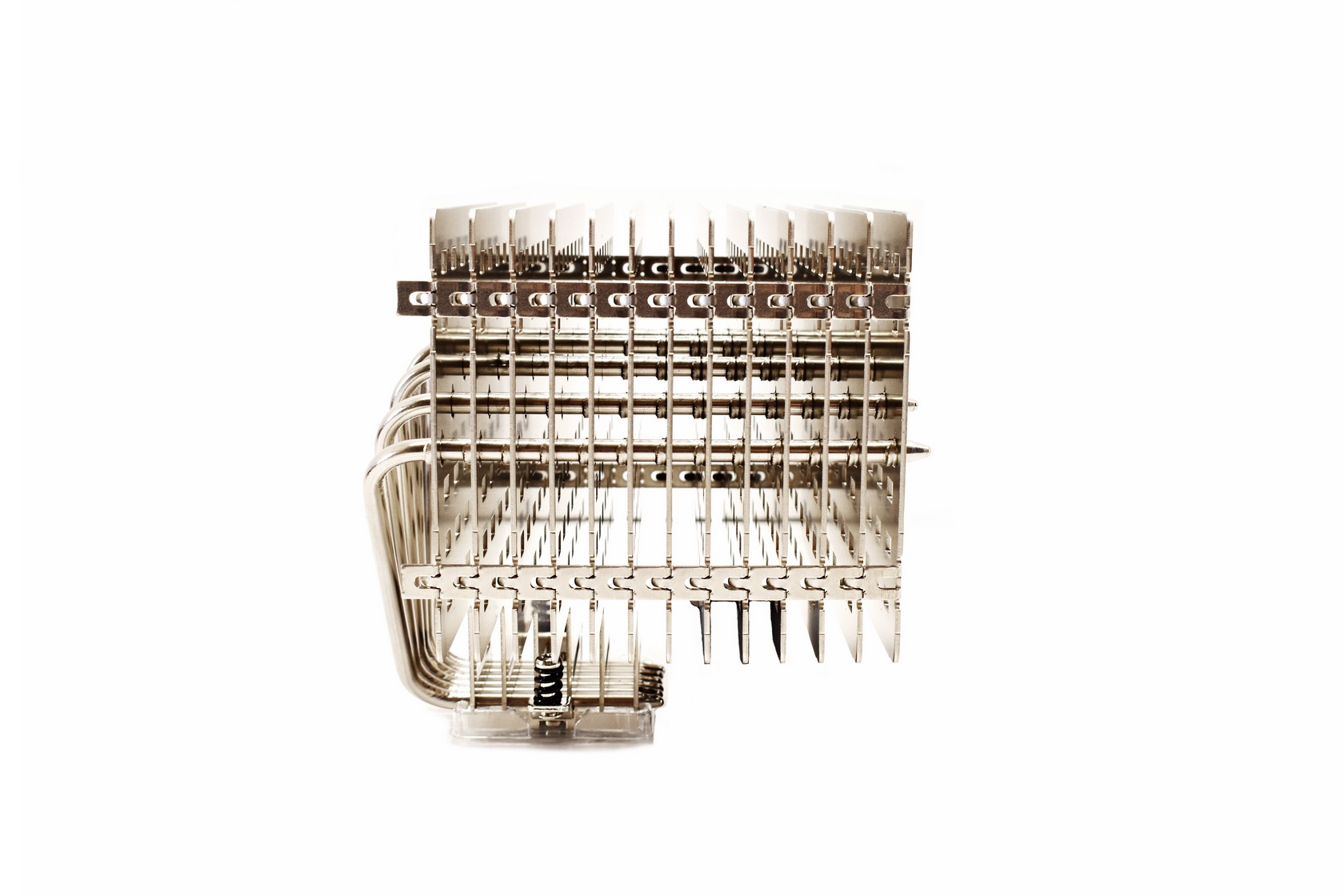

Noctua has used a total of 13 fins (roughly 1.5mm in thickness each).

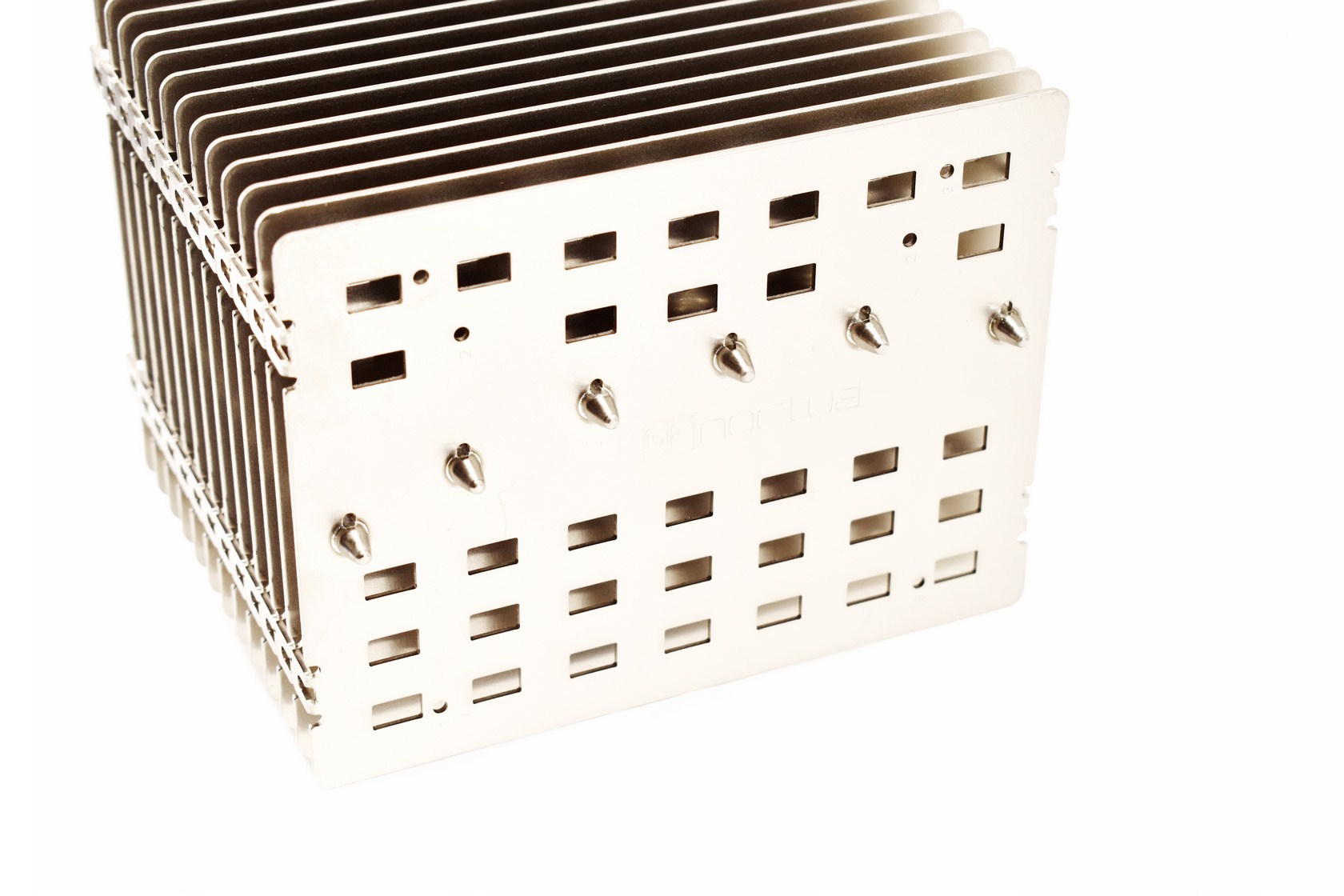

To make it possible for end users to mount fans on the sides and top Noctua has placed numerous fan clip mounting holes on both the front and rear.

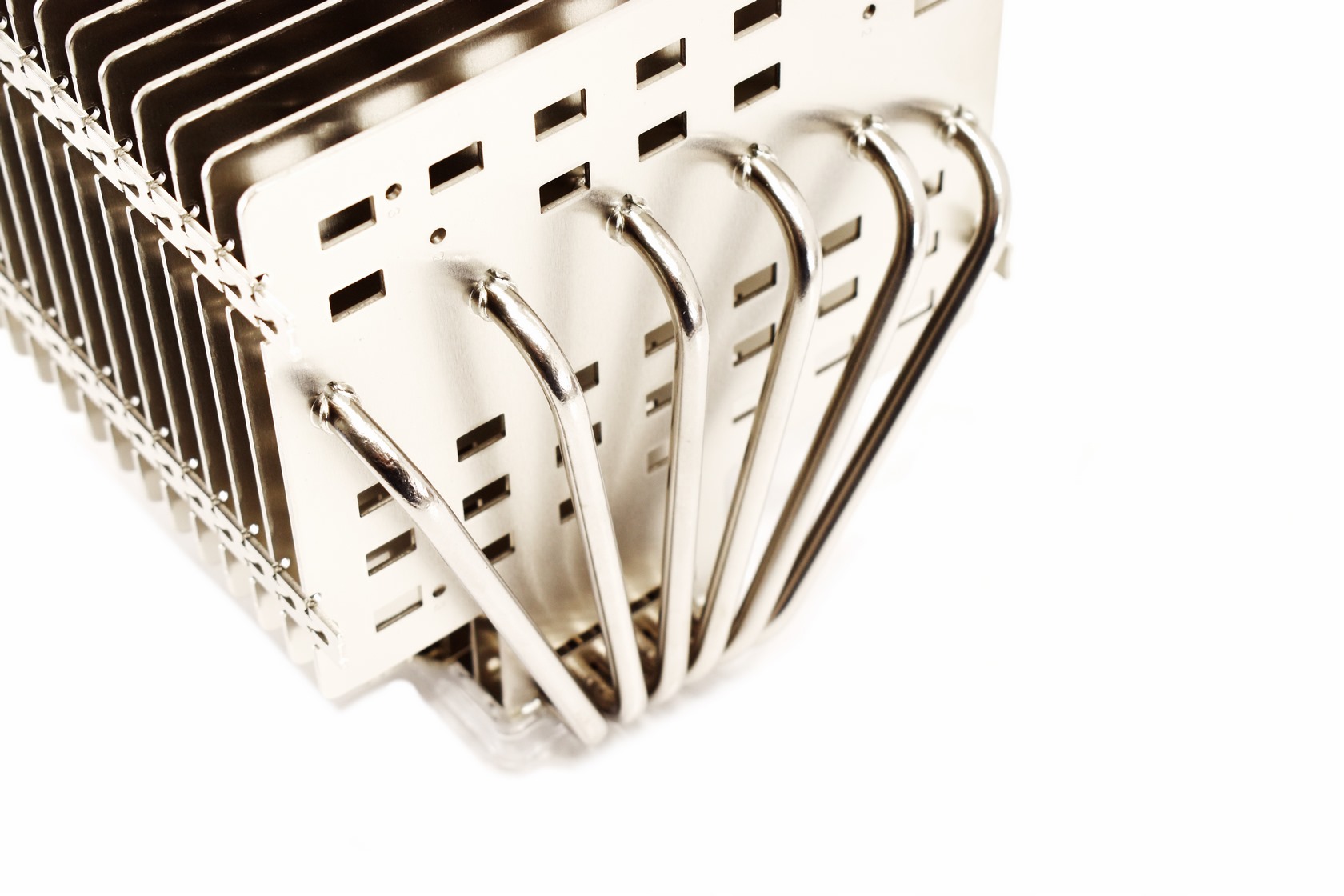

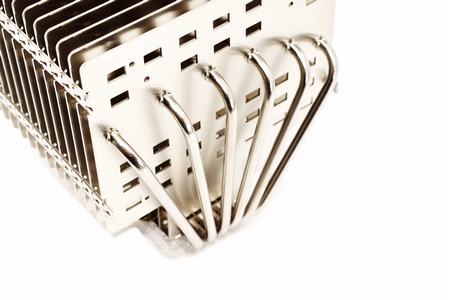

All six 6mm nickel-plater copper heatpipes pass through the 13 aluminum fins.

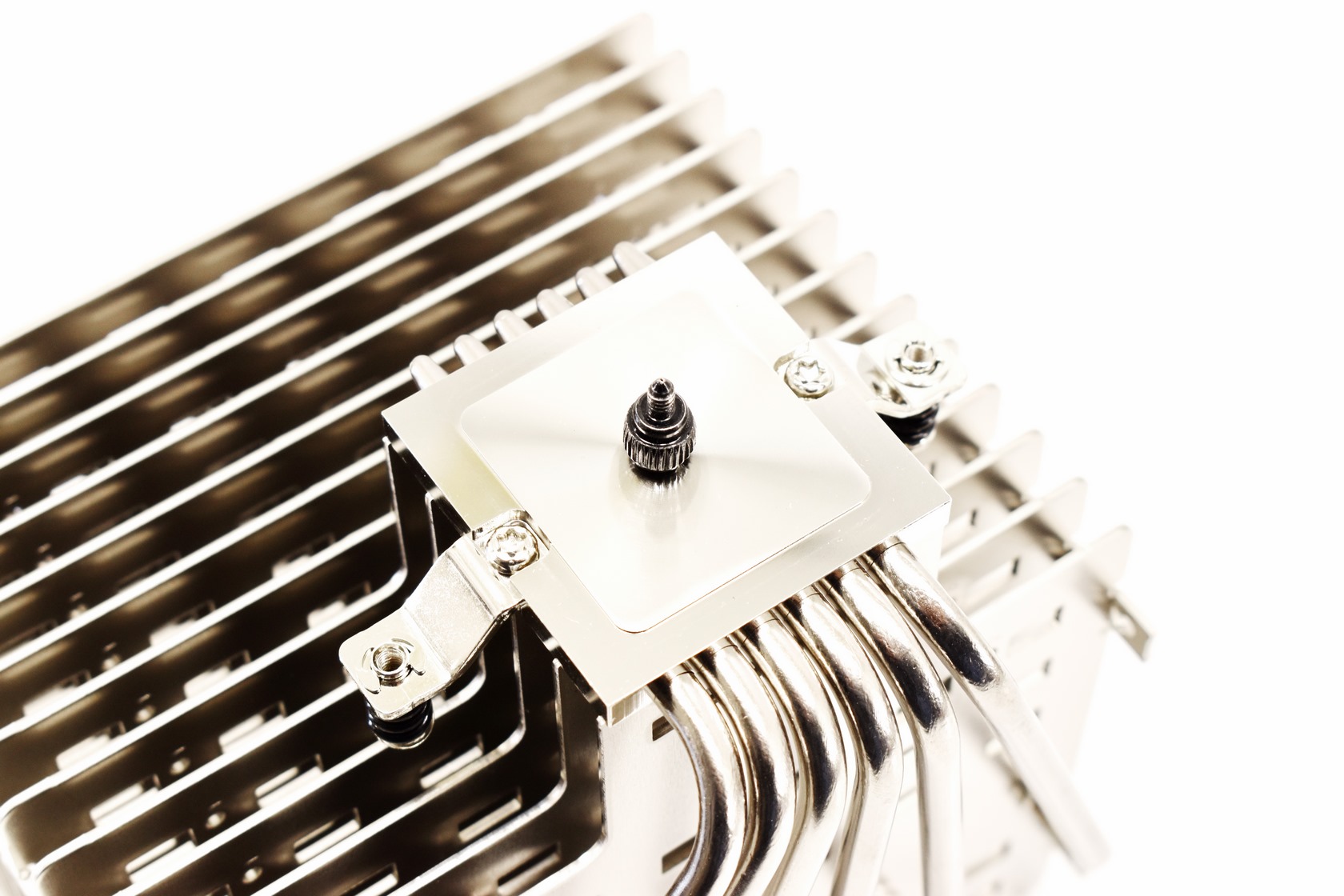

The base is polished and has no machine marks but doesn't feature a mirror-like finish.

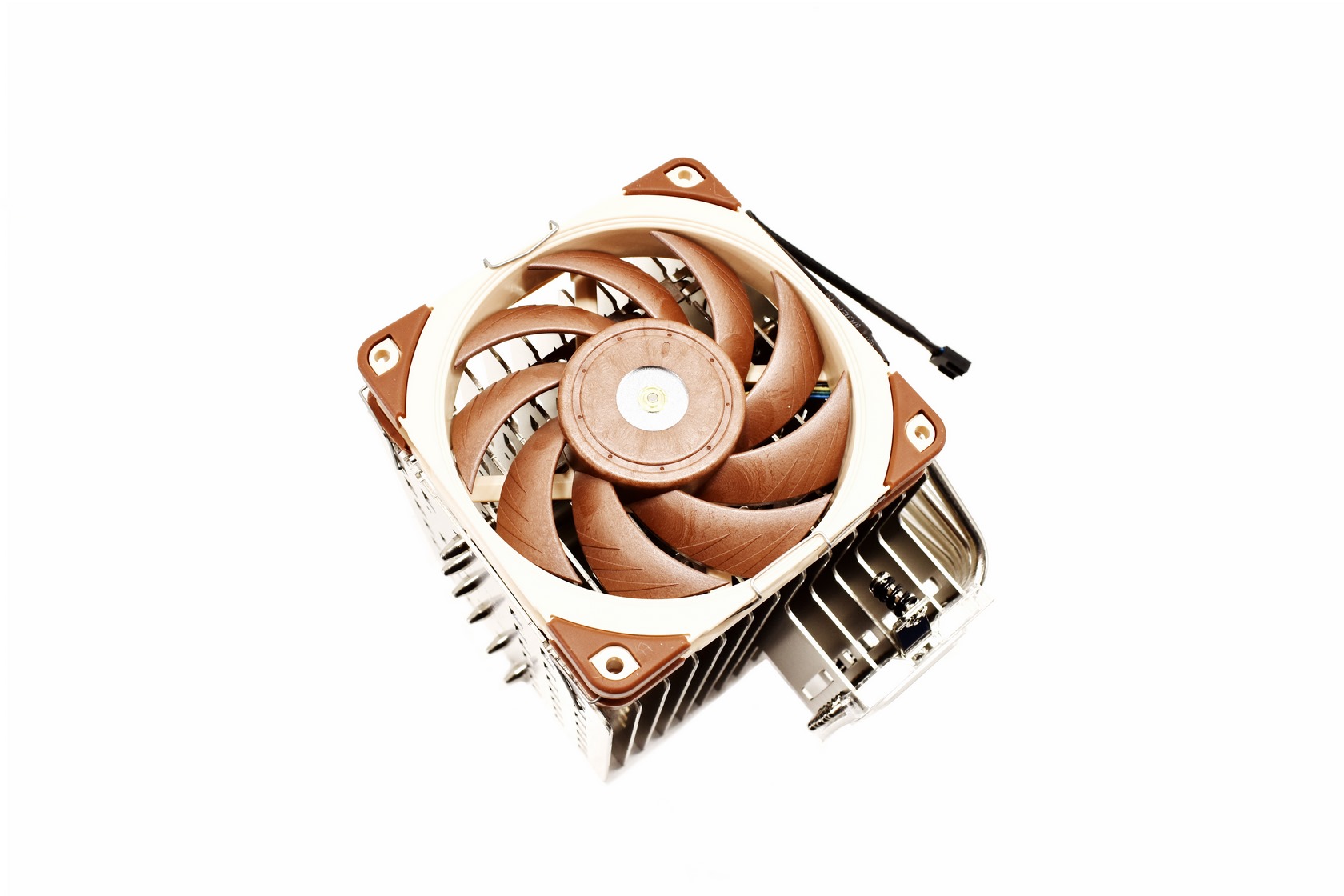

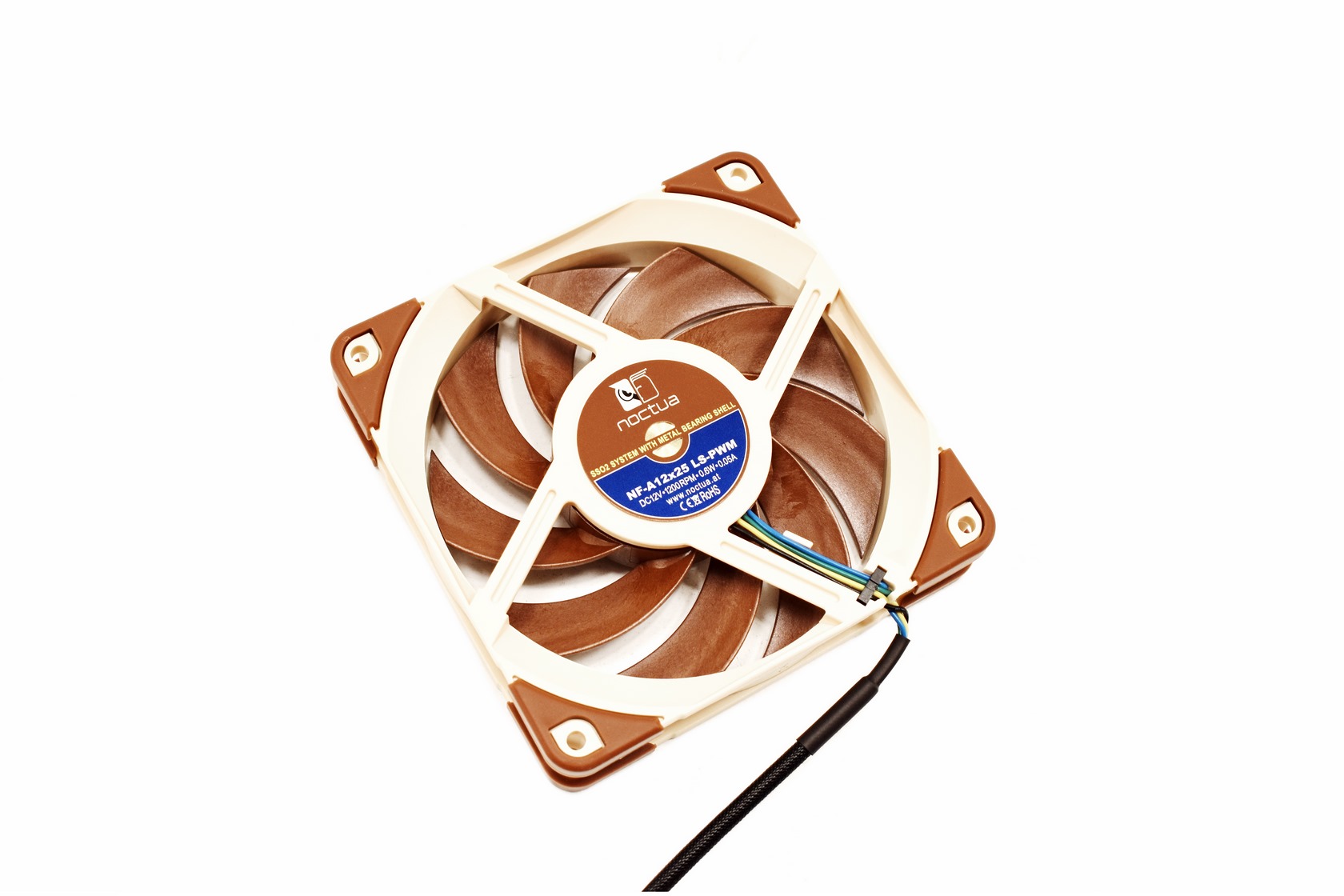

For this test I’ll also be using the optional NF-A12x25 LW-PWM fan which can spin up to 1200RPM to produce up to 32.78CFM of airflow with just 12.1dBA of noise.

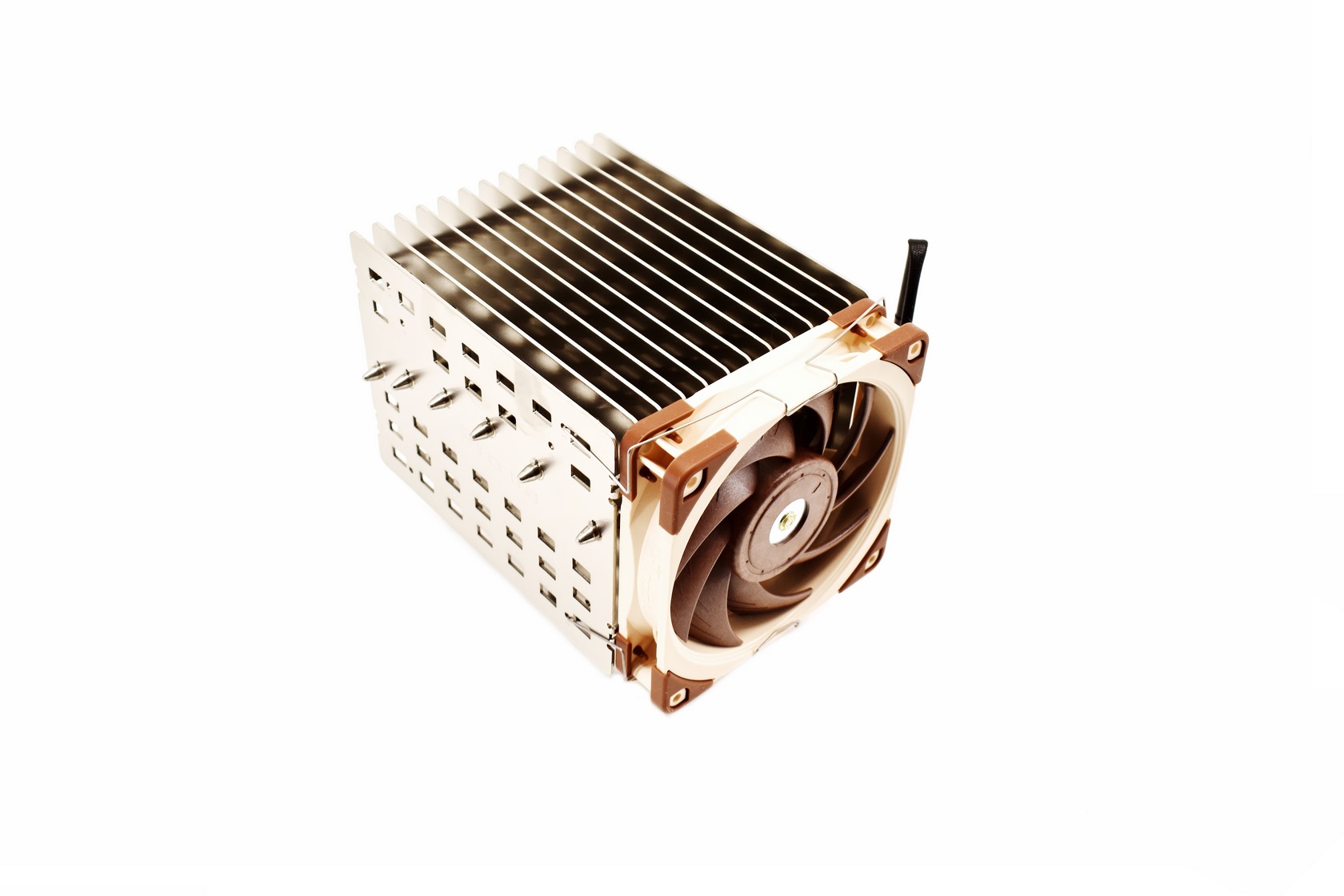

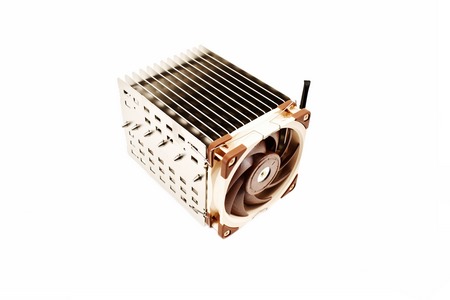

Since i have four 140mm intake fans at the top of the case i decided to position the fan on the right side of the cooler as seen above.
