THE ARCHON SB-E X2

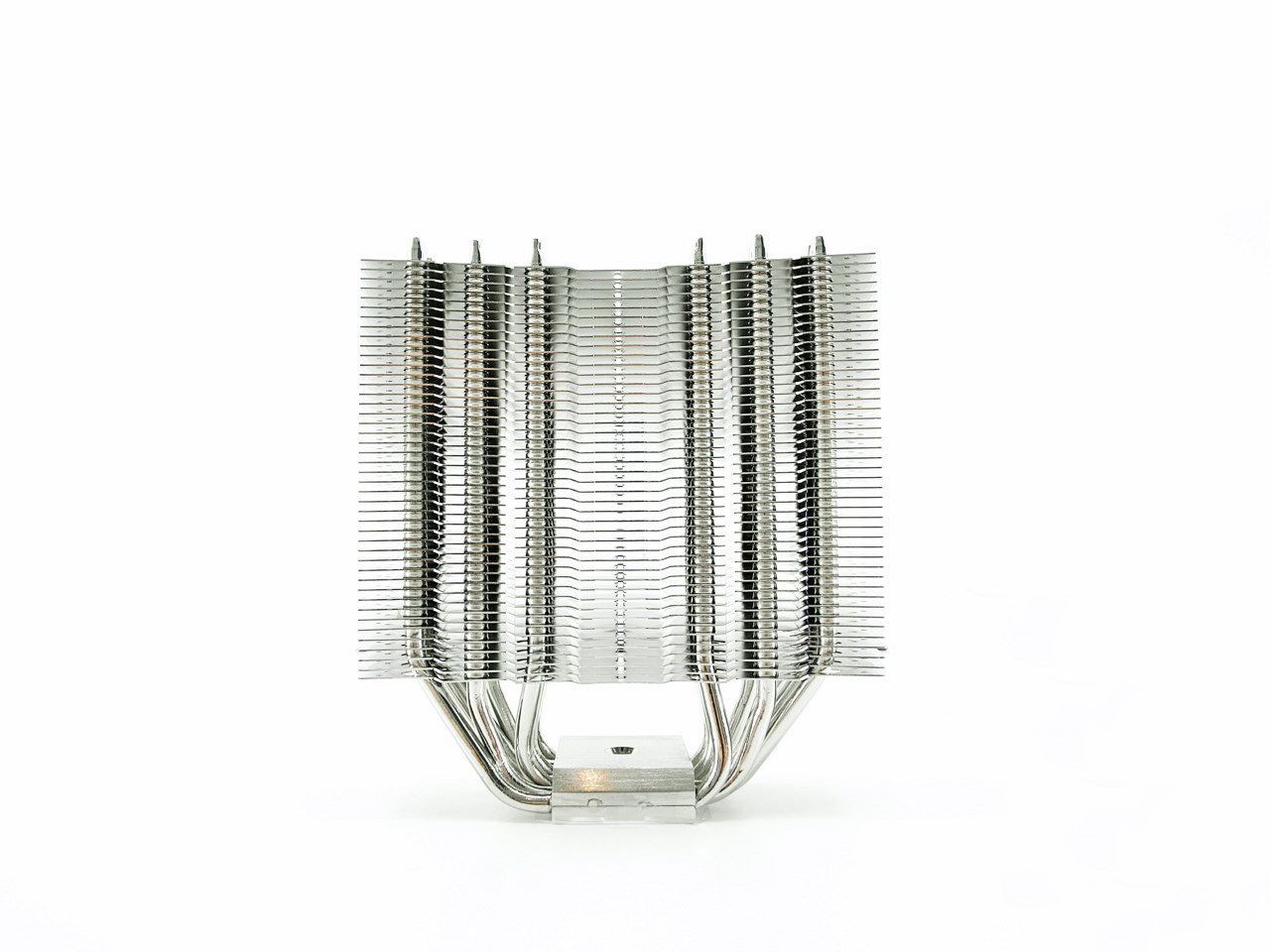

Just like the Archon SB-E the latest X2 measures 170mm in Height, 155mm in Width and just 53.6mm in depth while weighing a total of 750g without the two fans installed.

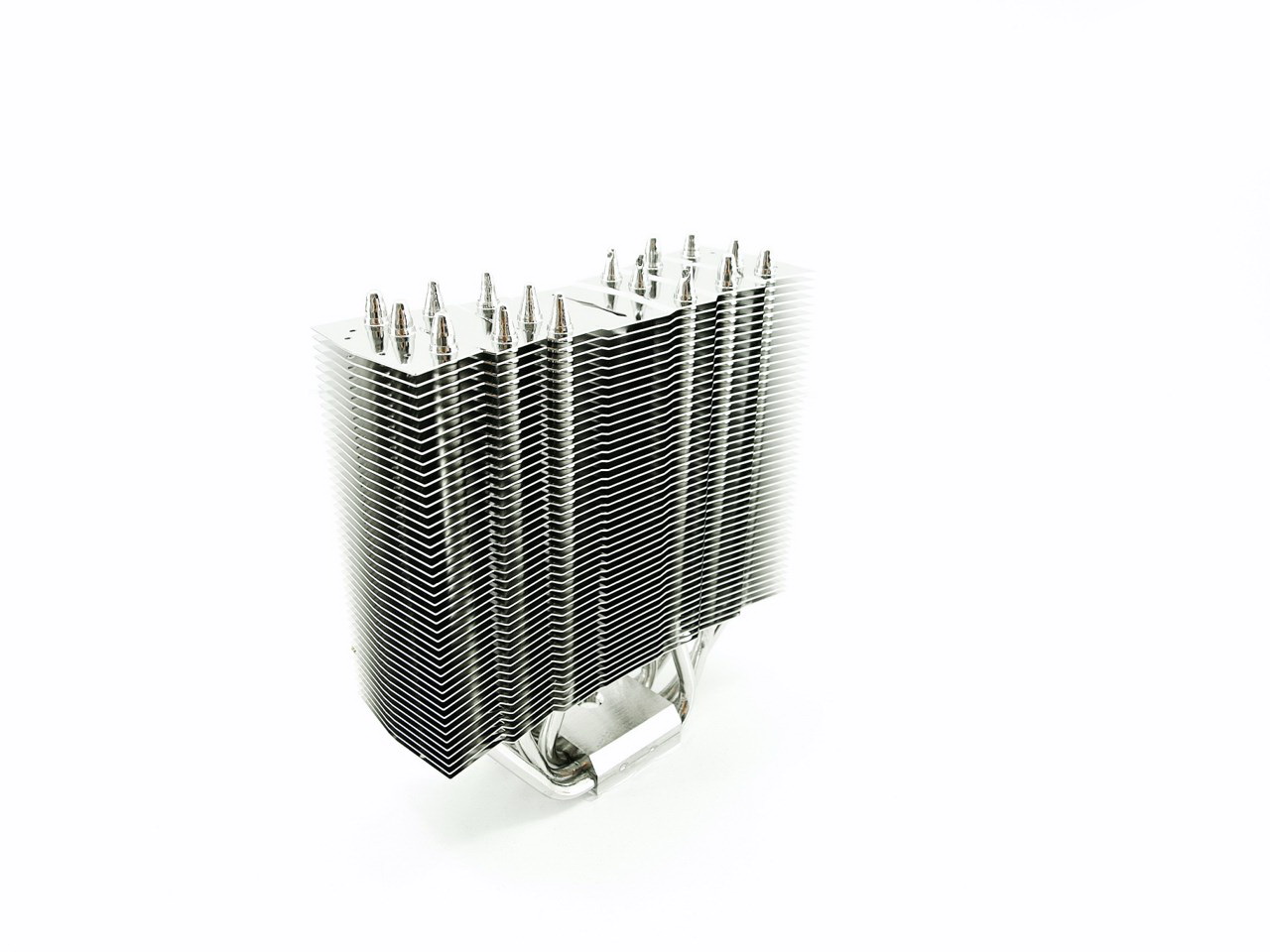

The SB-E heatsink is made by 44 aluminum fins, each 0.5mm thick.

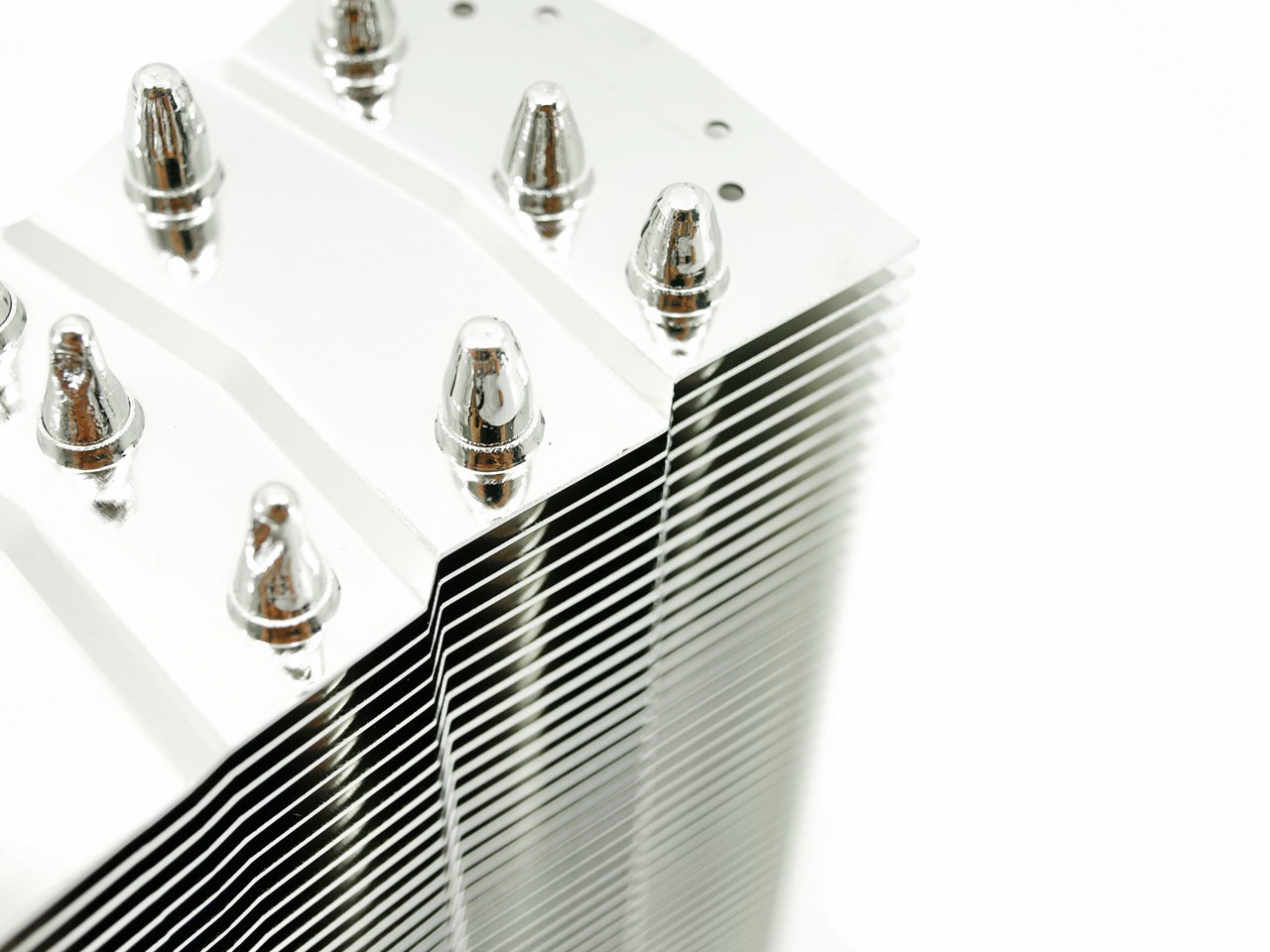

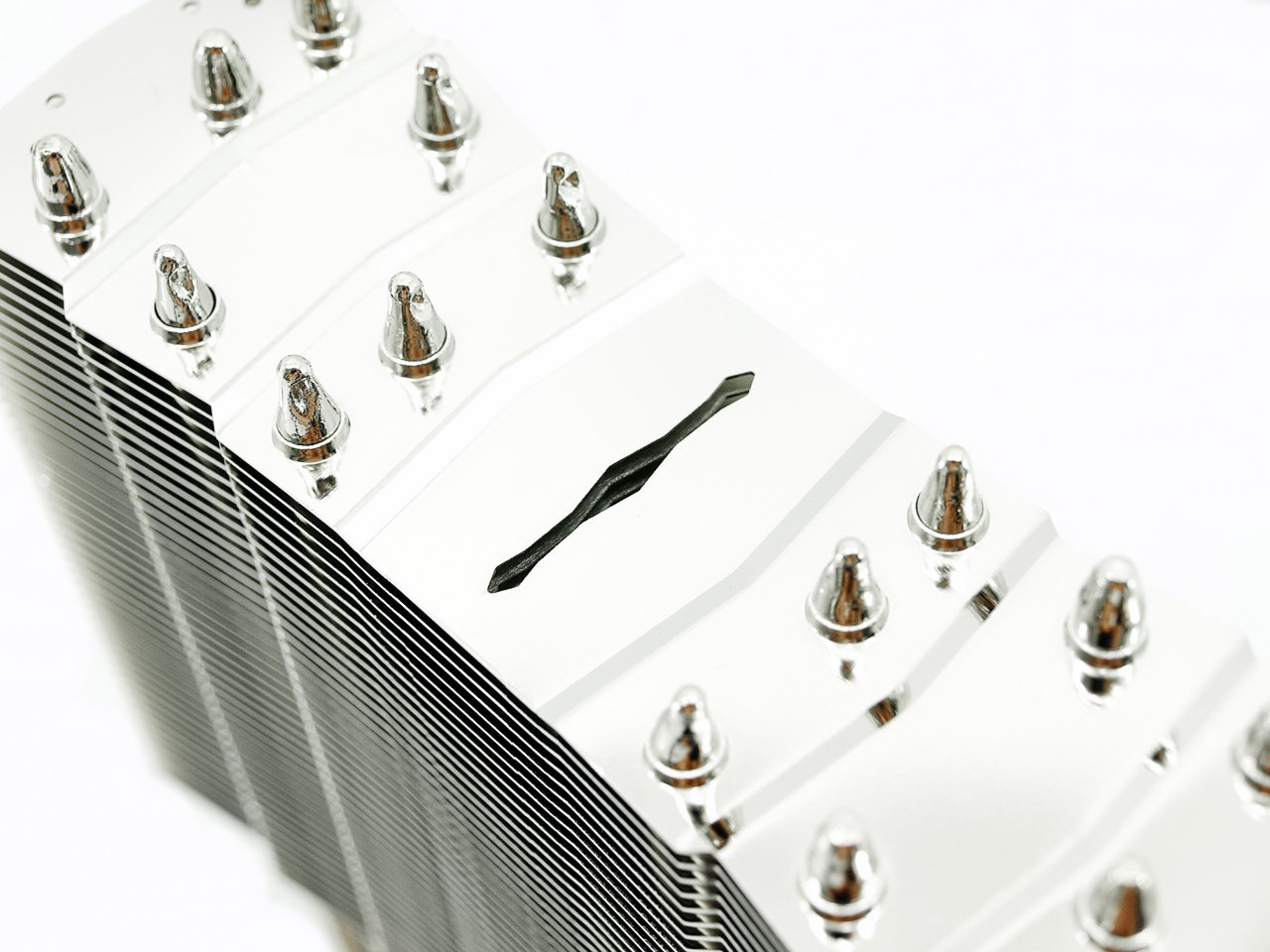

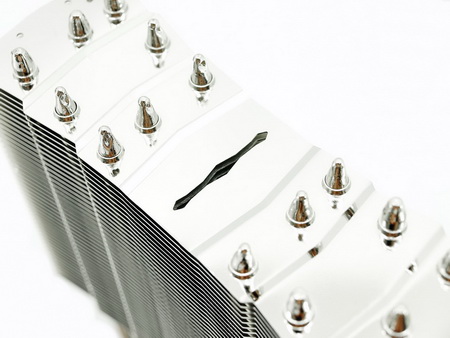

Both the arrow fin design and the long hole in the middle of the heatsink are once again in place to reduce air-resistance and thus increase airflow levels.

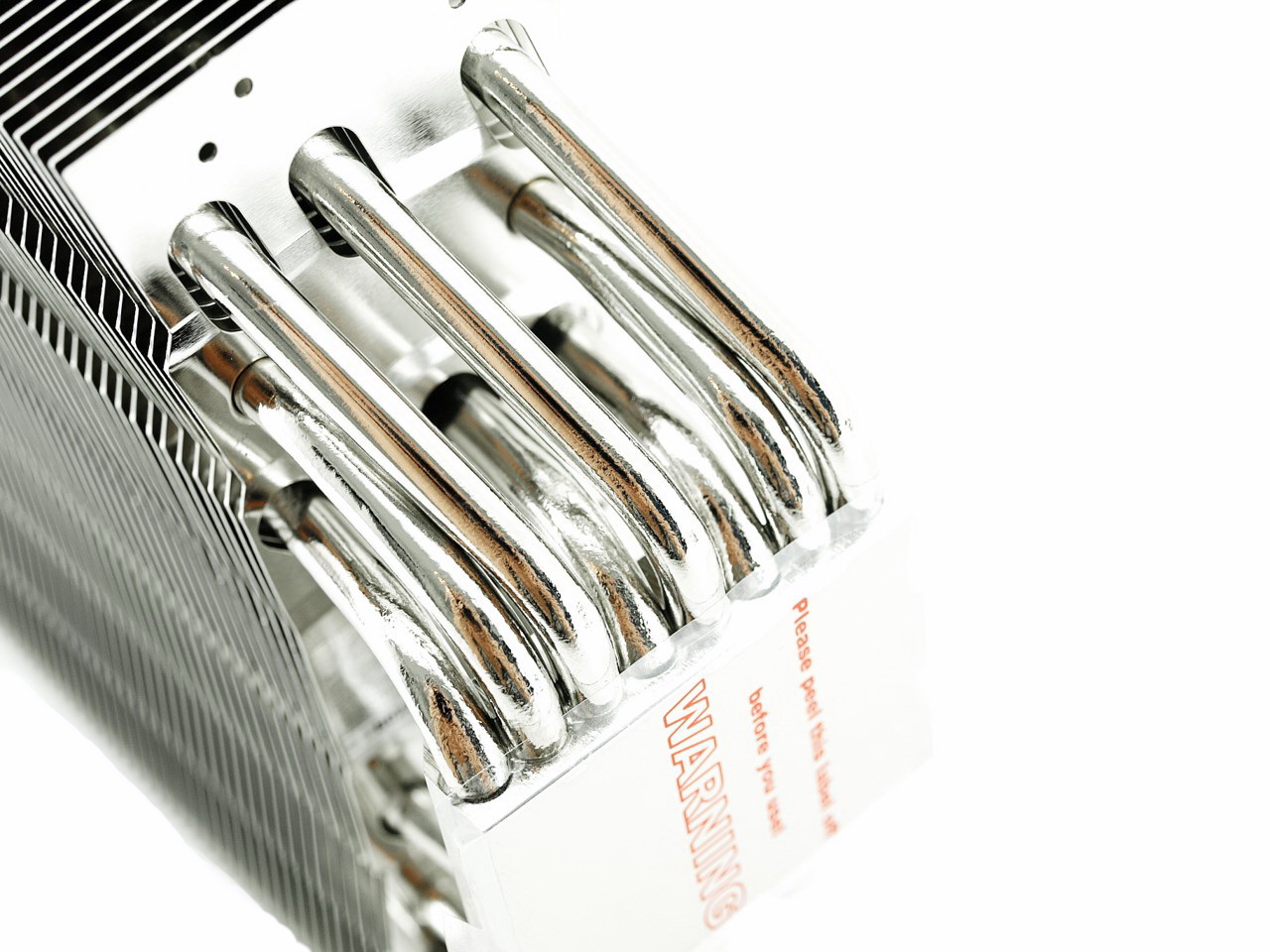

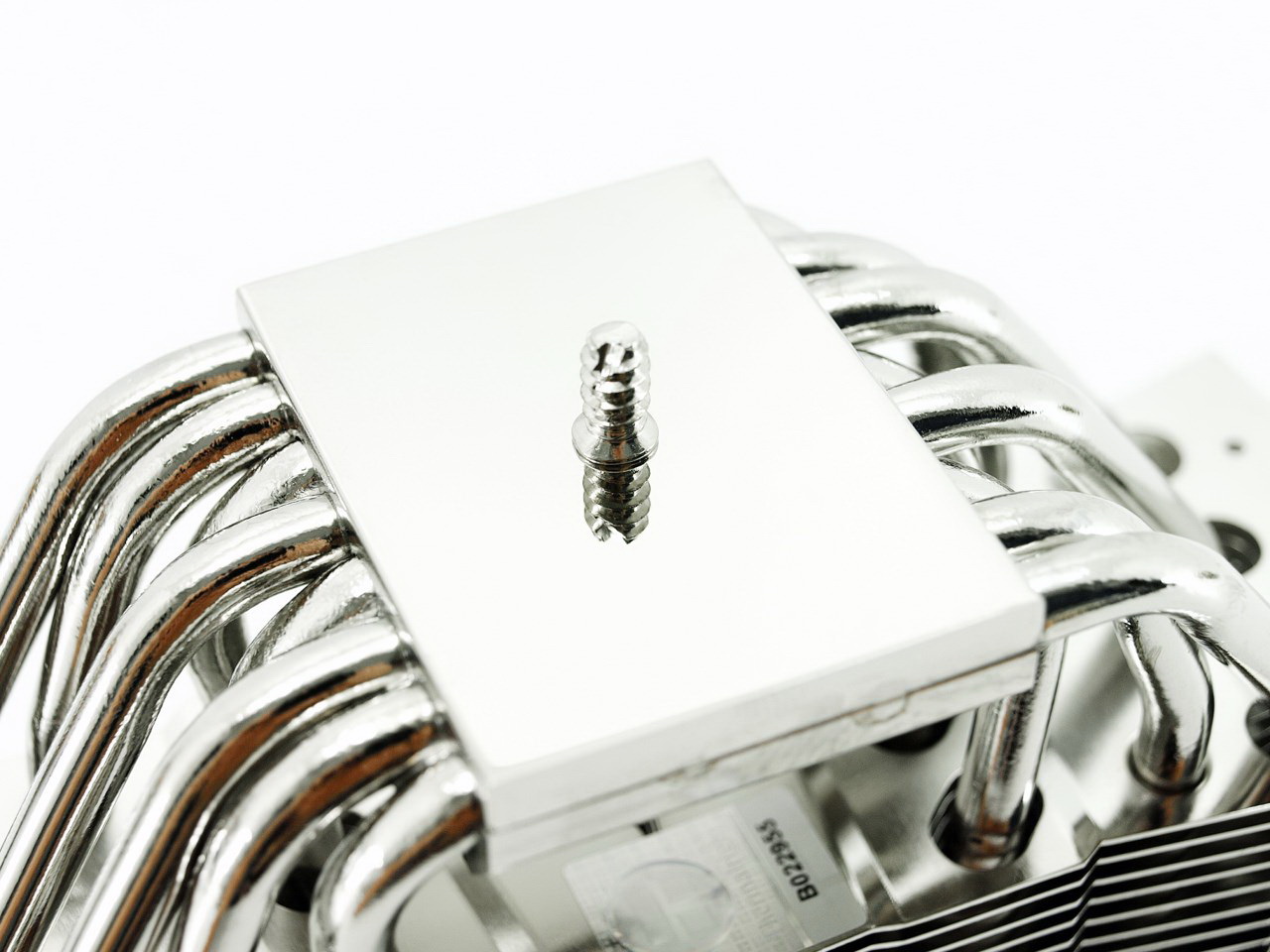

A grand total of eight 6mm nickel plated copper heatpipes spaced evenly from each other should ensure even distribution of heat on the aluminum fins and provide superior cooling efficiency.

As usual the base of the cooler features a mirror like finish.

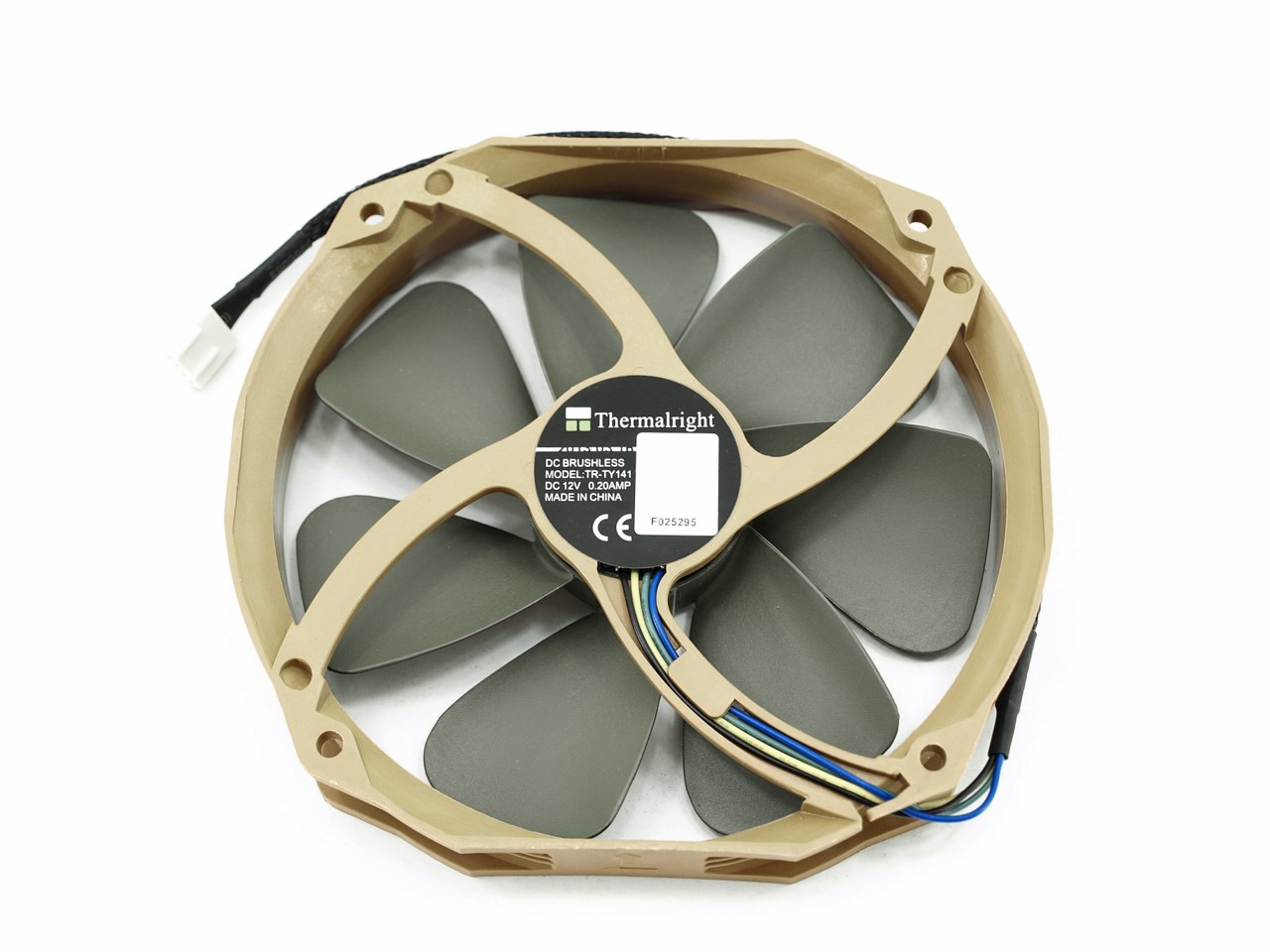

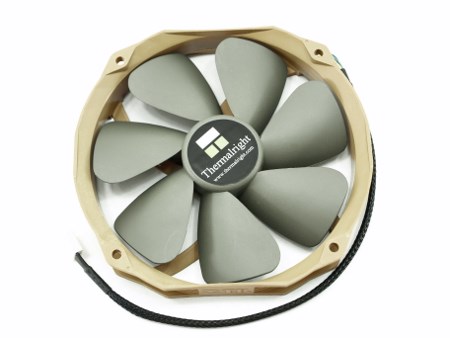

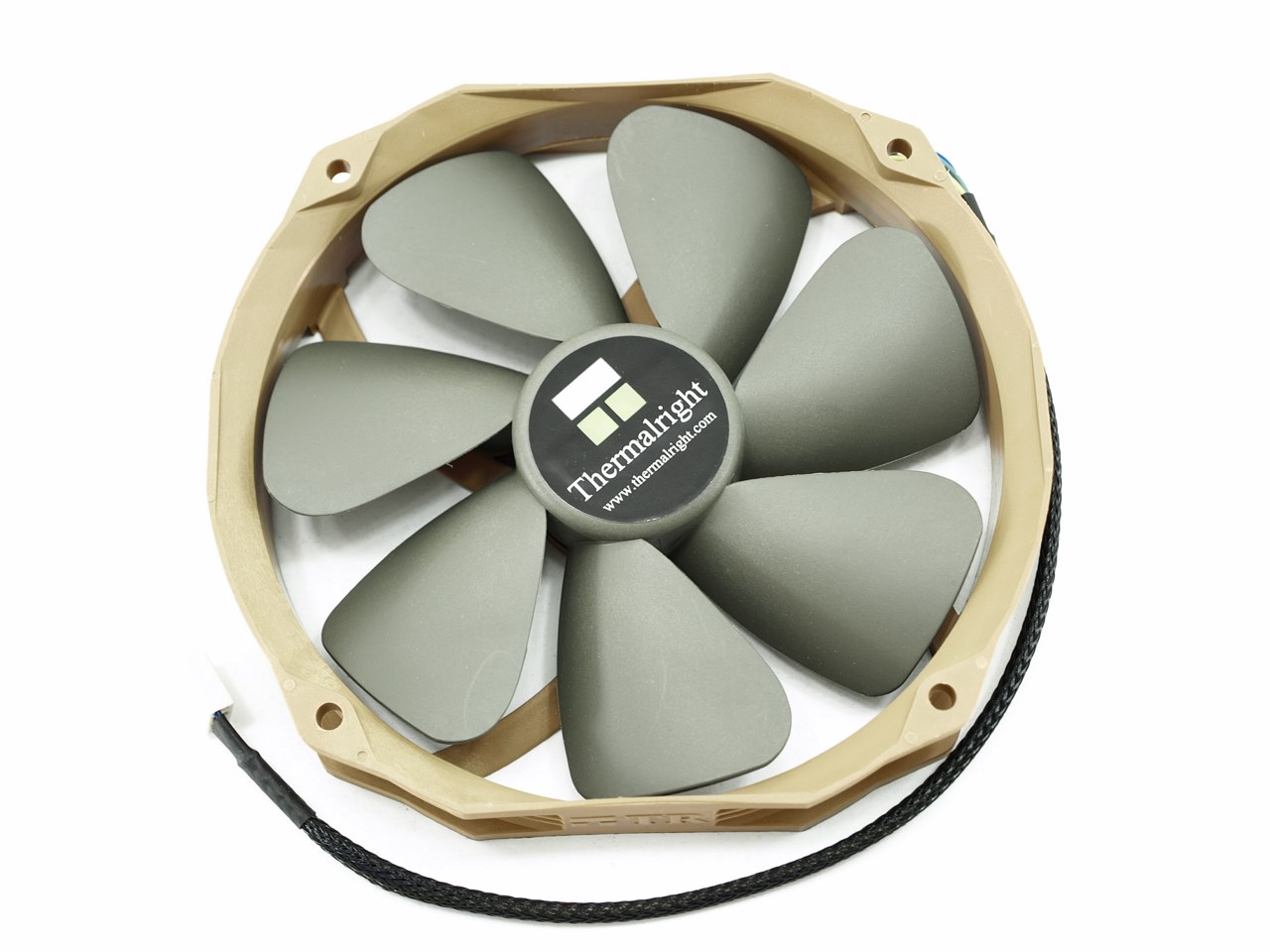

The 140mm PWM fans (TY141) can reach speeds of up to 1300RPM and produce airflow of 73.6CFM with 21dBA.

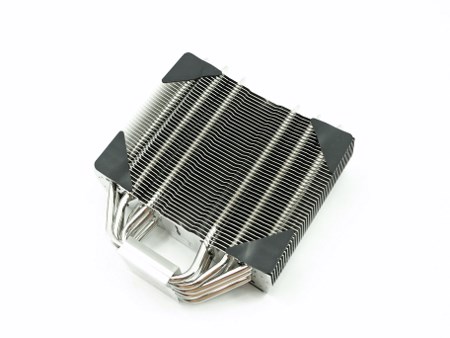

Prior to mounting the two fans you first need to install 4 silicon pads on each side as seen above.

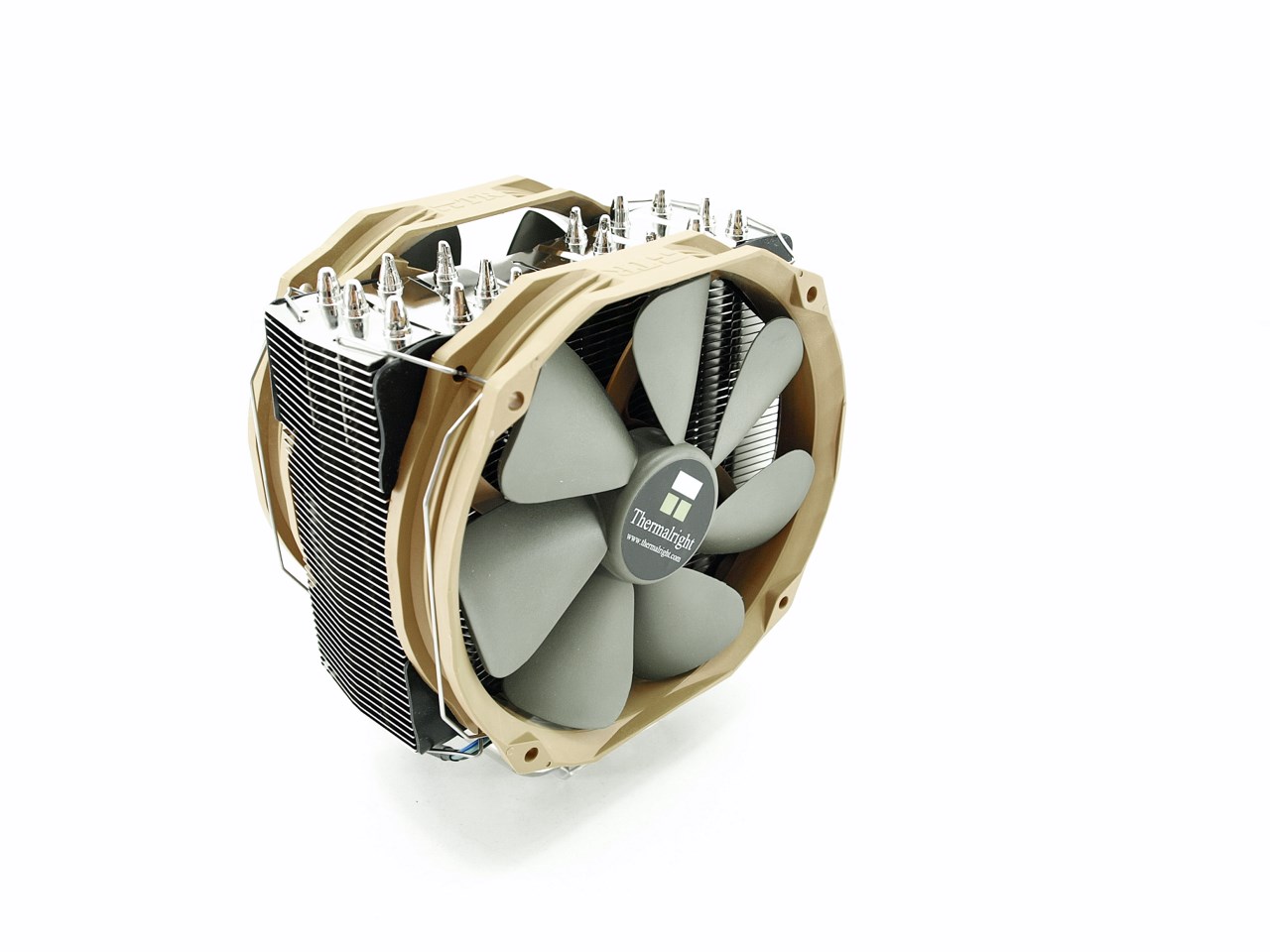

After mounting both fans the Archon SB-E X2 now measures 172mm in Height, 155mm in width and 105mm in depth while weighing a total of 1134g.
