THE AXP-200

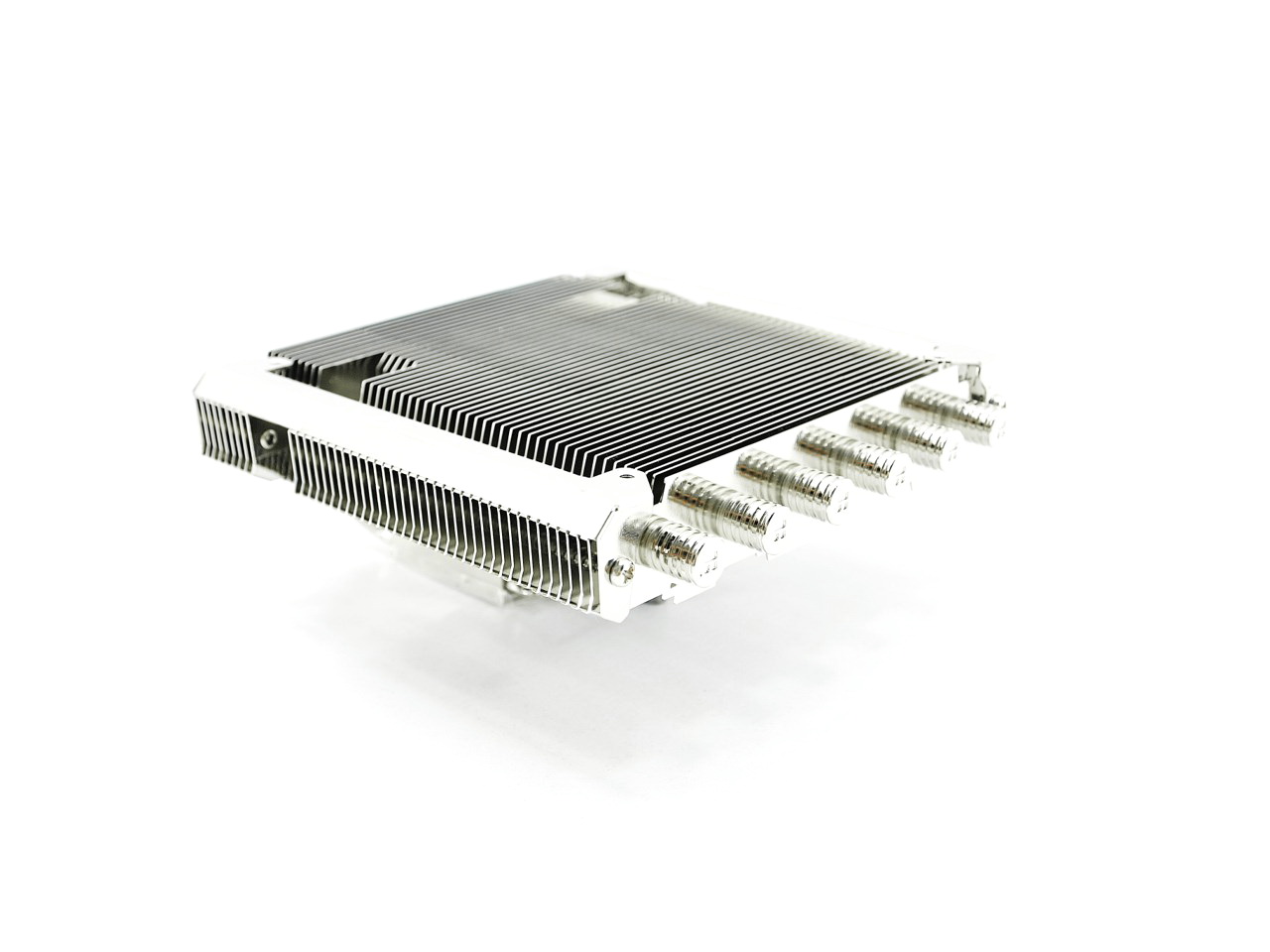

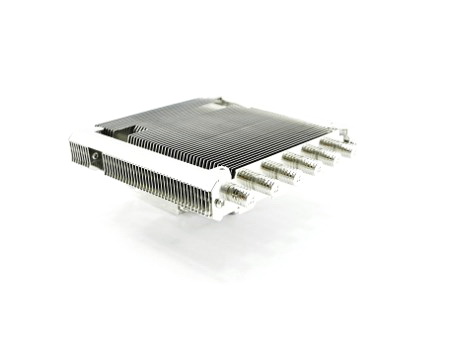

The AXP-200 may share the same low-profile feature but it's actually quite larger than its predecessor the AXP-100. To be more specific while the AXP-100 measures 121.1mm in length, 105.47mm in width and 44.15mm in height while weighing 360g the AXP-200 measures 150mm in length, 140mm in width and 60mm in height with a weight of 475g.

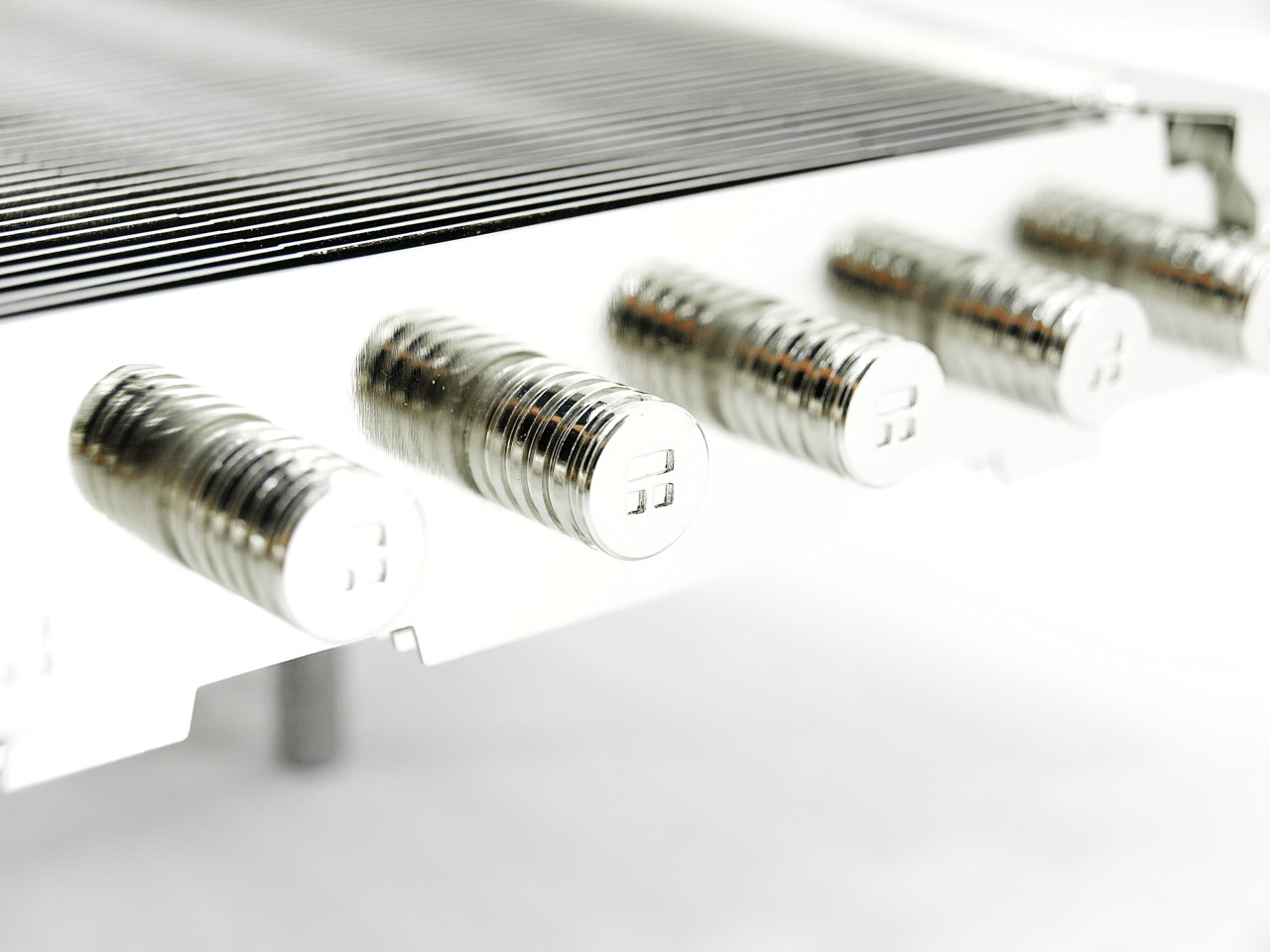

On a side note i do enjoy the craftsmanship of Thermalright since they even engrave their logo at the front of the heatpipe covers.

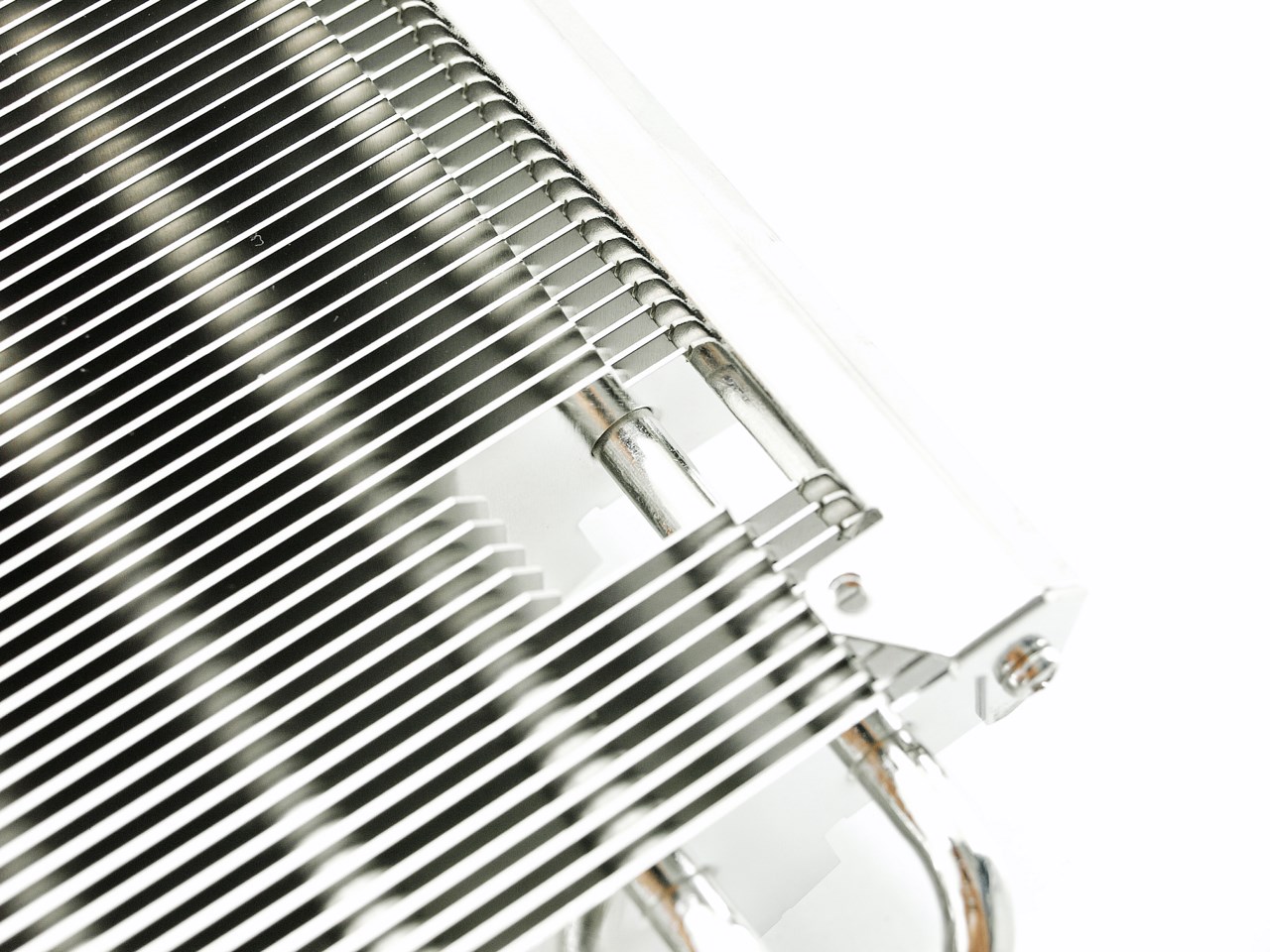

The main heatsink body has 49 aluminum fins each 0.5mm thick and 2mm away from each other.

These holes allow you to use your screwdriver to mount the heatsink with ease onto your mainboard.

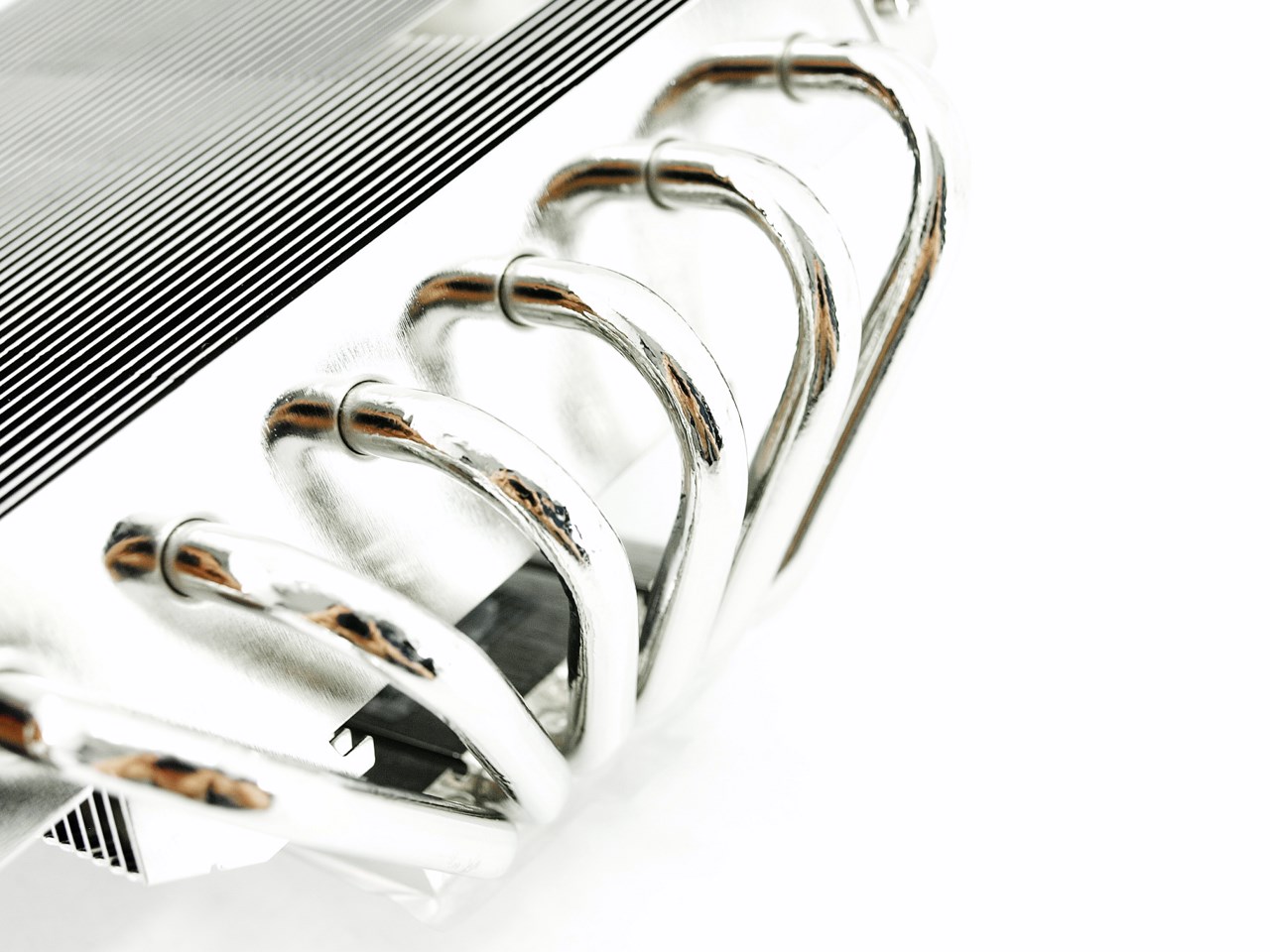

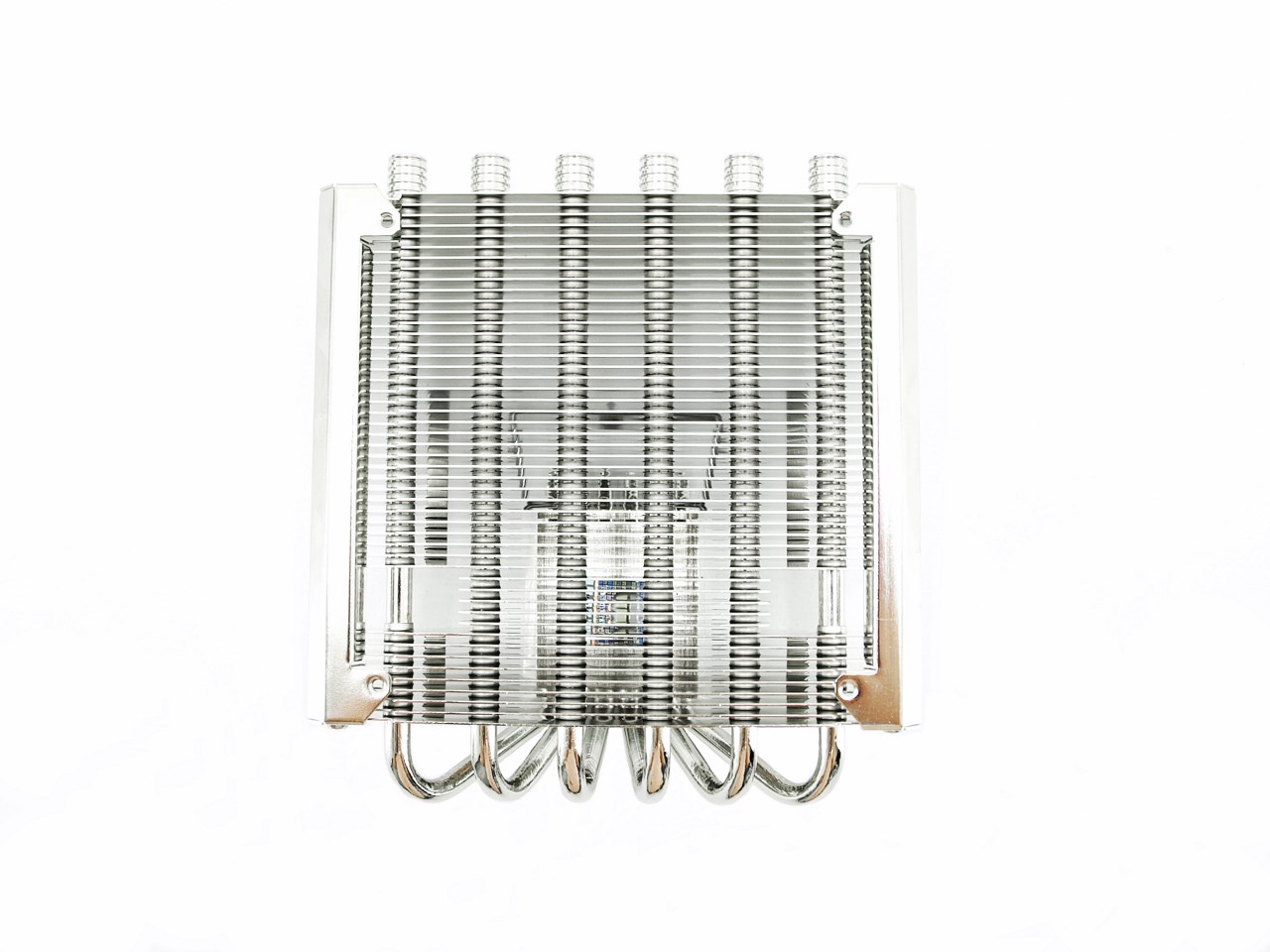

Much like its predecessor the AXP-200 features 6 nickel plated 6mm all-copper heatpipes that go through all 49 of the fins.

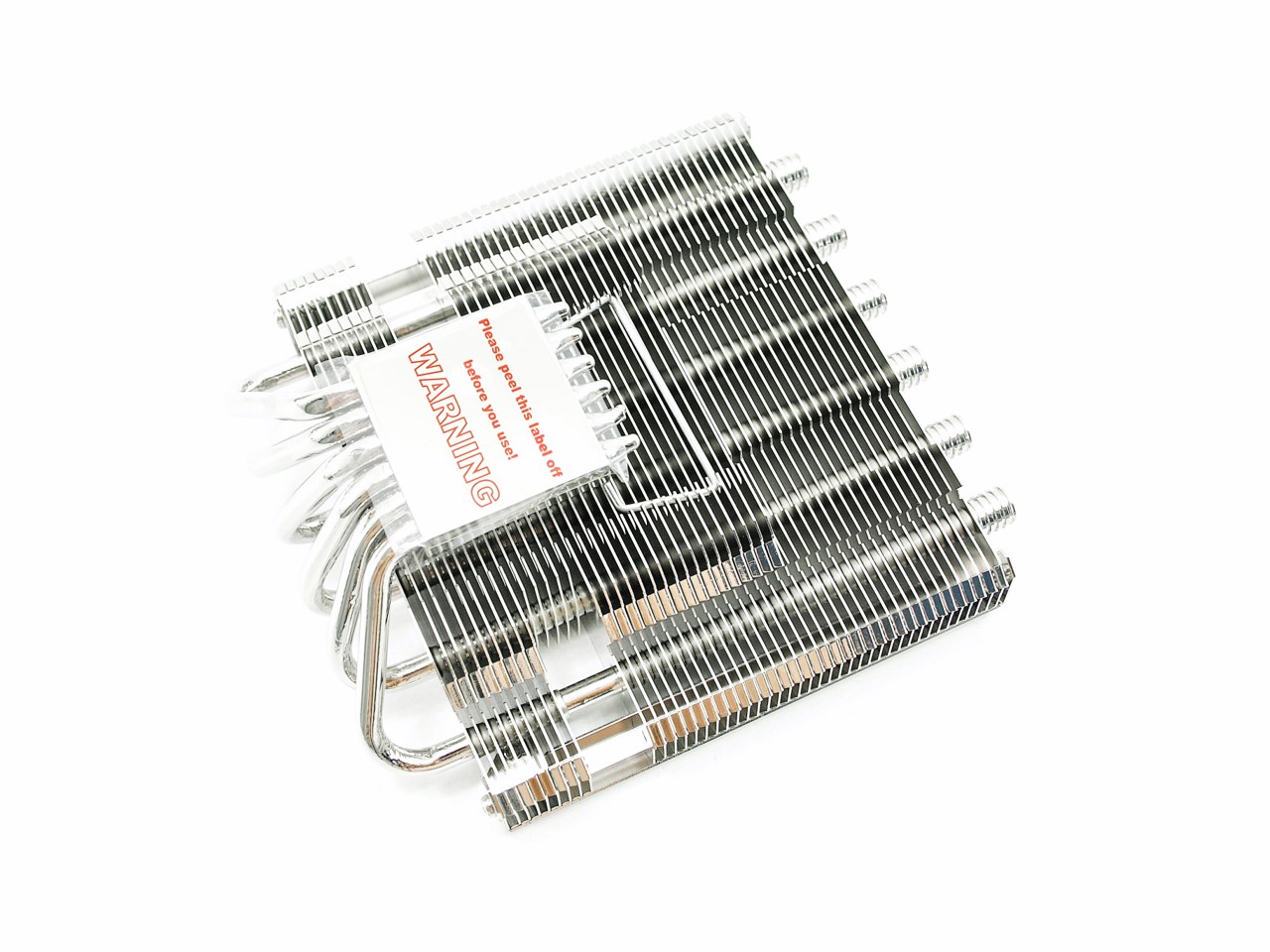

As you can see the heatsink extends bellow making the center part of it quite thicker thus increasing the total surface of the fins.

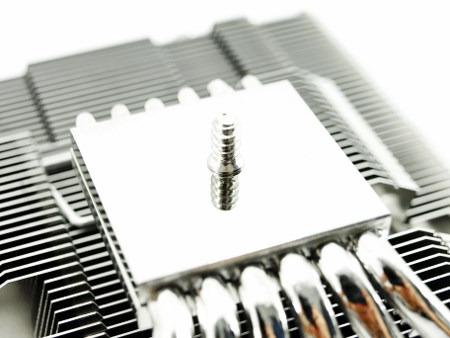

Thermalright loves the mirror-like surface on the base of their coolers and i have to say that i do too.

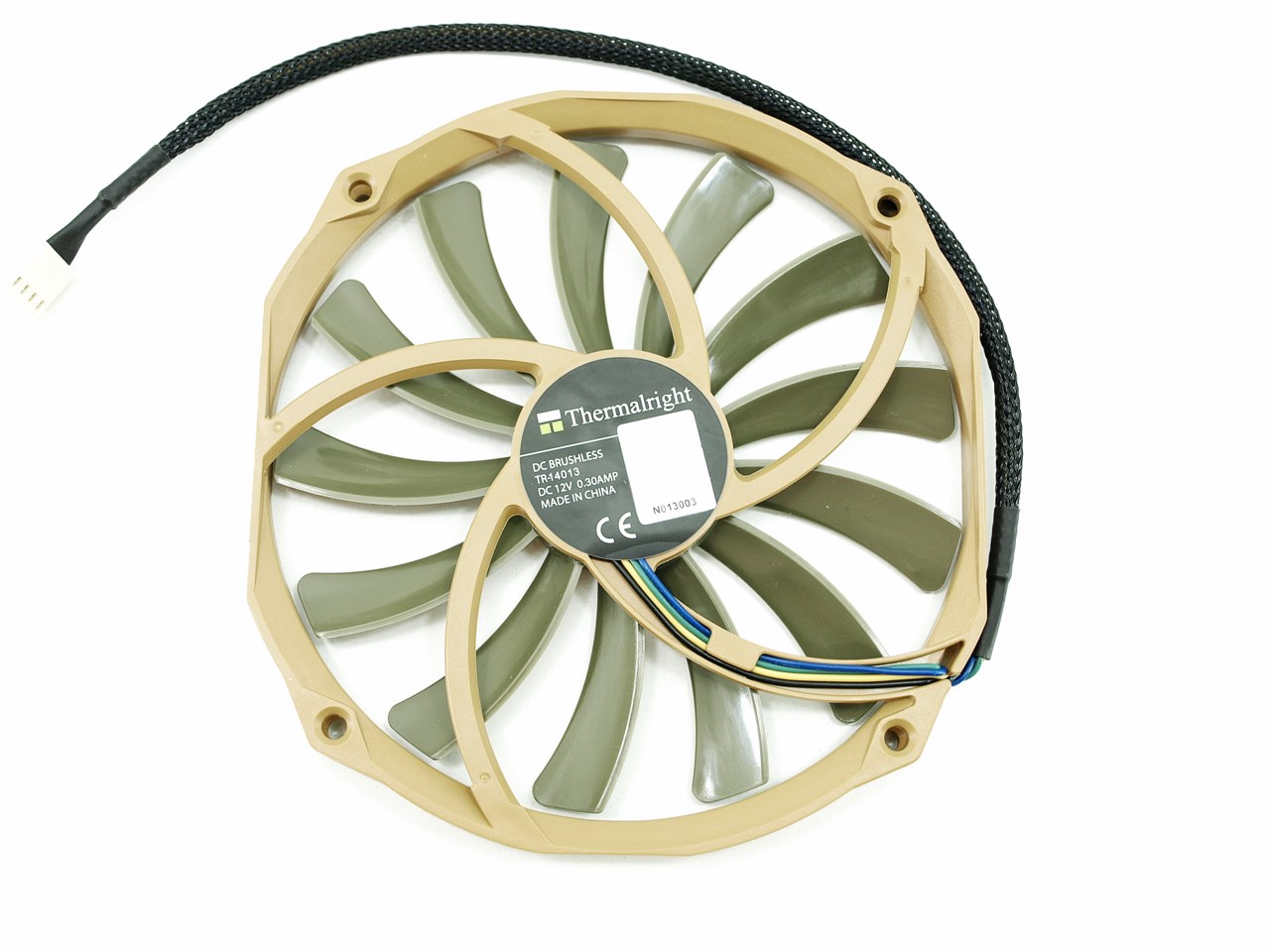

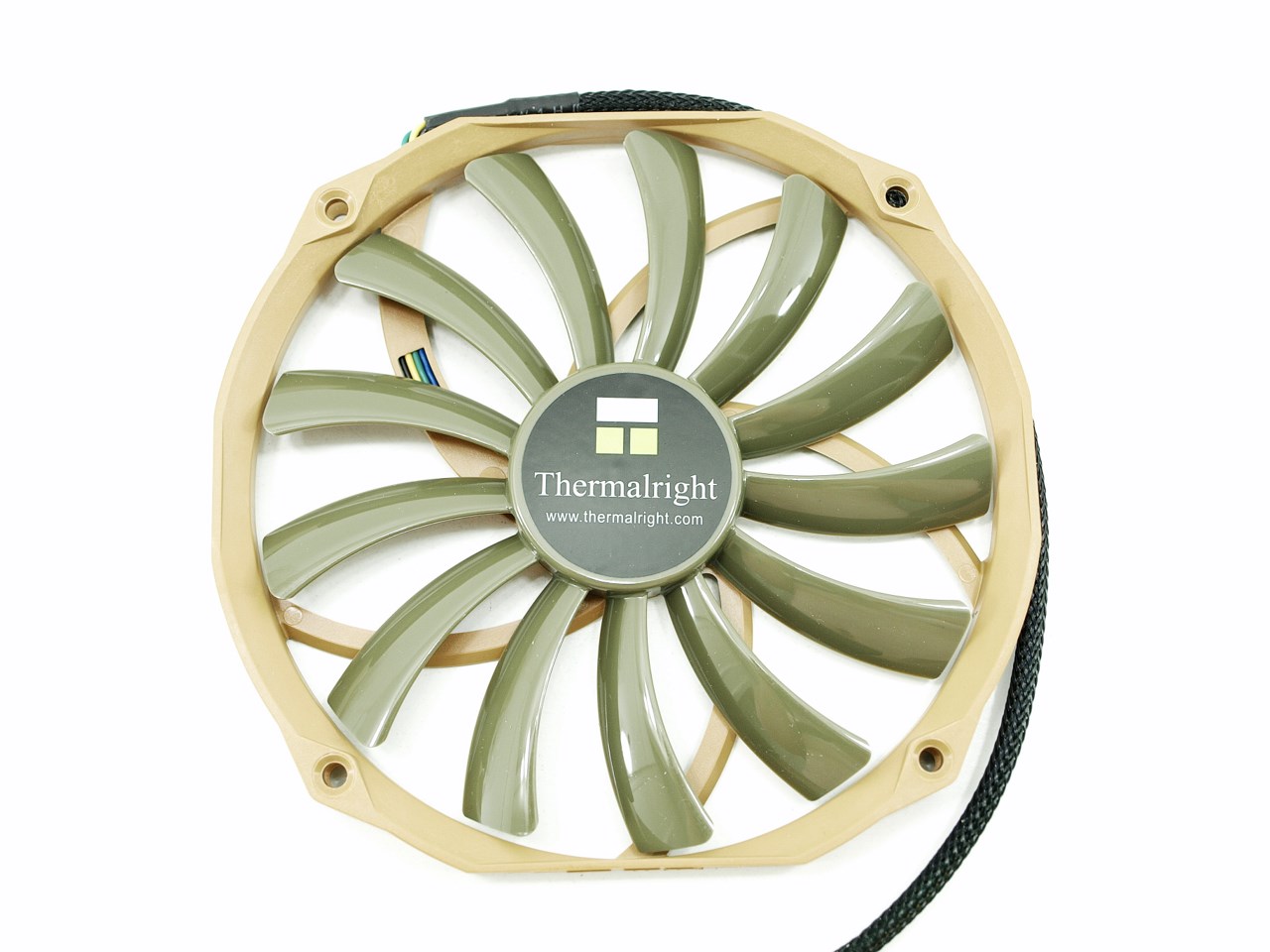

The TR-14013 is an 140mm wide 13mm thick fan with 13 blades (did they use the 13 in the name because of the thickness or blades that matters little) that can rotate with speeds up to 1300RPM and produce airflow of 64.52CFM at 30.6dBA.

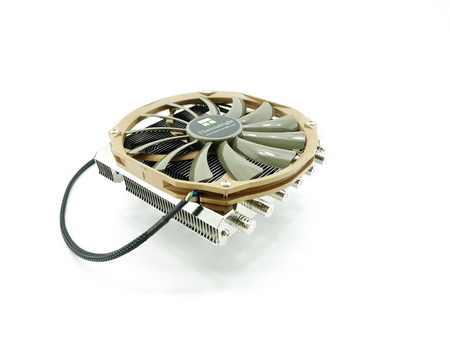

Installing the fan is very easy so you just need to use the provided screws (you only need to use the fan mount with heavier fans. With the fan installed the AXP-200 now measures 73mm in height and weighs 566g.
