THE GRANDIS XE1236

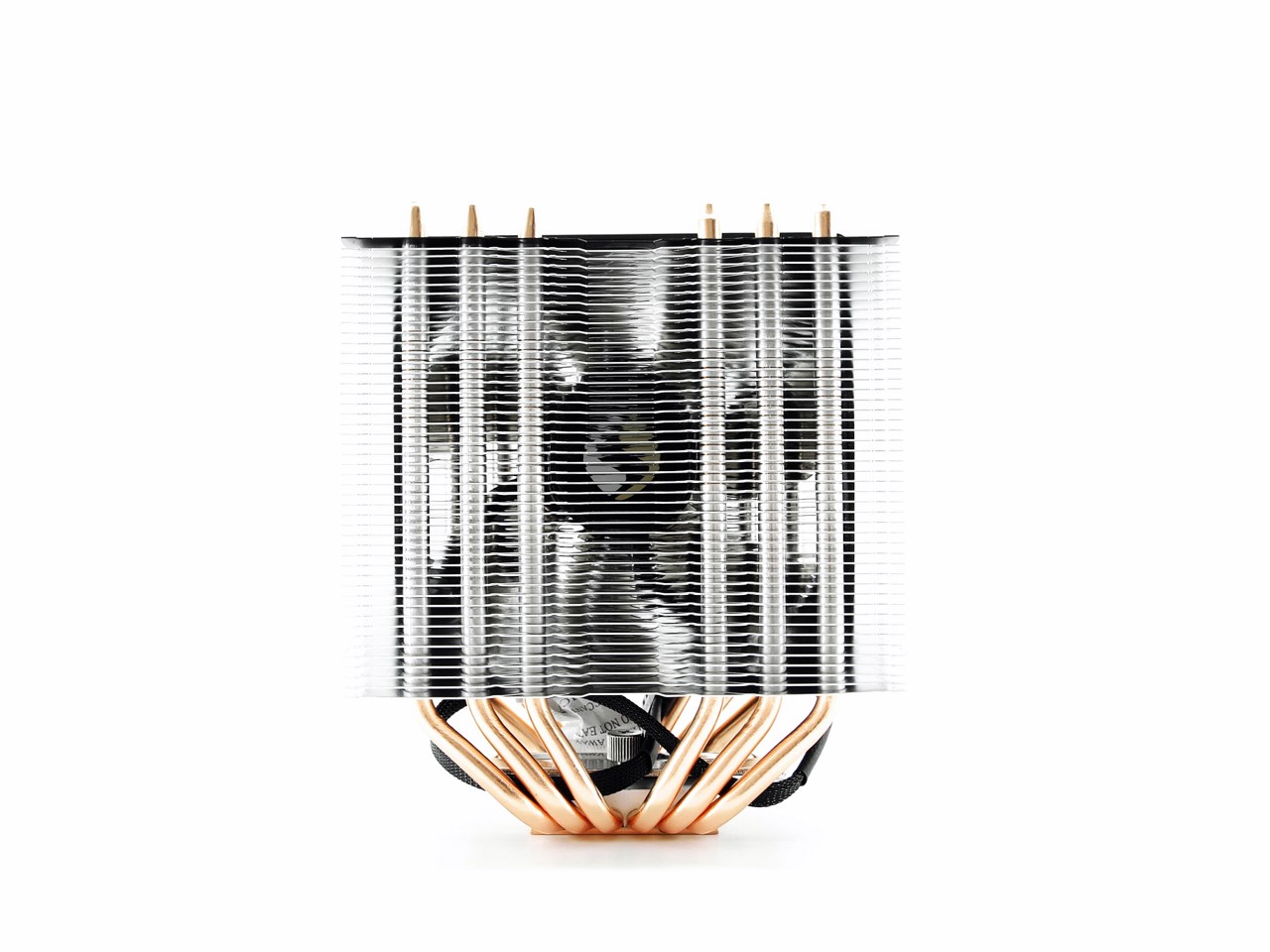

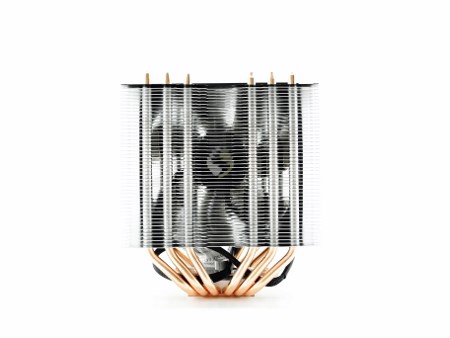

As mentioned in the introduction page the Grandis XE1236 measures 158mm in height, 130mm in width and 105mm in length (with just the one fan installed it weighs 848g).

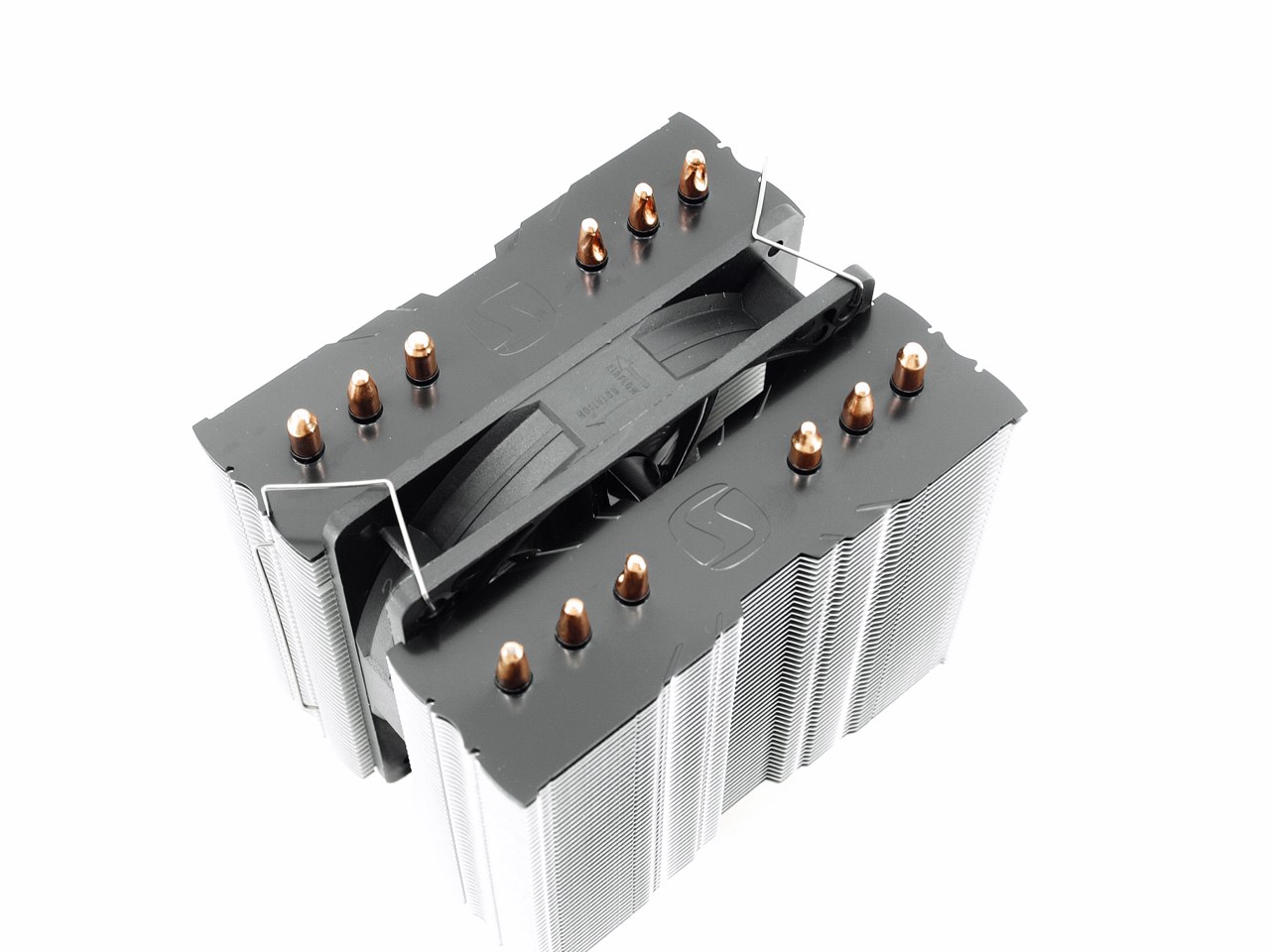

Although both heatsinks are smaller than what we see with other coolers still SilentiumPC has squeezed a total of 47 aluminum fins on each.

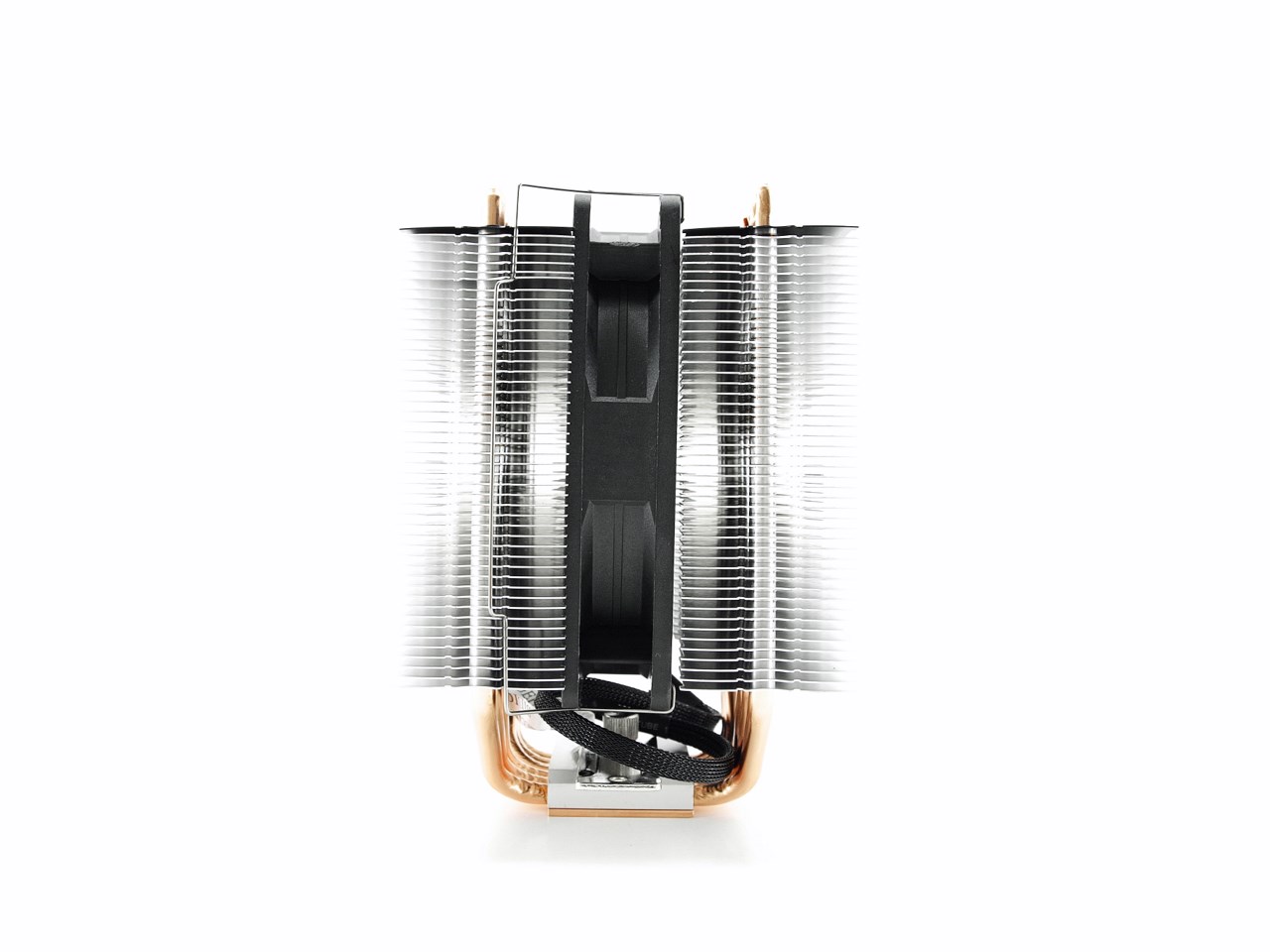

The 120mm fan sandwiched between the two heatsinks is mounted on the rear one.

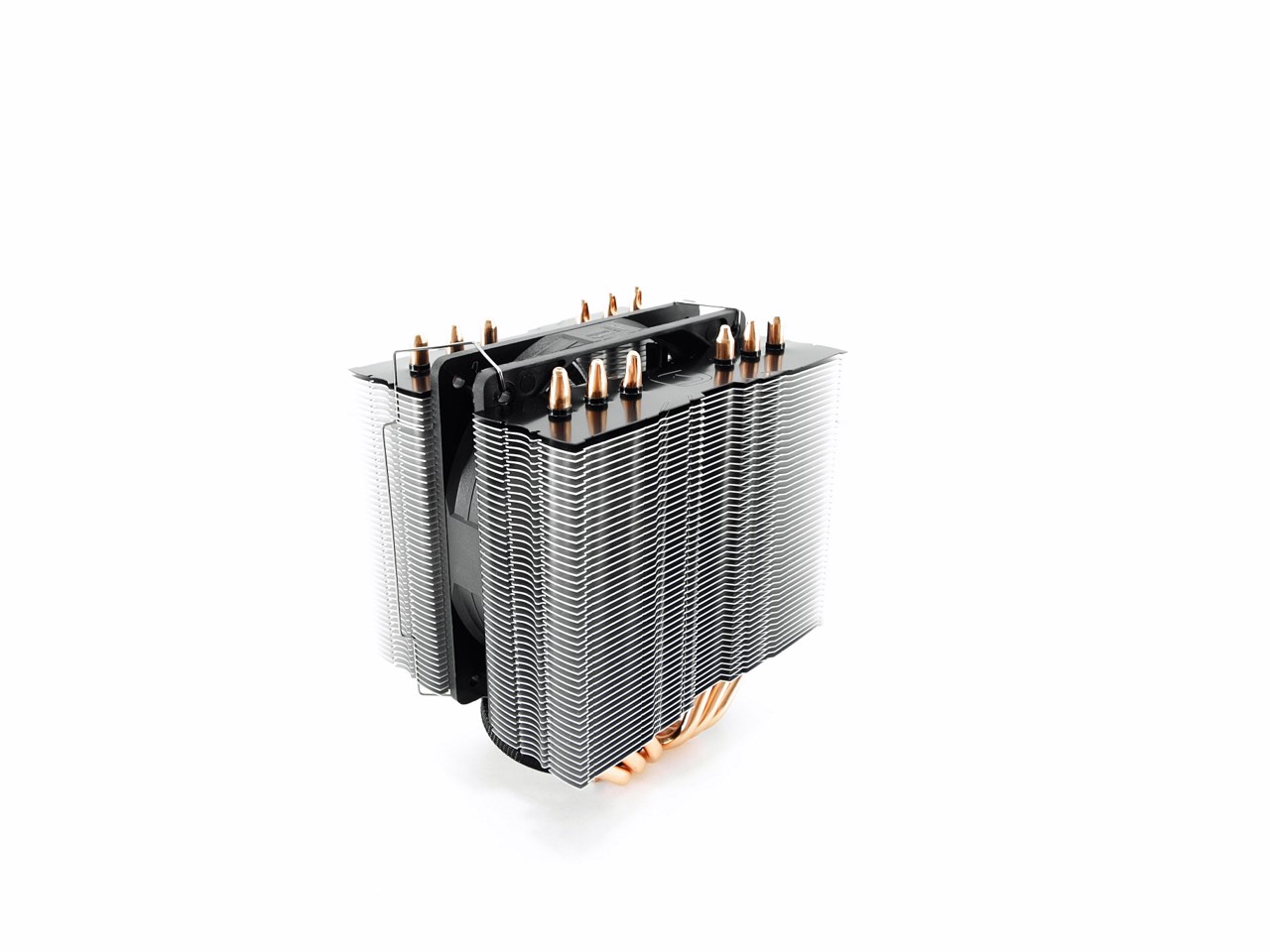

As you can see the Grandis XE1236 has room for up to three 120mm fans (front, center, rear).

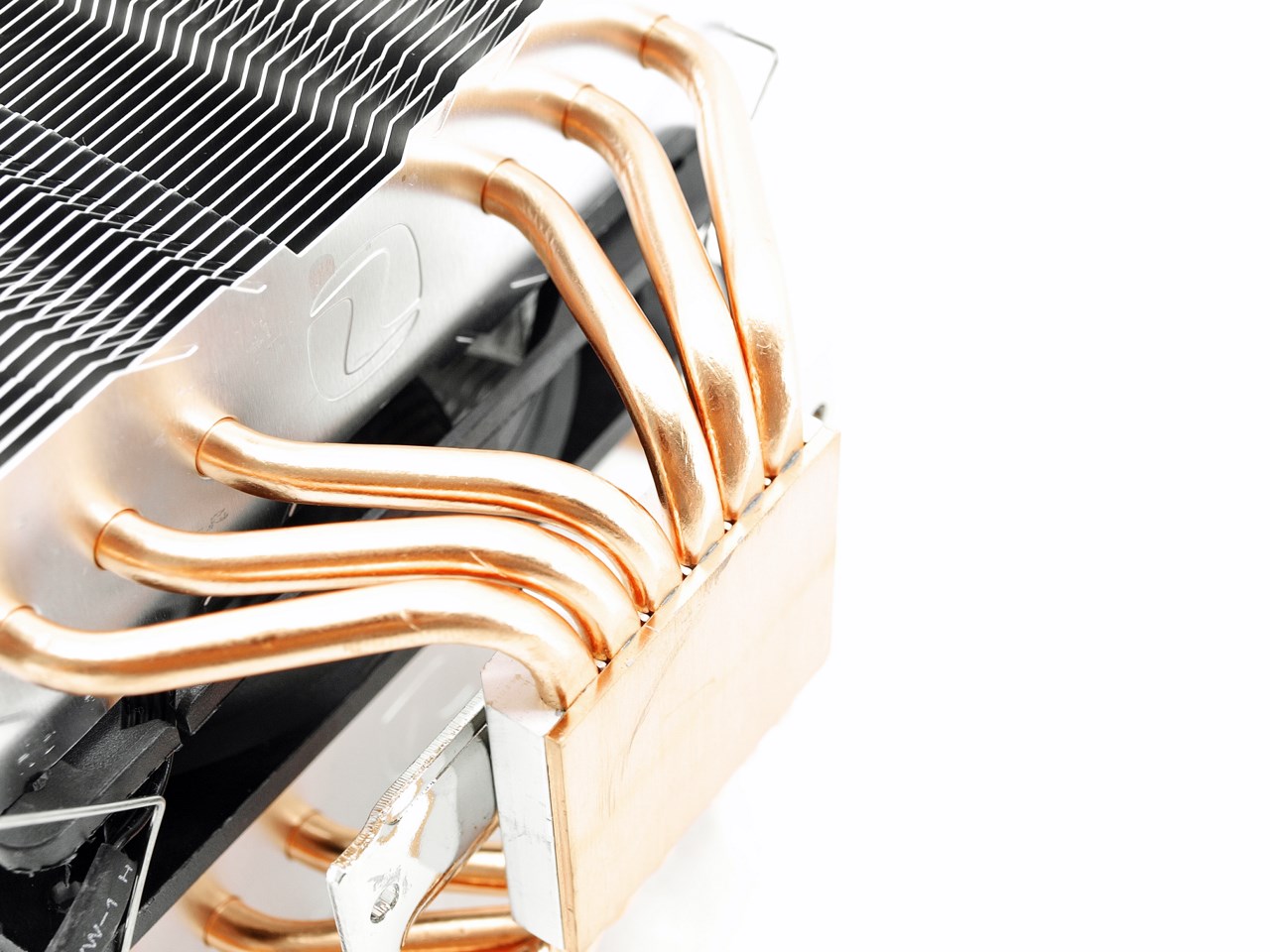

There are six 6mm all-copper heatpipes that leave the base of the cooler and travel through both heatsinks.

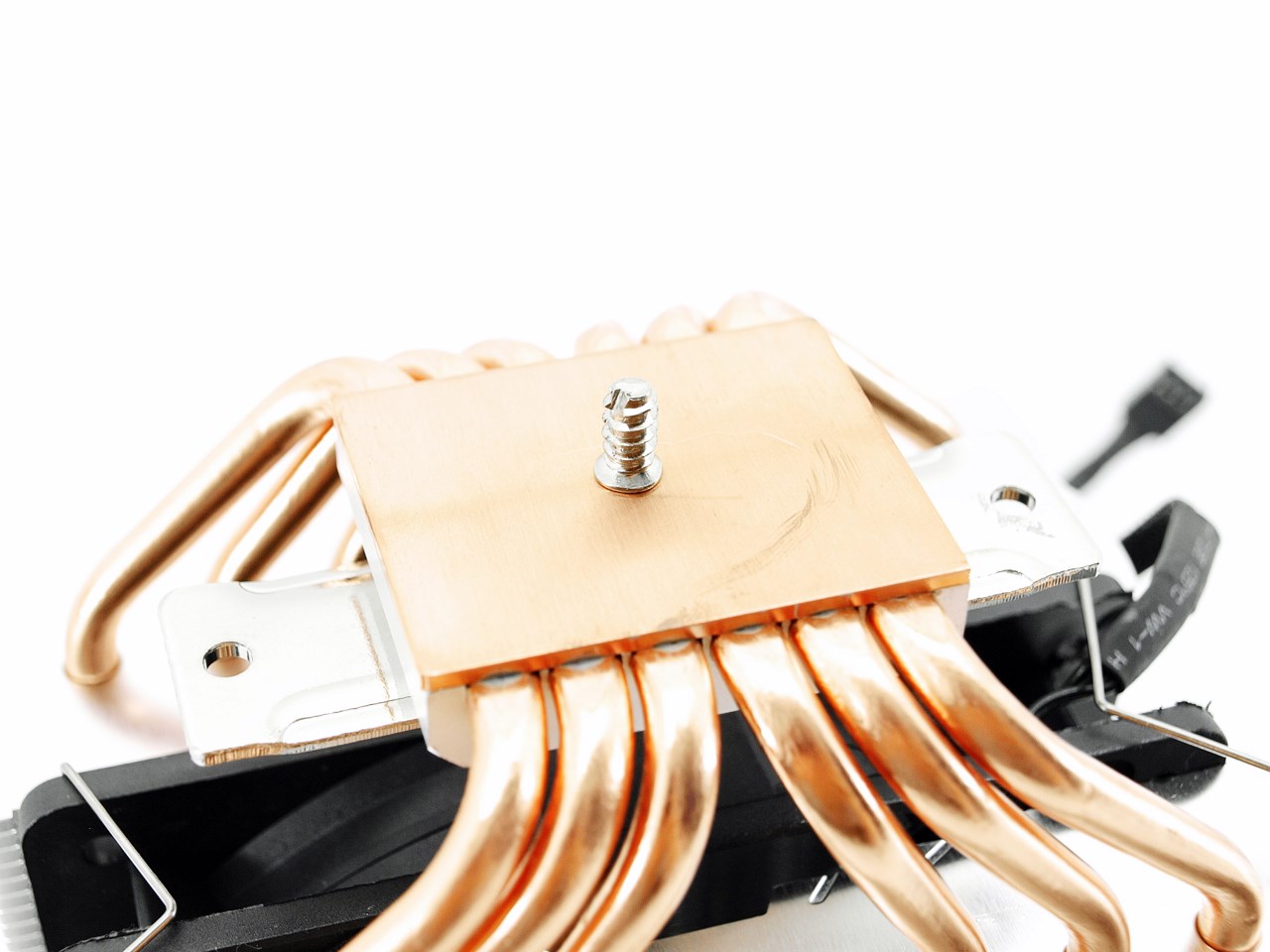

Unfortunately the all-copper base of the Grandis XE1236 came with several machine marks on it.

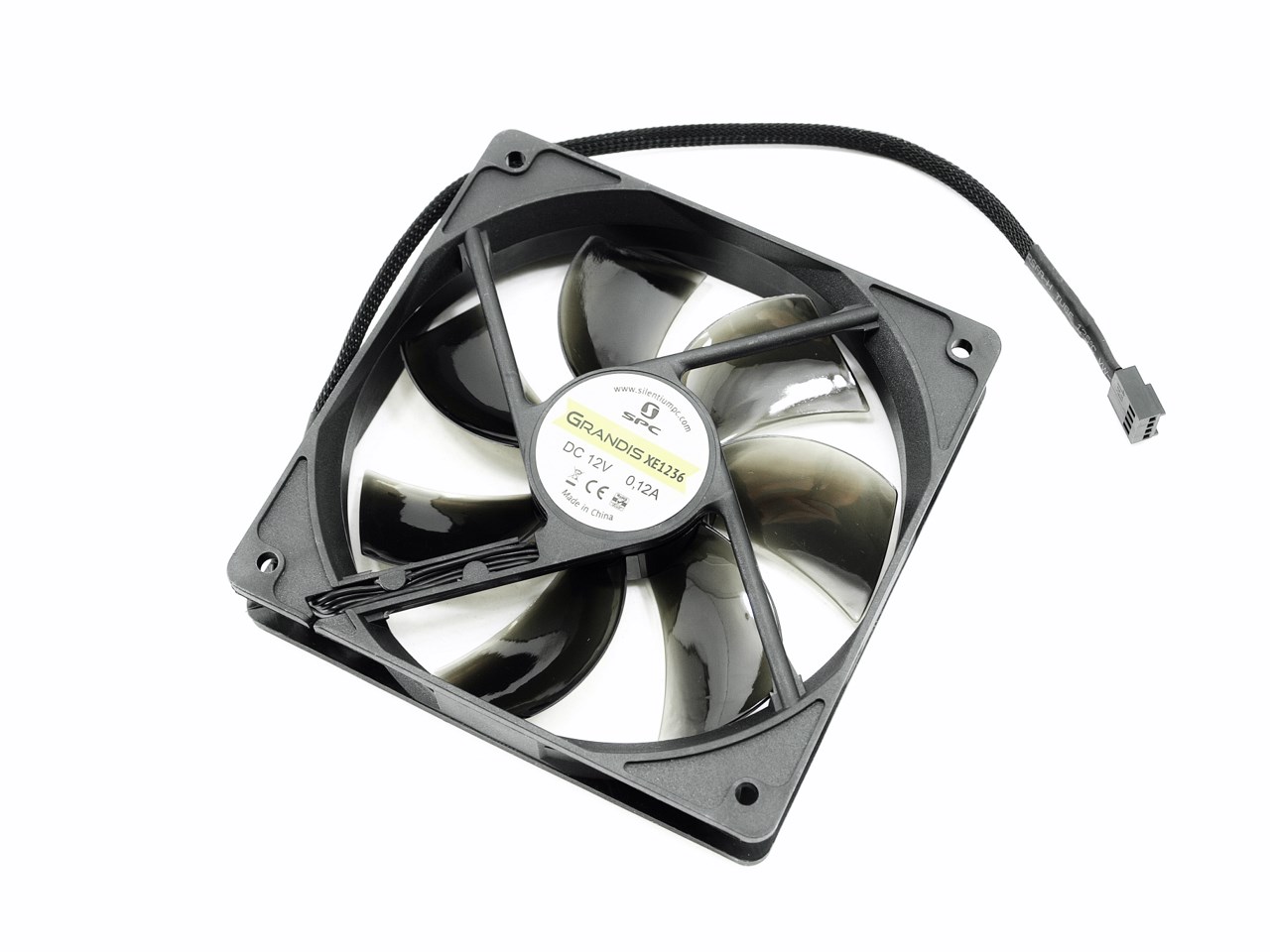

The fans SilentiumPC used with the Grandis XE1236 are of their GF12025 line although the sticker behind them has the name of the cooler.

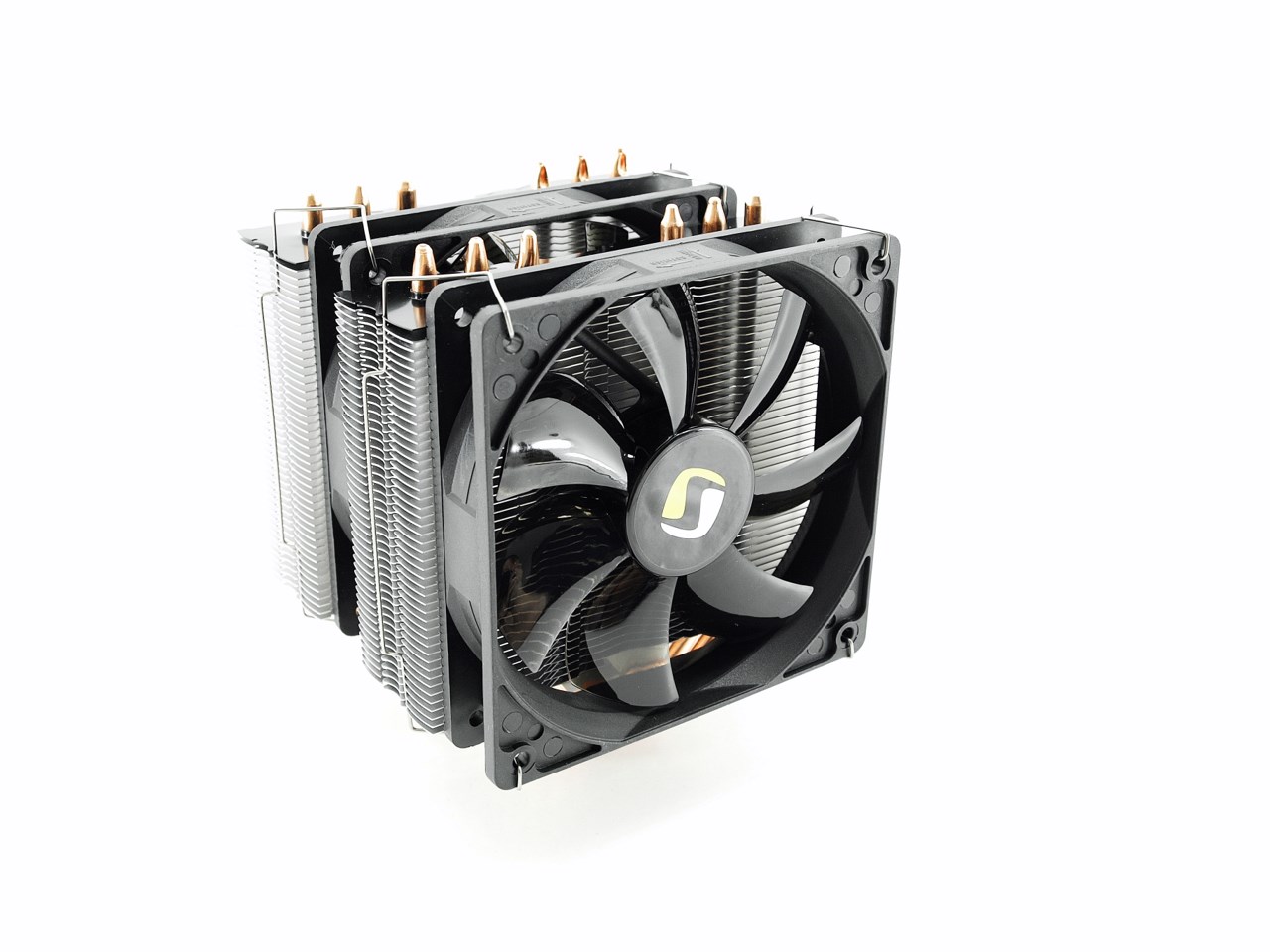

With both fans installed the Grandis XE1236 measures 130mm in length (depth) and weighs 965g.
