THE BRONTES

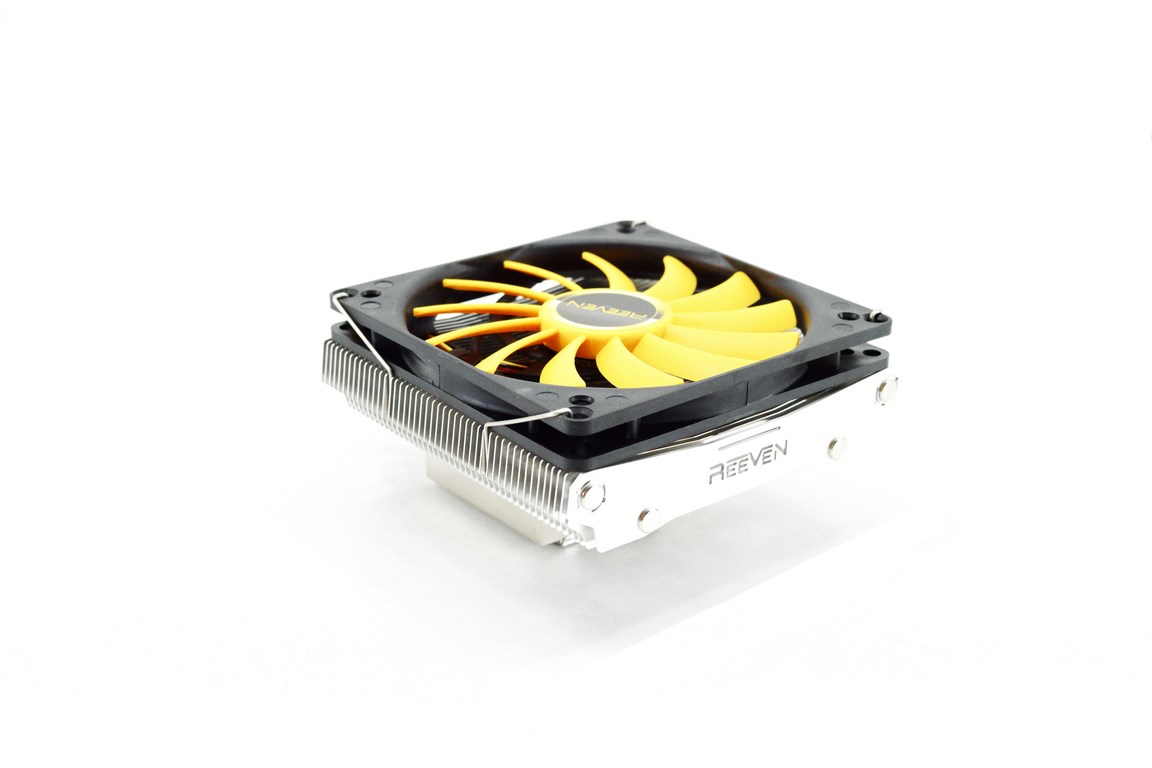

 The Brontes is one of the smallest CPU coolers to ever reach our lab with measurements of 105mm in width, 114mm in depth and 59mm in height.

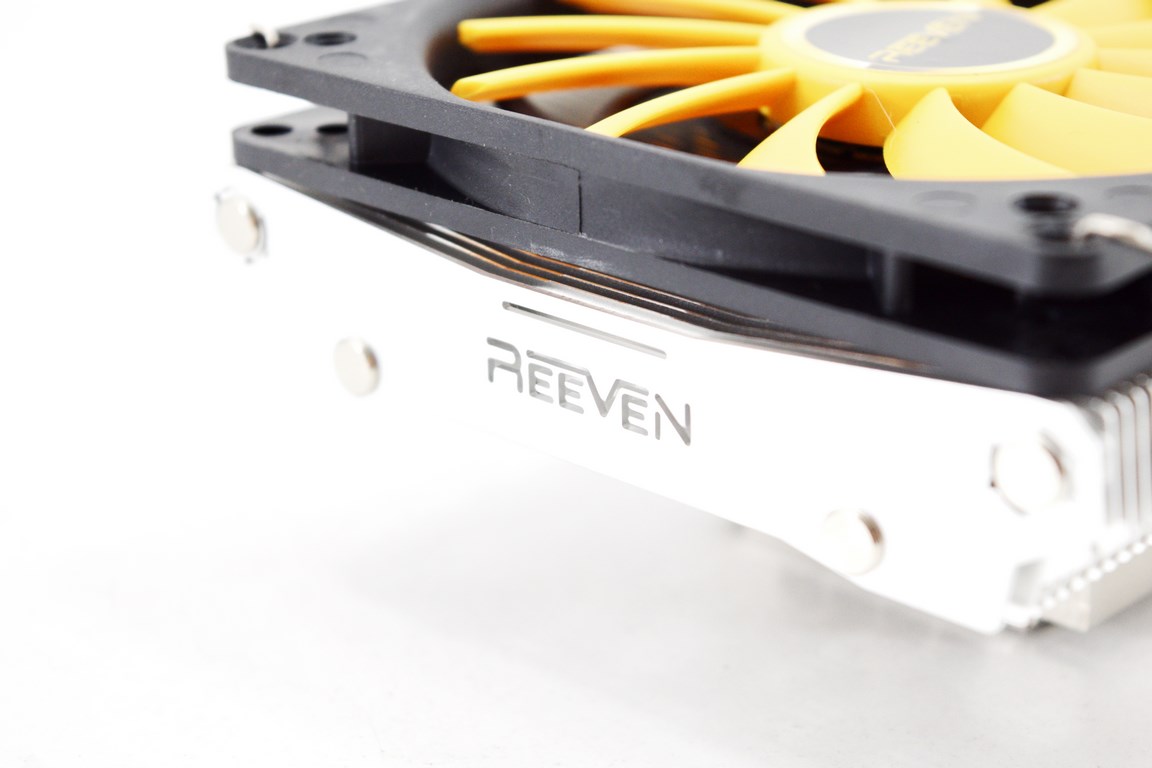

REEVEN has once again placed their logo on the first aluminum fin.

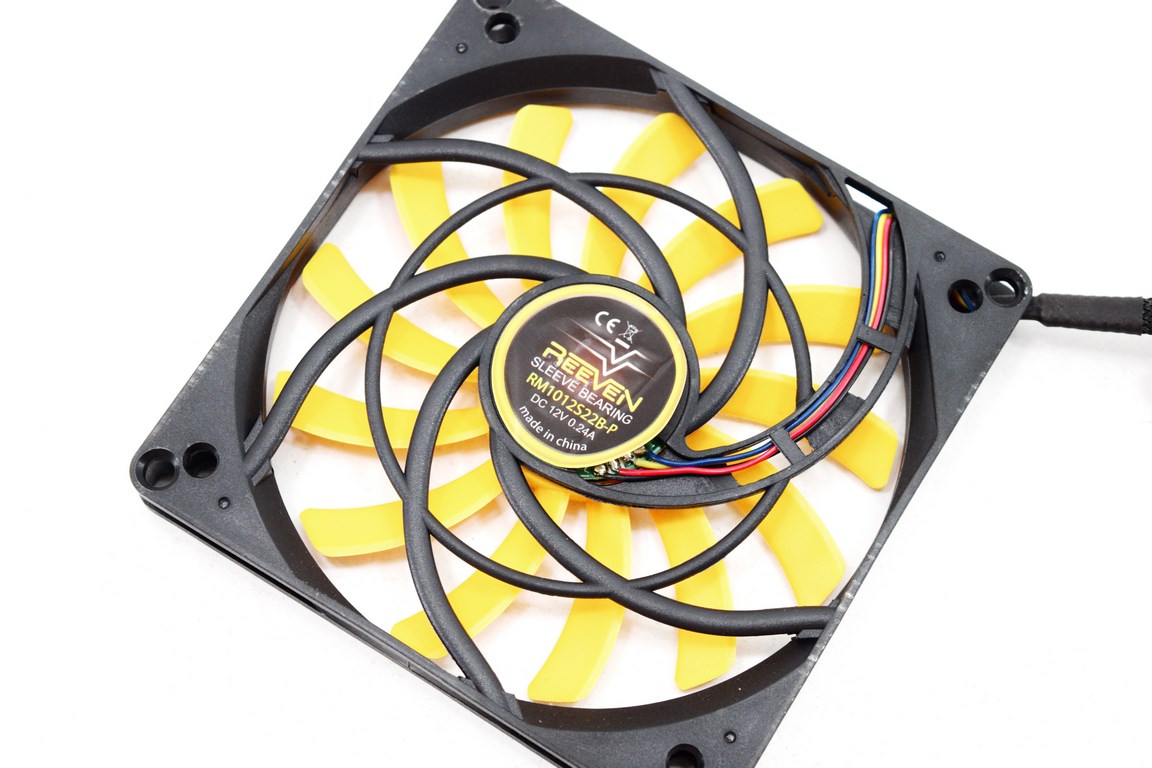

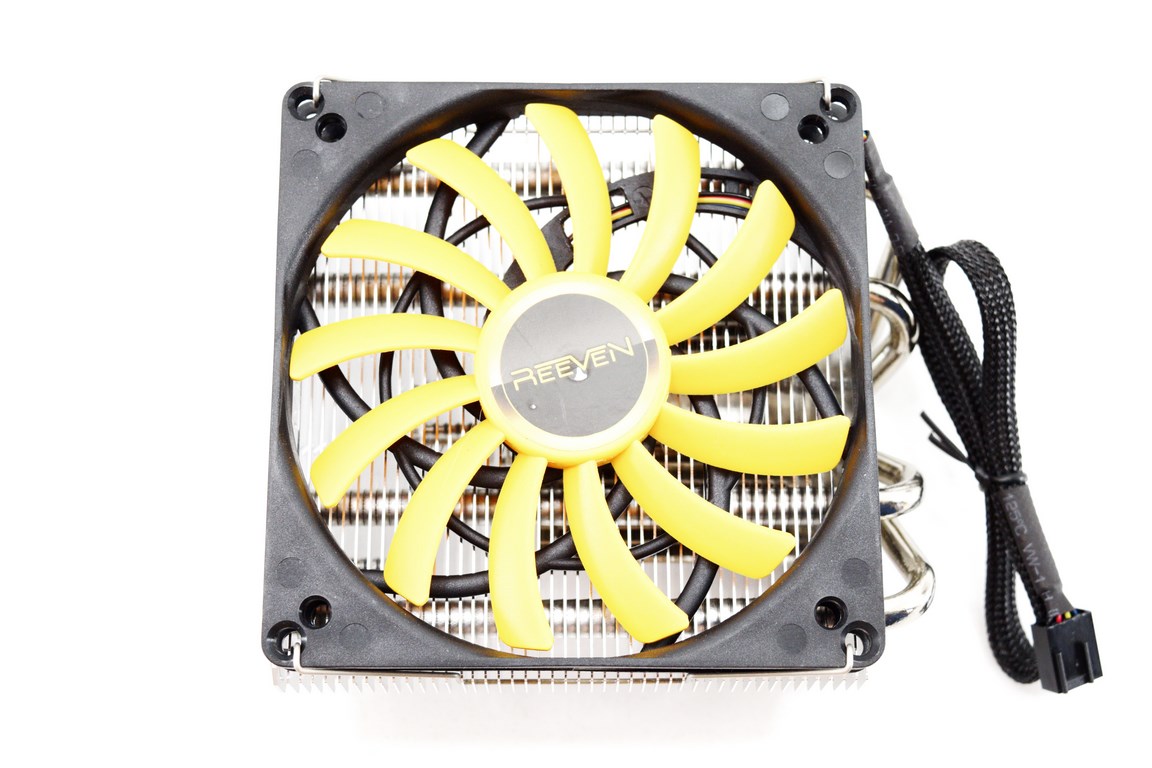

A 13 blade 100mm PWM fan is placed at the top of the heatsink.

This PWM fan can spin up to 2200RPM to produce up to 30.39CFM of airflow with 1.47mm H2O of air pressure and 31.67dBA of noise.

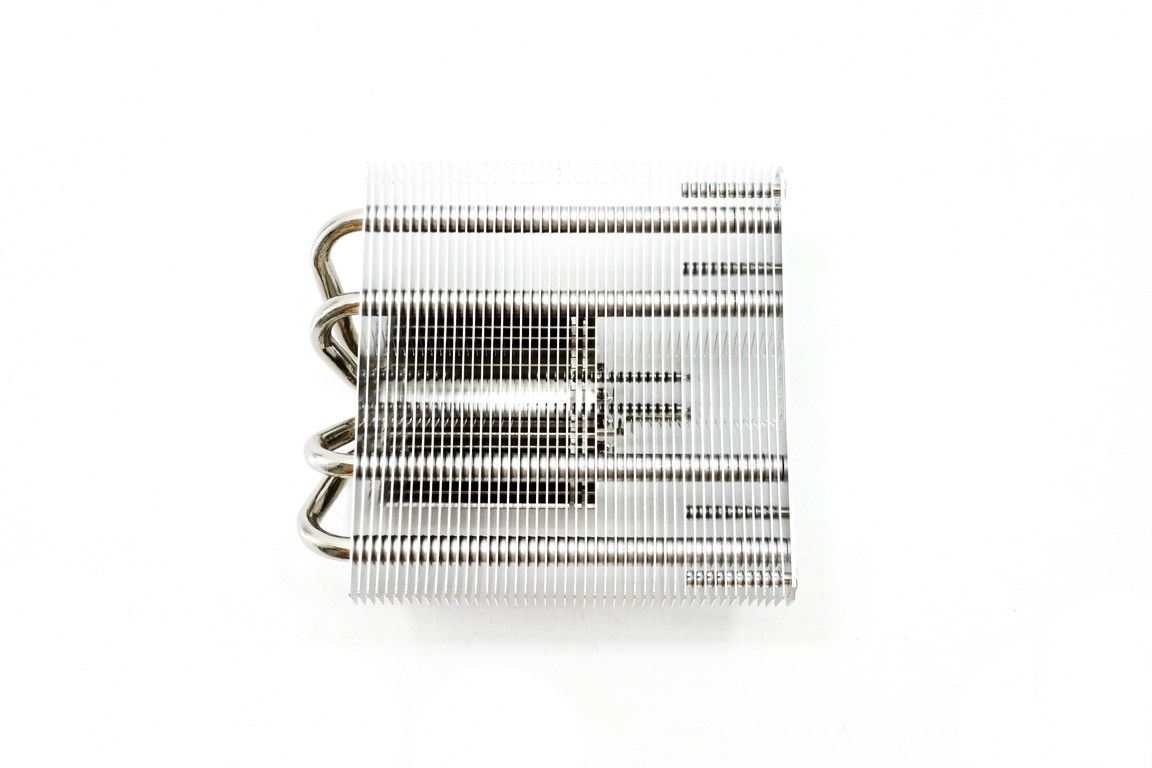

The main heatsink body is made by a total of 46 aluminum fins.

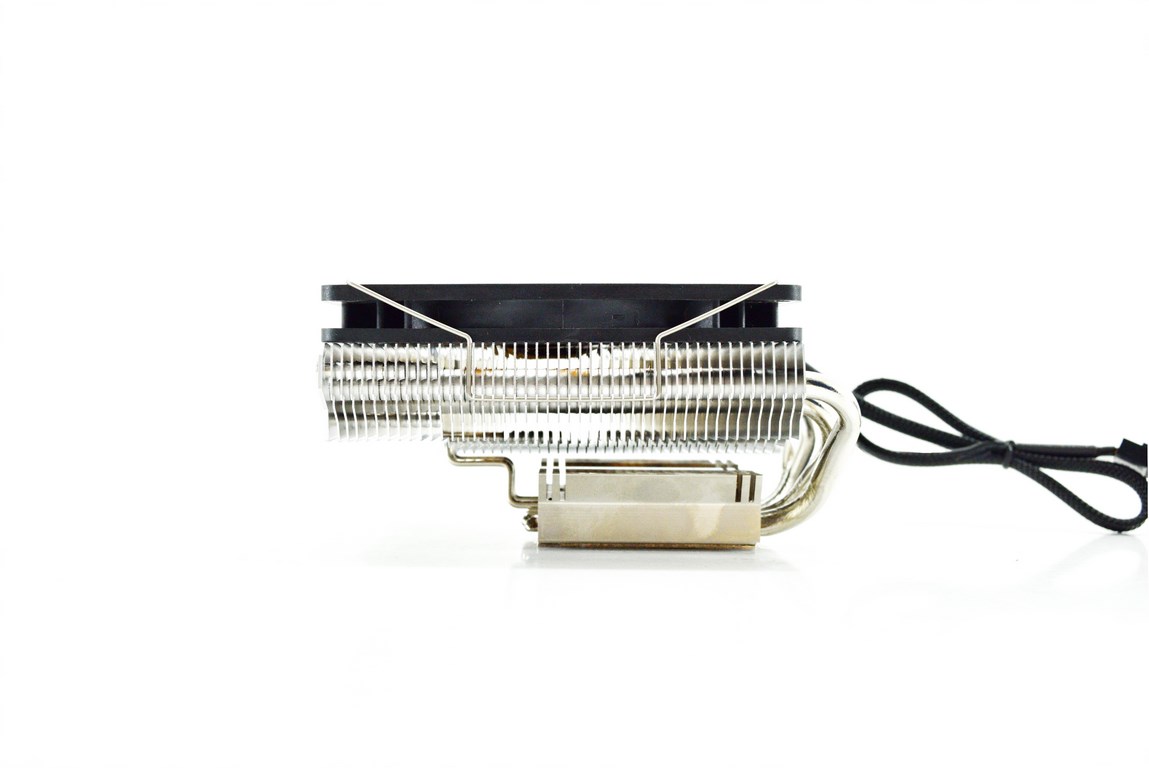

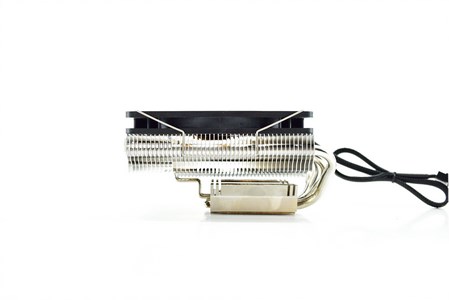

There's also a second heatsink placed ontop of the base with two pieces of metal which end up at the front end of the main heatsink (these are in place so the heatsink will not bend towards the base).

Four 6mm nickel plated all-copper heatpipes leave the rear of the base and pass through all 46 aluminum fins.

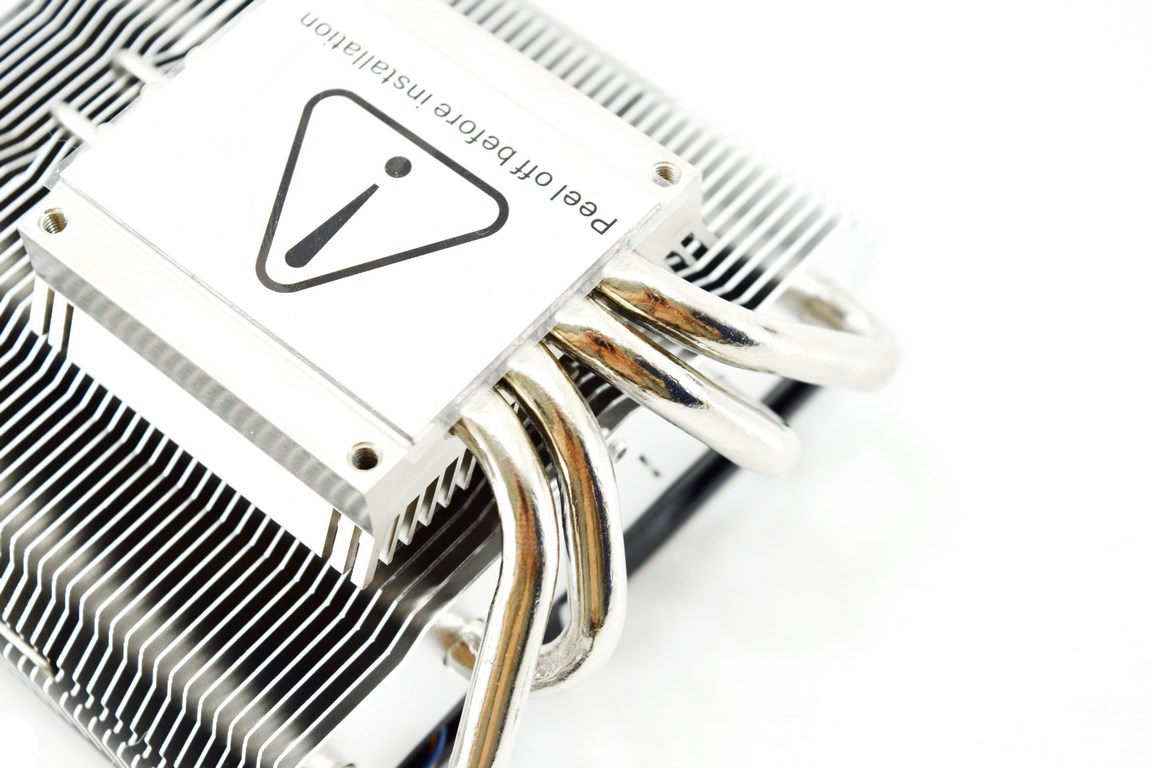

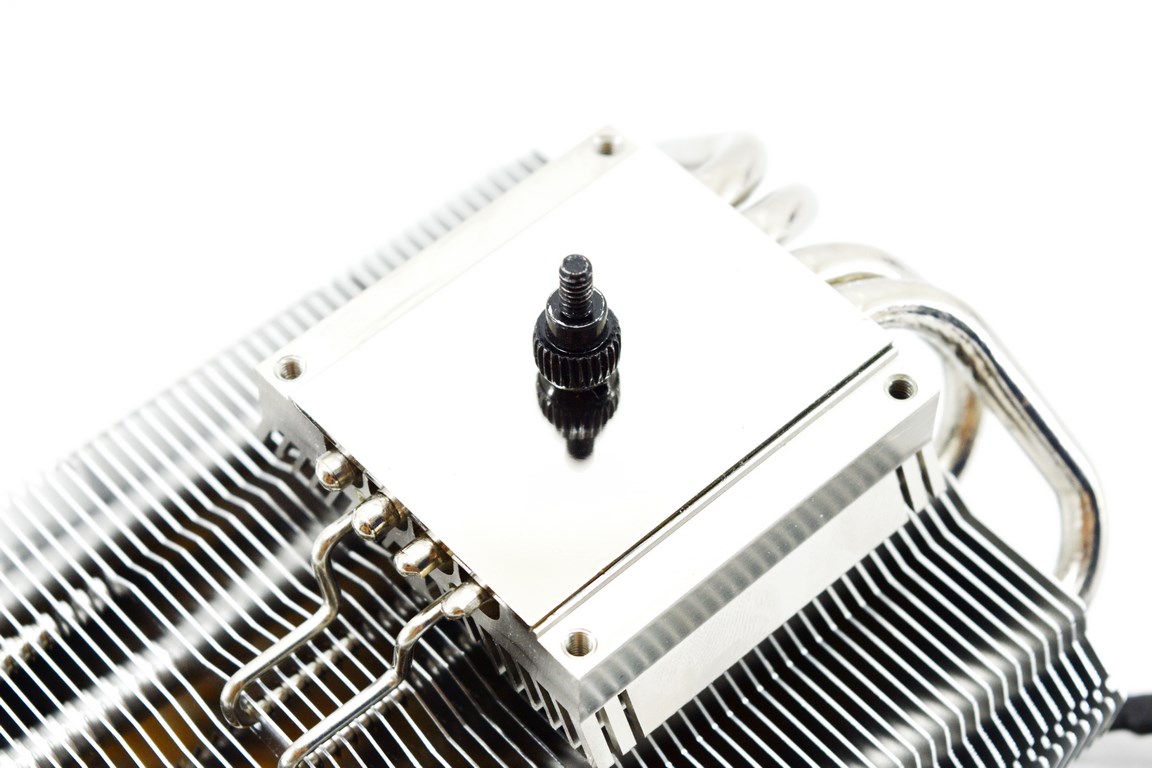

The all-copper nickel plated base is polished (not exactly a mirror-like finish however).
