THE MUGEN 5 PCGH

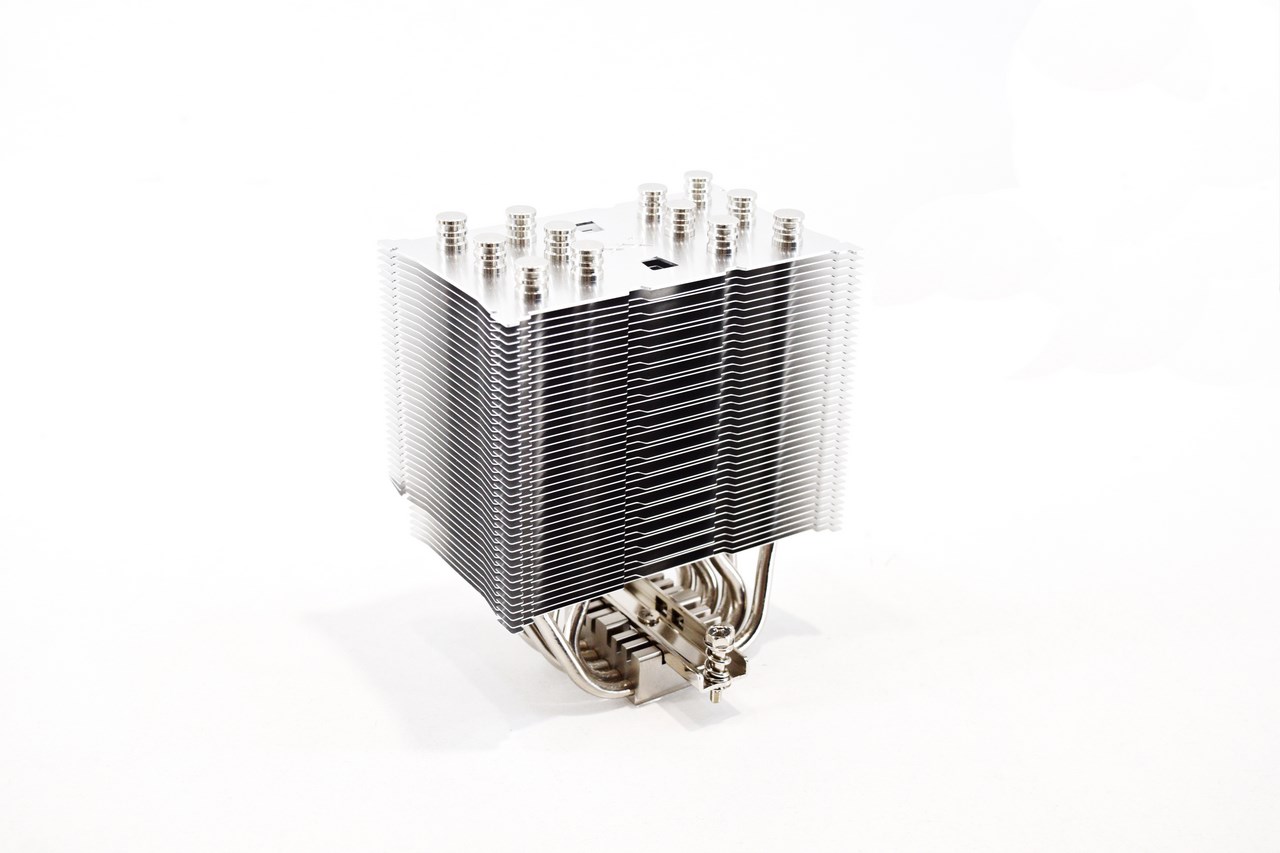

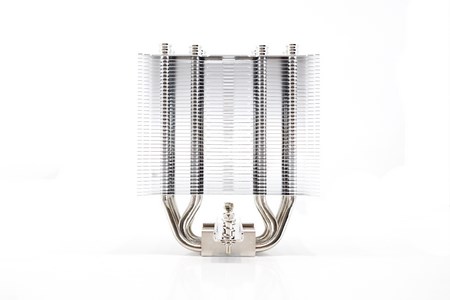

The main body (heatsink) of the Mugen 5 PCGH measures 130mm in width, 85mm in length and 154.5mm in height (weighs 761g).

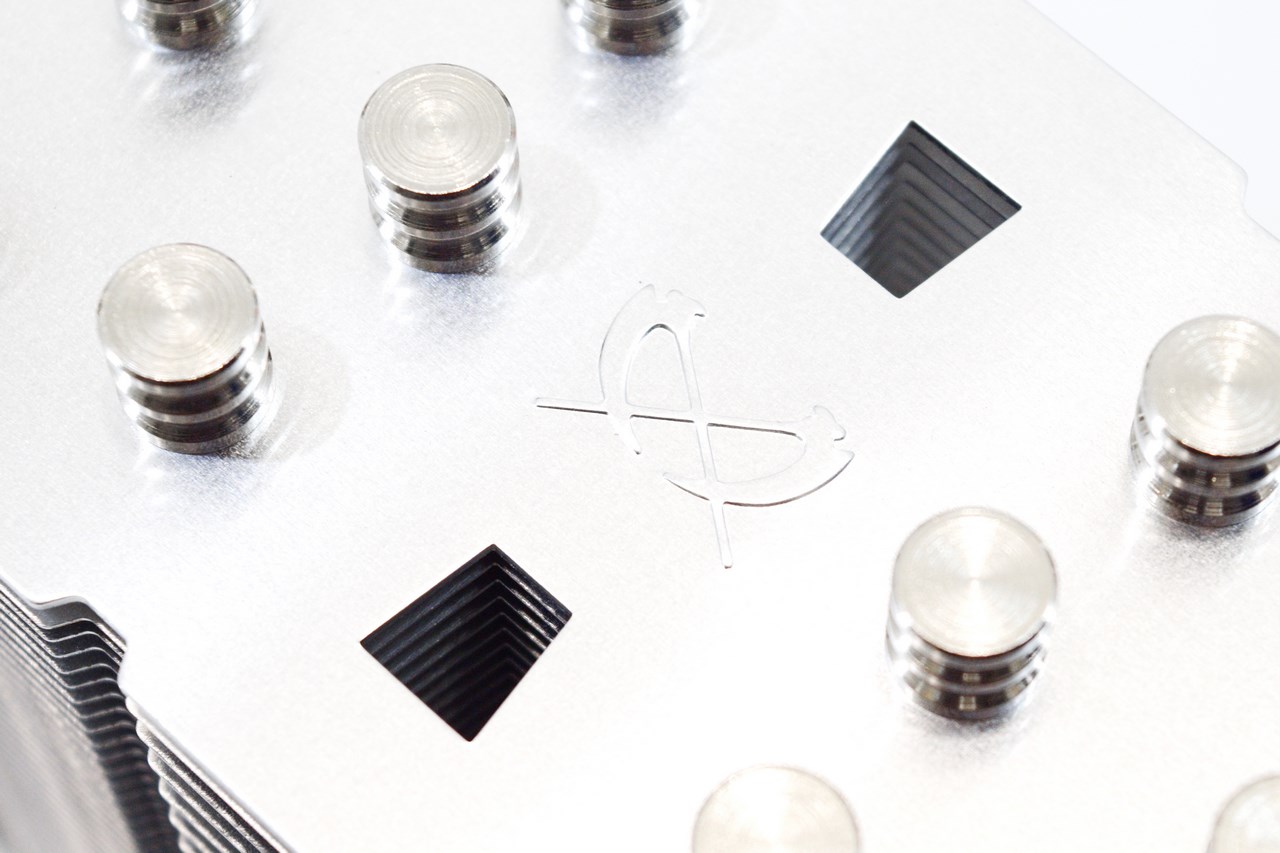

Just like with the original Mugen 5 the PCGH version has two holes that pass through all the fins one used to remove/attach the mounting bracket onto the heatsink and the other to secure one of the two screws onto the mainboard/backplate.

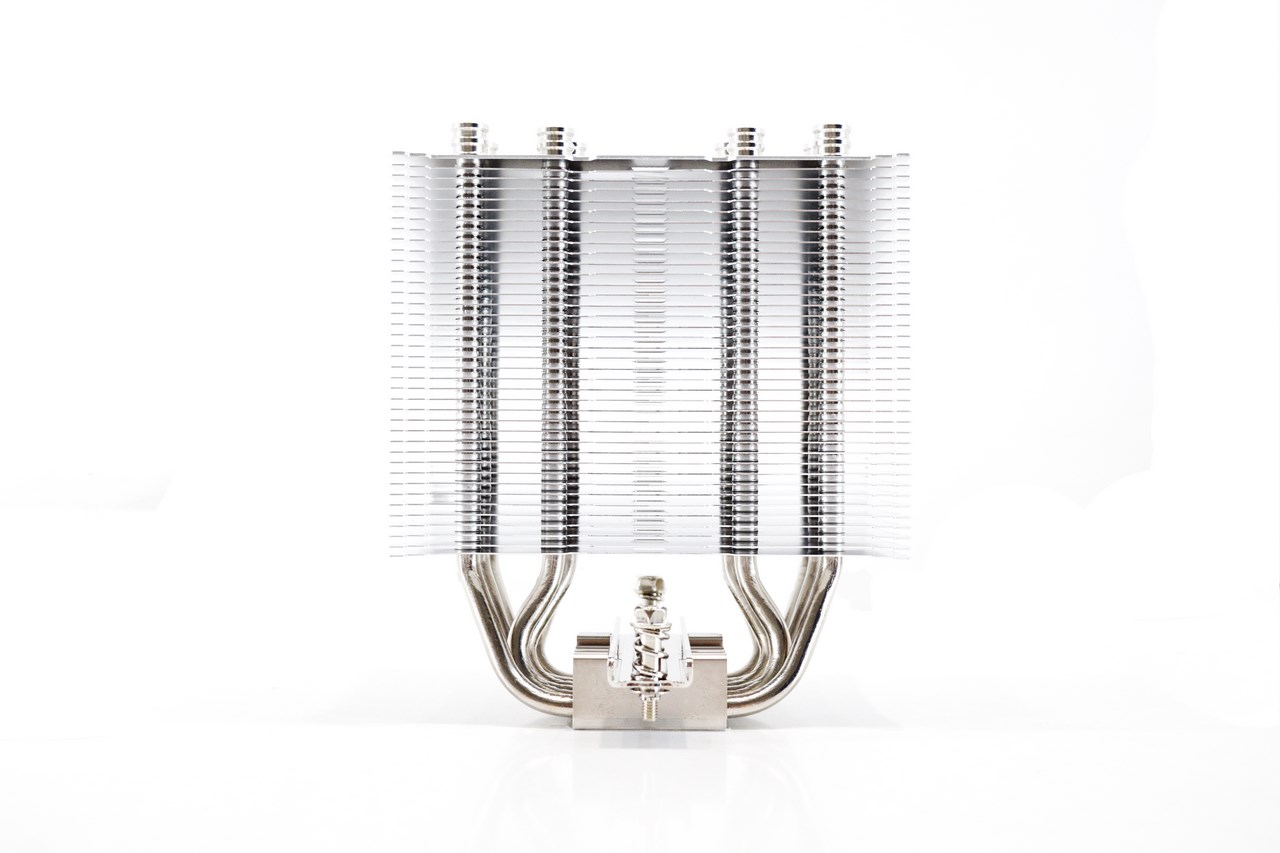

The heatsink is made by a total of 39 aluminum fins.

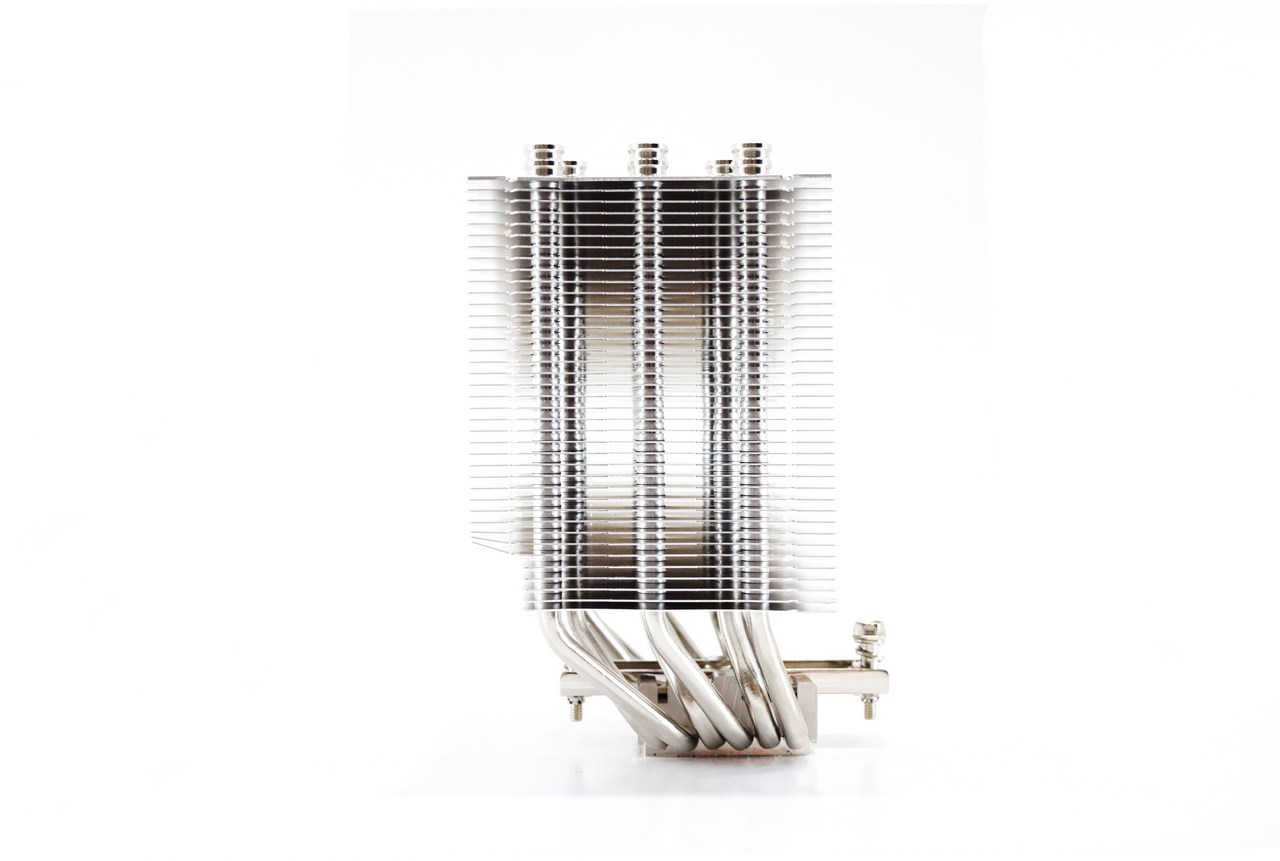

Once again because of its asymmetric design the Mugen 5 PCGH features easy installation and zero clearance issues especially with memory modules.

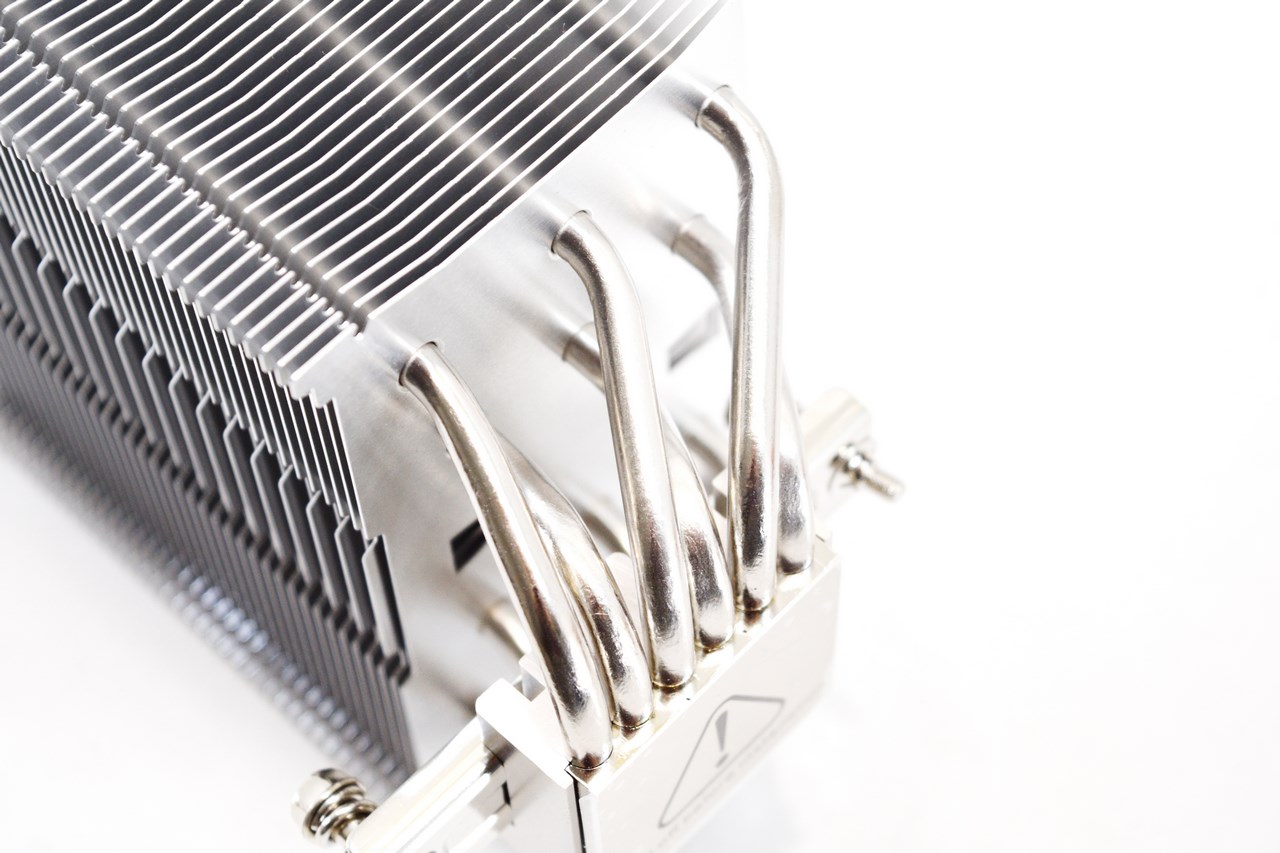

Same as its predecessor the Mugen 5 PCGH features six 6mm nickel-plated copper heatpipes.

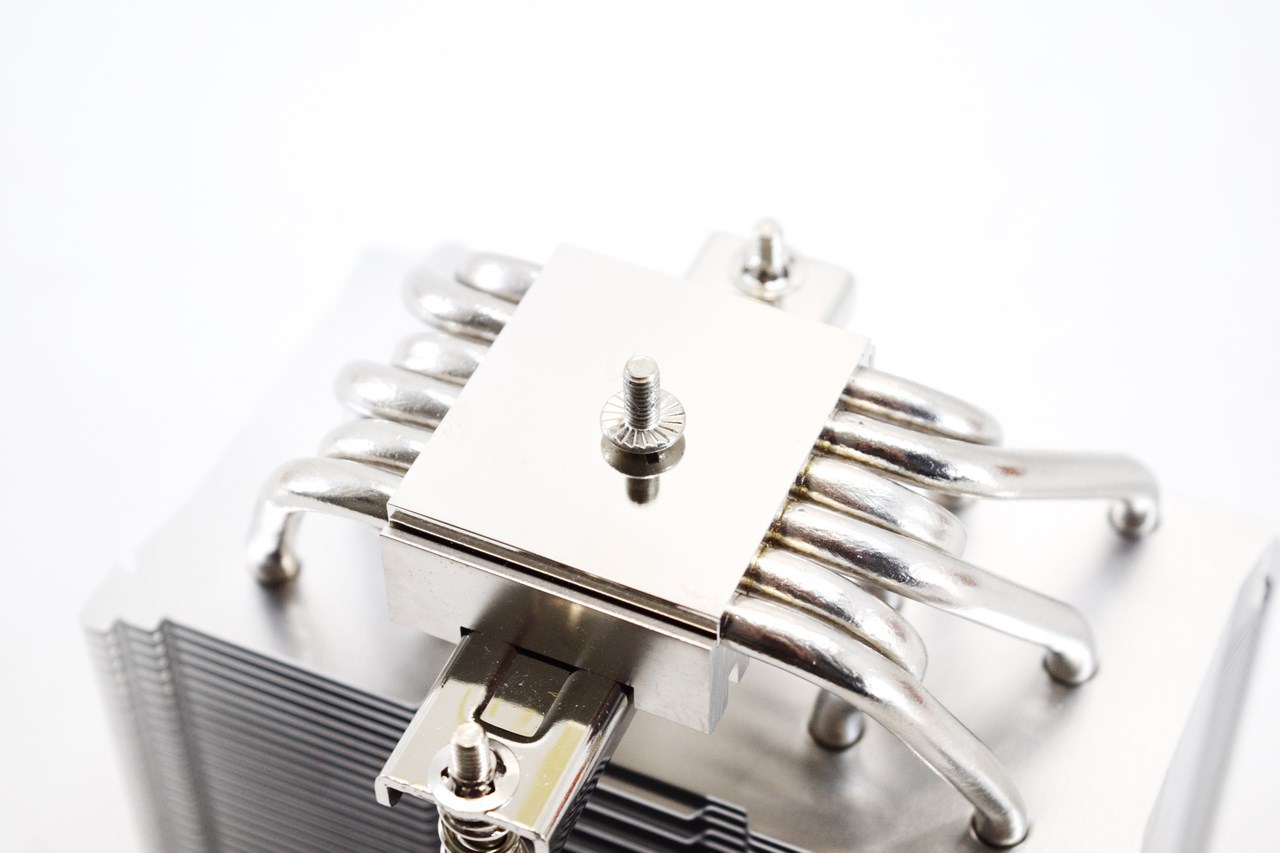

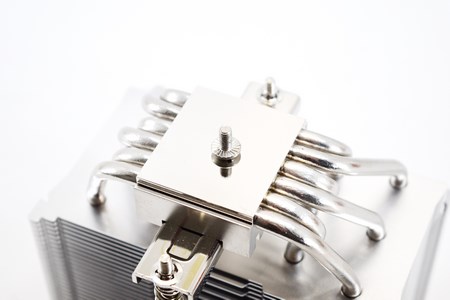

The large base features a mirror like finish as you can see from the above picture.

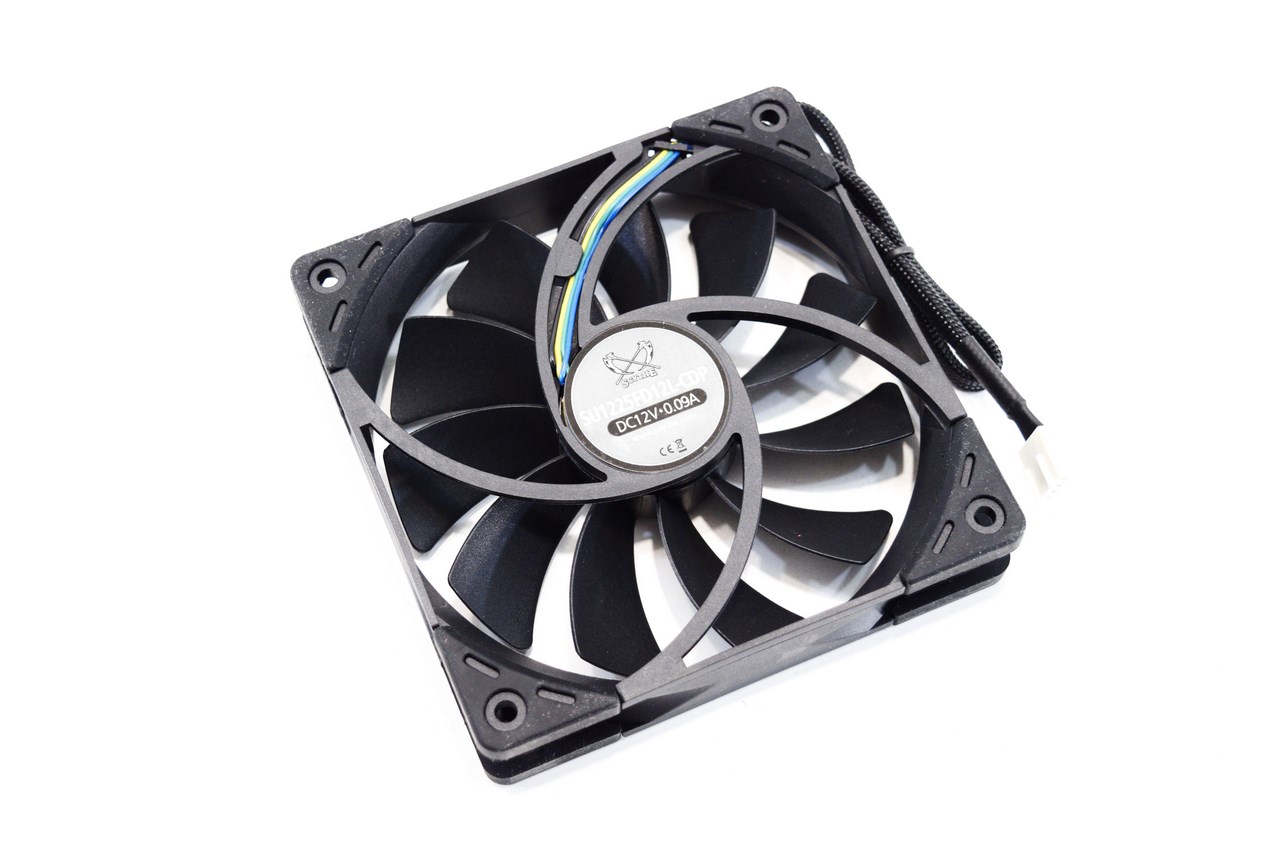

The two Kaze Flex PWM 120mm fans (11 blade design) can spin up to 800RPM to produce up to 43.03CFM of airflow and 0.49mmH2O if static pressure with just 14.5dBA of noise.

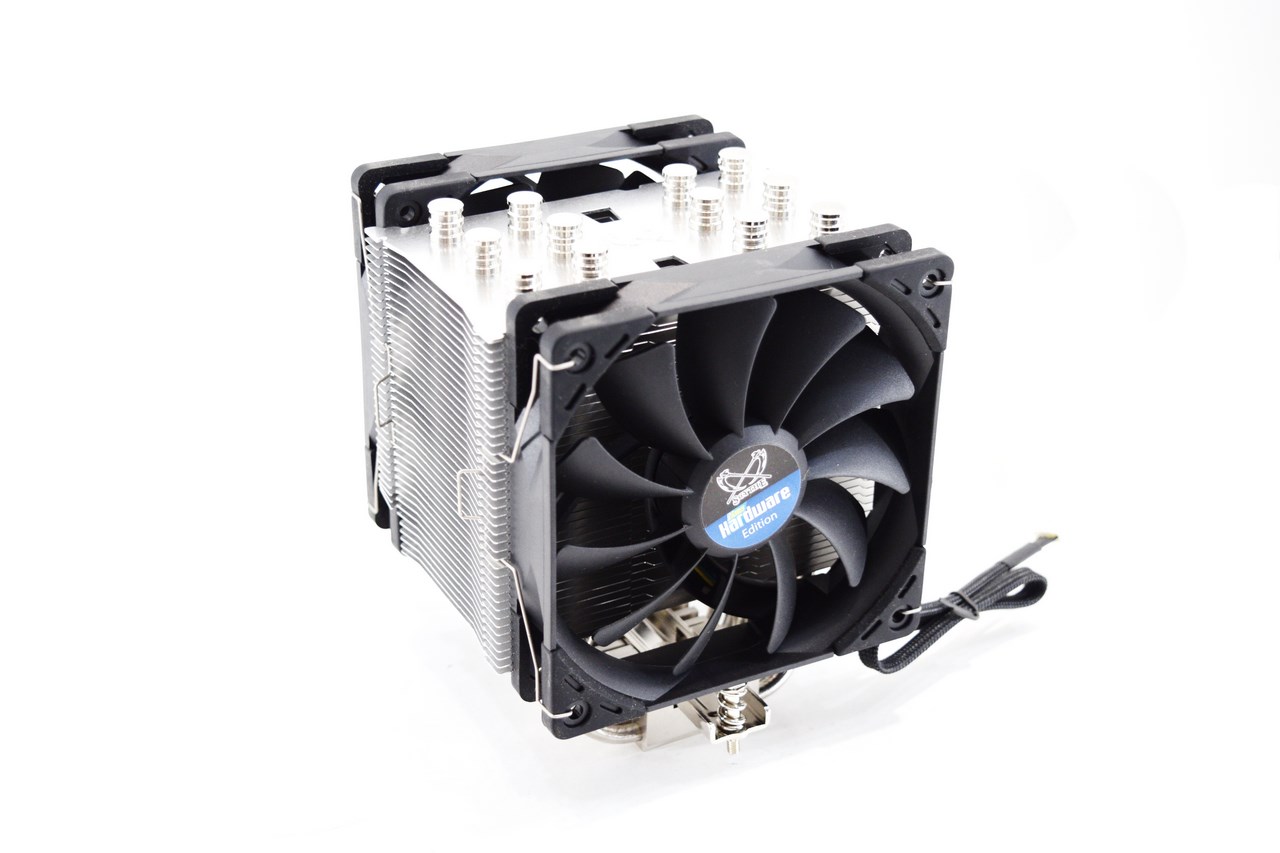

With both fans mounted the Mugen 5 PCGH now measures 133mm in length and weighs a total of 1020g.
