THE NAVIS EVO ARGB 360 V2

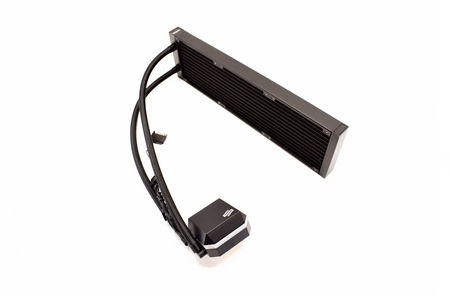

This is the 2nd Navis EVO ARGB model I’ve had the chance to test by SilentiumPC so nothing new in terms of look (aside the larger radiator and longer tubes).

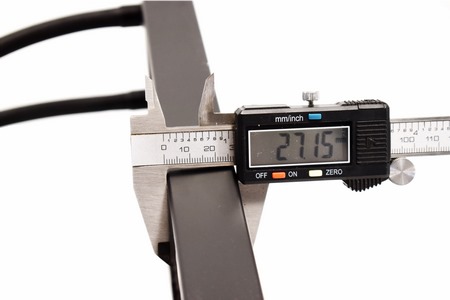

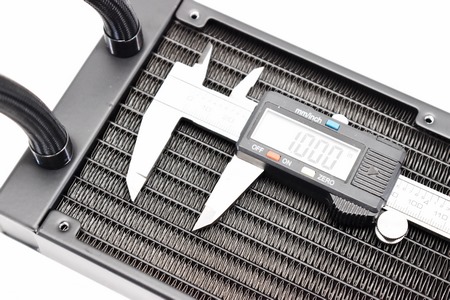

At 27.15mm thickness the radiator is almost exactly what SilentiumPC states (the 0.85mm difference could be due to a calibration issue with the measuring tool).

The radiator used in the Navis EVO ARGB 360 V2 has an FPI (fins per inch) count of 20.

Once again at the end of the radiator we find a fill/empty port which however is not to be used.

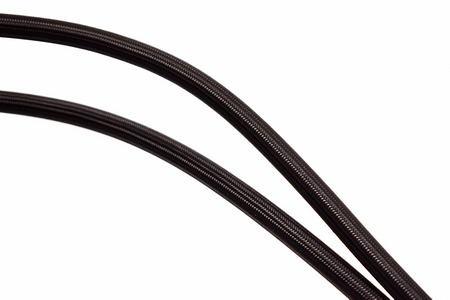

The 460mm long sleeved rubber tubes should be enough for even the largest PC towers out there (these also feature anti-kink coils on both ends).

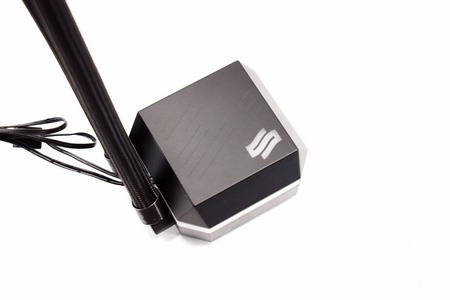

On top of the pump SilentiumPC has placed their logo along with several clear lines all of which become different colors once the AIO is in operation (just like the sides).

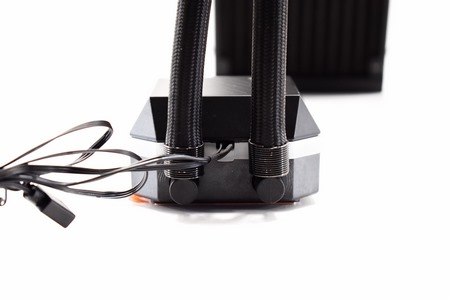

Both tubes can rotate at the base of the waterblock/pump combo to simplify installation (the anti-kink coils can also be seen here).

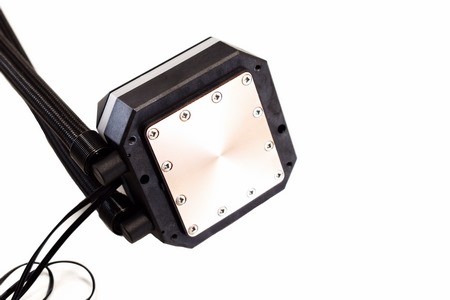

This time over the all-copper cold plate had no machine marks on it.

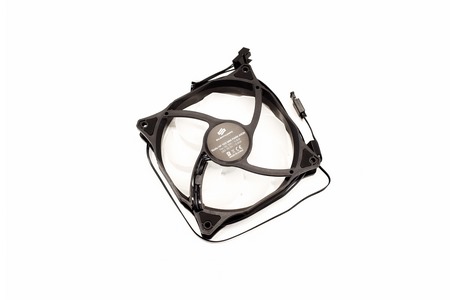

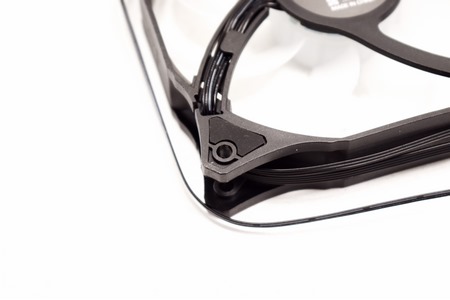

All three Stella HP ARGB PWM 120mm fans have anti-vibration pads on all 4 corners, two 3-pin RGB mainboard connectors and a 4-pin PWM connector.

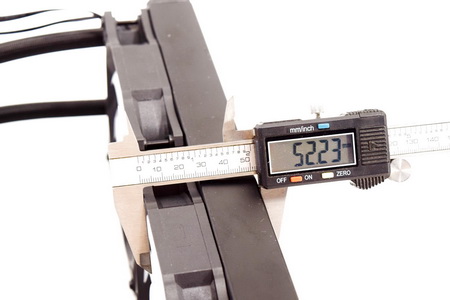

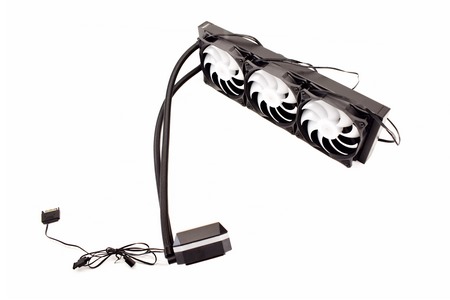

With the fans mounted the Navis EVO ARGB 360 V2 measures just over 52mm in thickness.
