THE MIRAGE L240

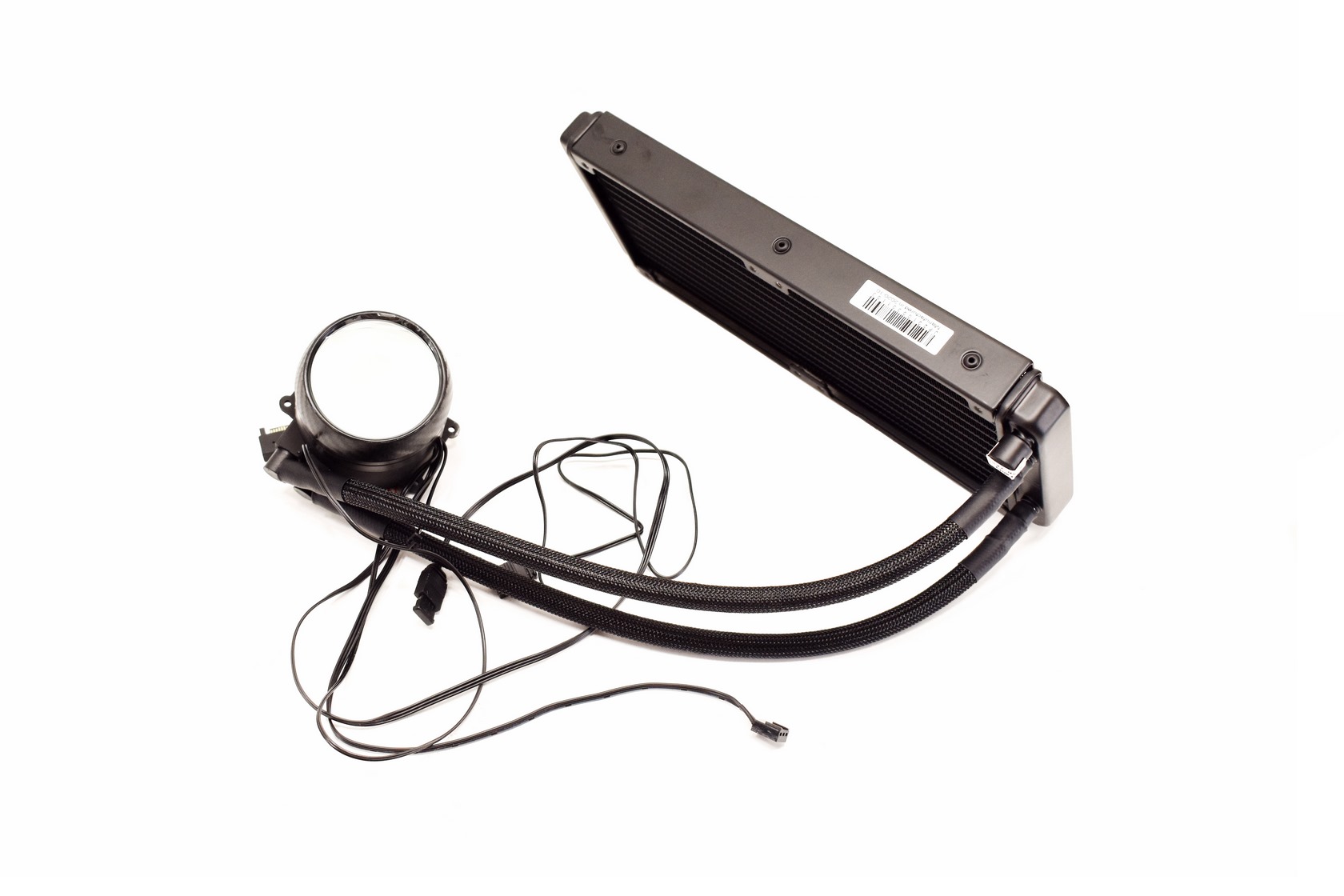

The radiator, tubes and pump/waterblock combo is something we've seen far too many times already (the pump of the Mirage L240 however does stand out).

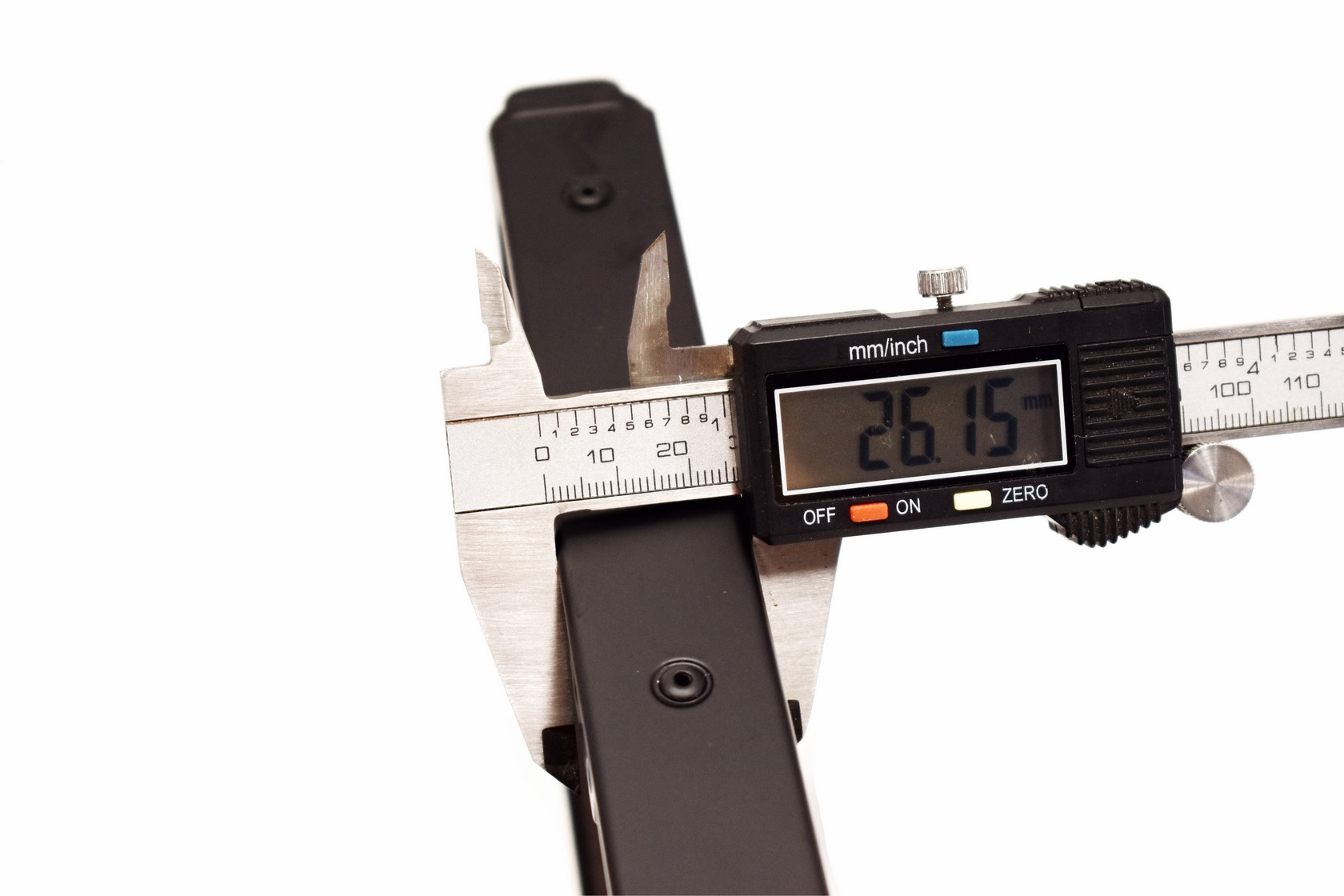

As you can all see the aluminum radiator is indeed roughly 27mm in thickness (slightly less according to my measurement tool but it could need calibrating).

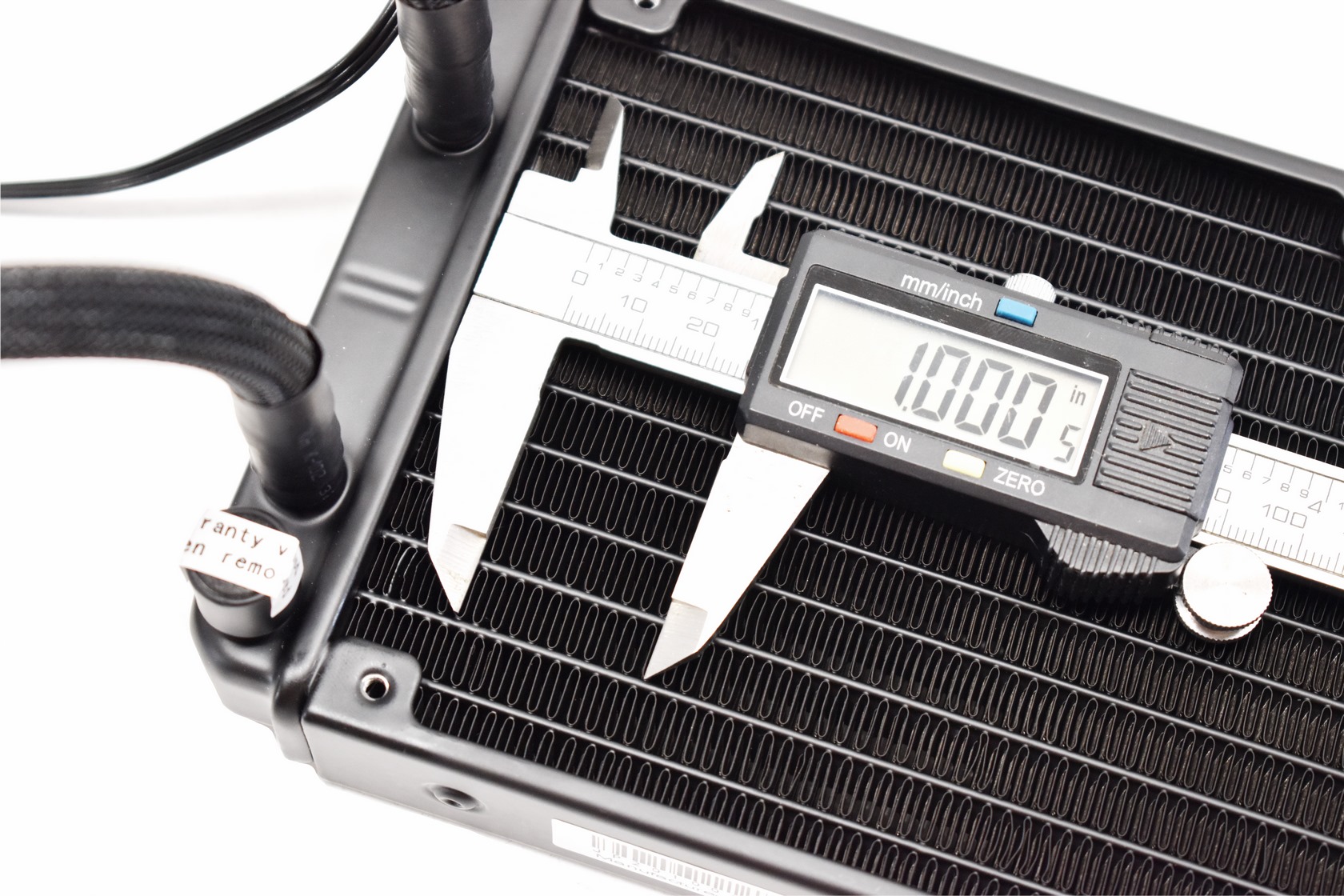

In terms of FPI (fins per inch) the radiator used with the Mirage L240 has a count of 20.

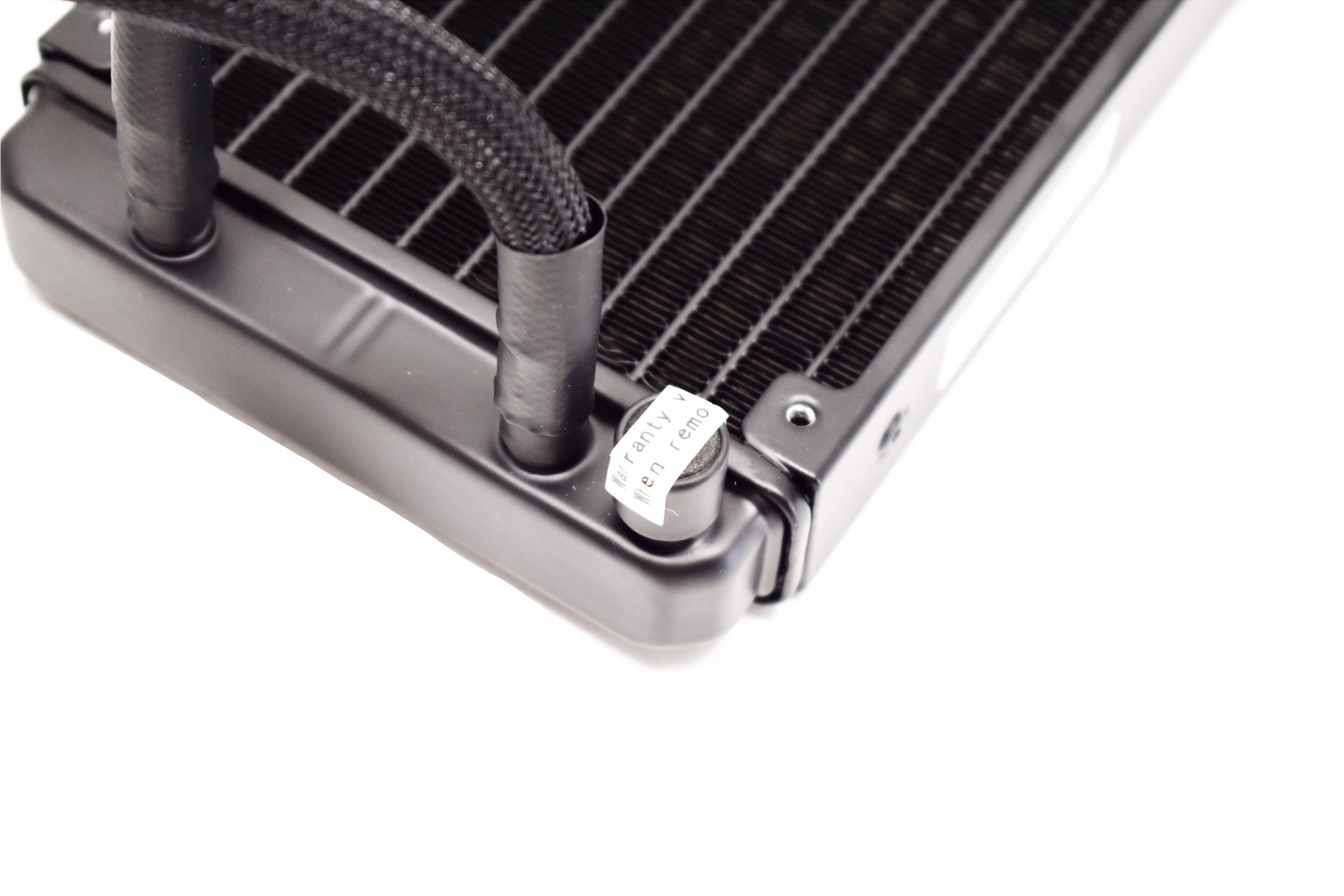

An empty/fill port is located at the end of the radiator but using it will void your warranty.

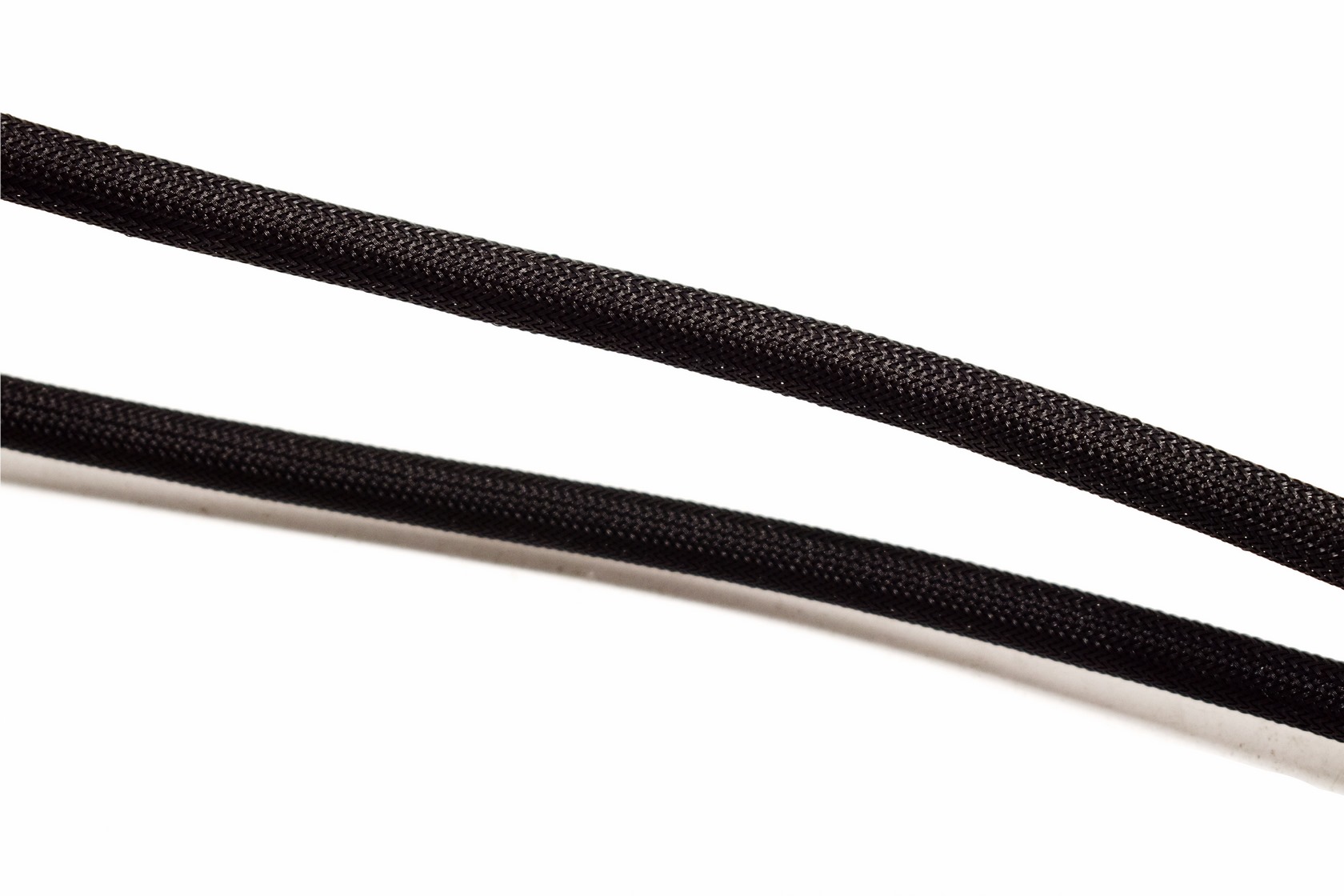

Aerocool used braided Teflon coated tubes which are roughly 310mm in length.

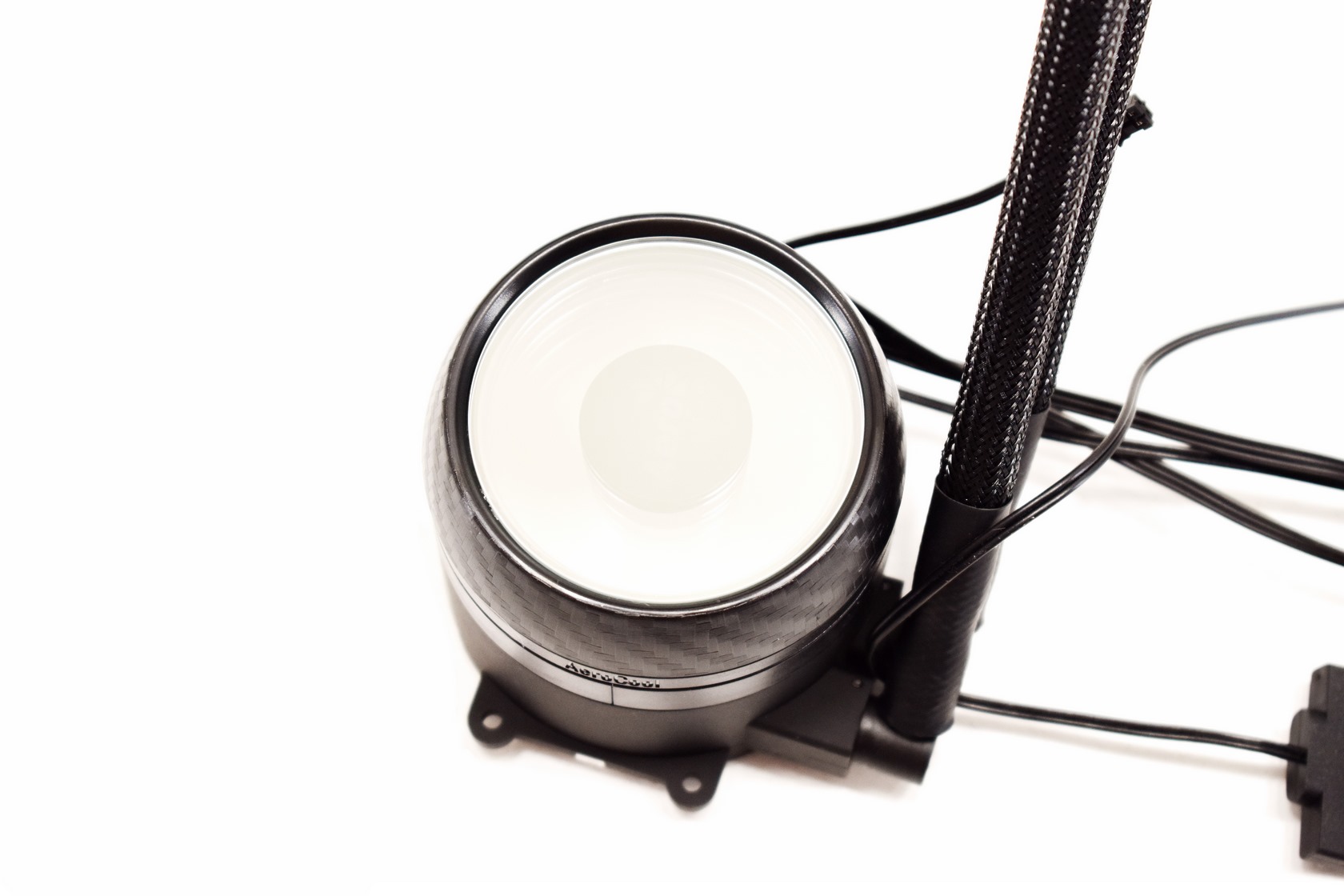

On top of the pump, we see a mirror-like area underneath which Aerocool has placed their logo and a LED ring.

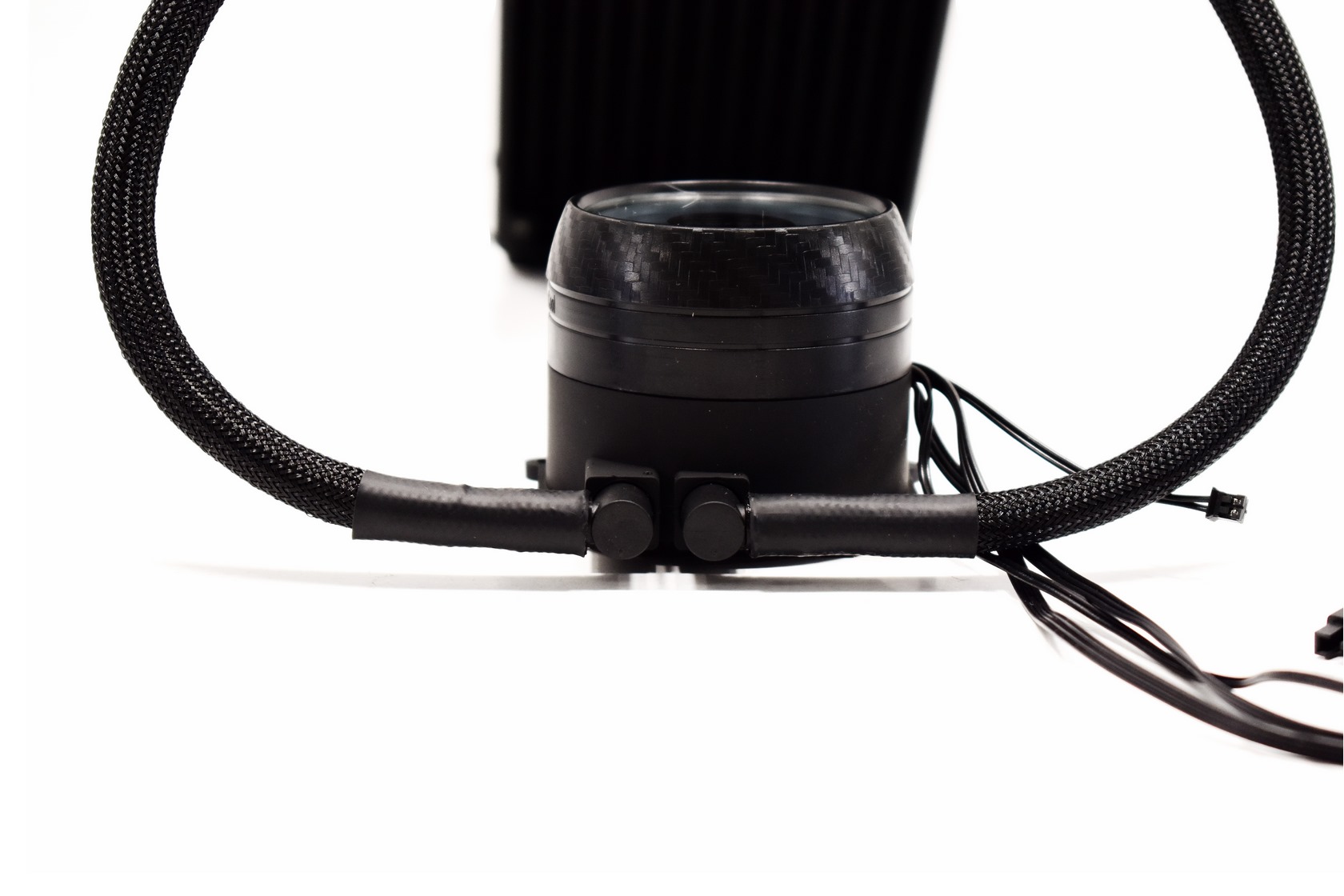

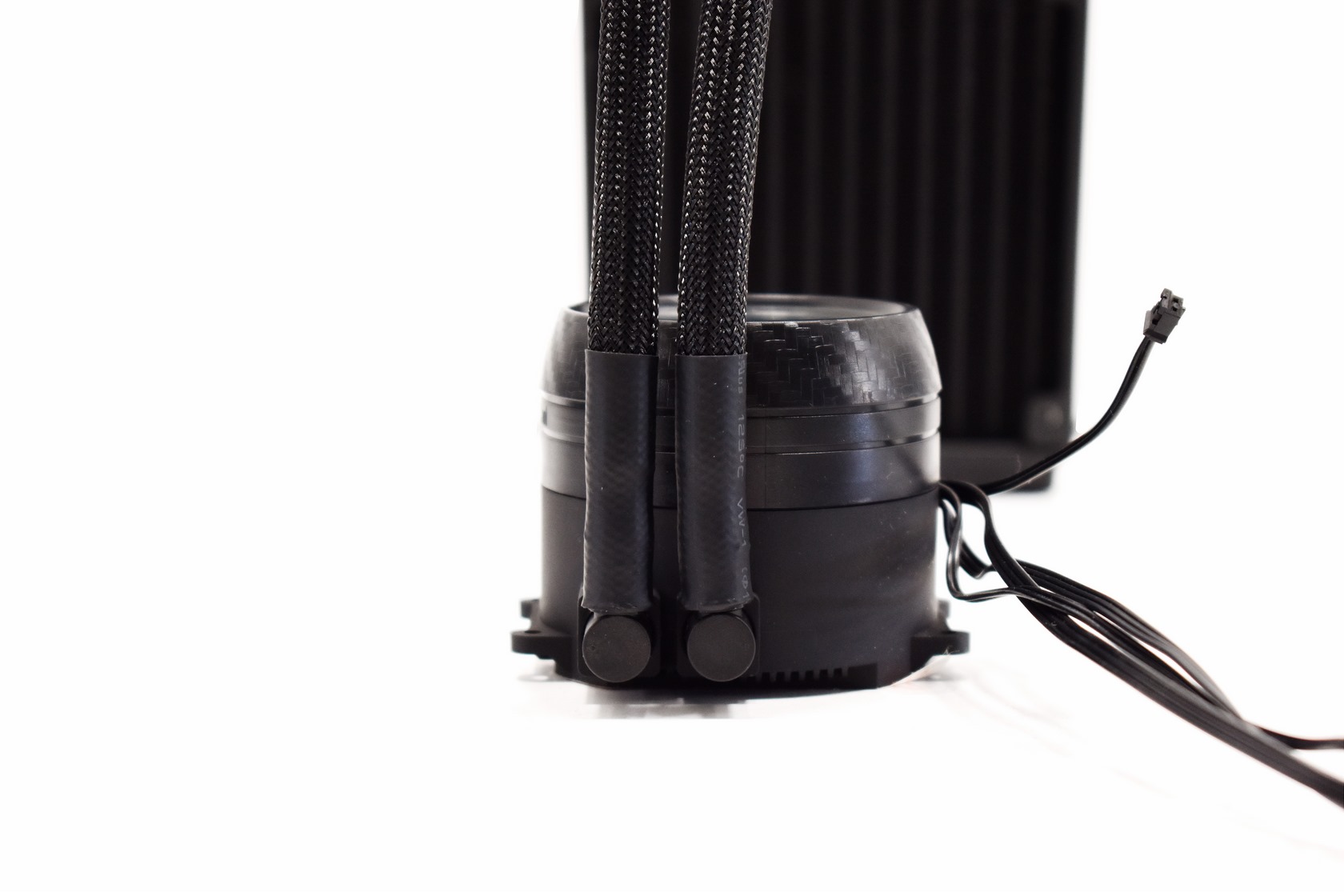

Both tubes can rotate at the base of the waterblock/pump combo to simplify installation.

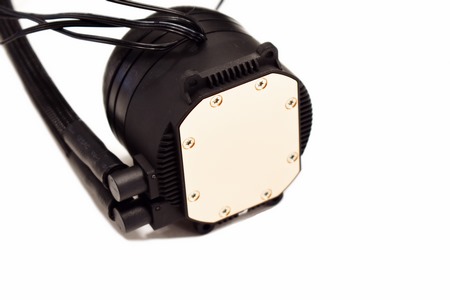

Under the pump we find a large copper base with no visible machine marks on it.

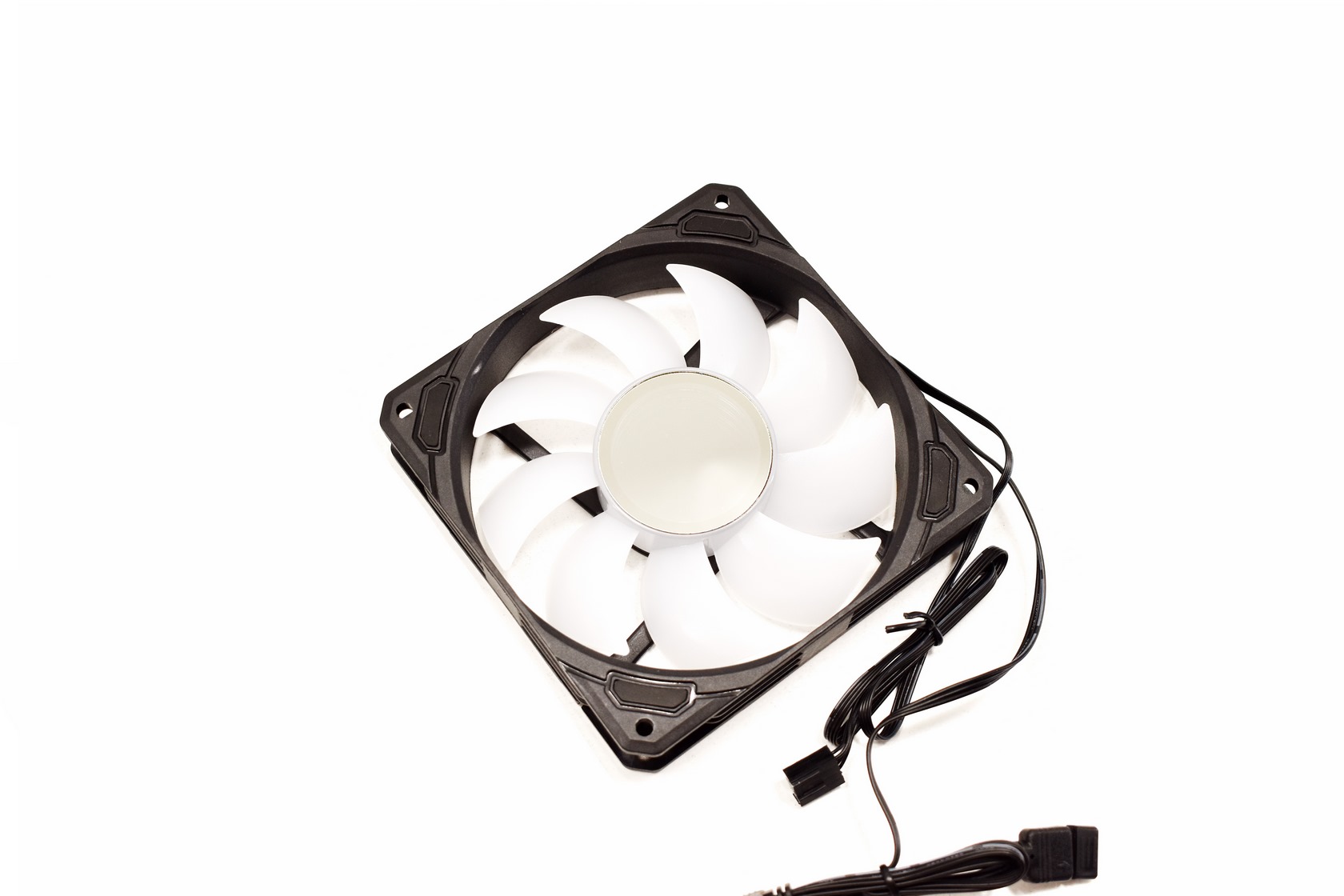

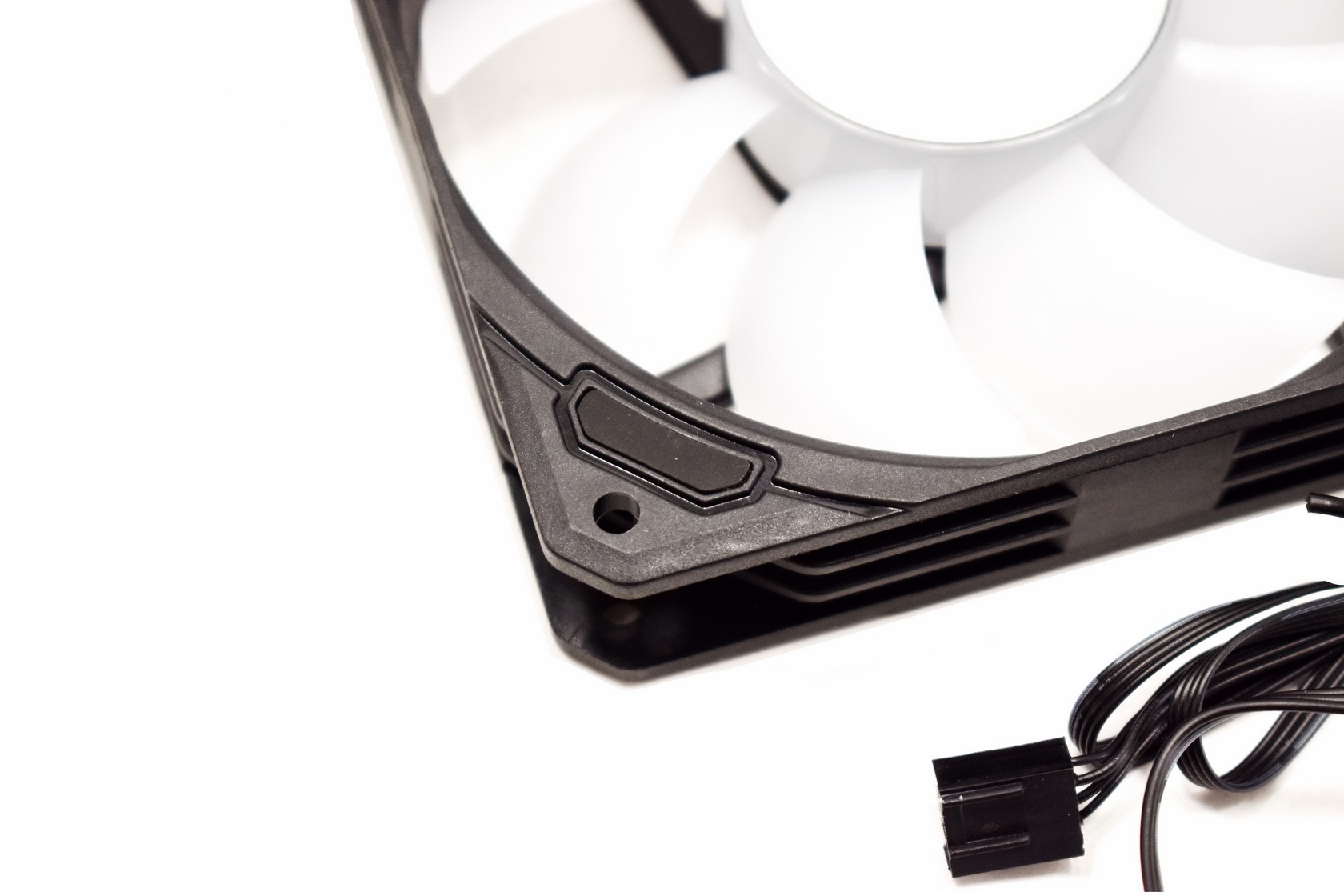

Both ARGB 120mm fans feature anti-vibration pads on all 4 corners, two RGB mainboard connectors and a 4pin PWM connector.

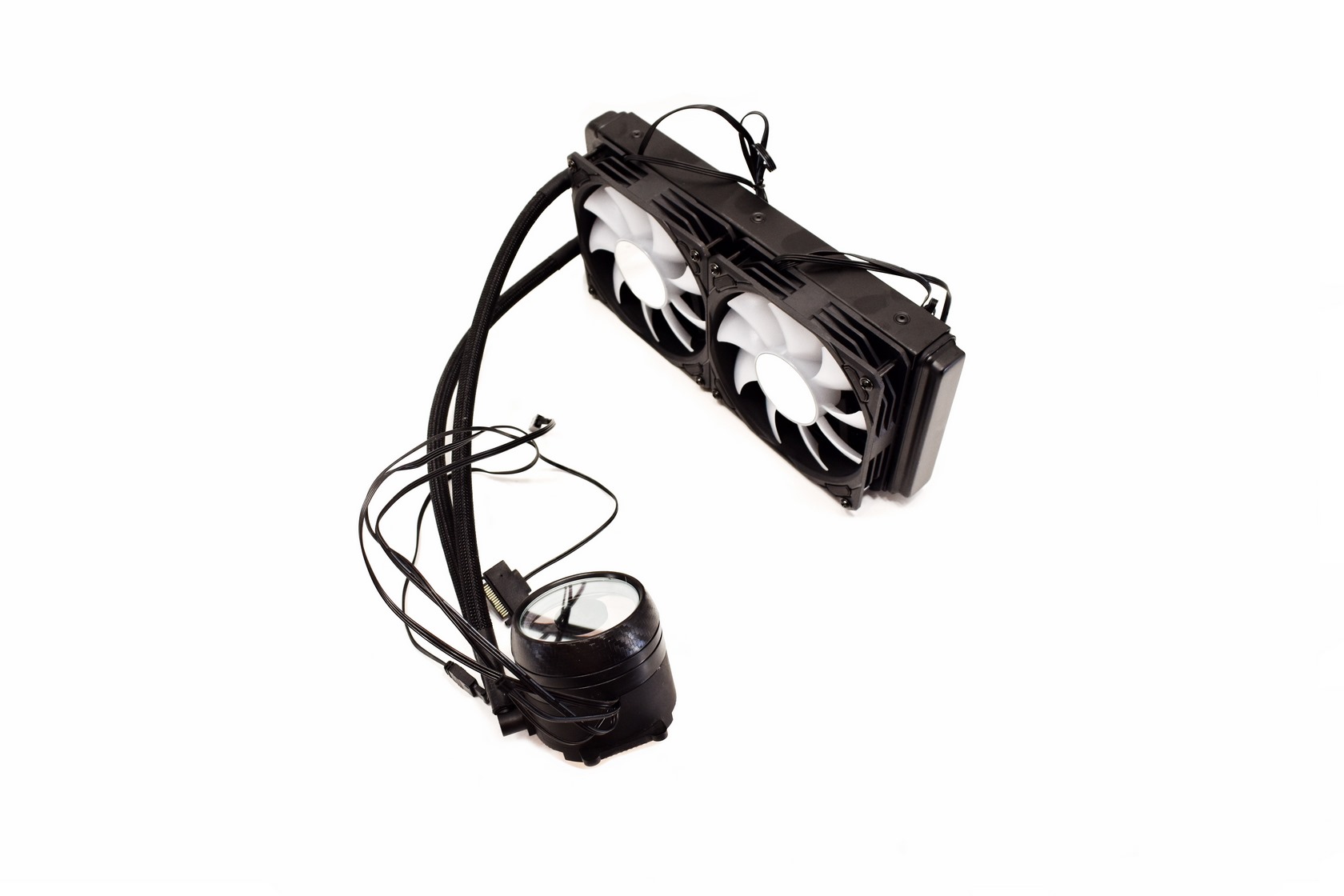

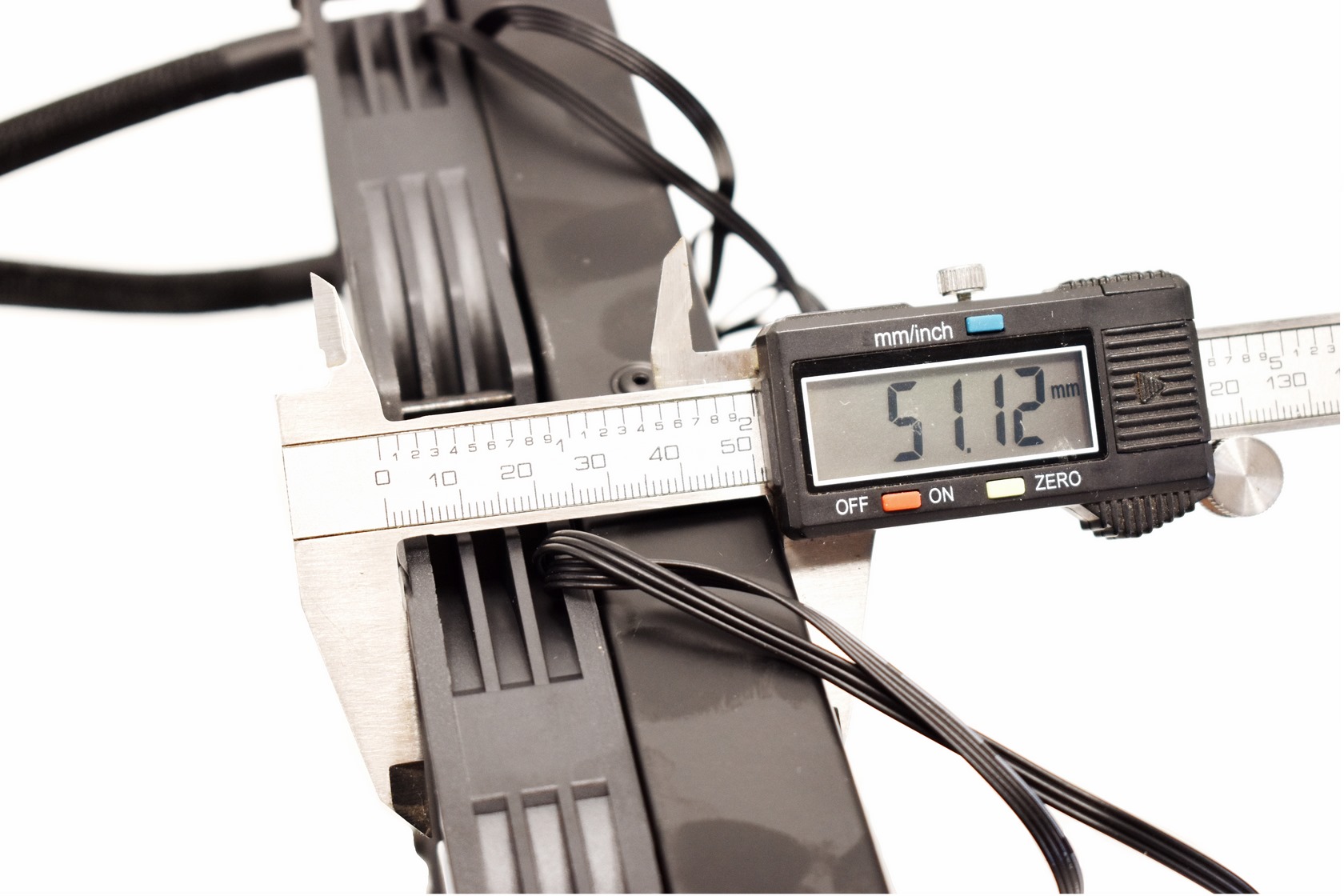

With both fans mounted the Mirage L240 now measures roughly 52mm in thickness.

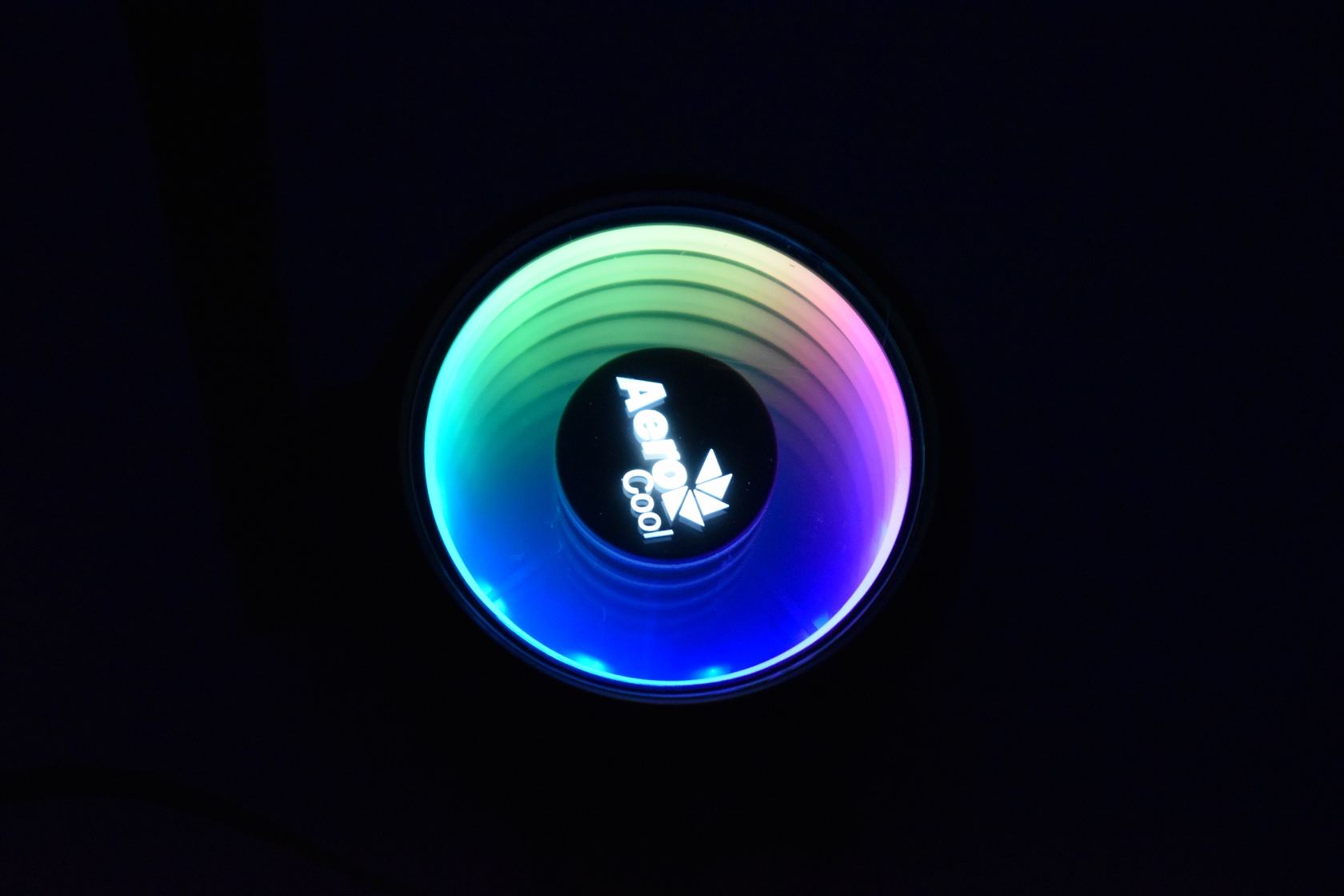

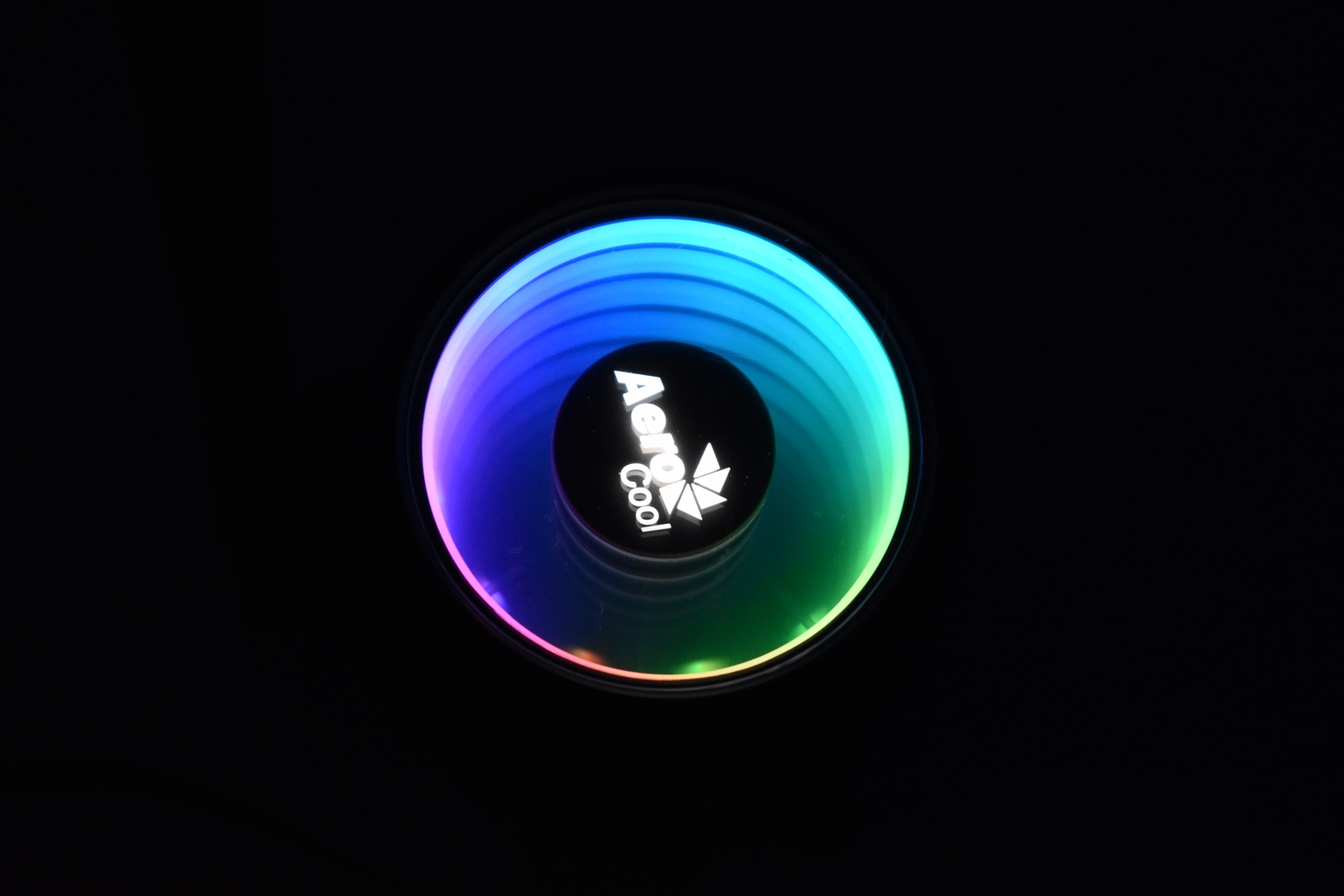

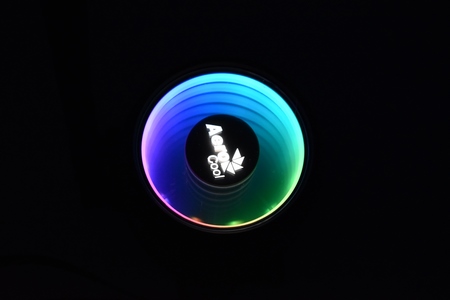

The CPU cooler test rig may not be compatible with RGB/ARGB devices but the Z490 Dark test rig is and i really wanted to showcase the infinity mirror design of the pump to all of you (same with the two fans, minus the Aerocool logo).
