THE AQUAFUSION ADV ARGB 360

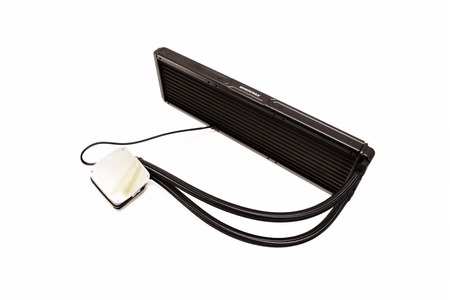

Just like with most AIO models featuring an pump with infinity mirror ARGB LEDs on it that's also what stands out with the Aquafusion ADV ARGB 360.

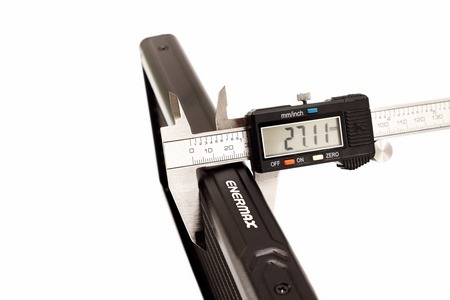

With a thickness of 27mm the aluminum radiator should fit in any case.

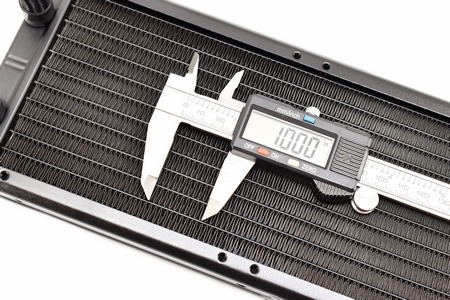

FPI (fins per inch) count this time over is 20.

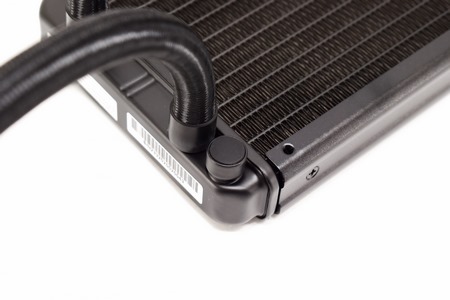

A small fill/empty port is located on the far end of the radiator and just like with most models it's not to be used.

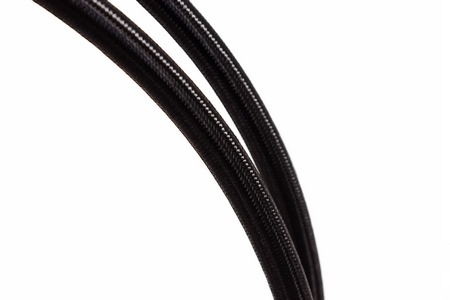

The 400mm long rubber braided tubes should be more than plenty for most PC cases.

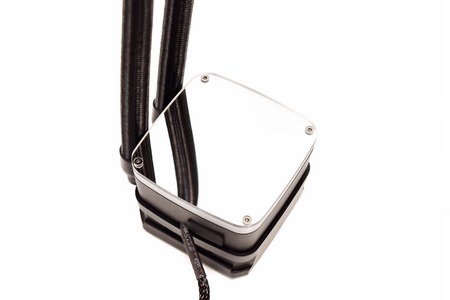

The top of the pump/waterblock combo features the infinity mirror ARGB effect which has become quite popular lately.

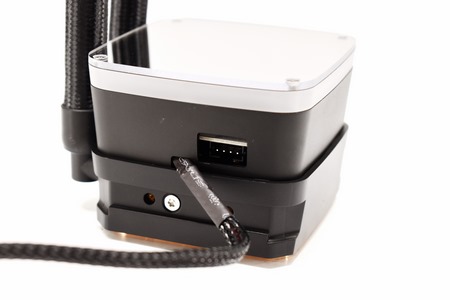

To control the effects of the pump you will need to connect the ARGB cable on the left side as seen above.

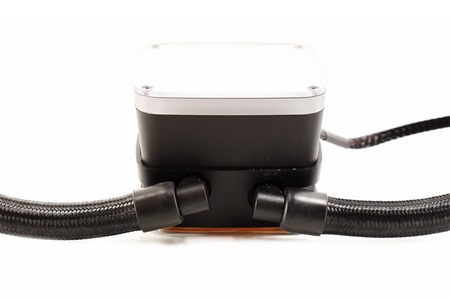

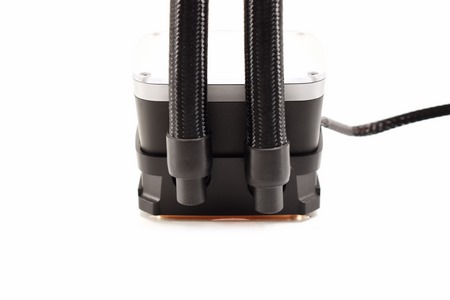

As usual both tubes rotate at their base to simplify installing the AIO.

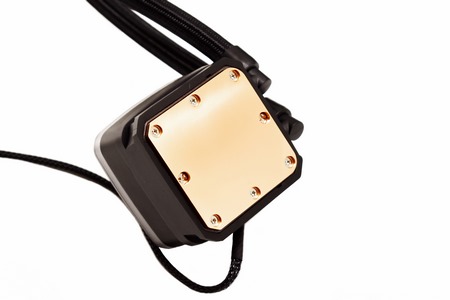

The coldplate is larger than what's used with many other similar models and has no machine marks on it.

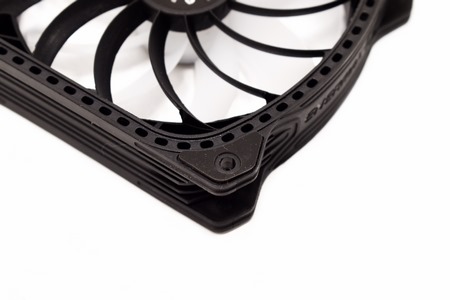

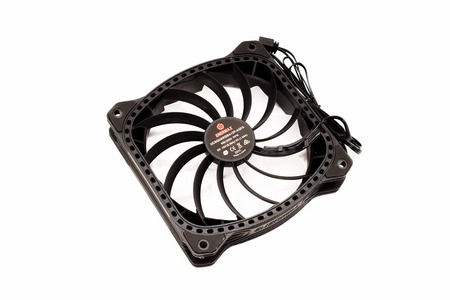

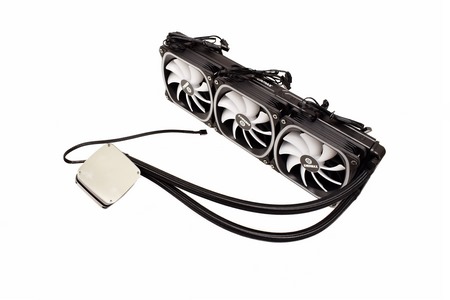

Enermax is using 3 SquA fans with the Aquafusion ADV ARGB 360 (2000RPM/79.8CFM/32.6dBA/3.6mmH2O) which as their strong point have their vortex frame technology (focused airflow) and rubber pads on all corners.

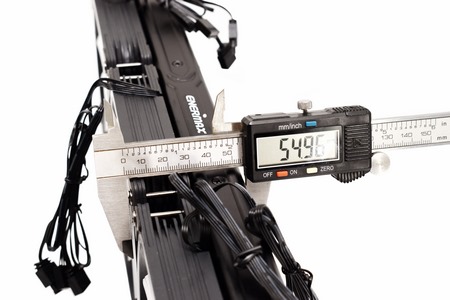

Typically, with the 120mm fans mounted onto the aluminum radiator thickness jumps to around 55mm.
