THE NAVIS F360 ARGB

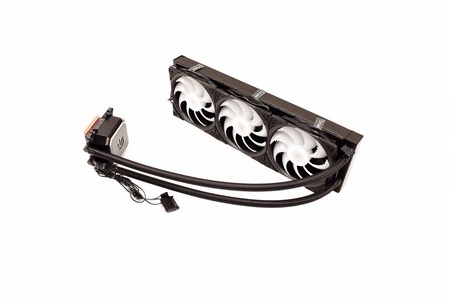

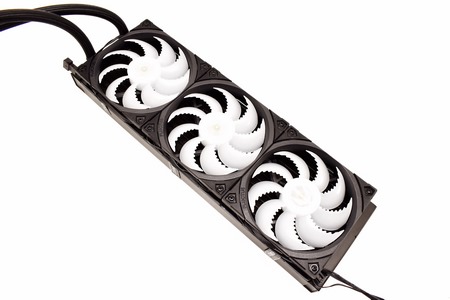

ENDORFY has all three fans pre-mounted onto the radiator of the Navis F360 ARGB and well, it will save you some time.

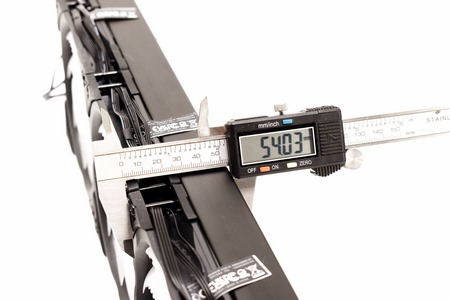

With the fans pre-mounted the thickness of the radiator increases to around 54mm.

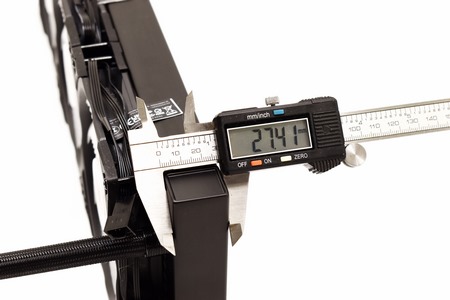

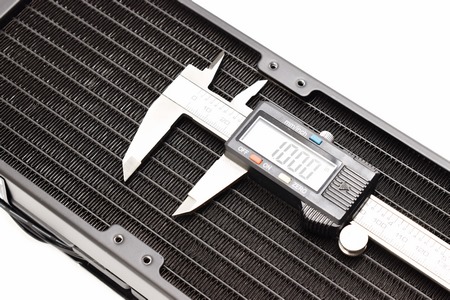

The thickness of the radiator on the other hand is just 28mm (the typical as with most AIO models).

FPI (fins per inch) count this time over is 20.

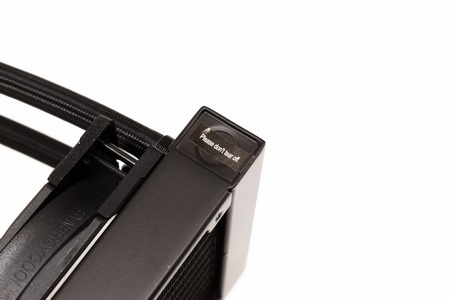

On the far end of the radiator, we find an fill/empty port which will void your warranty if accessed.

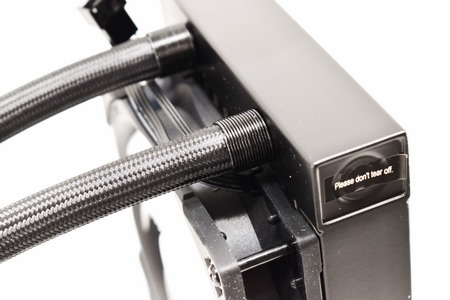

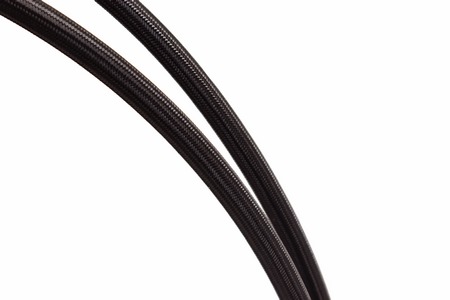

The two long braided rubber tubes also have anti-kink coils on both ends.

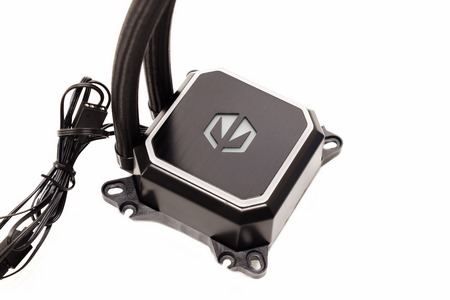

Taking a look at the top of the pump we see the company logo which is of course illuminated by the ARGB LEDs beneath it.

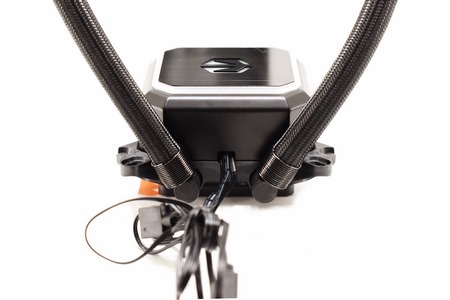

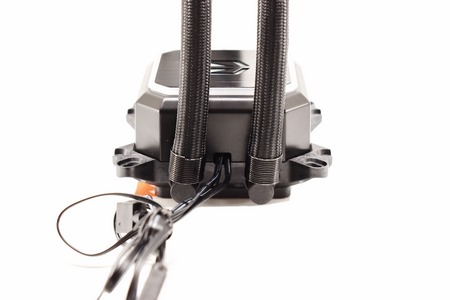

Strangely enough the tubes in my sample rotated just around 30 degrees from the base (didn't hinder installation but usually that's closer to around 90 degrees).

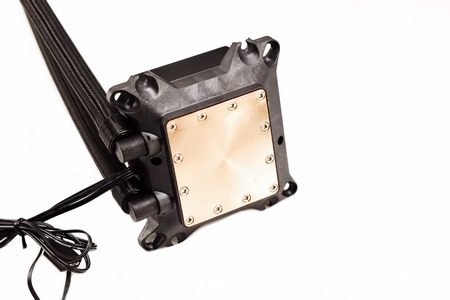

The copper base of the cooler did have 2-3 machine marks on it but nothing which would affect performance.

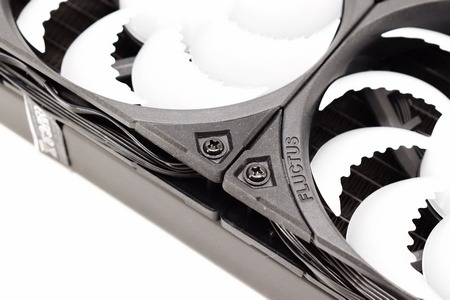

Unlike other fans bundled with AIO models the fan blades of the Fluctus illuminate from the center out (needless to say they have rubber pads on all corners).
