THE NUCLEUS AIO CR360 LUX D-RGB

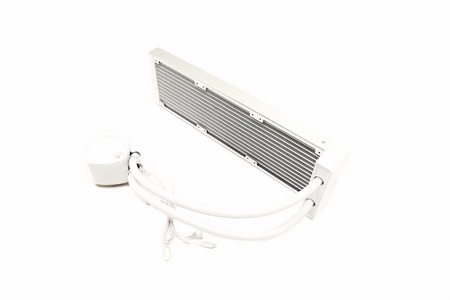

Unlike the 240 model the 360 arrived in white color and well, it looks great (although white on white is not ideal for pictures).

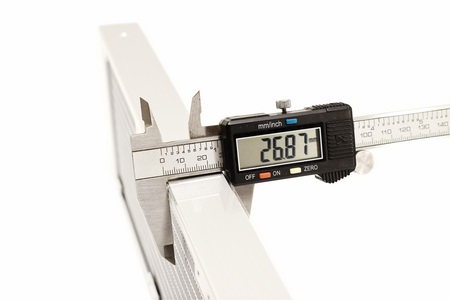

The aluminum radiator is roughly 27mm thick.

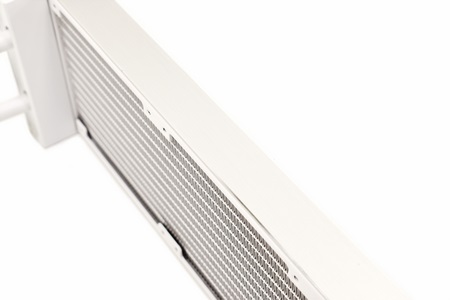

EK has placed brushed aluminum side panels which clearly improve looks.

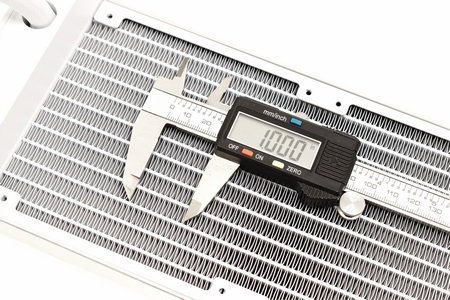

FPI (fins per inch) count is again 19 so this radiator should do quite well with high-pressure fans.

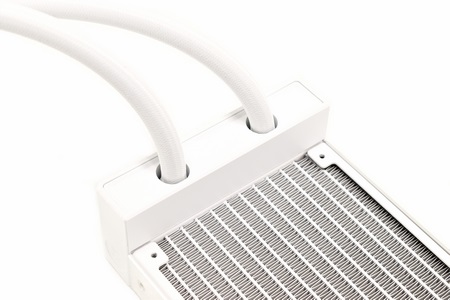

The far end of the radiator measures roughly 53mm in thickness.

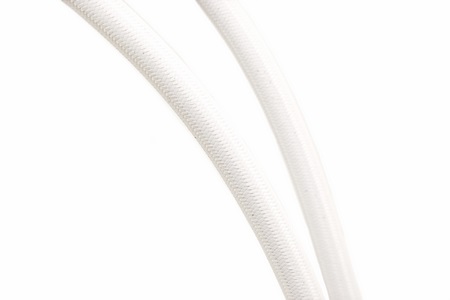

The 400mm long sleeved rubber tubes should be more than sufficient for most towers out there.

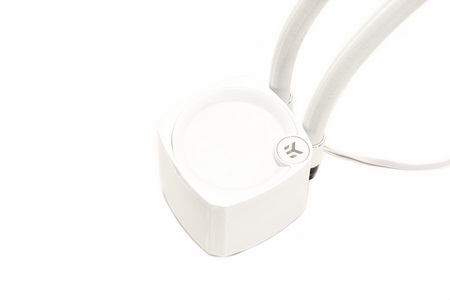

At the top of the pump, we find a rotatable plastic cover with the EK logo on it.

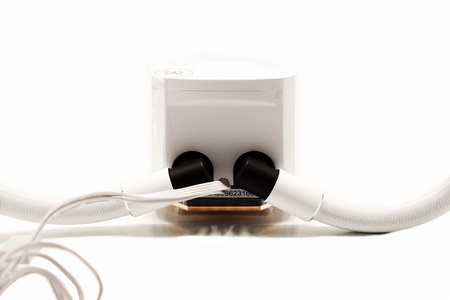

Unlike previous AIO models this time over EK has used rotary fittings on the pump/waterblock combo which allow for easier installation.

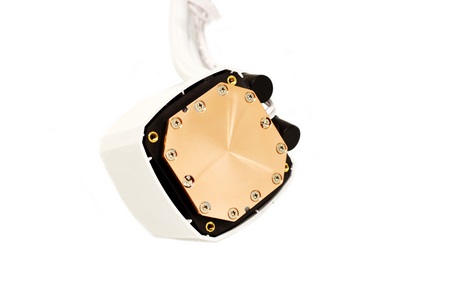

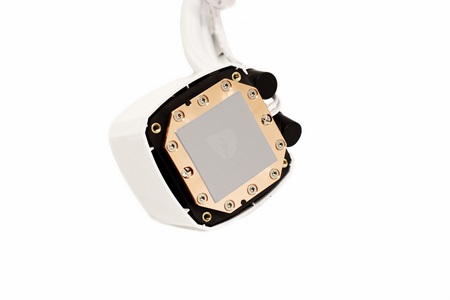

EK ships the entire Nucleus Lux D-RGB line with a thin layer of thermal conductive material on the all-copper waterblock.

Since I use my own thermal paste for tests I always wipe off thin layers to showcase the coldplate.

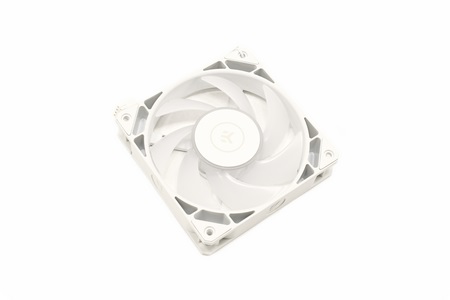

The fluid dynamic bearing 120mm FPT D-RGB fans are capable of speeds of up to 2300RPM with up to 72CFM of airflow at just 36dB of noise.

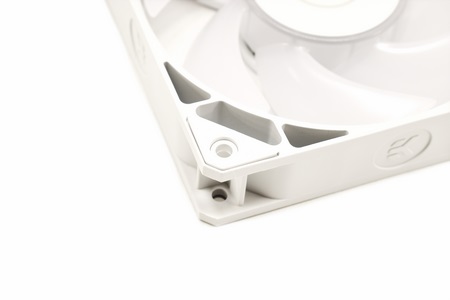

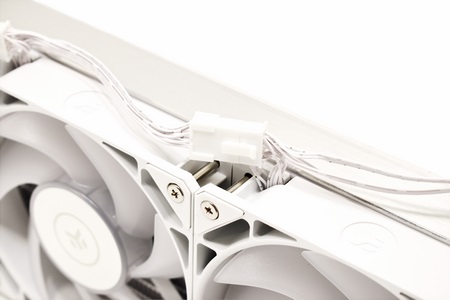

As expected, these fans feature rubber pads on all 4 corners and can be connected with each other (Omnilink daisy-chaining).

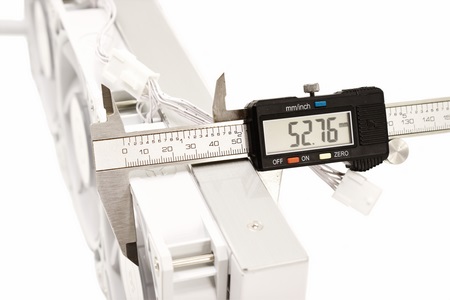

With the fans mounted radiator thickness increases to roughly 53mm.
