THE SILENT LOOP 3 420MM

Again, just like most AIO models in the market the Silent Loop 3 420mm doesn't really stand out, not at first glance.

The radiator is 27mm thick, so this is quite standard.

FPI (fins per inch) for this 420mm radiator is 20.

Using 400mm long braided tubes with such a large AIO may not be the best choice (420-450mm would be better when used in very large PC cases).

The pump/coldplate combo has the be quiet! logo on top just over numerous ARGB LEDs.

The waterblock be quiet! has used is easily among the largest ones around (since this is a TR4 compatible AIO it does make sense).

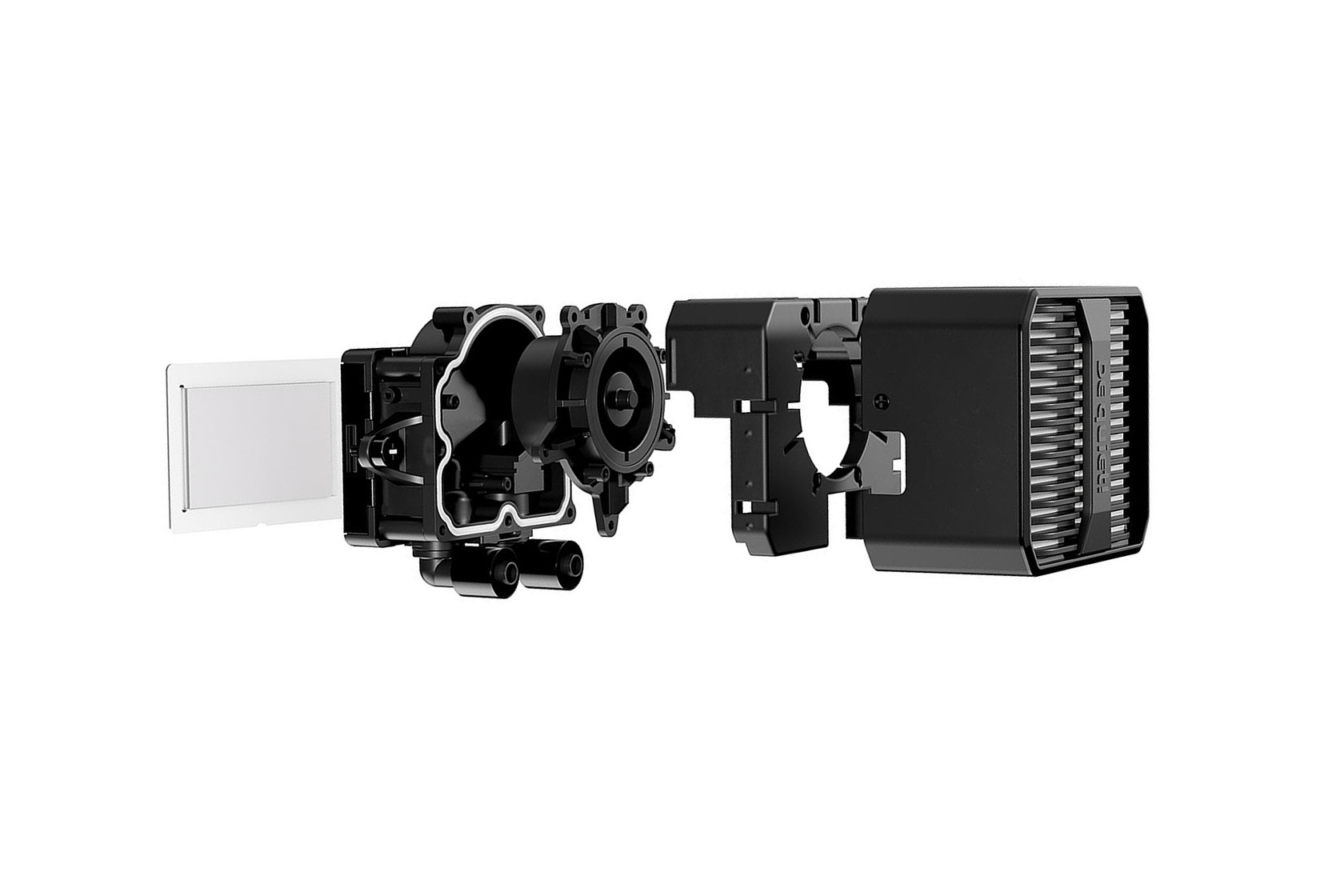

Here you can see an exposed view of the pump/waterblock (marketing material).

With a maximum speed of 1900RPM, 78.4CFM airflow and 2.36mmH2O pressure the new Silent Wings 4 PWM fans should offer good performance.

After mounting all 3 fans the thickness of the Silent Loop 3 420mm increases to 52mm.
