THE WATER 3.0 ULTIMATE

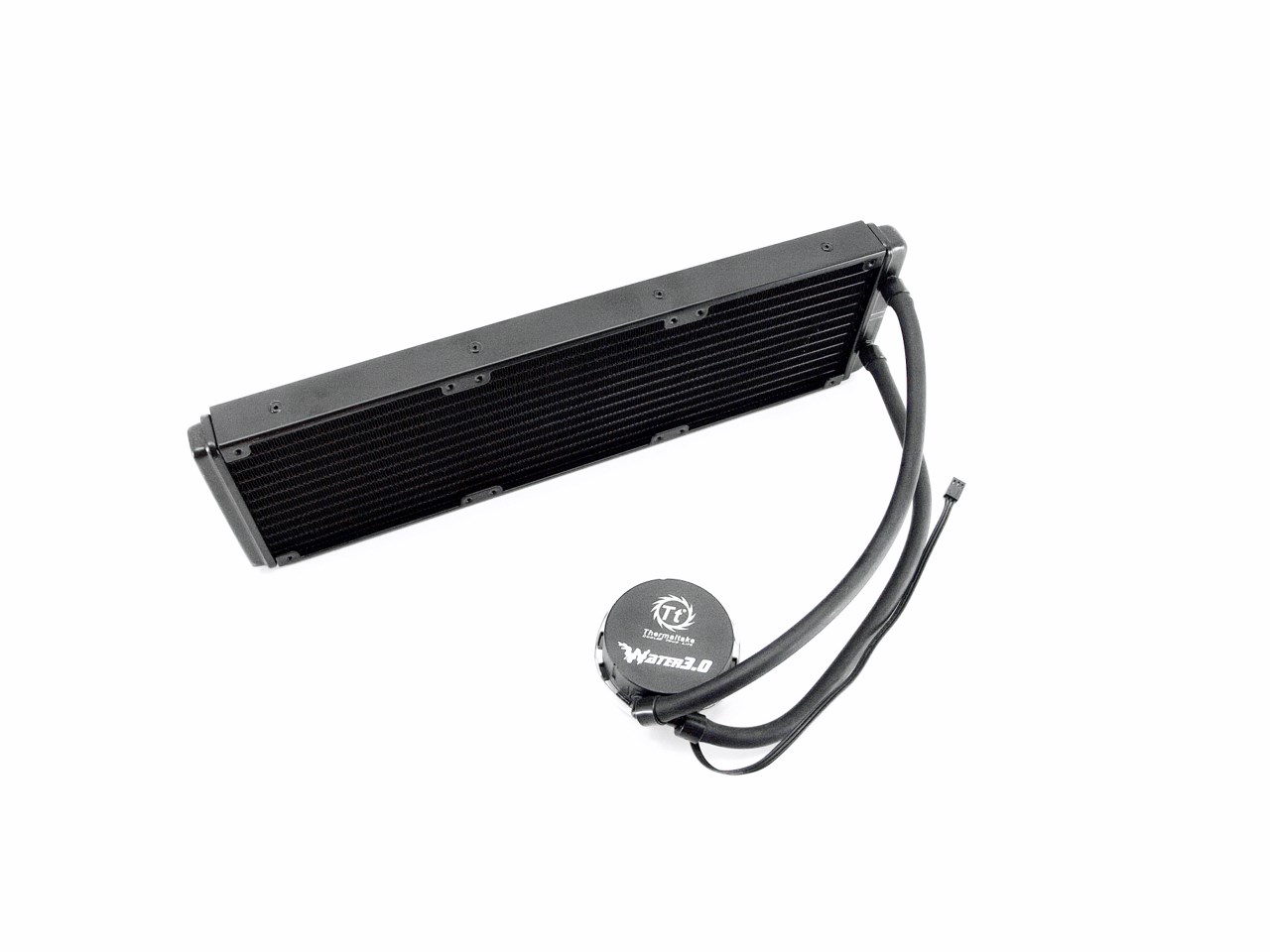

We've seen the same pump (design) quite a few times in the past but the 360mm long radiator (393mm total) is a first for an AIO solution.

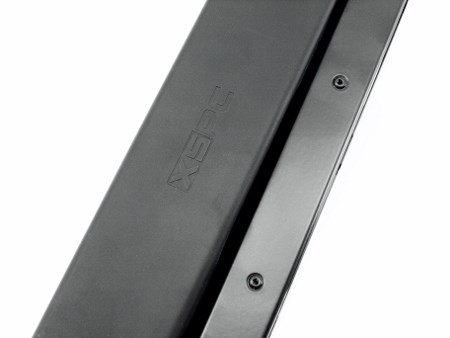

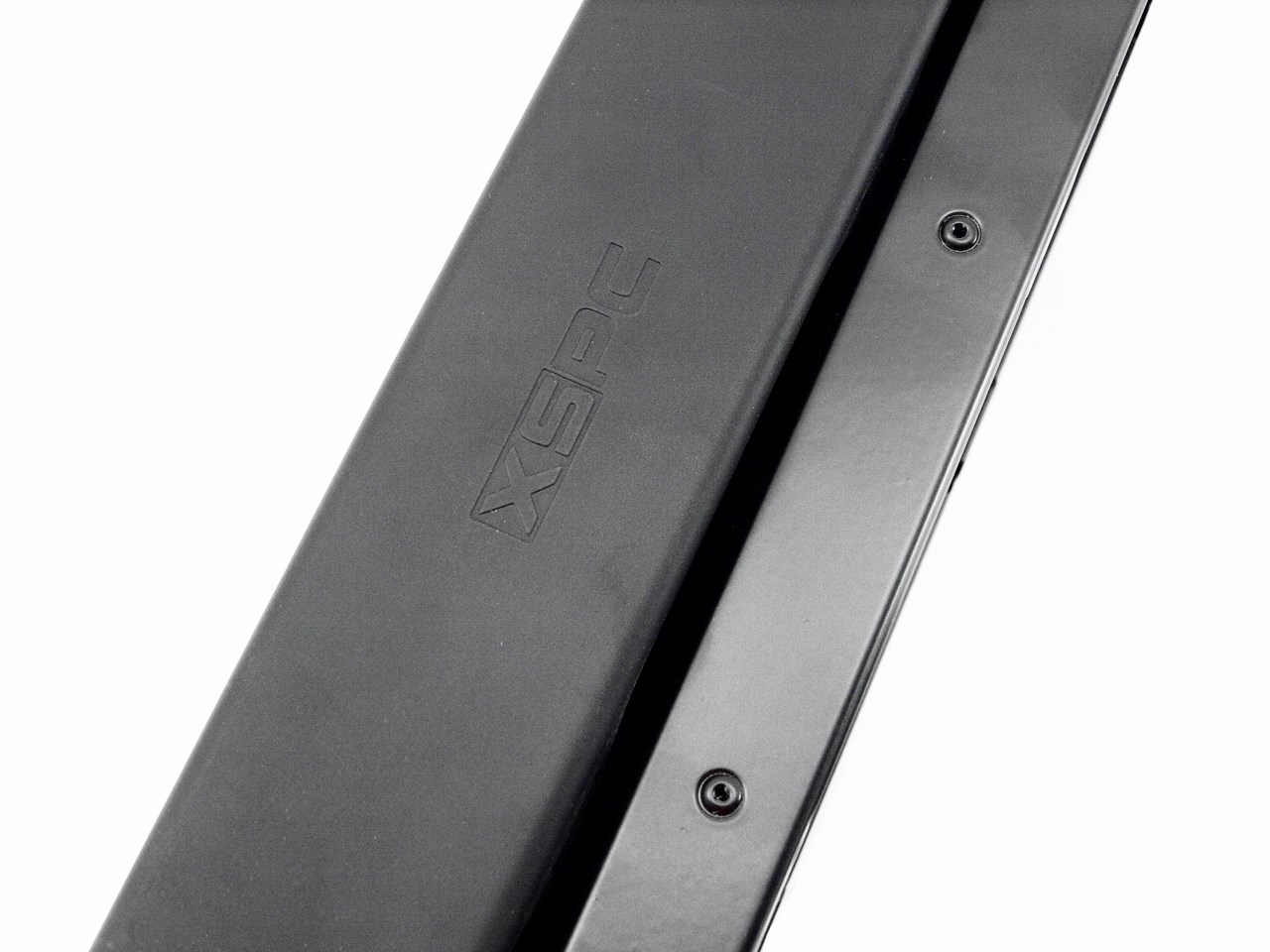

To get a better idea on the thickness of this radiator (27mm) we placed it right next to the XSPC RX360 V3 which is over twice as thick (56mm).

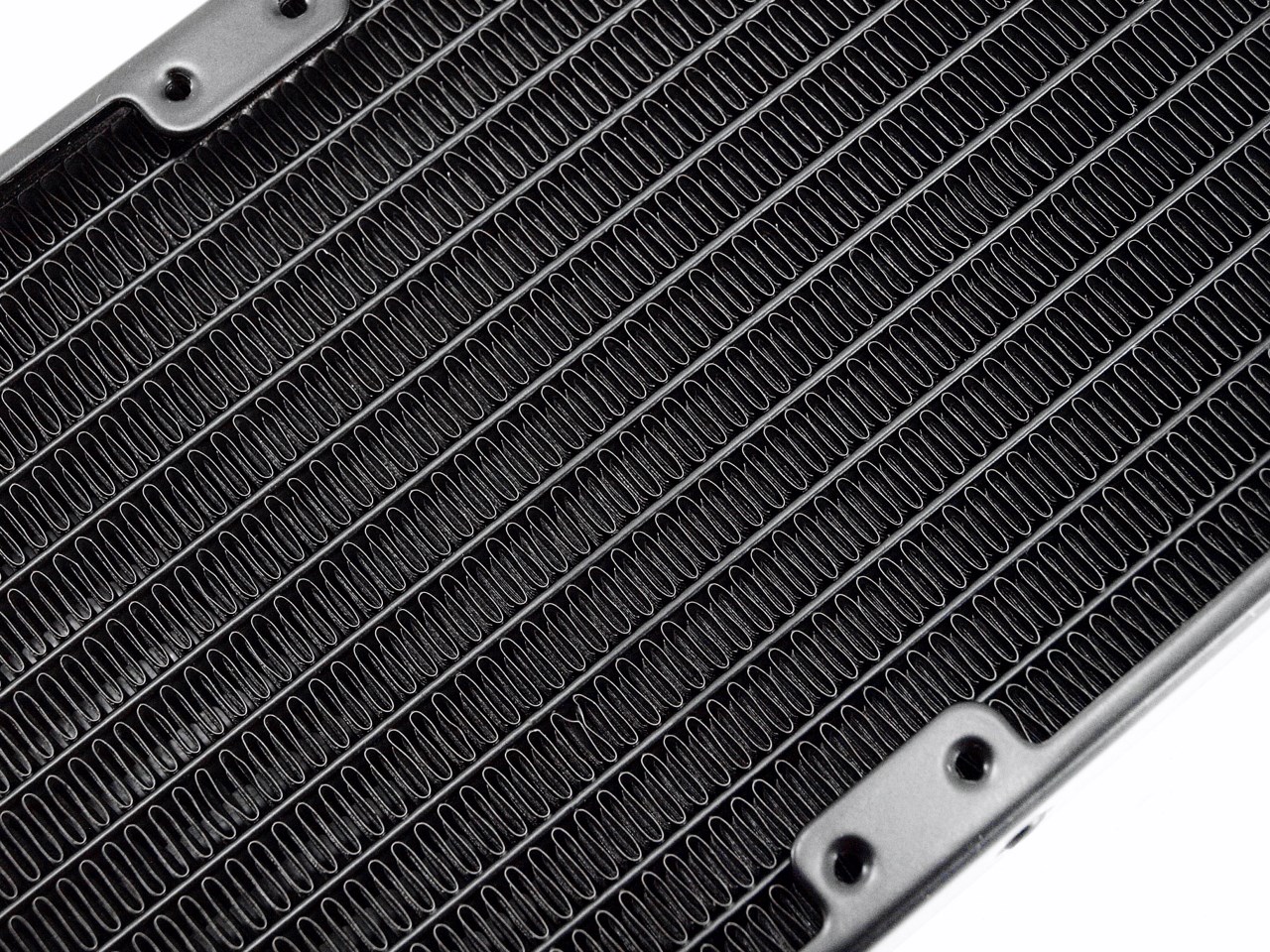

The fins (24fpi design) were all in perfect shape once we received the Water 3.0 Ultimate.

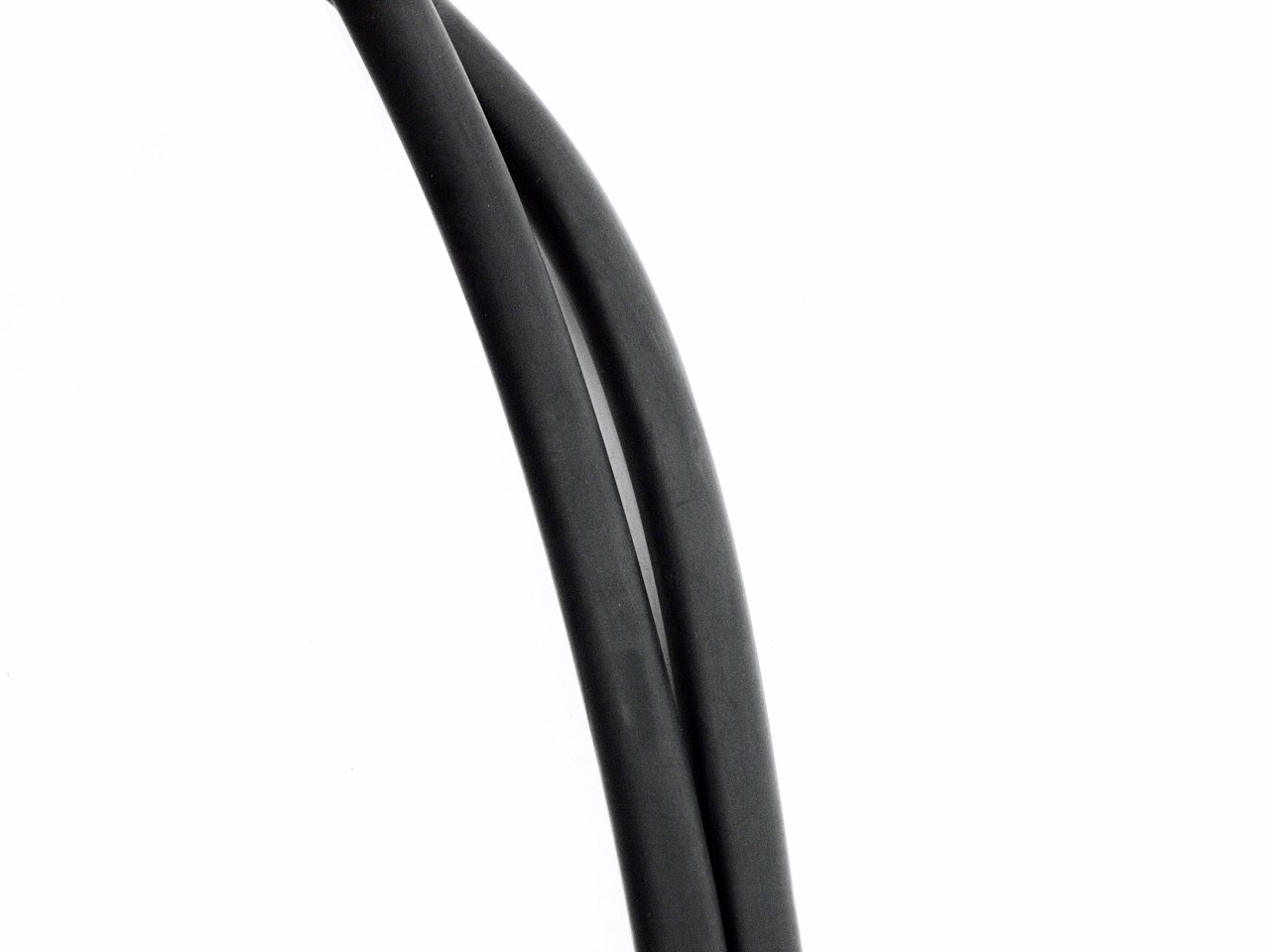

As usual the two flexible rubber tubes are easy to work with during installation.

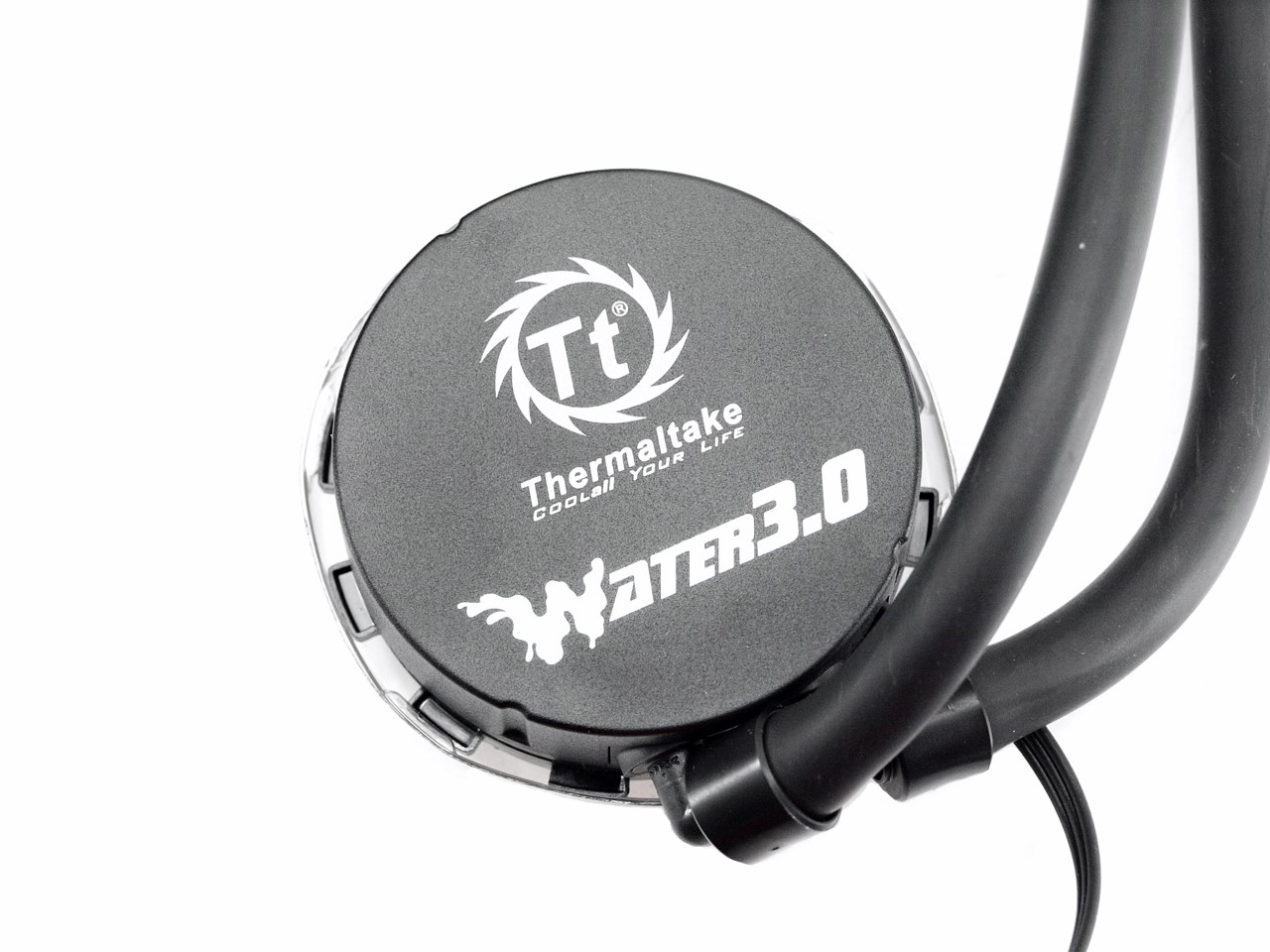

The 12V pump can reach speeds of up to 3600RPM (+-150RPM) but unfortunately Thermaltake doesn't list how many liters it can move per hour.

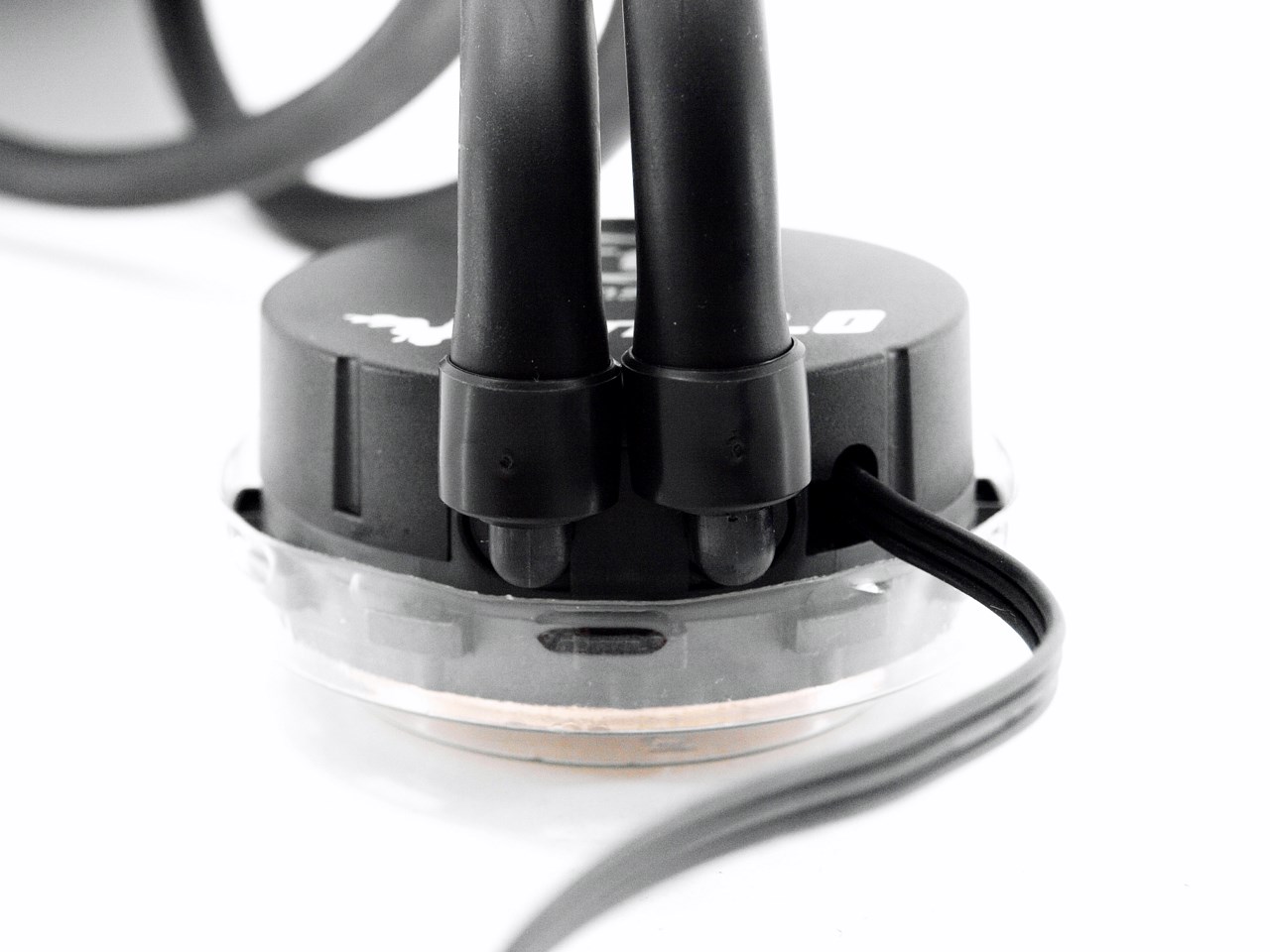

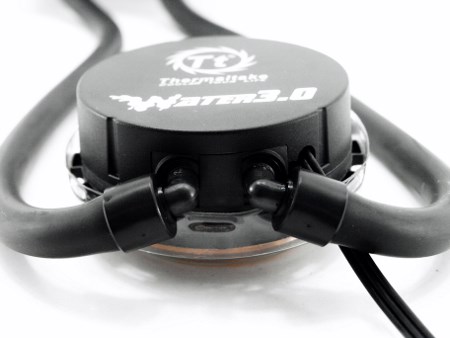

The tubes can rotate up to 100+ degrees at their base to further simplify installation.

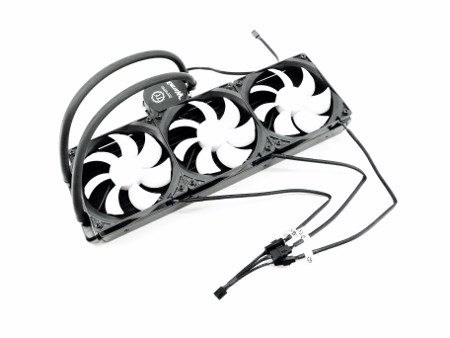

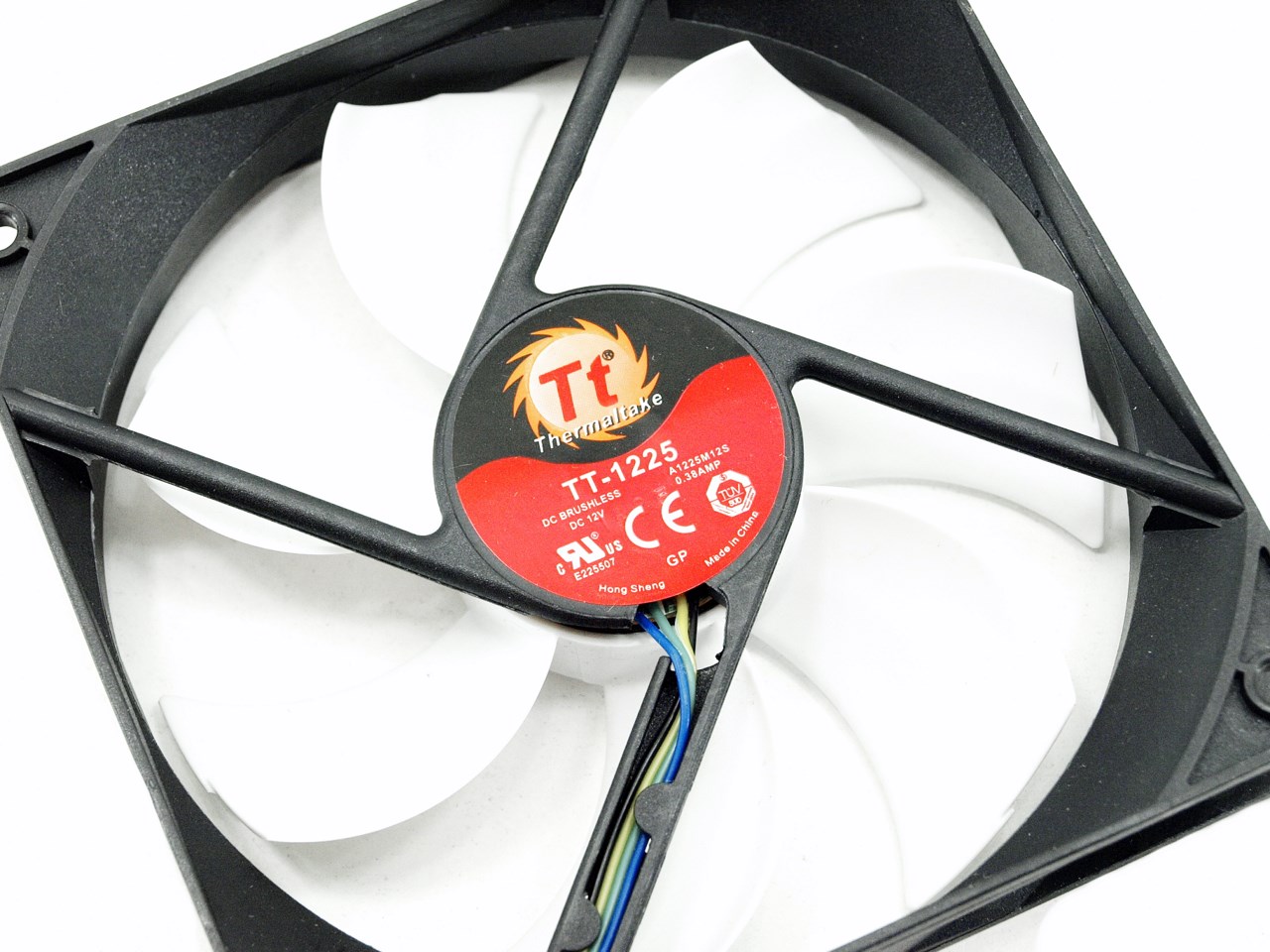

Thermaltake has bundled three fans with the Water 3.0 Ultimate capable of spinning up to 2000RPM to produce airflow of up to 99CFM with just 20dBA.

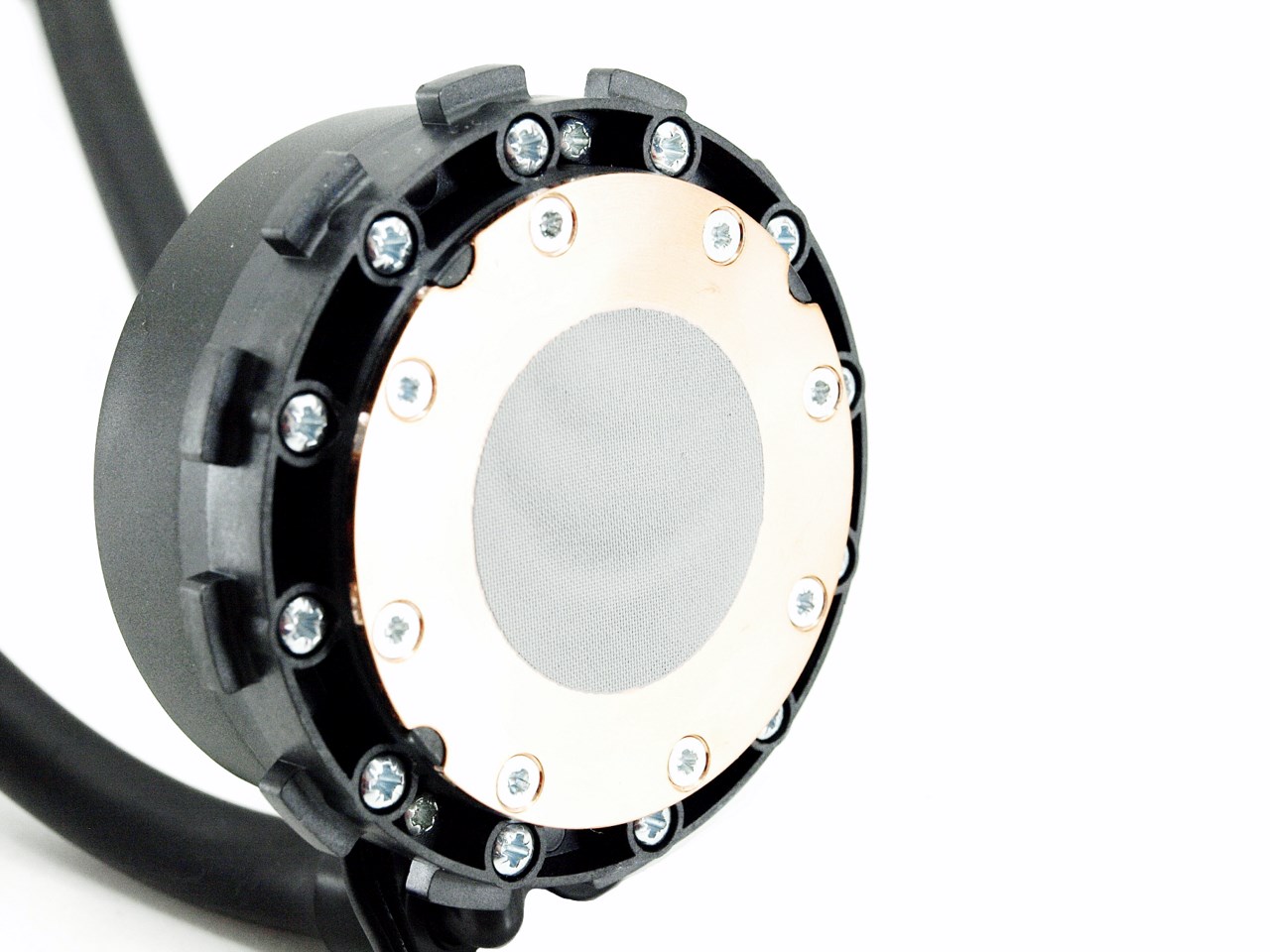

The all-copper base comes ready with a thin layer of thermal conductive material.

With all three fans installed the Water 3.0 Ultimate gets 52mm thick so you shouldn't have a problem fitting it in your case (if it was top room for a radiator).
