THE SILENT LOOP 360MM

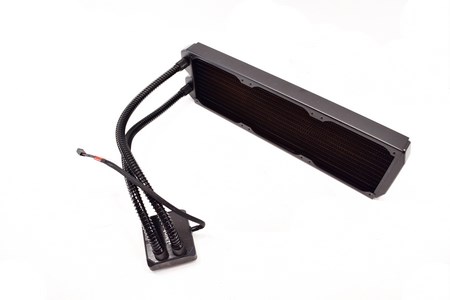

As already mentioned the basic configuration has remained the same over the years so nothing really new to see in terms of design/appearance.

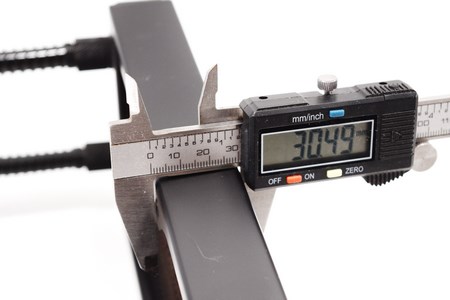

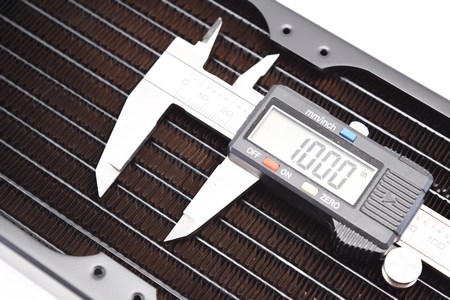

Just like with most similar products the tri-fan radiator is just over 30mm thick.

The radiator has an FPI (fins per inch) count of roughly 16 (same as the one used in the 280mm model).

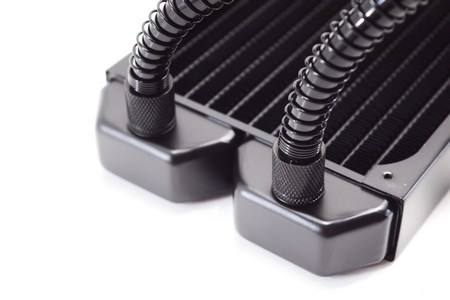

You can always expand the loop since the tubes are removable on both ends.

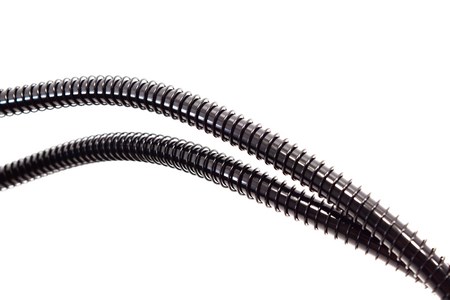

Anti-kink coils can increase protection for the tubes so it's good to see them once again.

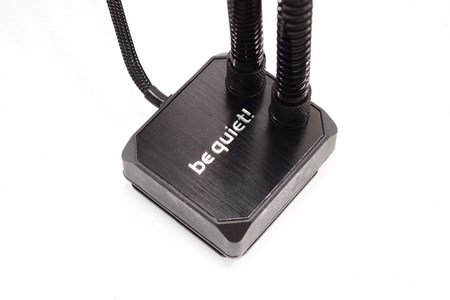

Be quiet! has placed their logo on top of the pump/waterblock combo but unfortunately it's not illuminated.

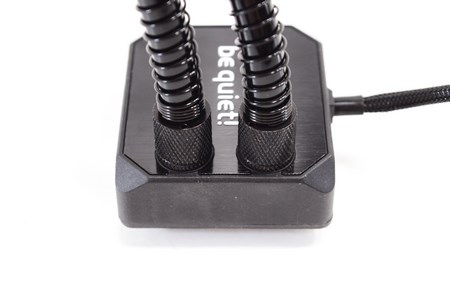

The tubes can't be rotated from their pump end (unlike with most AIO models out in the market currently) but as we already mentioned they can be removed to modify and/or expand the loop.

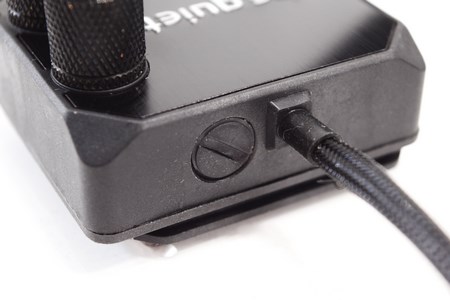

A refill/drain port is placed on the left side of the pump/waterblock combo.

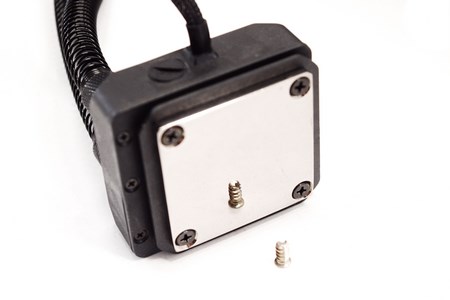

The CNC machined cold plate features a mirror like finish which is not something we see a lot with AIO models.

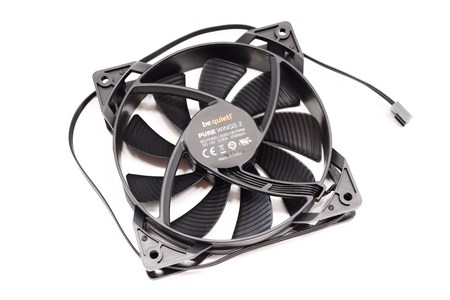

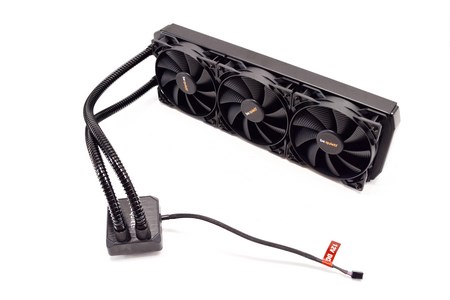

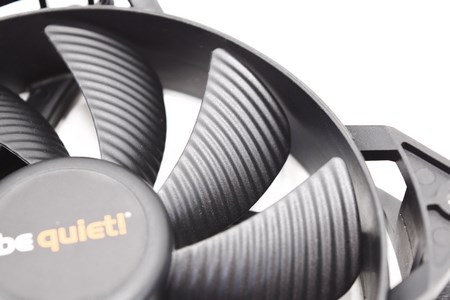

By using three Pure Wings 2 PWM fans (120mm/2000RPM) be quiet! seems to be focusing more in performance (65.51CFM/2.23mmH2O) rather than low noise (36.9dBA).

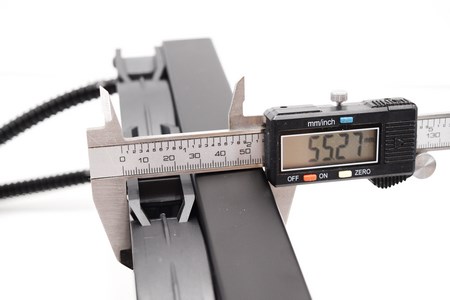

With the fans mounted the Silent Loop 360mm now measures just over 55mm in height/thickness.
