THE AURAFLOW X 240

The sole thing that stands out compared to most AIO models is the thick pump/waterblock combo.

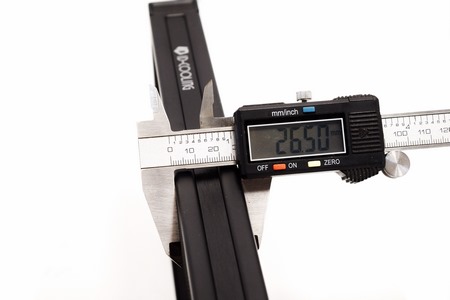

Again ID-COOLING decided to use the standard 27mm thick radiator for the AuraFlow X 240 (just like with the first AuraFlow).

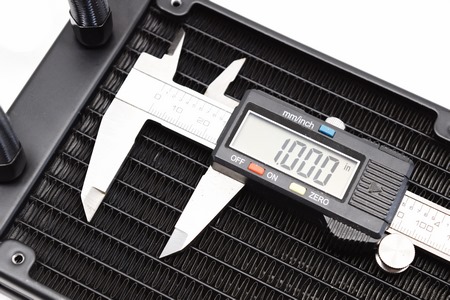

This time over the radiator has a FPI (fins per inch) count of 17.

The AuraFlow X 240 comes ready with two 400mm long sleeved tubes.

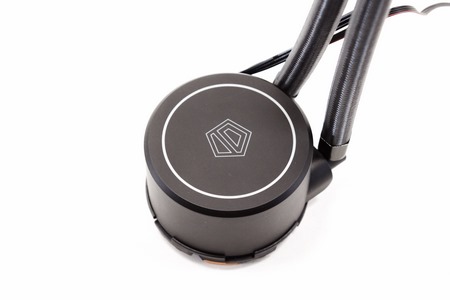

The top of the round pump enclosure features the ID-COOLING logo (which once again is RGB illuminated).

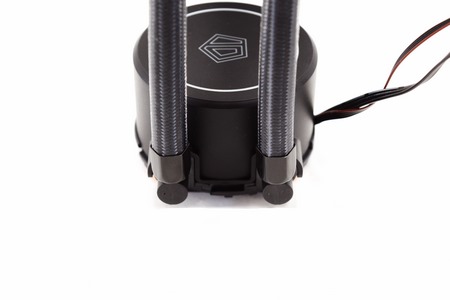

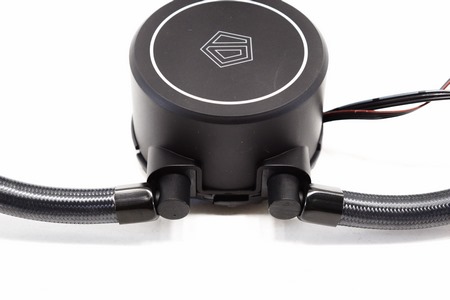

Both tubes can rotate at the base of the waterblock/pump combo to simplify installation.

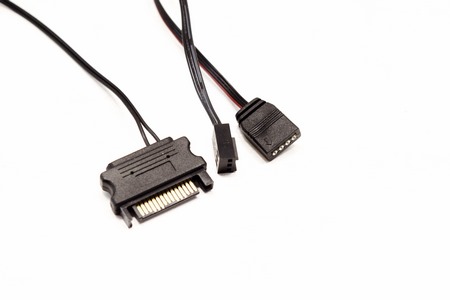

The pump is powered by a 3pin connector (ID-COOLING packs a 3pin to Molex power adapter) and also features a 4-pin RGB connector for compatible mainboards.

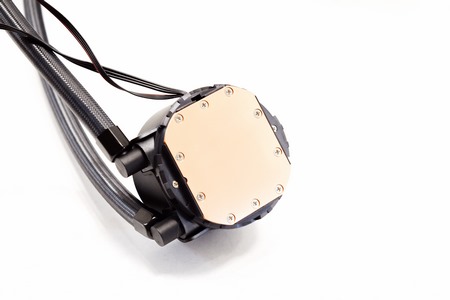

The large copper waterblock is a lot better compared to that of the first AuraFlow (also it has no visible machine marks).

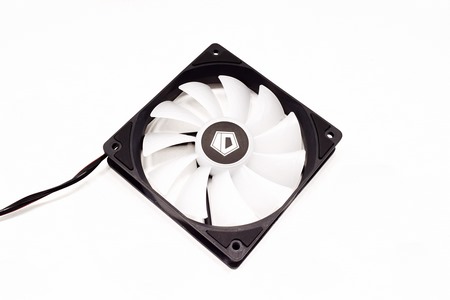

The XF-12025-RGB 120mm PWM dual ball-bearing fans can reach speeds of up to 1800RPM to produce 74.5CFM of airflow with 2.15mmH2O of air pressure and 35.2dBA of noise.

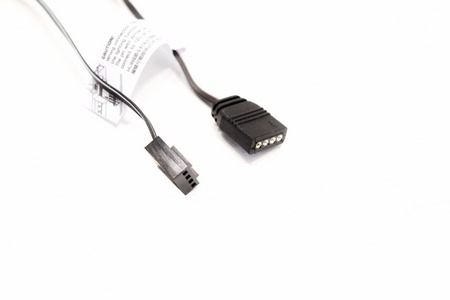

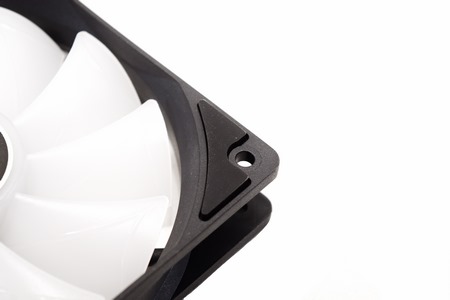

Both fans also feature anti-vibration rubber pads on all four corners, 4-pin mainboard connectors and 4-pin RGB mainboard connectors.

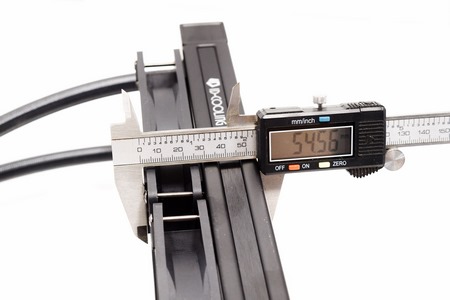

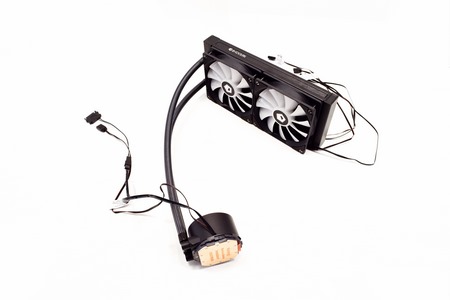

With both fans mounted the AuraFlow X 240 is now roughly 55mm thick and ready for our tests.

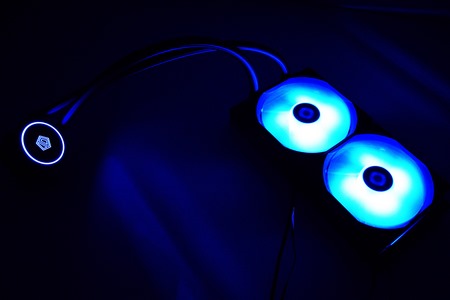

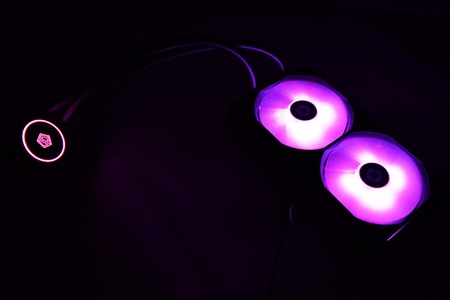

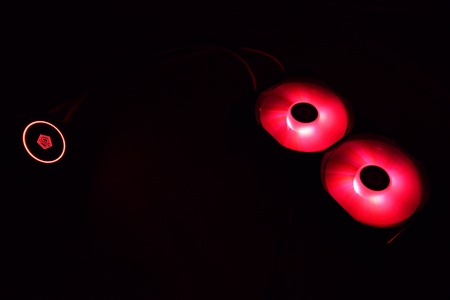

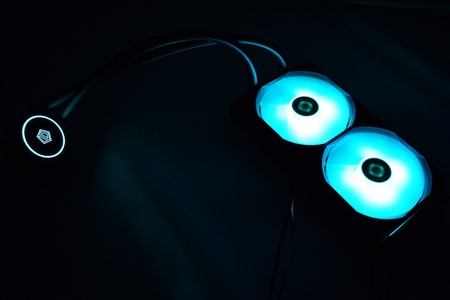

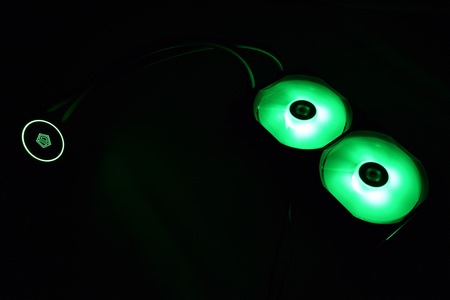

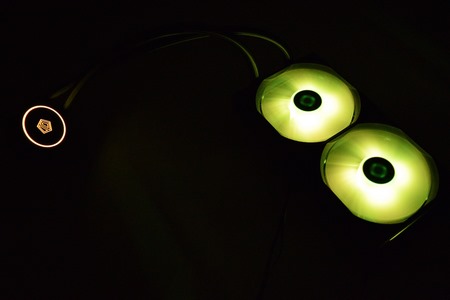

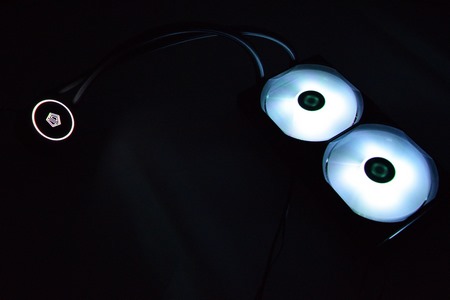

By plugging the RGB connectors of both fans and the pump to the 4-way RGB splitter cable and then connecting it to the RGB controller you can manually control the mode and color of the AuraFlow X 240.
