THE ROG STRIX GEFORCE RTX 2070 SUPER OC

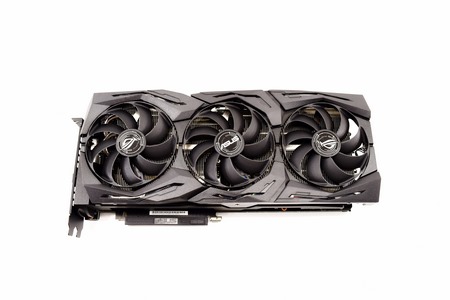

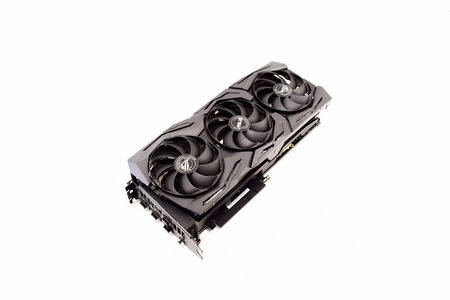

The ROG Strix GeForce RTX2070 Super OC is a large 2.7-slot card (you still need 3 slots) that measures 299.7mm in length, 130.4mm in width/height and 54.1mm in thickness (at the front of the card there are two HDMI v2.0b connectors, two DisplayPort v1.4 connectors and a USB-C connector).

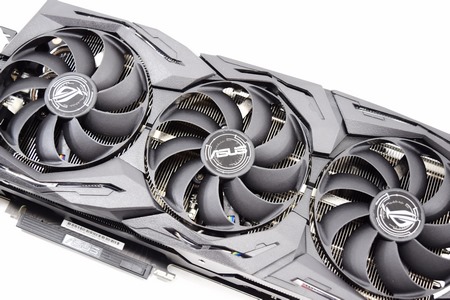

The three-fan system used in this model seems to be the most robust of all three models we’ve tested to date.

ASUS claims that these fans are designed in such a way that they feature Increased airflow and air pressure levels.

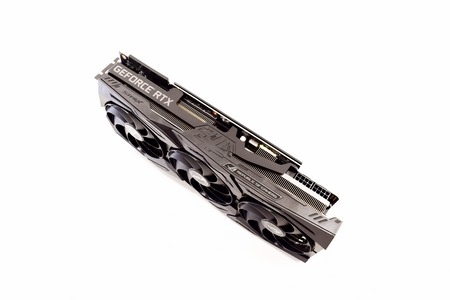

At the top we find the Republic Of Gamers logo which is also part of the RGB lighting system.

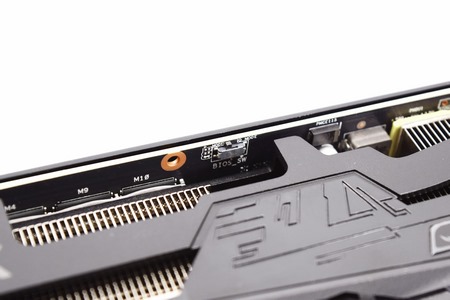

The dual-bios switch is located right at the top center of the card (performance mode is selected by default).

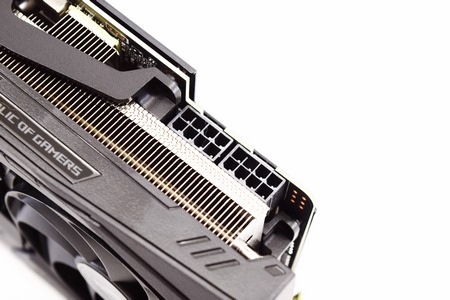

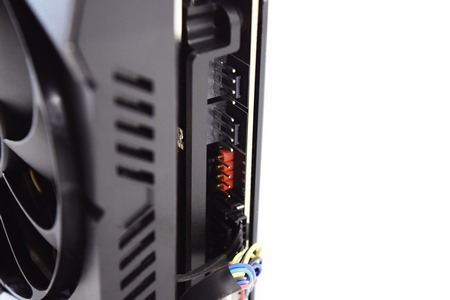

At the rear end of the card we see the two 8-pin power connectors and further down se see two 4pin fan connectors and an RGB sync connector.

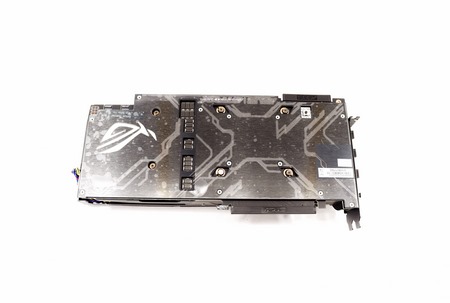

The rear is taken by a large aluminum backplate (the ROG logo is visible here and part of the RGB lighting system) which not only protects components (and the PCB itself) it but also acts as a cooler for the PCB.

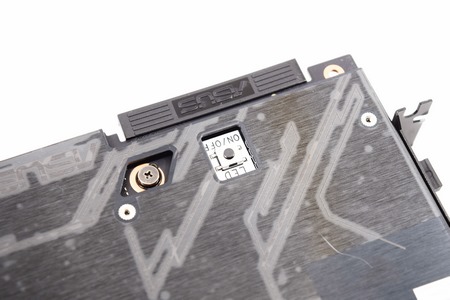

A small on/off button for the RGB lighting system is located at the rear top of the card.
