THE GEFORCE RTX 2080 SUPER GAMING X TRIO

Measuring 328mm in length, 56.5mm in width (3-slot design) and 140mm in height the GeForce RTX 2080 Super Gaming X Trio is a very large card.

To have a better understanding of its sheer size i placed it right next to one of the GeForce RTX 2060 ROG Strix OC graphics cards i have here (never got the chance to review these but i did benchmark and add one in the charts).

The three double-ball bearing fans MSI has placed over the dual-heatsink feature different blade designs for optimal airflow levels and reduced noise (the zero-fan feature keeps the fans inactive until temperature passes 60 degrees Celsius).

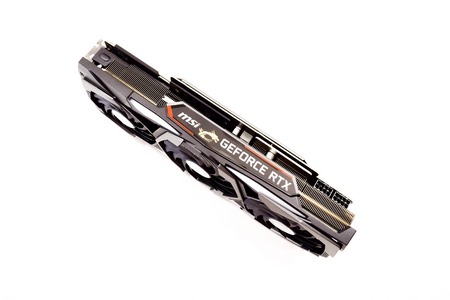

Aside the 4 RGB LEDs located at the front just above and beneath the fans the MSI logo and a at the top of the card is also illuminated.

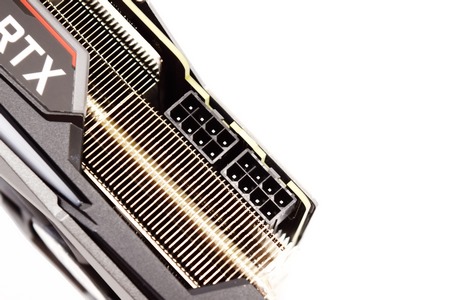

By using two 6pin PCIe power connectors (in addition to the PCIe slot) the card is provided with up to 375W of power.

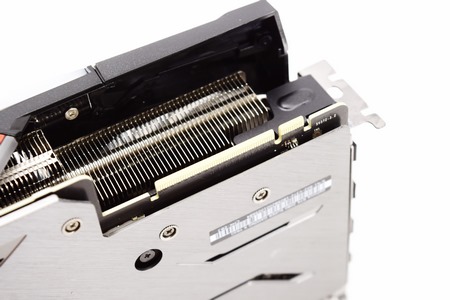

The SLI connector is placed on the far top as with all GPU's we've seen to date.

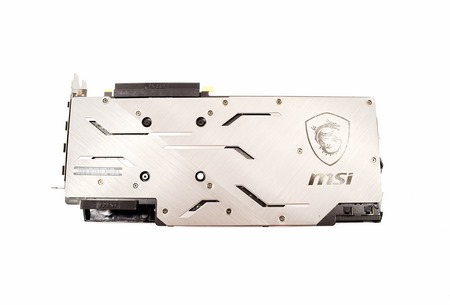

Turning the card around we see the rear aluminum cover which effectively protects the entire area.

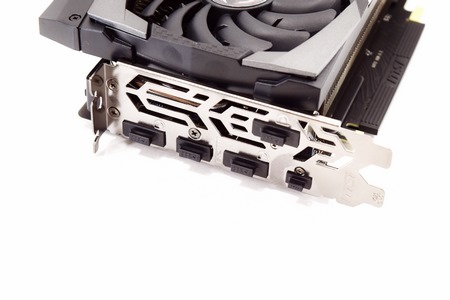

At the front we find 3 DP v1.4 ports, single HDMI v2.0b port and the USB-C port.

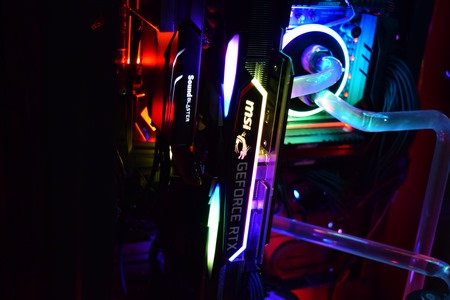

Here you can see the MSI GeForce RTX 2080 Super Gaming X Trio while running benchmarks.
