THE RADEON RX 6800 NITRO+

The Radeon RX 6800 Nitro+ is a rather large card that measures no less than 310mm in length and 135mm in height.

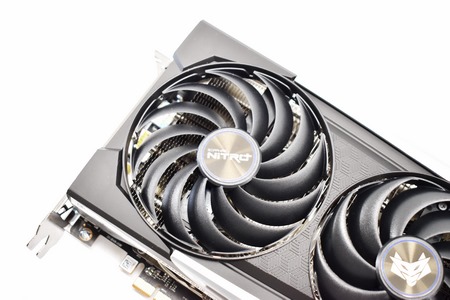

SAPPHIRE has used a tri-fan design for the RX 6800 Nitro+ with the left and right fans spinning counter clockwise while the center fan spins clockwise.

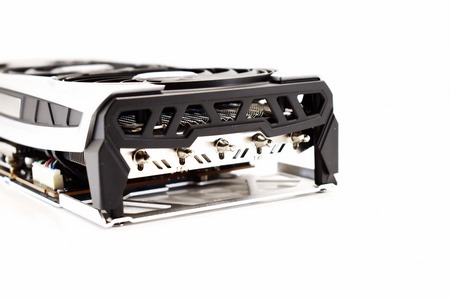

Under the plastic cover SAPPHIRE has placed three heatsinks and 6 nickel plated heatpipes (5 go through the 2 large ones and 1 goes through a smaller one).

The company name is placed at the top and is part of the RGB lighting system (the LED bar next to it is the 2nd RGB zone).

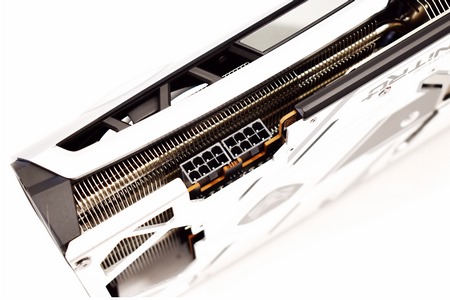

This card needs two 8pin PCIe power connectors.

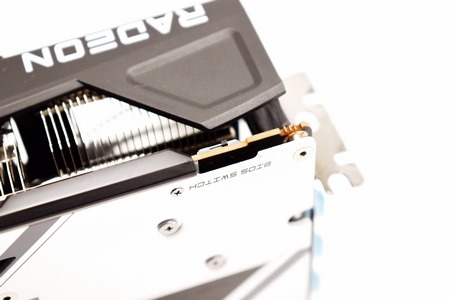

There's also a BIOS switch at the top of the card with three different settings (default/quiet/software controlled).

At the rear of the card, we find a partial aluminum backplate and the SAPPHIRE logo (3rd RGB zone).

Moving at the front we see three full sized DP v1.4 ports and a single HDMI v2.1 port.

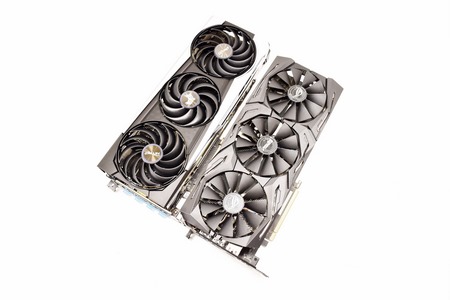

Finally, to have a better understanding about the size of the SAPPHIRE RX 6800 Nitro+ i placed it right next to the slightly smaller ASUS Strix GeForce RTX 2060 OC.
