THE ROG STRIX GAMING OC GEFORCE RTX 3060

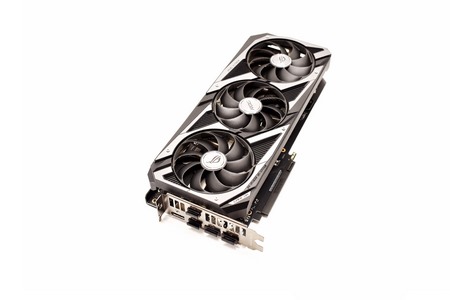

The ROG STRIX GAMING OC GeForce RTX 3060 is a 300mm long, 2.7 slot design card.

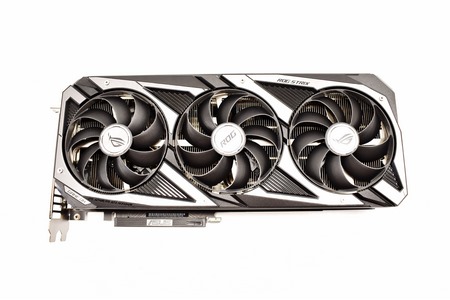

ASUS used a triple-axial fan design (center fan rotates clockwise while the side fans rotate counter clockwise).

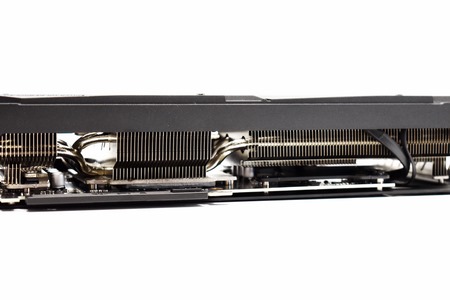

Underneath the fans we find a total of 3 heatsinks connected via five 8mm nickel plated copper heatpipes.

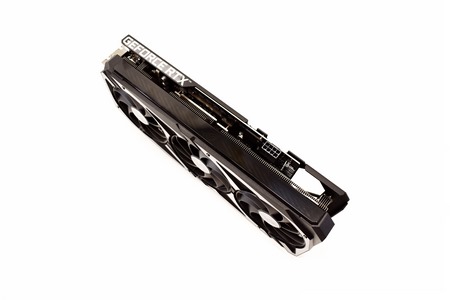

The top of the card features several RGB LEDs (1st RGB zone).

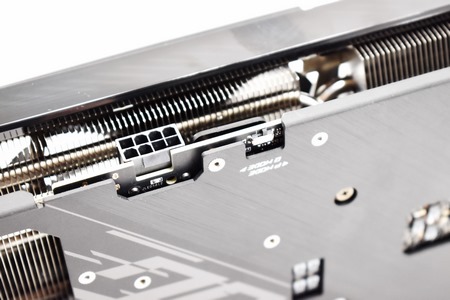

A single 8-pin PCIe power plug is required by this card and as you can see right next to that port ASUS has placed the dual-BIOS switch.
The rear of the card is almost entirely covered by a metal plate (the ROG logo is the 2nd RGB zone).

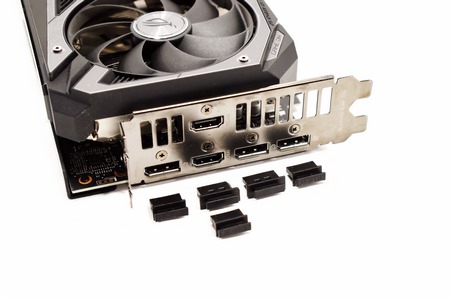

At the front of the card, we find the Turbo button (switches between default and OC clocks), 3 DP v1.4a ports and a single HDMI v2.1 port.

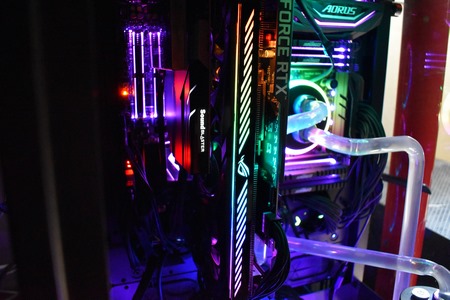

Here you can see how the card looks while connected (unfortunately I forgot to grab a shot of the rear).
