THE PULSE AMD RADEON RX 7900 XT 20GB

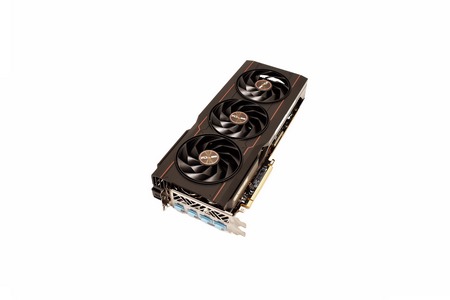

Measuring 313mm in length and 133.75mm in height the SAPPHIRE PULSE AMD Radeon RX 7900 XT 20GB is a large 2.7-slot card (short video available on TikTok now).

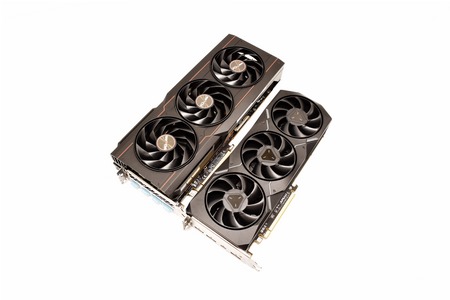

Here you can see just how it compares to the stock 2.5-slot AMD Radeon RX 7900 XT (276mm in length and 113mm in height).

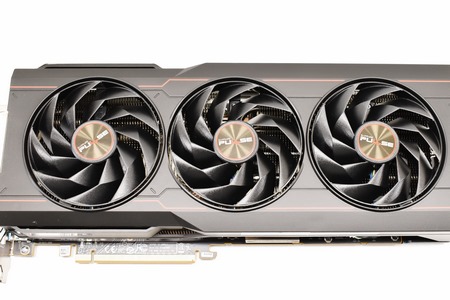

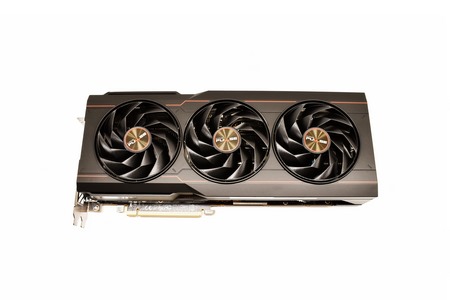

The cooler used by SAPPHIRE with the PULSE RX 7900 XT uses three dual-ball bearing fans.

These fans feature angular blades which provide optimal air pressure (up to 44% compared to other solutions) and airflow (up to 14%).

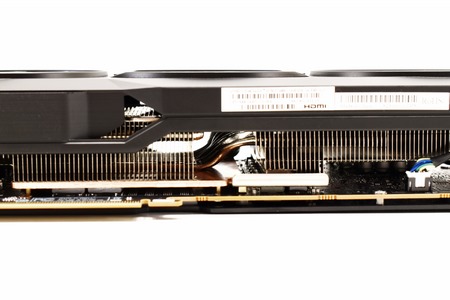

Under the three fans SAPPHIRE has placed two large aluminum heatsinks both of which have 5 nickel plated aluminum heatpipes passing through them (an large copper plate is located over the GPU and the VRAM).

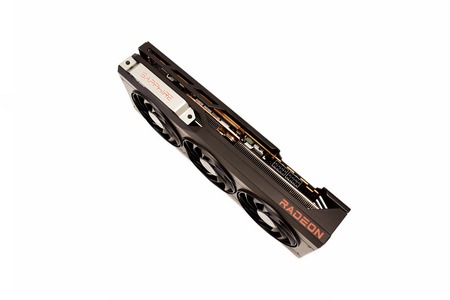

The company name and the card line are both printed at the top of the card (unfortunately the PULSE has no LEDs).

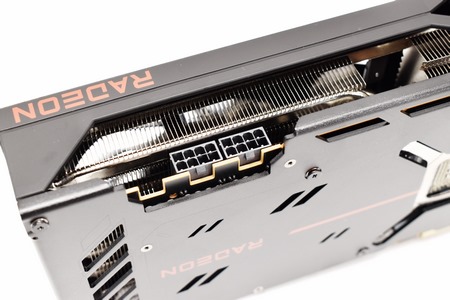

This particular model makes use of two typical 8-pin PCIe power connectors (331W maximum board draw according to SAPPHIRE).

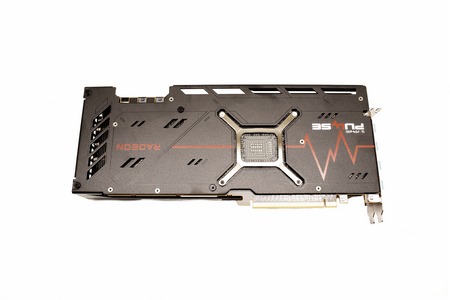

Typically for such a model almost the rear is taken by an aluminum backplate.

At the front we find two HDMI v2.1 and two DisplayPort v2.1 ports (7680x4320p maximum resolution supported).
