THE GEFORCE RTX 4080 PHANTOM

The GeForce RTX 4080 Phantom is a very large card measuring no less than 329.4mm in length, 141.6mm in height and 69.7mm in width (triple-slot).

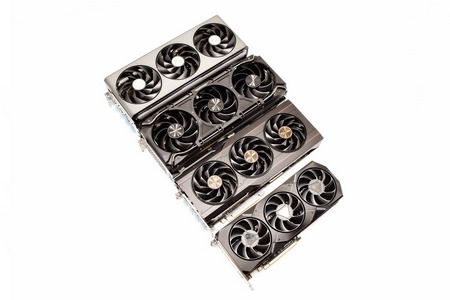

Above you can see how the Gainward GeForce RTX 4080 Phantom compares to the Sapphire Radeon 7900 XTX Nitro+, the Sapphire Radeon 7900 XT Pulse and the AMD Radeon 7900 XT.

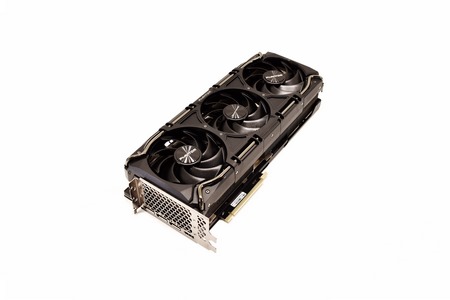

Unlike other cards all three fans spin counter clockwise.

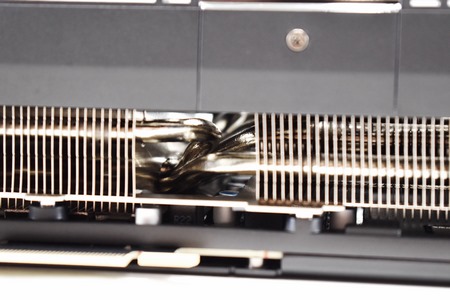

I count 8 nickel plated heatpipes (6mm/8mm) passing through both heatsinks of the cooler Gainward has used.

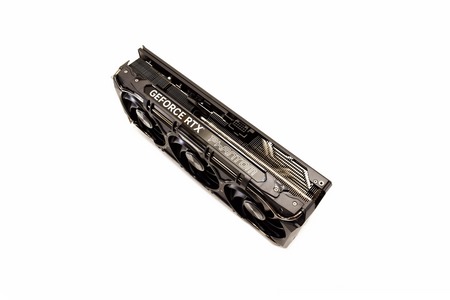

The sole ARGB LED zone is located at the top of the card.

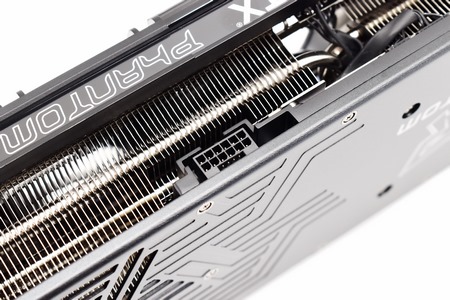

Gainward has placed the +12VHPWR connector at the center of the card.

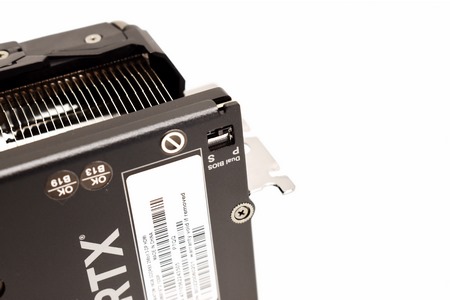

At the rear front end, we find the dual BIOS switch (performance BIOS by default).

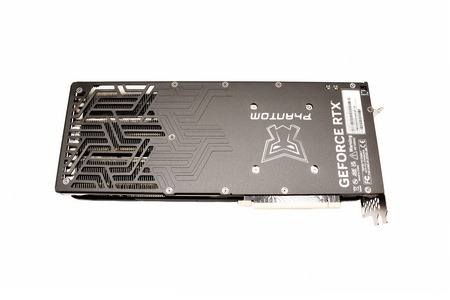

Almost the entire rear of the card is covered by a thick metal plate.

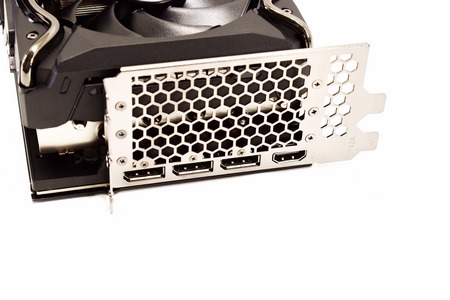

As mentioned earlier the GeForce RTX 4080 Phantom has three DP v1.4a ports and a single HDMI v2.1a port.
