THE RADEON RX 7600 8GB PULSE OC

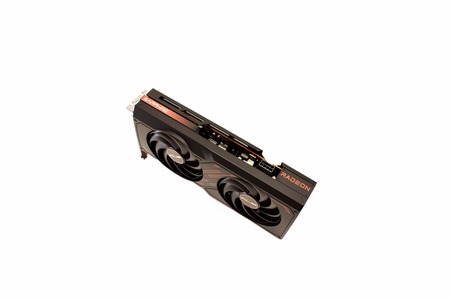

Measuring 240mm in length, 107.1mm in height and 44.07mm in thickness (dual-slot card) the SAPPHIRE Radeon RX 7600 Pulse OC is a small to medium sized card.

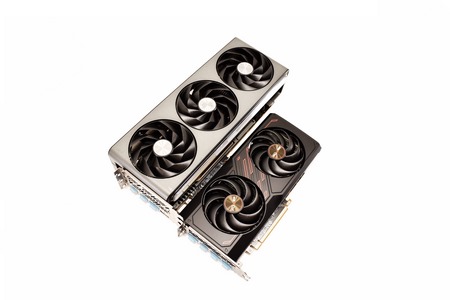

Just to have a better understanding of size here you can see the Radeon RX 7600 Pulse OC next to the Radeon RX 7900 XTX Nitro+ again by SAPPHIRE.

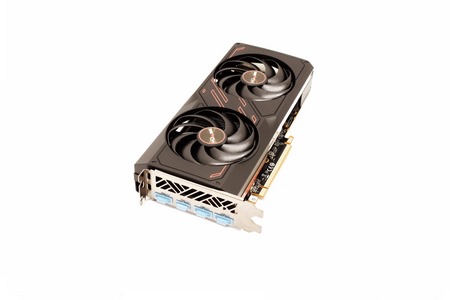

Two dual-ball bearing fans are placed just over the card to keep temperatures inside in check.

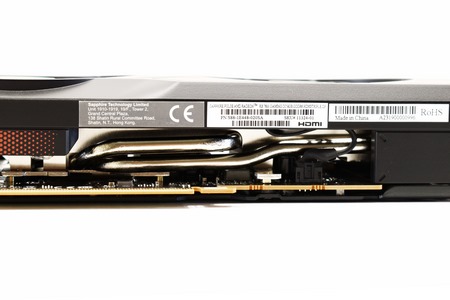

Underneath the fans SAPPHIRE has placed a single aluminum fin heatsink with two nickel plated copper heatpipes passing through it.

Unfortunately, just like other Pulse OC models by SAPPHIRE the Radeon RX 7600 doesn't have RGB lighting.

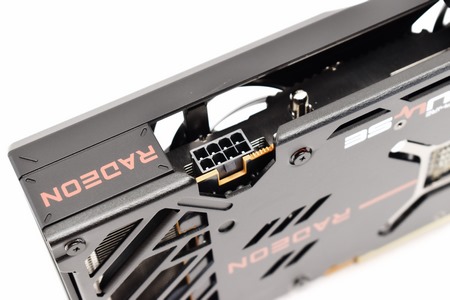

The single 8-pin power connector on top combined with the PCIe slot means that this card could go even up to 225W in terms of consumption (SAPPHIRE states 185W).

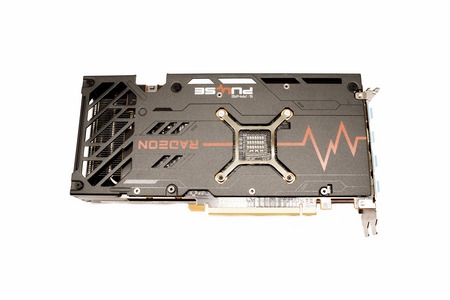

Most of the rear is taken by a nice looking metal plate.

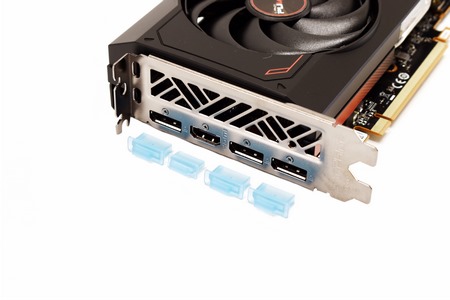

As mentioned earlier at the front we find three DP v2.1 ports and a single HDMI v2.1a port.
