THE NITRO+ AMD RADEON RX 7800 XT 16GB

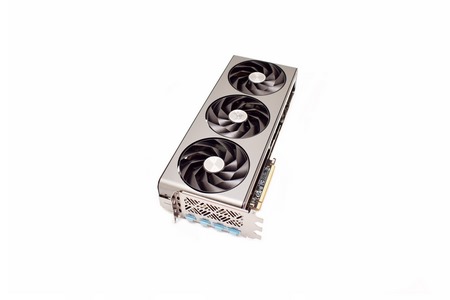

The NITRO+ AMD Radeon RX 7800 XT 16GB by SAPPHIRE is a 3 slot card that measures 320mm in length, 134.85mm in width and 61.57mm in height (quick video of the card installed in my test rig is available on both YouTube and TikTok).

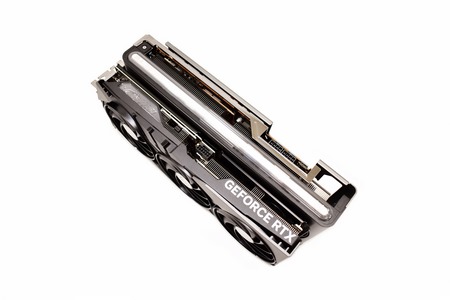

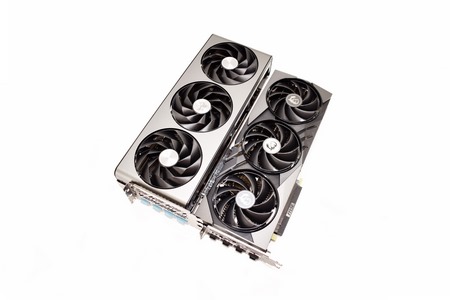

To showcase just how large the SAPPHIRE NITRO+ AMD Radeon RX 7800 XT 16GB is i placed it next to the MSI Gaming Slim GeForce RTX 4070 12GB (review soon).

SAPPHIRE has placed three two-ball bearing quick-connect fans just over the dual-heatsink cooler (as with past Nitro+ models the center fan moves clockwise whereas the left and right fans move counter-clockwise).

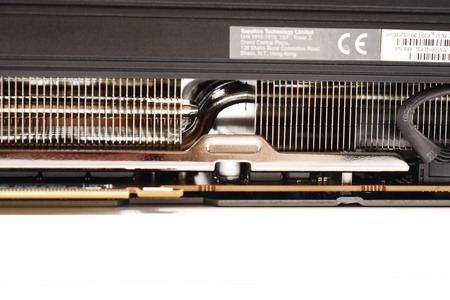

As you can see from the two large heatsinks are connected by a total of 5 nickel plated copper heatpipes.

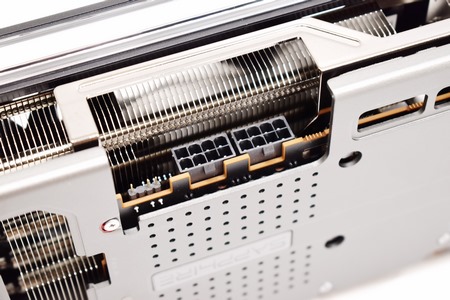

On top of the card, we find an ARGB LED bar, ARGB headers and two 8-pin PCIe power connectors.

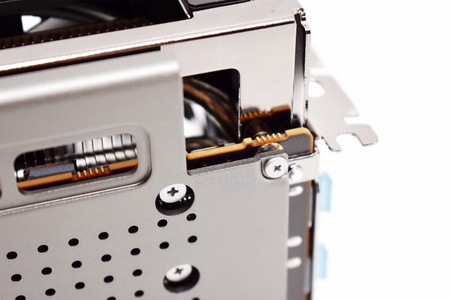

Moving at the front we find the dual-BIOS switch which is set at performance by default.

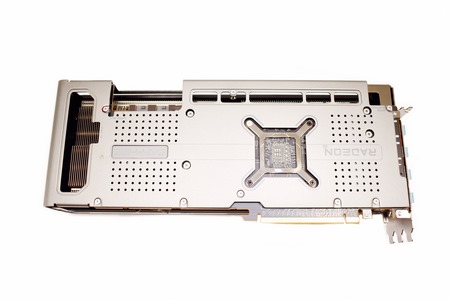

Most of the rear is taken by a metal plate (the company name is the 2^nd ARGB zone).

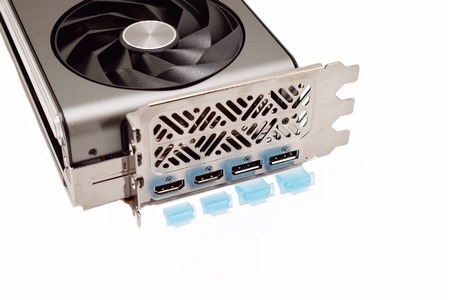

In terms of available connectors SAPPHIRE has equipped their card with two HDMI v2.1 and two DP v2.1 outputs.
