THE RADEON RX 7600 XT 16GB PULSE OC

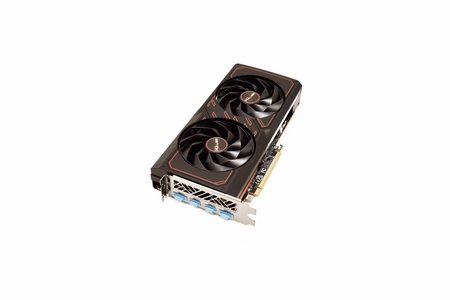

Measuring 250mm in length, 129.25mm in height and 44.56mm in thickness (2.2 slot card) the SAPPHIRE Radeon RX 7600 XT Pulse OC is just a tad larger compared to the 7600 model (short video of the card installed is available in YouTube and TikTok).

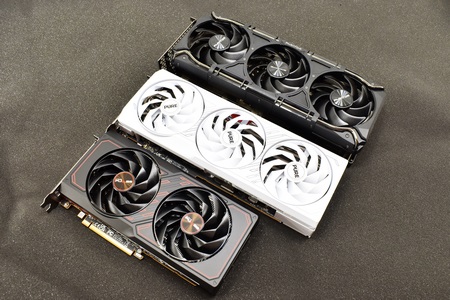

Here you can see how the RX 7600 XT Pulse OC model compares to the RX 7700 XT Pure OC model again by SAPPHIRE (review soon) and the GeForce RX 4080 Phantom by Gainward.

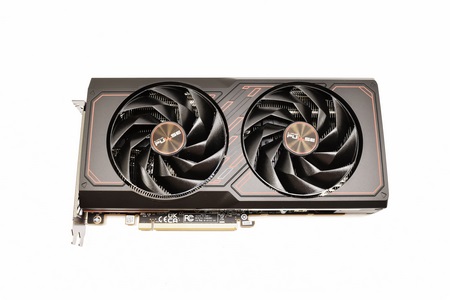

Two dual ball-bearing fans are once again placed just over the card to keep temperatures inside in check.

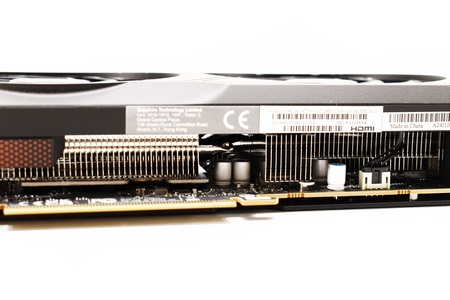

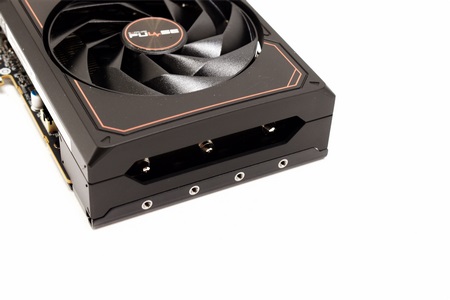

This time over underneath the fans SAPPHIRE has placed a dual aluminum heatsink with four heatpipes passing through it.

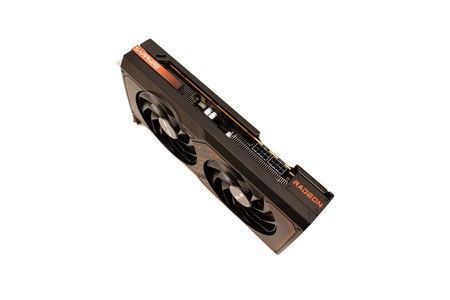

Just like other Pulse OC models by SAPPHIRE the Radeon RX 7600 XT comes without RGB lighting.

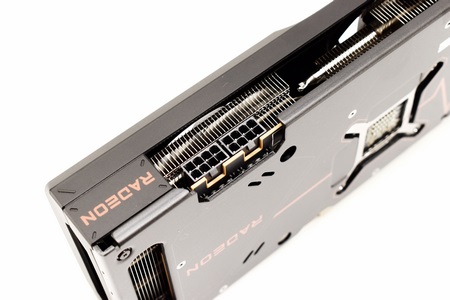

The two 8-pin power connectors on top combined with the PCIe slot means that this card can easily surpass 200W under load.

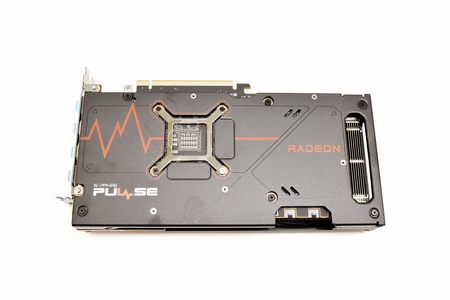

Most of the rear is taken by a nice-looking metal plate.





The rear of the card is open to allow hot air to exit the interior.

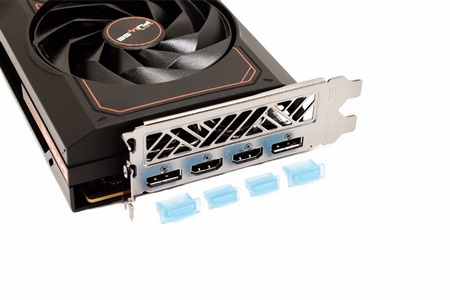

As already mentioned earlier at the front we find two DP v2.1 ports and two HDMI v2.1a ports.
