THE NITRO+ & PURE AMD RADEON RX 7700 XT 12GB

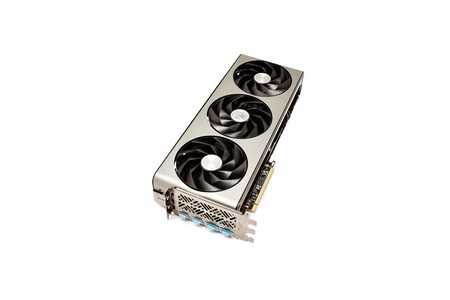

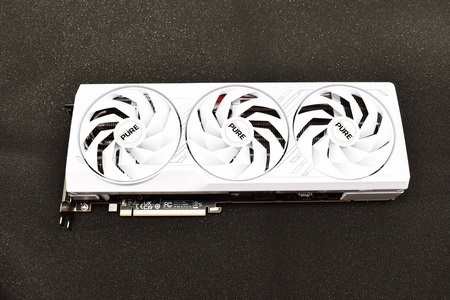

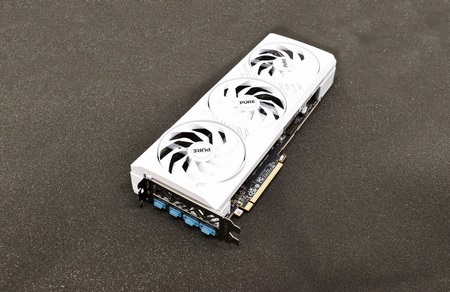

The Nitro+ AMD Radeon RX 7700 XT 12GB measures 320mm in length and 61.57mm in thickness (3-slot card). On the other hand, the Pure AMD Radeon RX 7700 XT 12GB model (used a black foam pad to better showcase it via pictures) measures 320mm in length and 52.57mm in thickness (2.5-slot card).

Basically, these two cards are very similar with thickness being their only difference in size.

Both cards feature 3 two-ball bearing fans with angular velocity fan blades which are fan quick connect for the Nitro+ model.

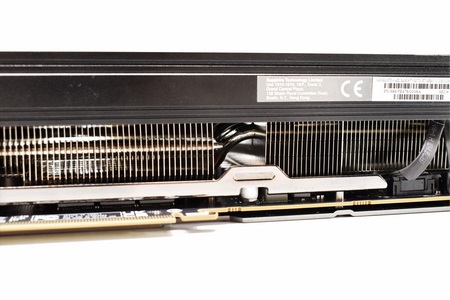

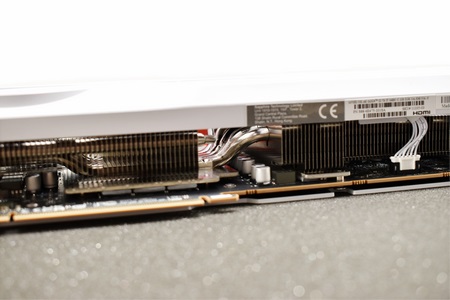

Sapphire has used dual-heatsinks and composite heatpipes for both models.

At the top of the Nitro+ model we find an ARGB LED bar whereas at the top of the Pure we find a RED LED illuminated company logo.

These cards require two 8-pin PCIe power connectors (next to the power connectors the Nitro+ model also has an RGB connector).

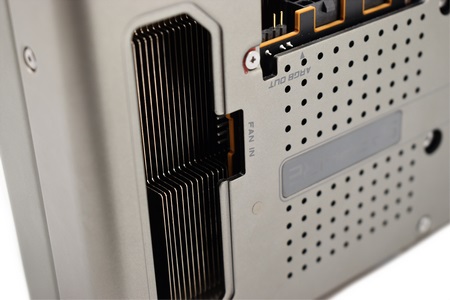

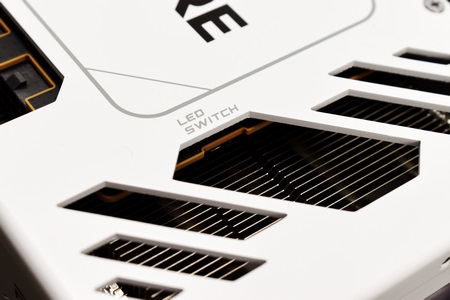

Turning the cards around we find a system fan connector and a dual-BIOS switch on the Nitro+ and an LED switch on the Pure.

Almost the entire rear of both cards is covered with a metal backplate (the Nitro+ also has some ARGB LEDs on the left side).

At the front both cards have two DP v2.1 and two HDMI v2.1a outputs (short clip of both cards is available in YouTube and TikTok).
