THE PULSE AMD RADEON RX 9070 XT GAMING

The Pulse AMD Radeon RX 9070 XT Gaming by Sapphire is a tri-slot card that measures 320mm in length, 120.25mm in height and 61.6mm in thickness.

This is a rather large card almost comparable to the GeForce RTX 4080/Super by NVIDIA.

Sapphire has placed 3 Dual-Ball bearing fans on the card that feature their latest AeroCurve blades.

For cooling the Pulse AMD Radeon RX 9070 XT Gaming features two large heatsinks with 5 optimized composite heatpipes passing through them.

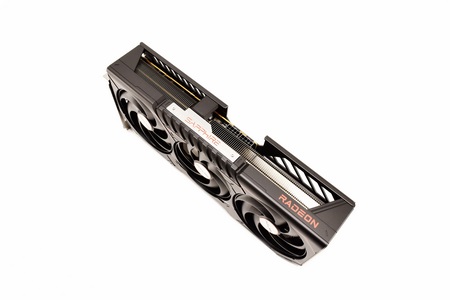

Both the Sapphire and Radeon names are printed on top of the card (not illuminated).

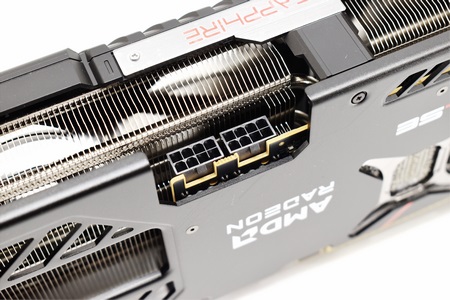

Unlike with the Nitro+ model again released by Sapphire that used a hidden 12V-2x6 power connector the Pulse model requires two 8-pin (6+2) power connectors.

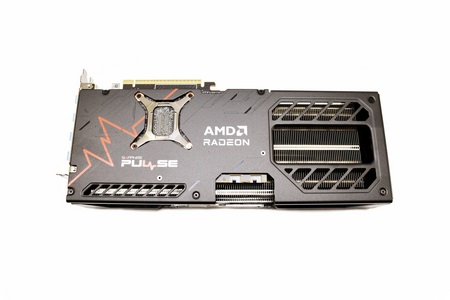

Roughly 70% of the cards rear is covered by a metal plate (again, no illumination here).

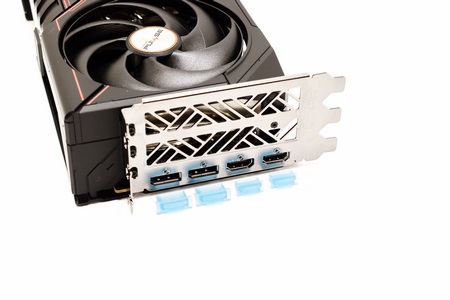

At the front of the card, we find the two DP v2.1a and two HDMI v2.1 video outputs.

Just like with past models the Pulse variant of the Radeon RX 9070 XT Gaming by Sapphire doesn’t feature any RGB zones (as usual quick video showcasing the card is available both on YouTube and TikTok).
