THE PULSE AMD RADEON RX 9060 XT 16GB GAMING

The PULSE AMD Radeon RX 9060 XT Gaming by SAPPHIRE is a dual-slot card (2.3) that measures 240mm in length, 124mm in height and 46.1mm in thickness.

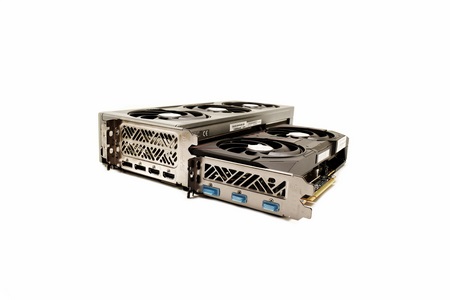

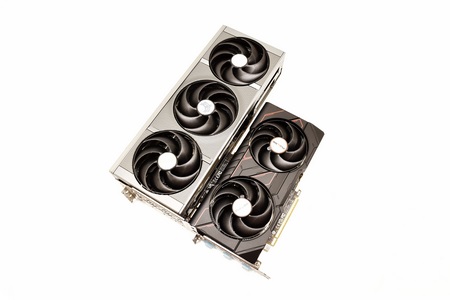

Compared to the NITRO+ Radeon RX 9070 XT (and the PULSE) the PULSE AMD Radeon RX 9060 XT is almost half in size.

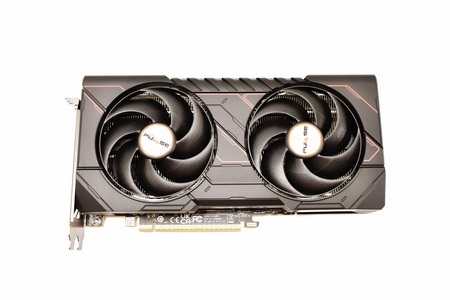

SAPPHIRE has equipped this model with 2 Dual-Ball bearing fans that feature their latest AeroCurve blades.

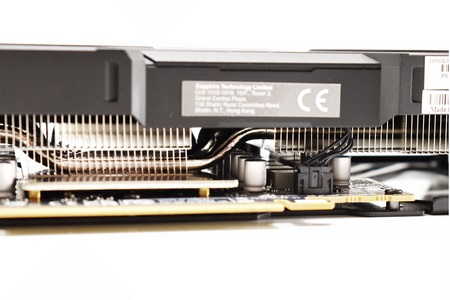

For cooling this model features two large heatsinks with 3 optimized composite heatpipes passing through them.

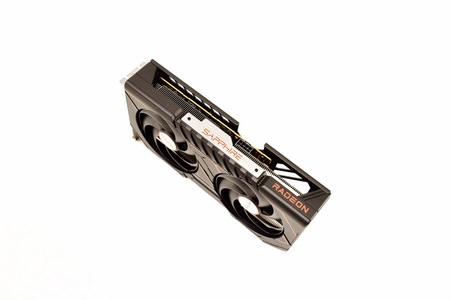

Both the Sapphire and Radeon names are printed on top of the card (not illuminated).

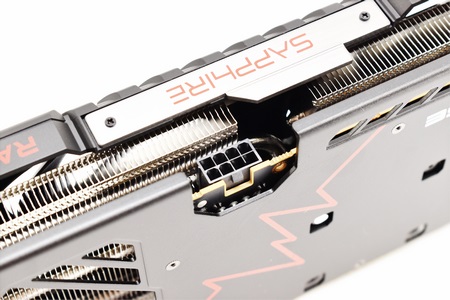

For power the SAPPHIRE PULSE Radeon RX 9060 XT 16GB uses a single 8pin PCIe connector.

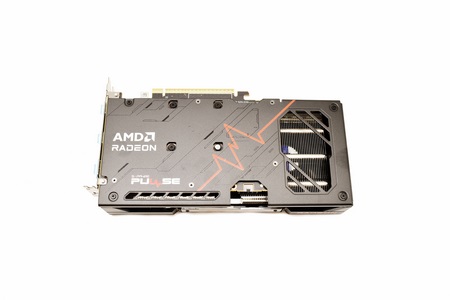

Roughly 70% of the cards rear is covered by a metal plate (again, no illumination here).

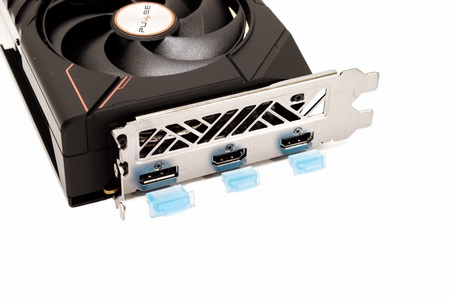

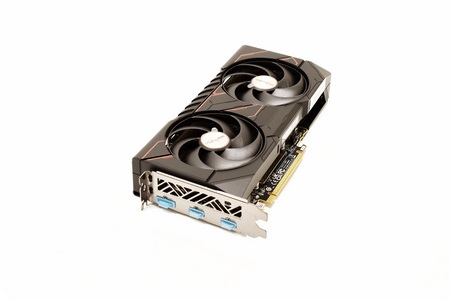

At the front of the card, we find a single DP v2.1a and two HDMI v2.1b video outputs.

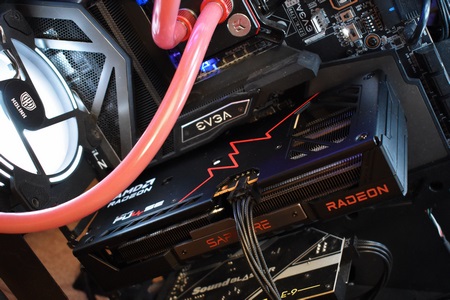

Just like with past models the PULSE variant of the Radeon RX 9060 XT Gaming by Sapphire doesn’t feature any RGB zones (as usual quick video showcasing the card is available both on YouTube and TikTok).
