THE GEFORCE GTX 670 PHANTOM 2GB

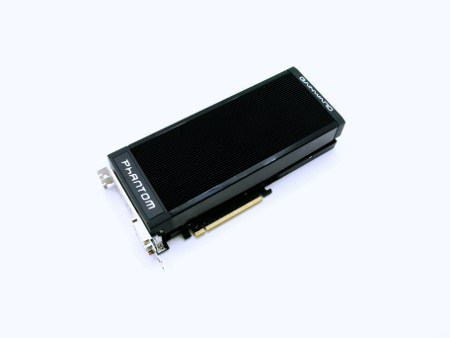

The GeForce GTX 670 Phantom 2GB is actually a medium sized card measuring only 244mm in length, 110mm in depth and 48mm in height. Unfortunately the cards height takes 2 and 1/2 slots so you will need to use 3 slots to install the GTX 670 Phantom 2GB.

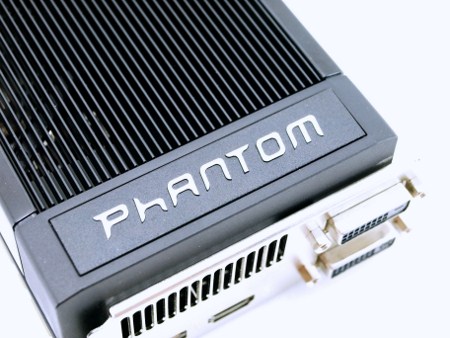

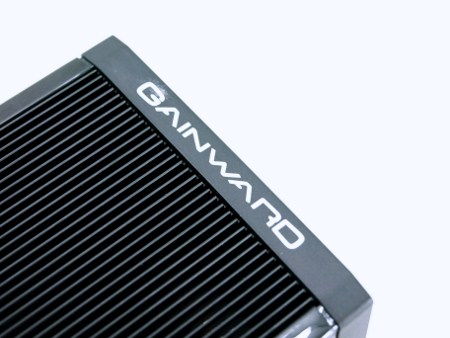

Both the phantom and Gainward logos are present on the two opposite sides of the cover.

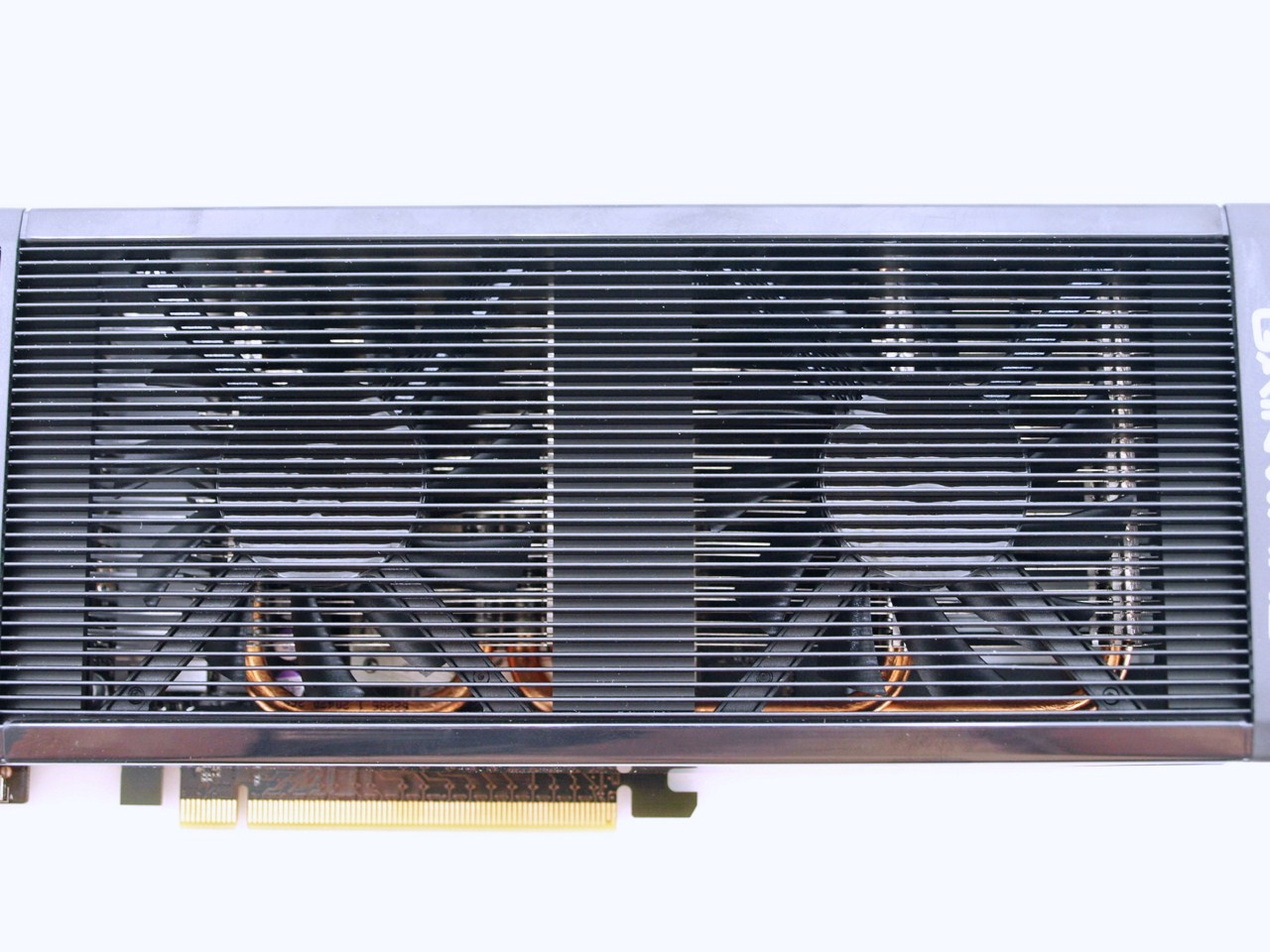

Two 80mm intake fans are used to cool the innerds of the card.

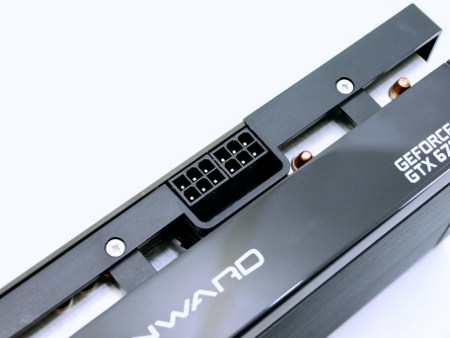

Just like with most mid/high end cards the GeForce GTX 670 Phantom 2GB requires power from two 6pin power connectors.

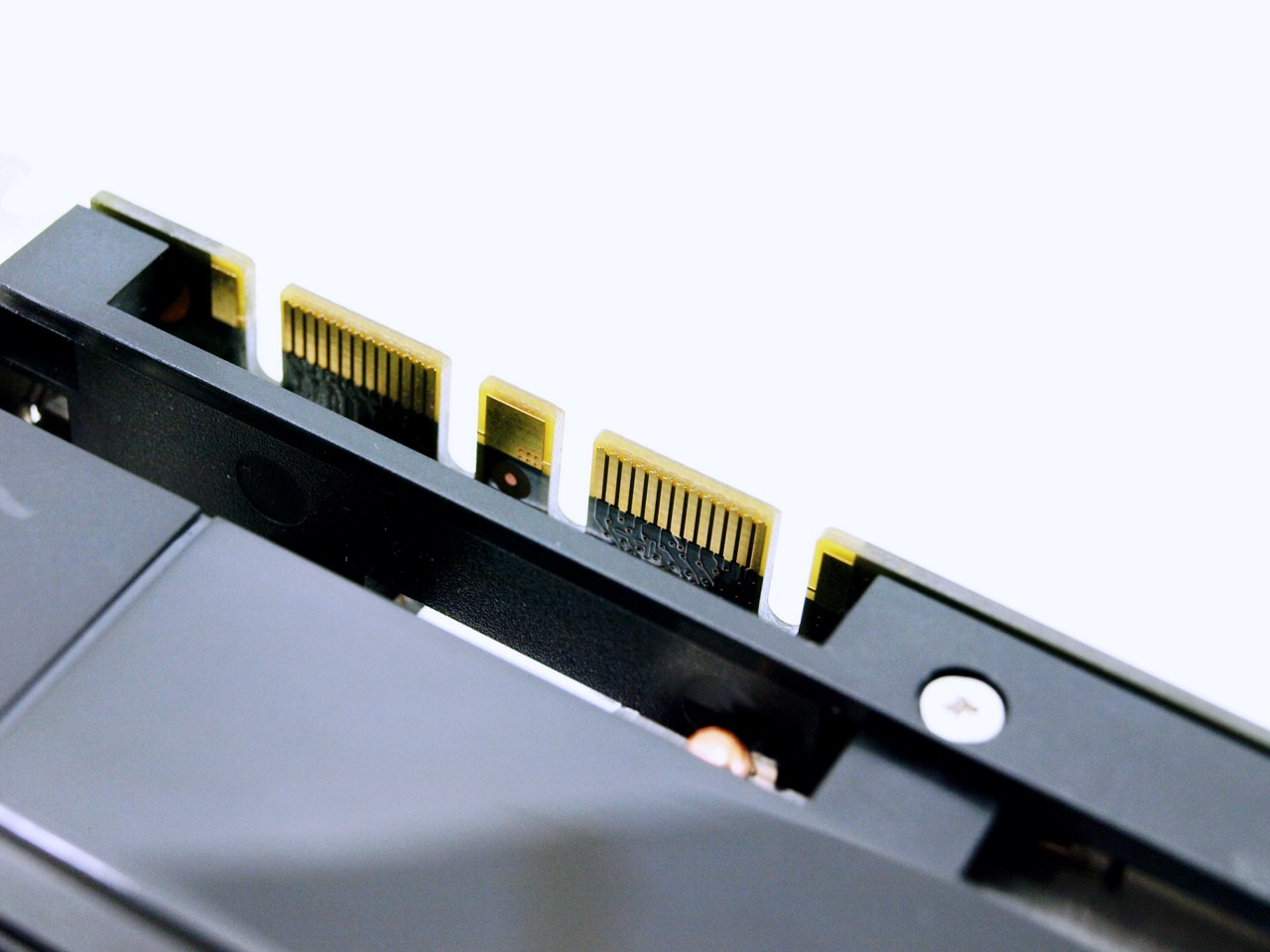

4-Way SLI is also possible as with any GTX 670.

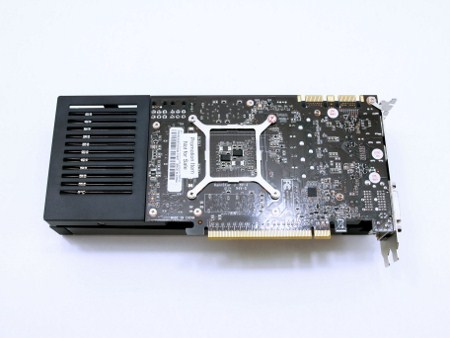

As you can see from the rear the PCB is actually only 2/3 of the card.

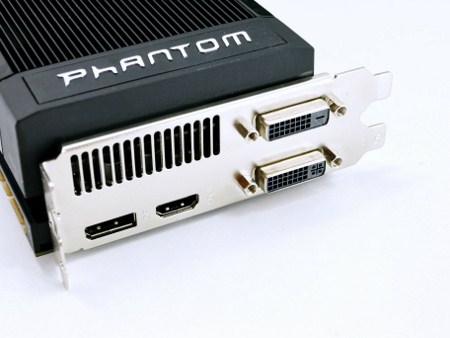

At the front of the card we see two DVI ports, HDMI port (1.4a) and one DisplayPort (1.2v) all of which you can use simultaneously.

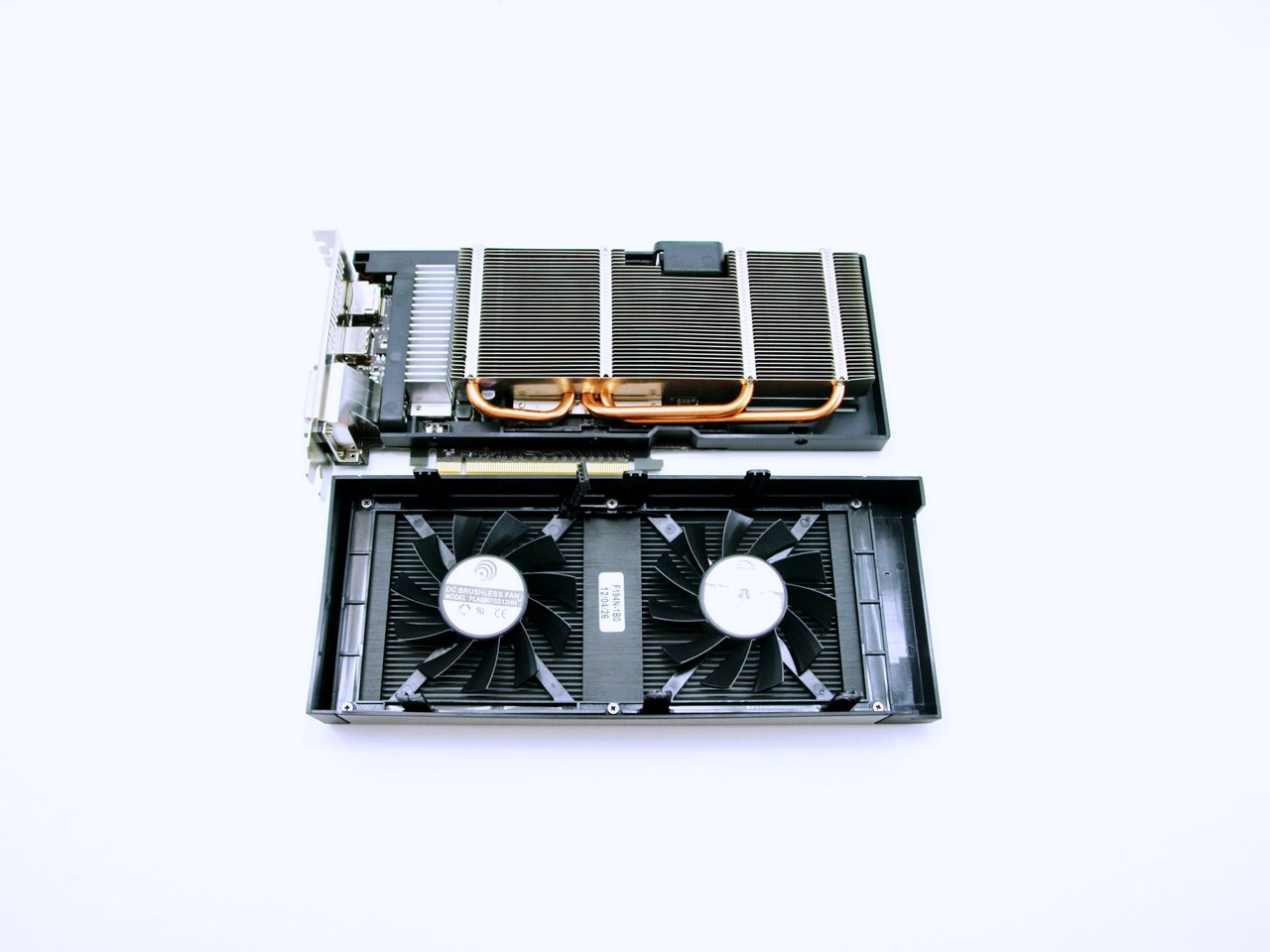

I was curious to see what type of fans Gainward uses so i removed the top shroud.

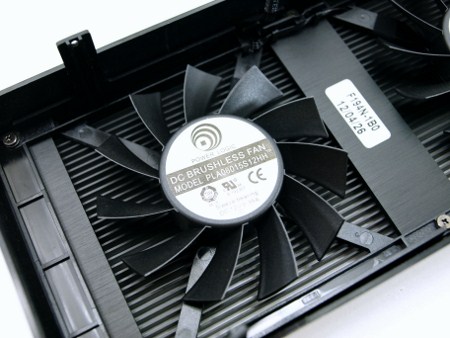

The card actually uses two 80mm 11-blade fans by Power Logic capable of reaching speeds of up to 4000 RPM.

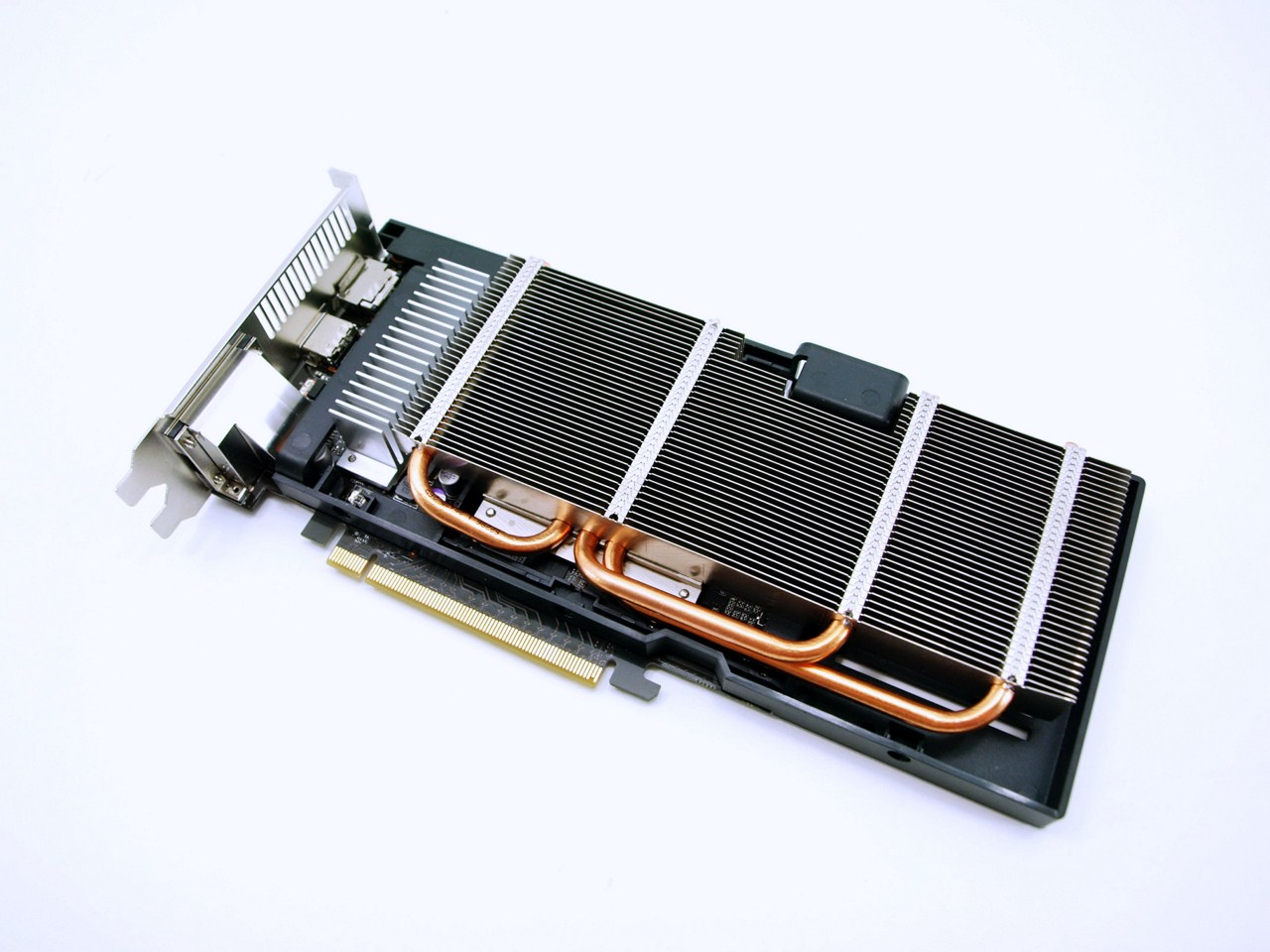

The rest of the cooler features three 6mm all-copper heatpipes and the main heatsink body counting a total of 35 aluminum fins.
