THE CORE P90

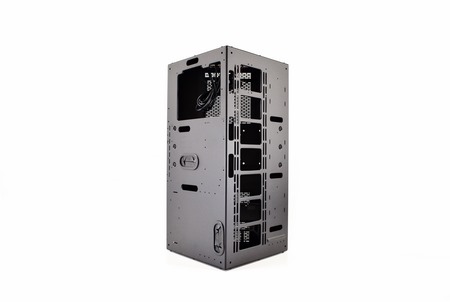

Measuring 615mm in height and 470mm in width for each side the main body of the Core P90 is quite large.

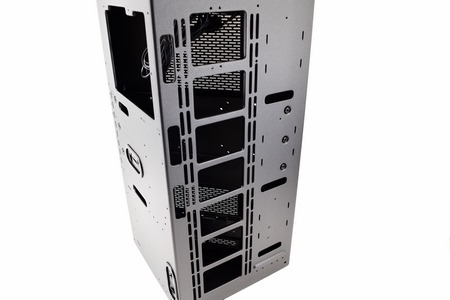

The right side can be outfitted with either four 120mm (or 3x140mm) fans or a single 240/280/360/420/480mm radiator and three 2.5" trays (if you decide to skip on using a radiator you can also mount two 3.5" drives here).

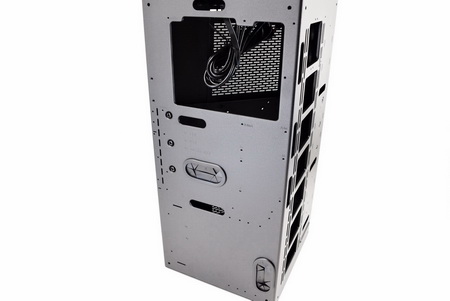

On the left side there's enough space for you to mount up to ATX sized mainboards, your PCIe cards and of course your PSU.

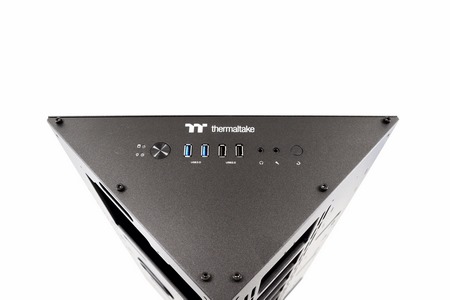

Thermaltake has placed the I/O at the top of the main body (includes the power on/off and reset buttons, power and HDD activity LEDs, two USB 3.0 ports, two USB 2.0 ports and the typical microphone and headphone ports).

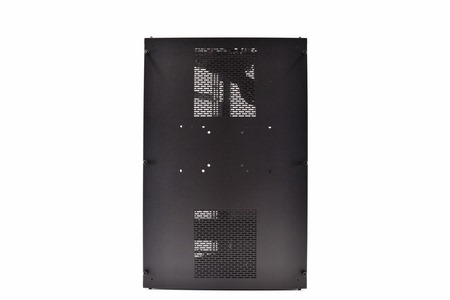

At the rear we find many holes which can be used with the vertical mounting hardware and two perforated areas.

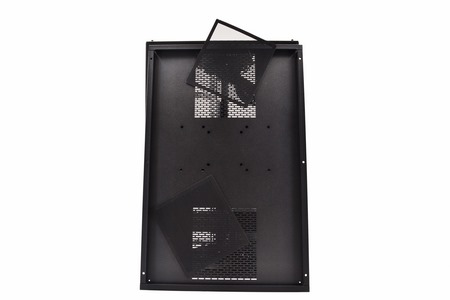

These areas feature magnetic air-filters on the interior of the chassis.

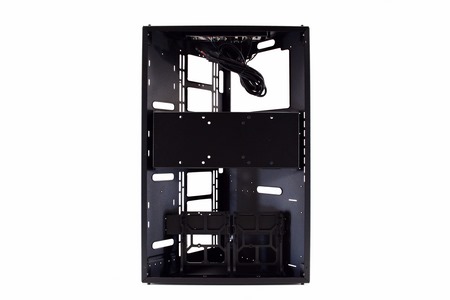

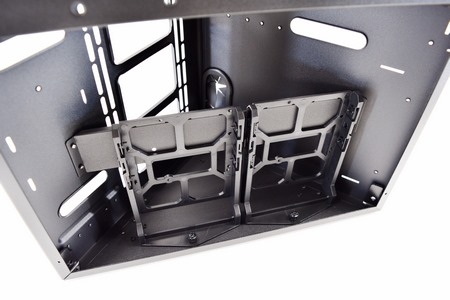

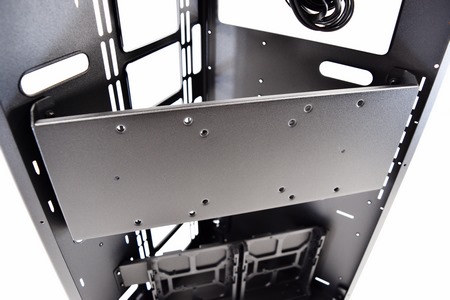

A very sturdy metal plate is located on the interior (also part of the vertical mounting system) right over two vertical 3.5" drive trays.

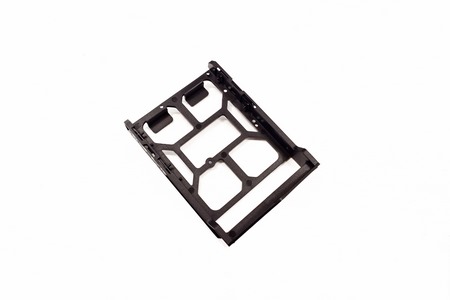

Unlike the front 2.5/3.5" trays these are made out of plastic.

At the base of the main body we find several mounting holes for the two long plastic feet.
