THE AERO ENGINE RGB EXTERIOR

The Aero Engine RGB is a compact mid-tower that measures 471mm in height, 447mm in depth and 195mm in width.

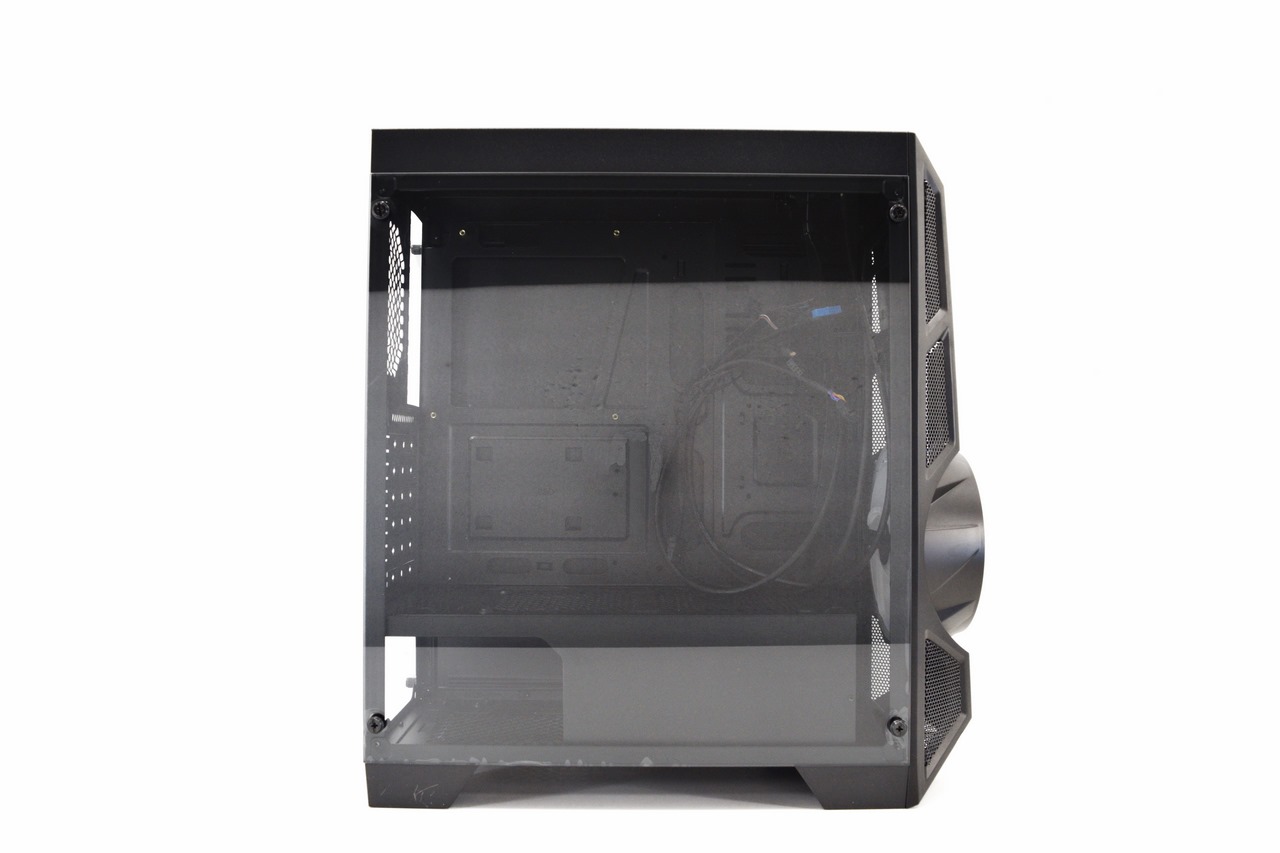

As with most similar cases the entire right side panel is made out of tempered glass held in place via 4 thumbscrews.

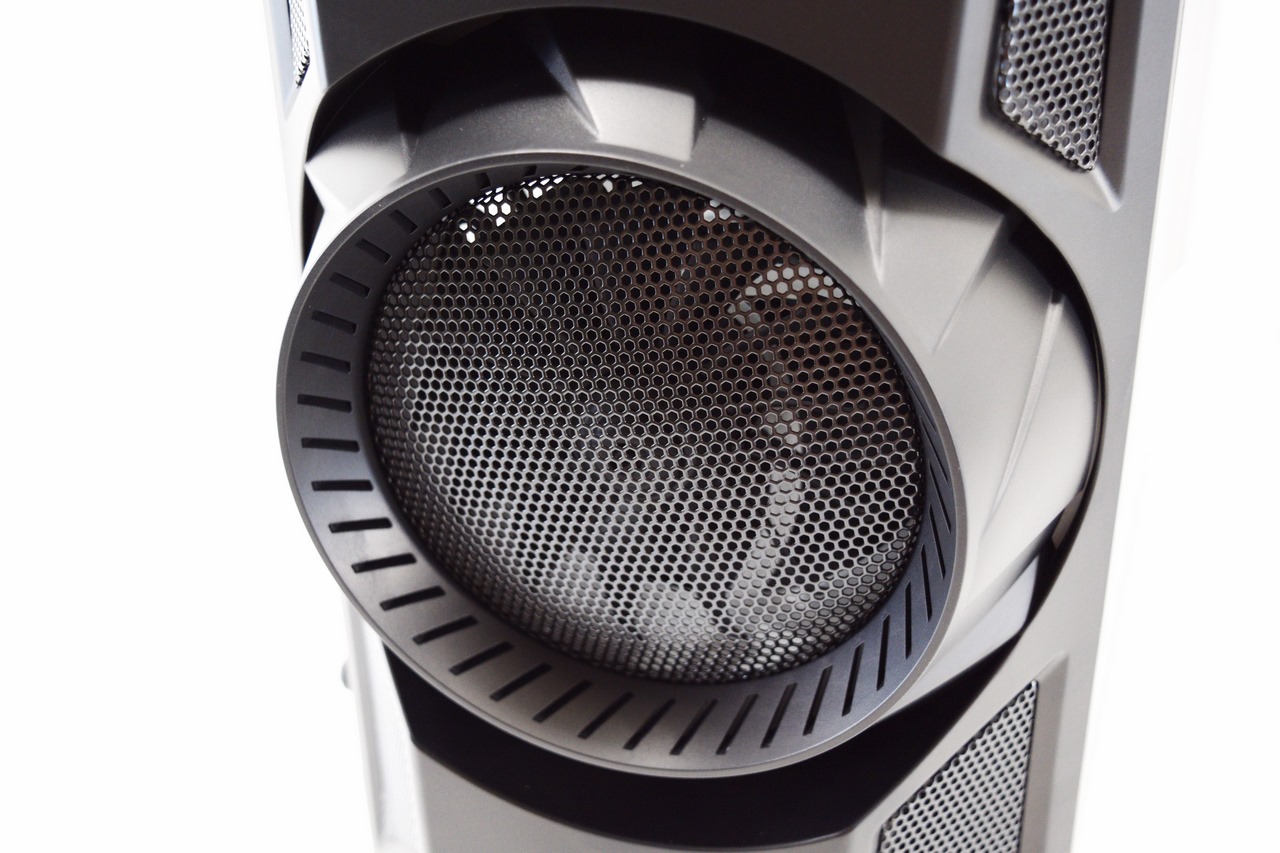

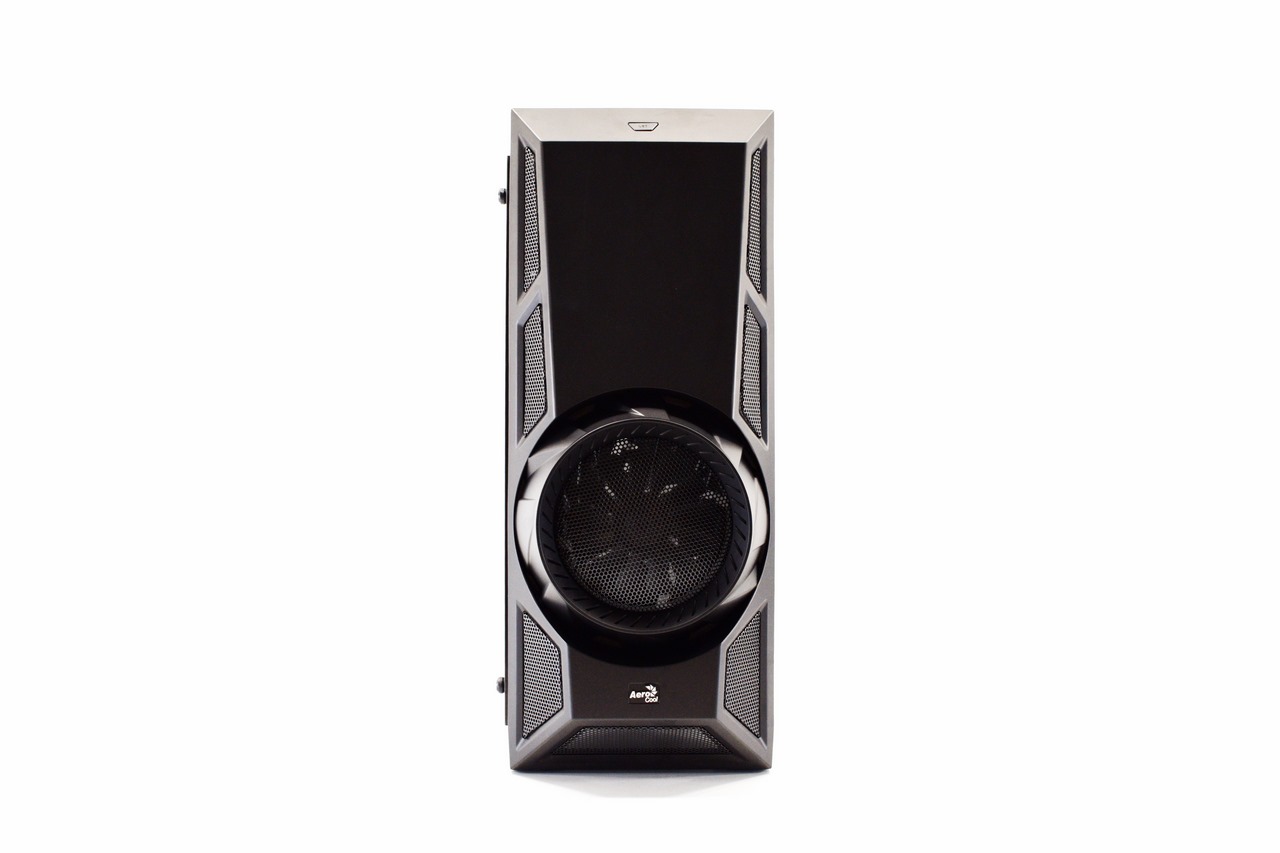

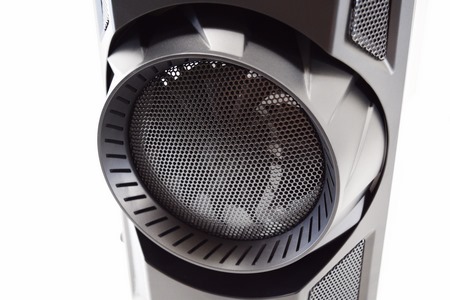

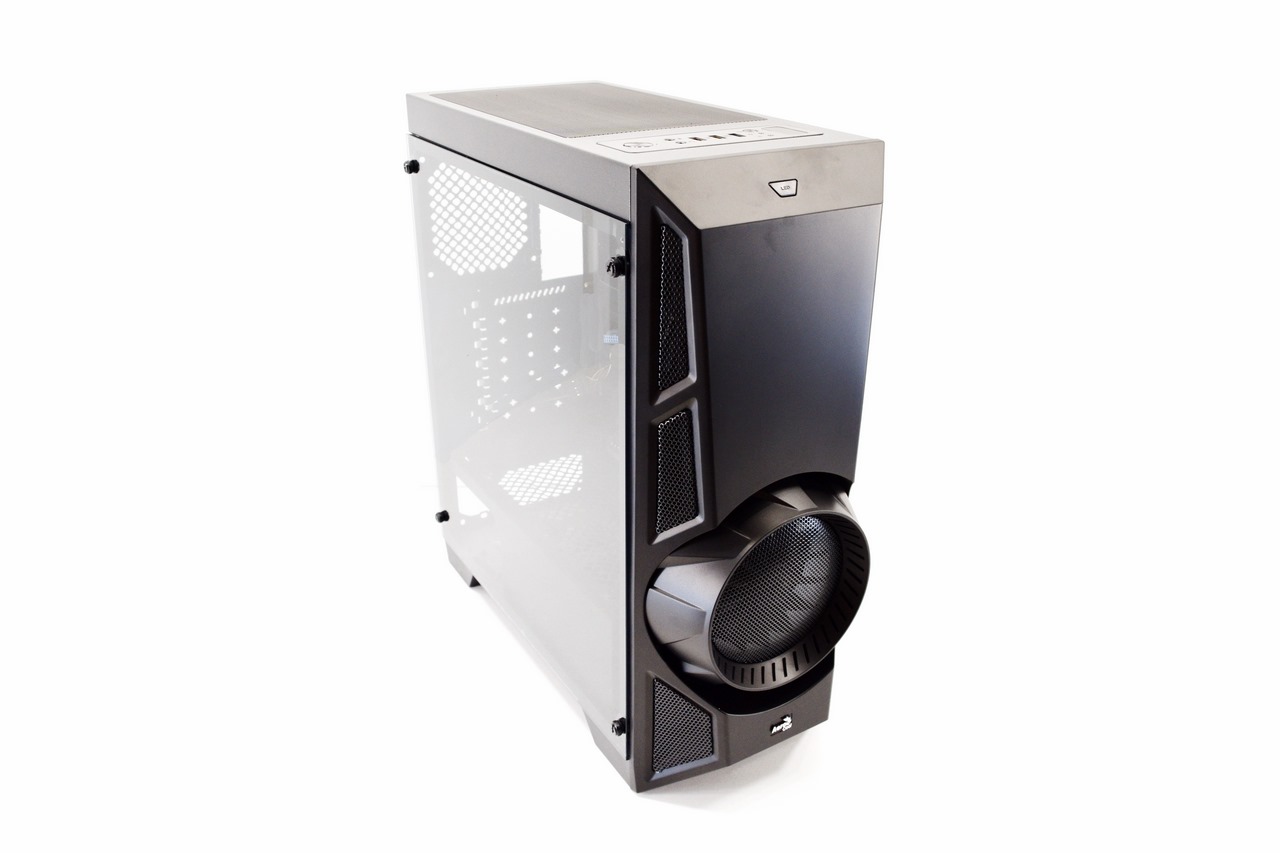

The plastic fascia with its turbine-inspired design and its 120mm RGB fan is no doubt the main selling point of the Aero Engine RGB.

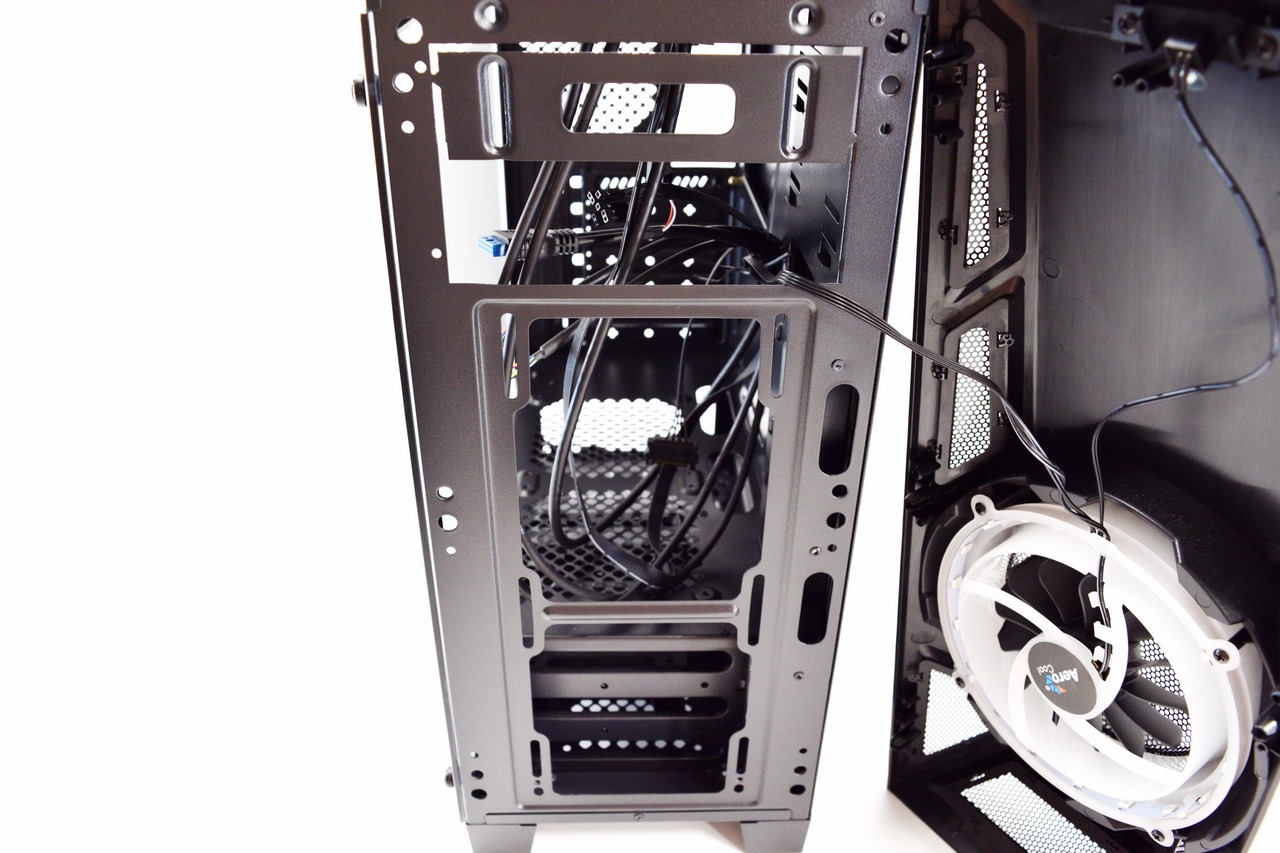

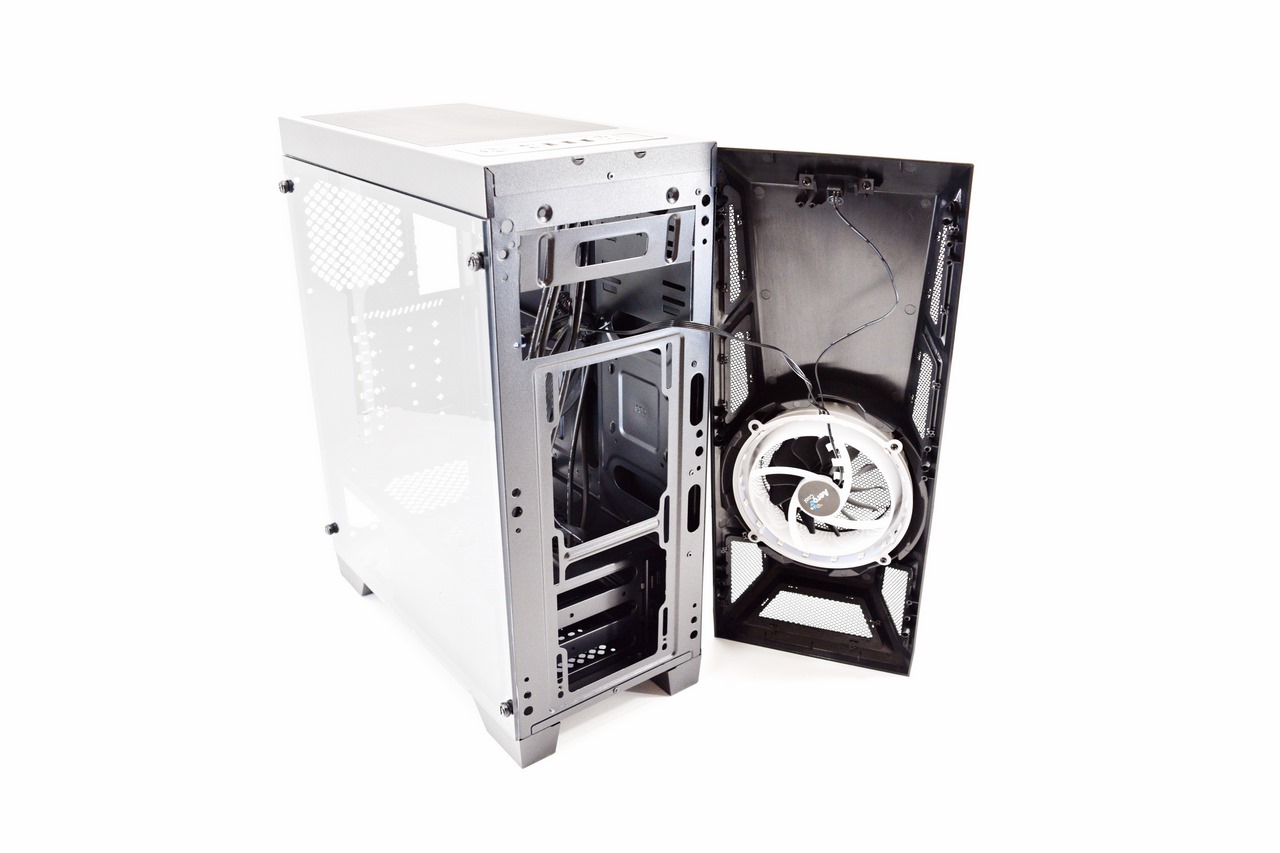

Of course, you can remove the fascia by pulling it from its base to access the interior fan/radiator area.

Here you can mount up to three 120/140mm fans (aside the pre-mounted 120mm RGB LED fan).

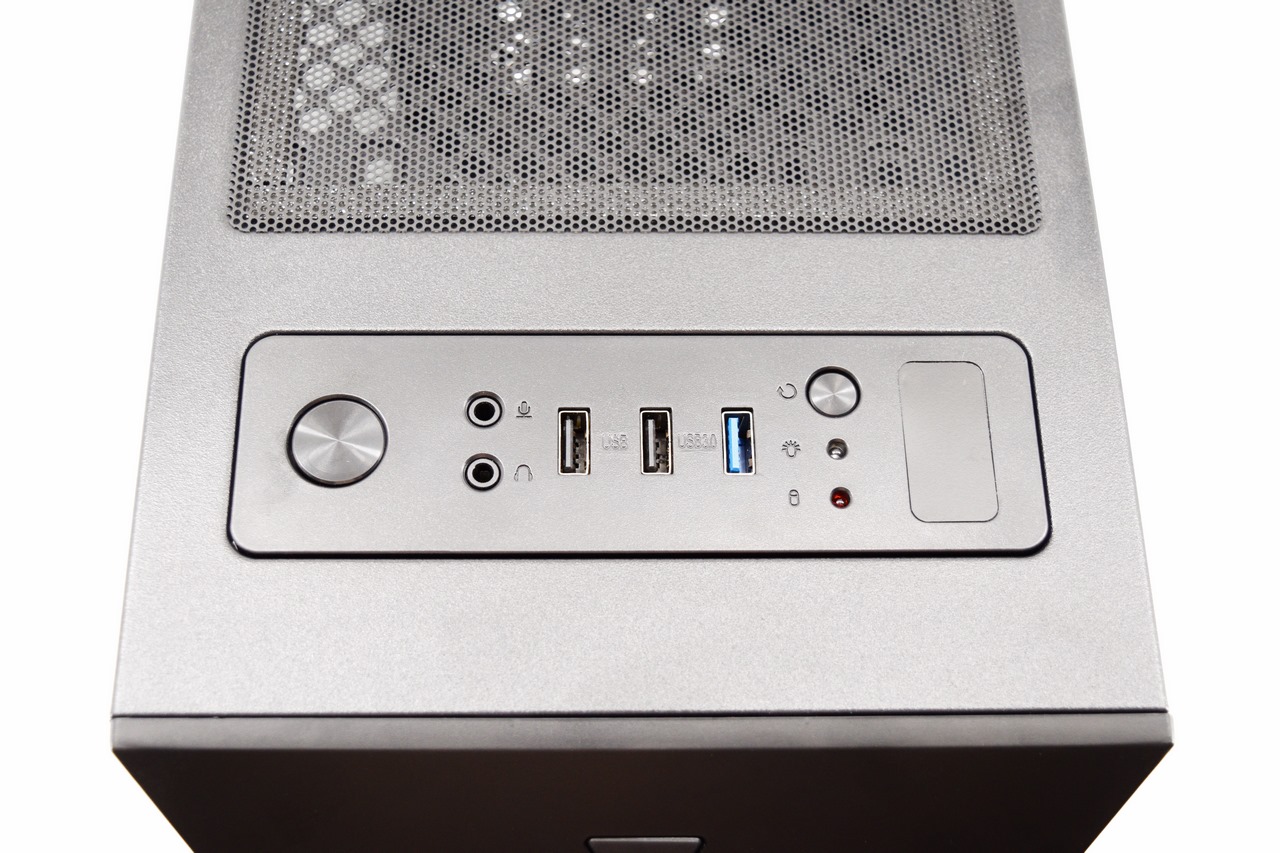

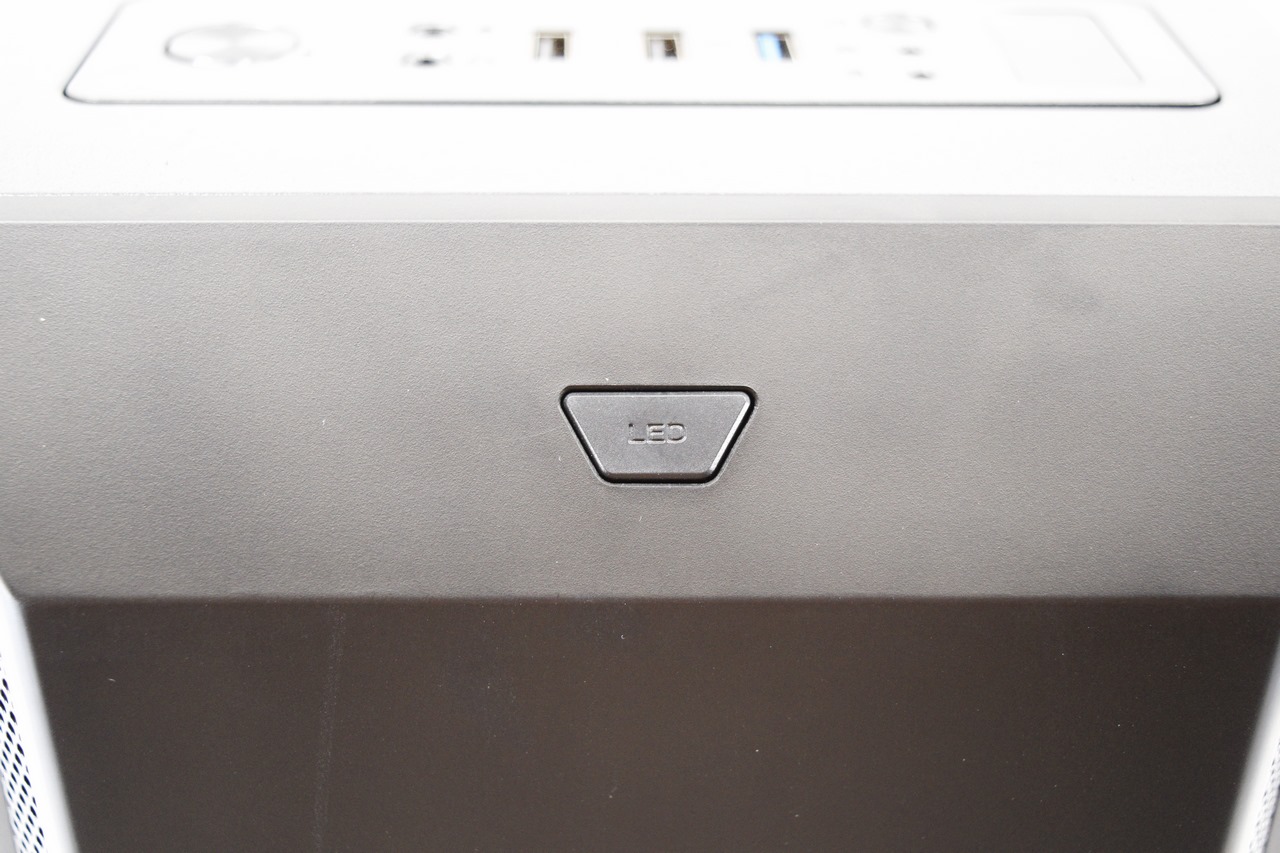

The I/O is located right over the fascia and includes the on/off power button, headset and microphone 3.5mm ports, two USB 2.0 ports, single USB 3.0 port, reset button and the power and HDD activity LEDs.

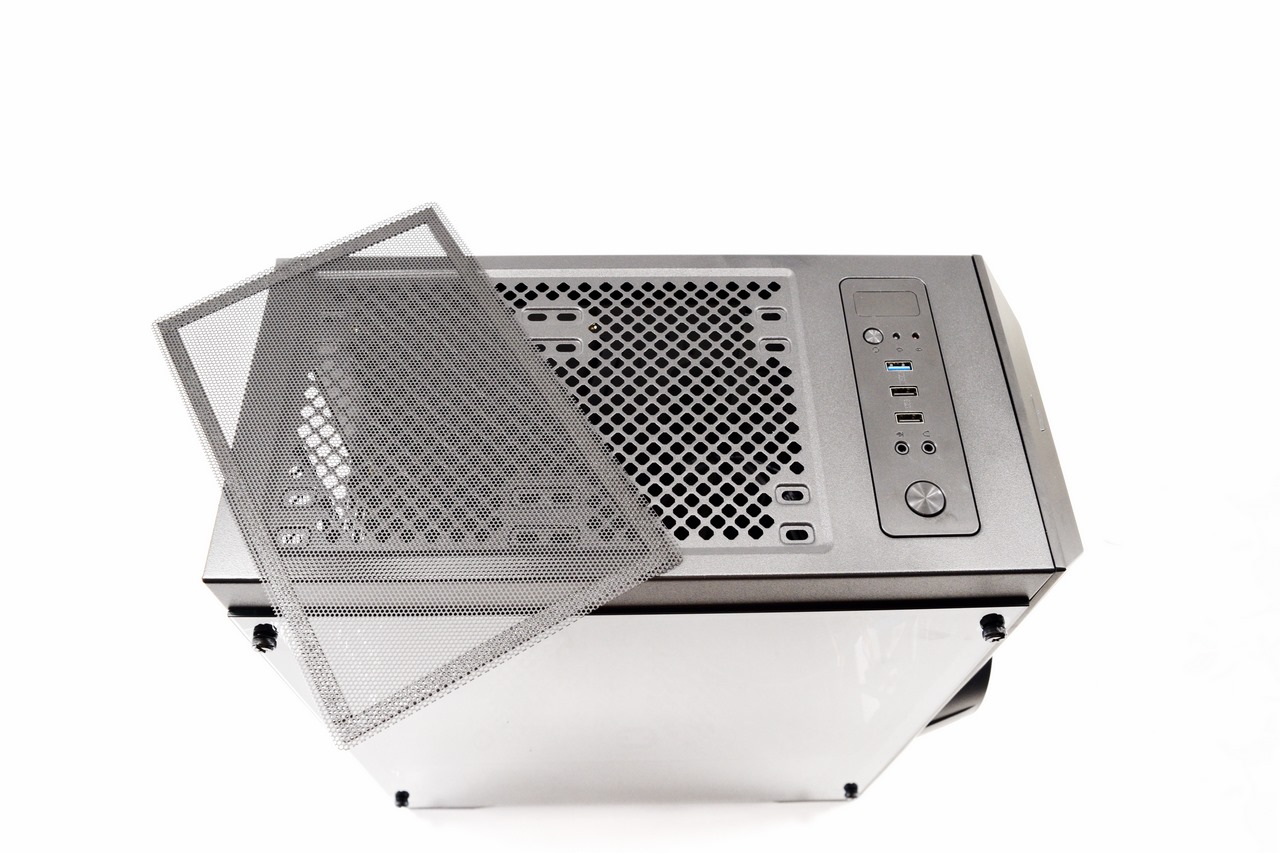

Most of the top area is covered by a magnetic air-filter beneath which you can install again up to three 120/140mm (or a single 240mm even though Aerocool doesn't mention it in their specifications page).

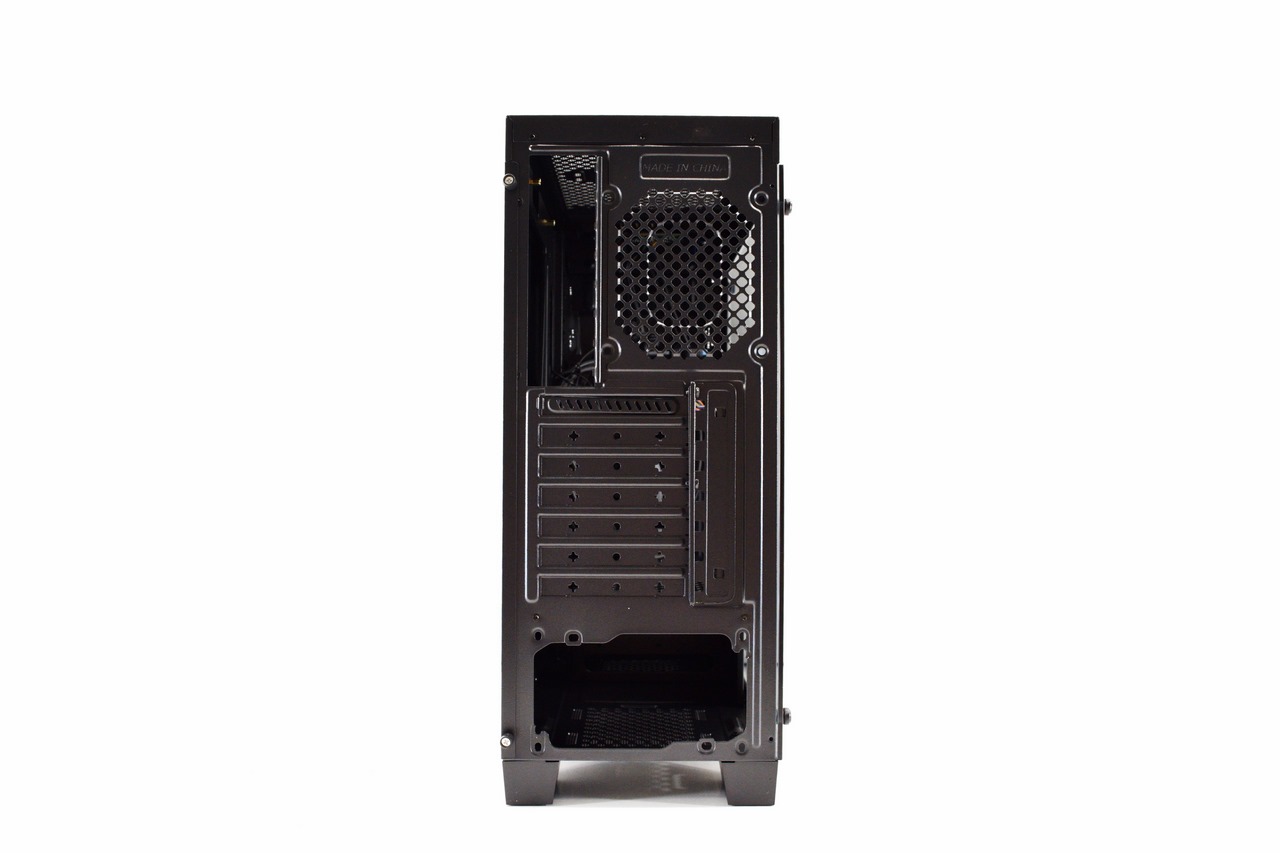

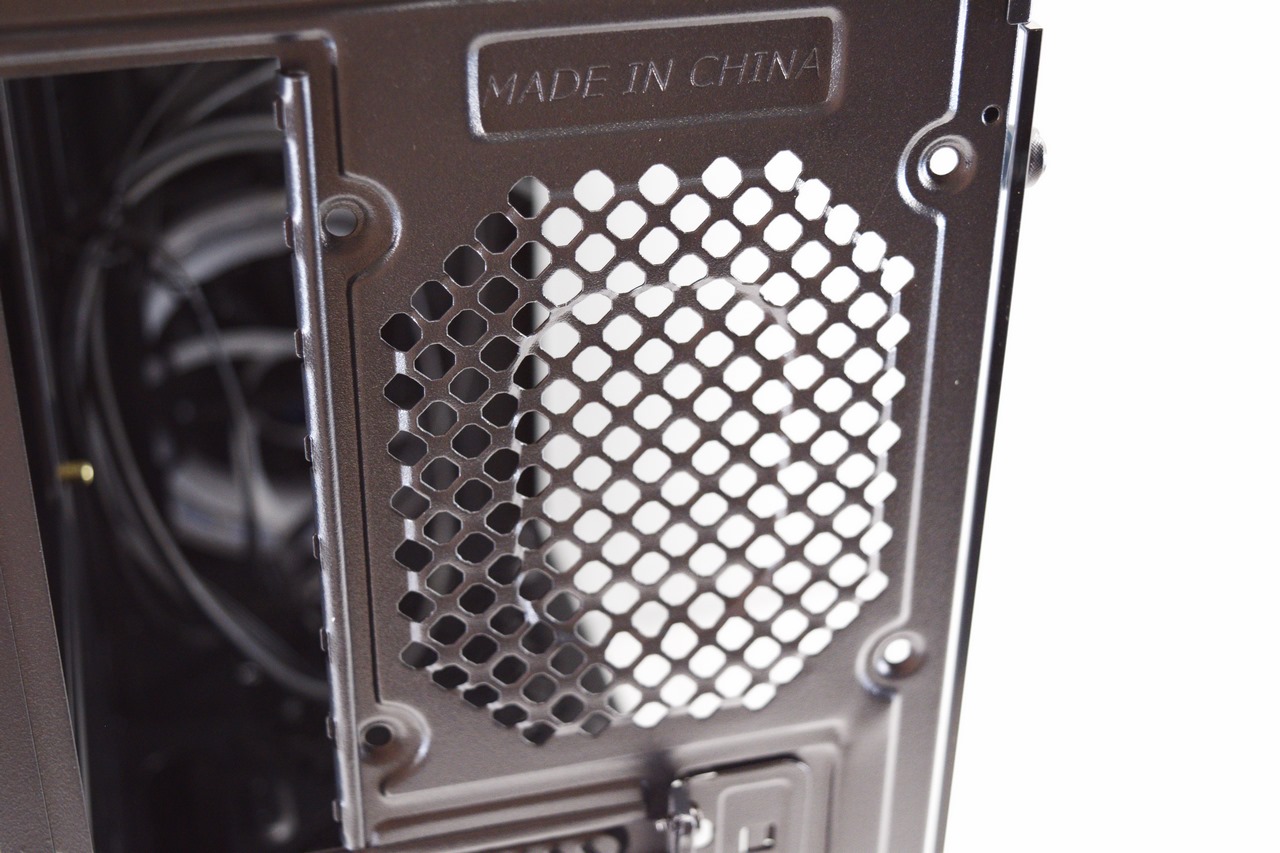

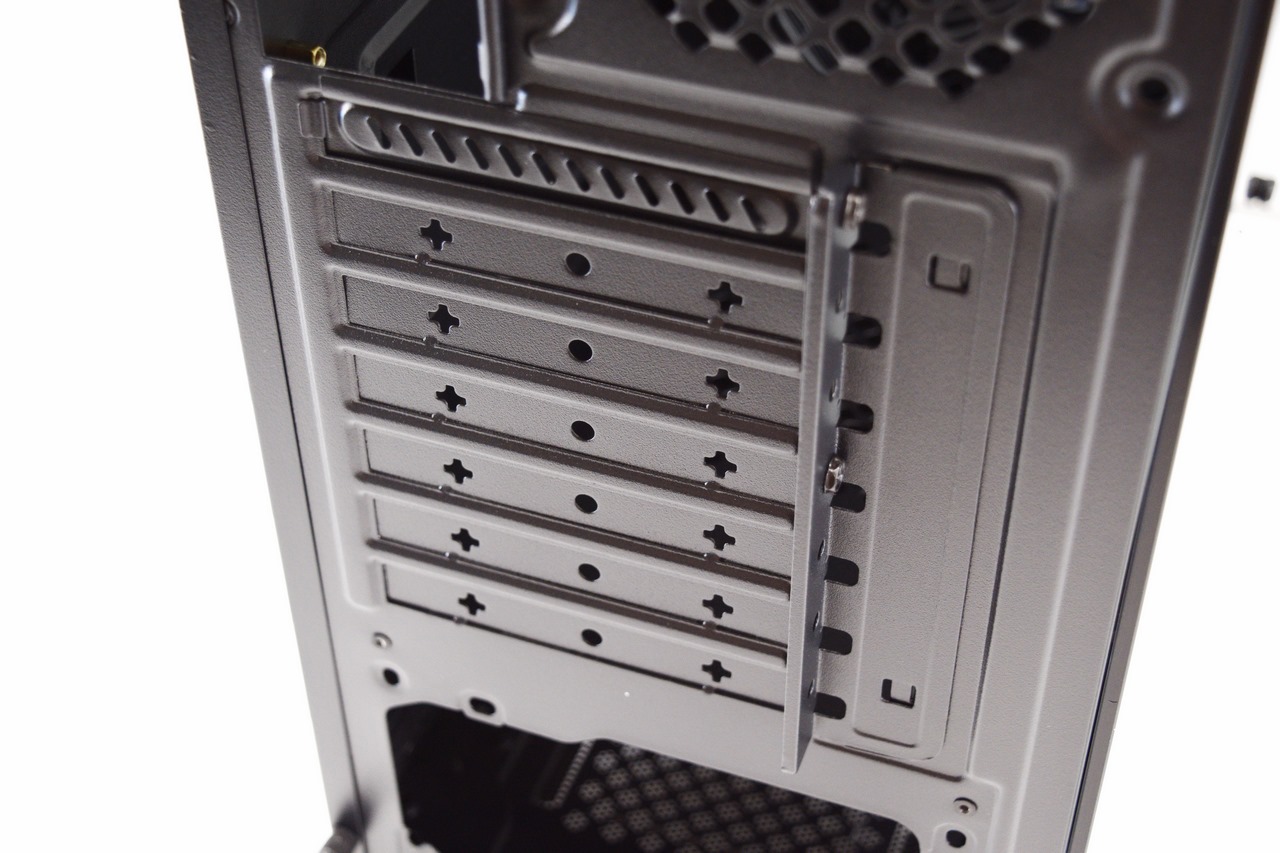

At the rear of the case we find an 120mm exhaust fan area, 7 PCI expansion slots and the PSU area.

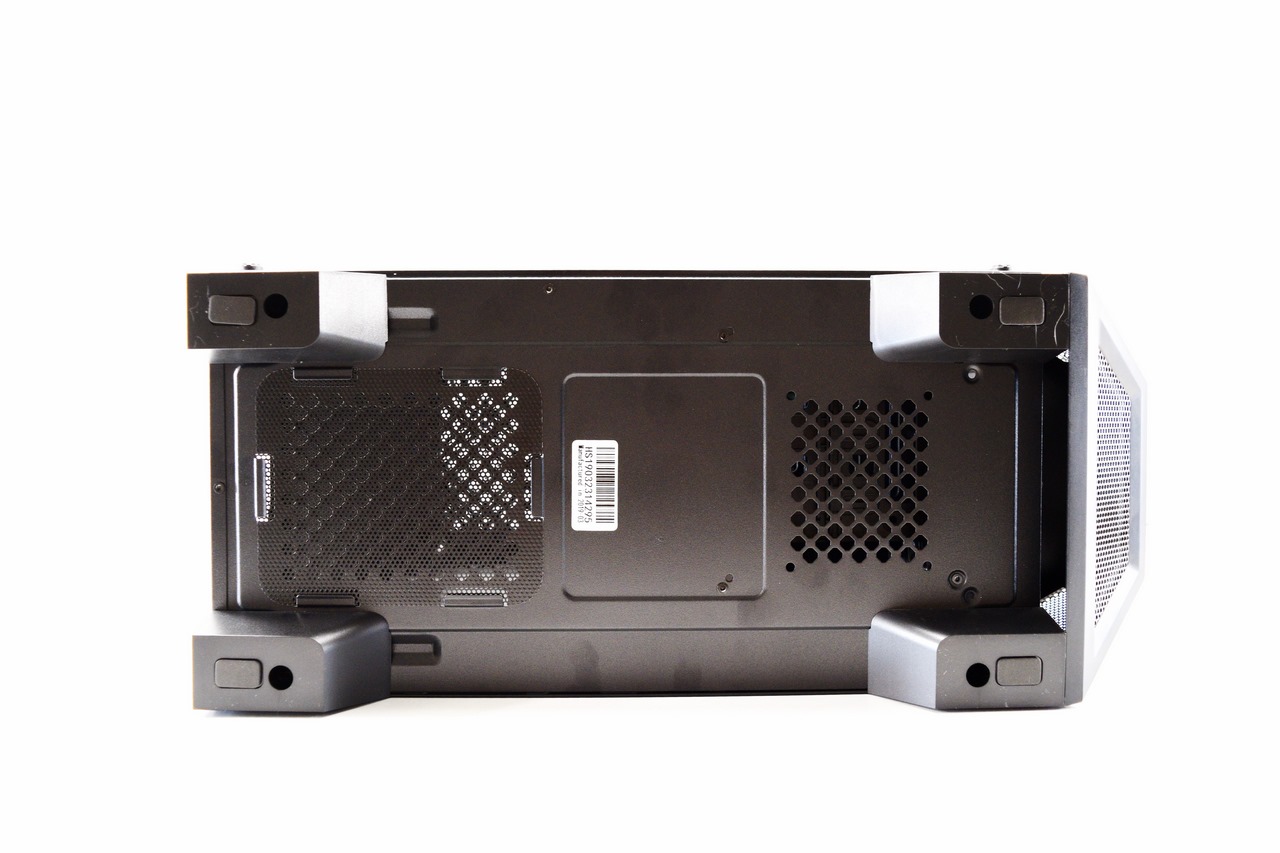

Turning the case over we find a removable air-filter right under the PSU area (unfortunately not a magnetic one) and a small perforated section right under the left side drive cage.
