THE ICUE 465X RGB INTERIOR

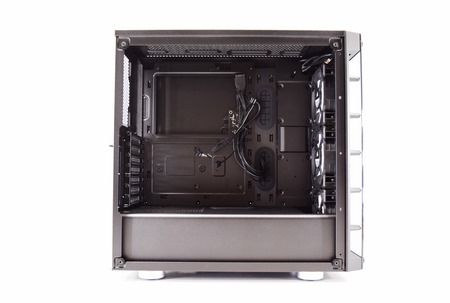

Since the 465X RGB is among the largest mid-towers we've ever seen as expected it has ample interior space.

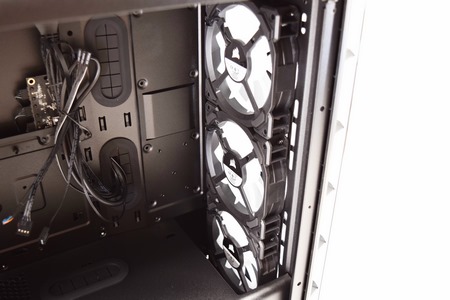

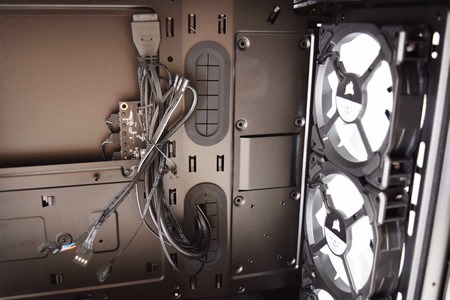

The three 120mm LL120 RGB fans take almost all of the front section and can be paired with an 240/280/360mm radiator (you will need to remove the bottom drive cage to fit an 360mm radiator).

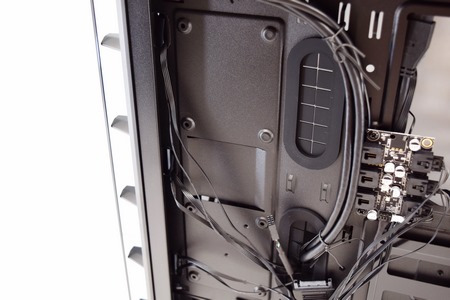

Here we also see the two 2.5" mounts on the mainboard tray (however the drives get mounted on the other side).

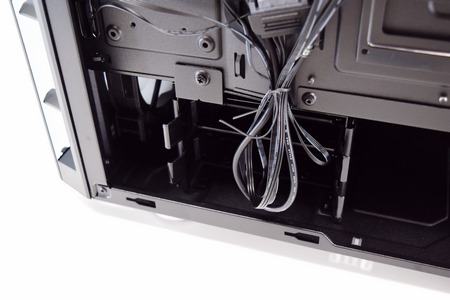

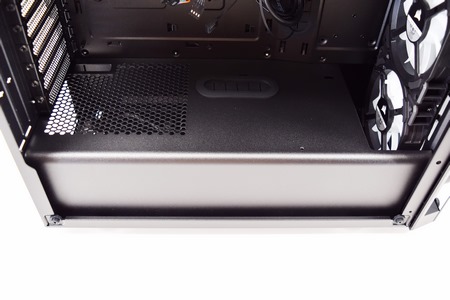

The 465X RGB is a dual-chamber design case and as you can see the PSU shroud/cover is perforated at the top and also has an opening on the top left corner and a single rubber grommet for cable management.

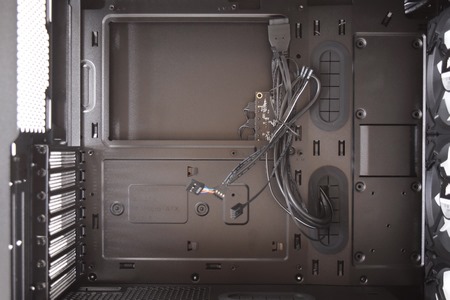

As already mentioned, this case is compatible with micro-ATX, mini-ITX and ATX sized mainboards (the mainboard tray has 2 rubber grommets on it and 4 holes).

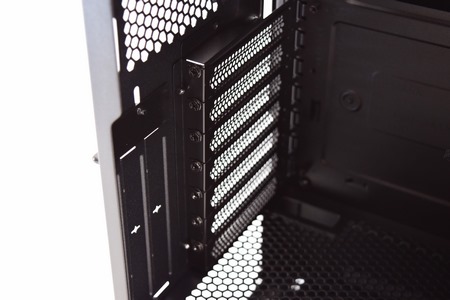

All 9 PCI expansion slots are held in place with regular screws.

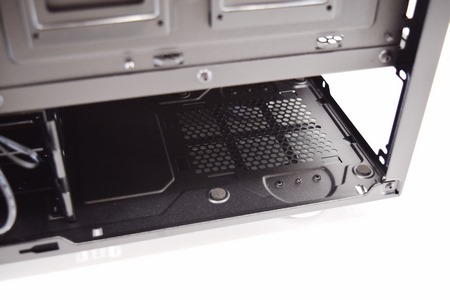

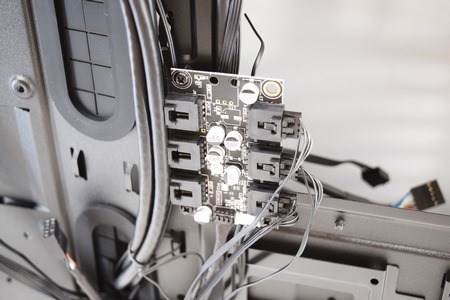

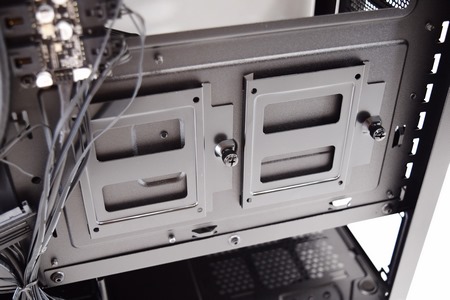

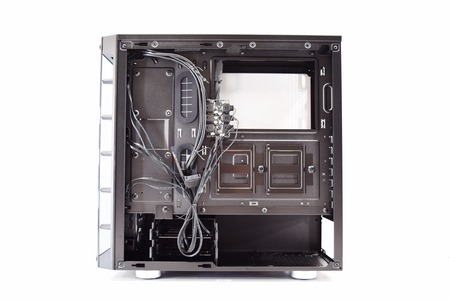

Turning the case around we see the iCUE lighting node CORE RGB controller, two 2.5" drive mounts on the mainboard tray, two 2.5" drive trays, drive cage with two 2.5"/3.5" trays and the PSU area.

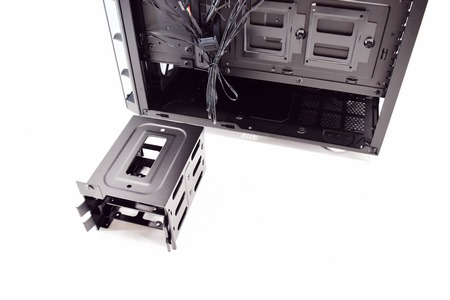

The drive cage can be removed (held in place via 4 screws at its base and one at the front) to allow for 360mm radiators at the front.

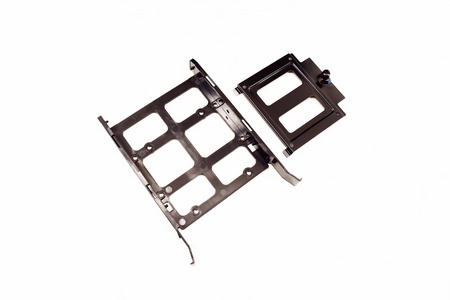

The 2.5" trays are made out of steel while the 2.5"/3.5" are made out of plastic.
