BUILDING THE SYSTEM

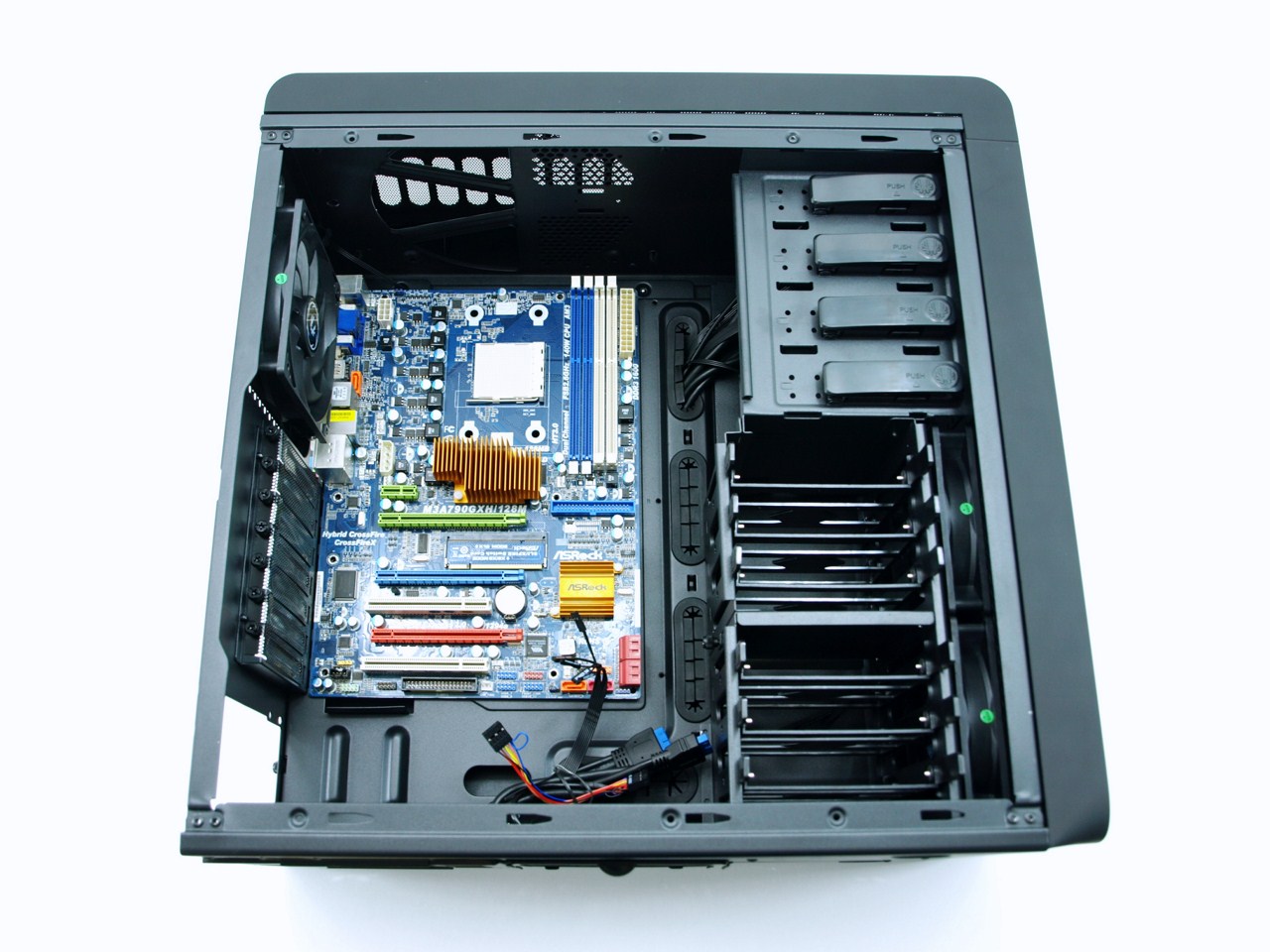

Once again we reached the page in which we are not trying to build a complete working system but rather give you a complete picture of what to expect in terms of interior space.

bitfenix raider 037t

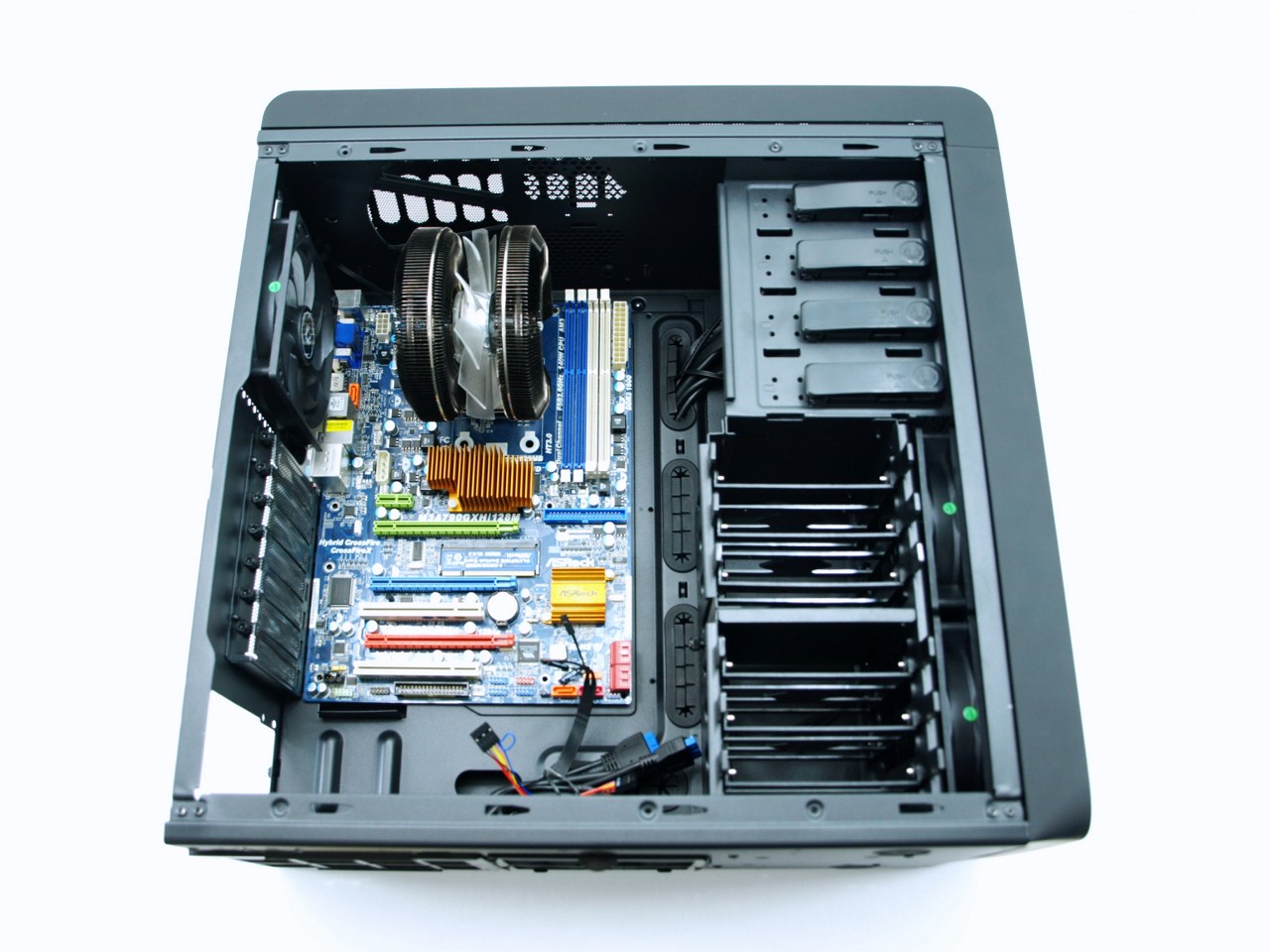

It's quite clear that EATX mainboards will not fit (or at least not easily) in the RAIDER since our standard ASRock ATX board takes up almost every bit of space.





bitfenix raider 038t

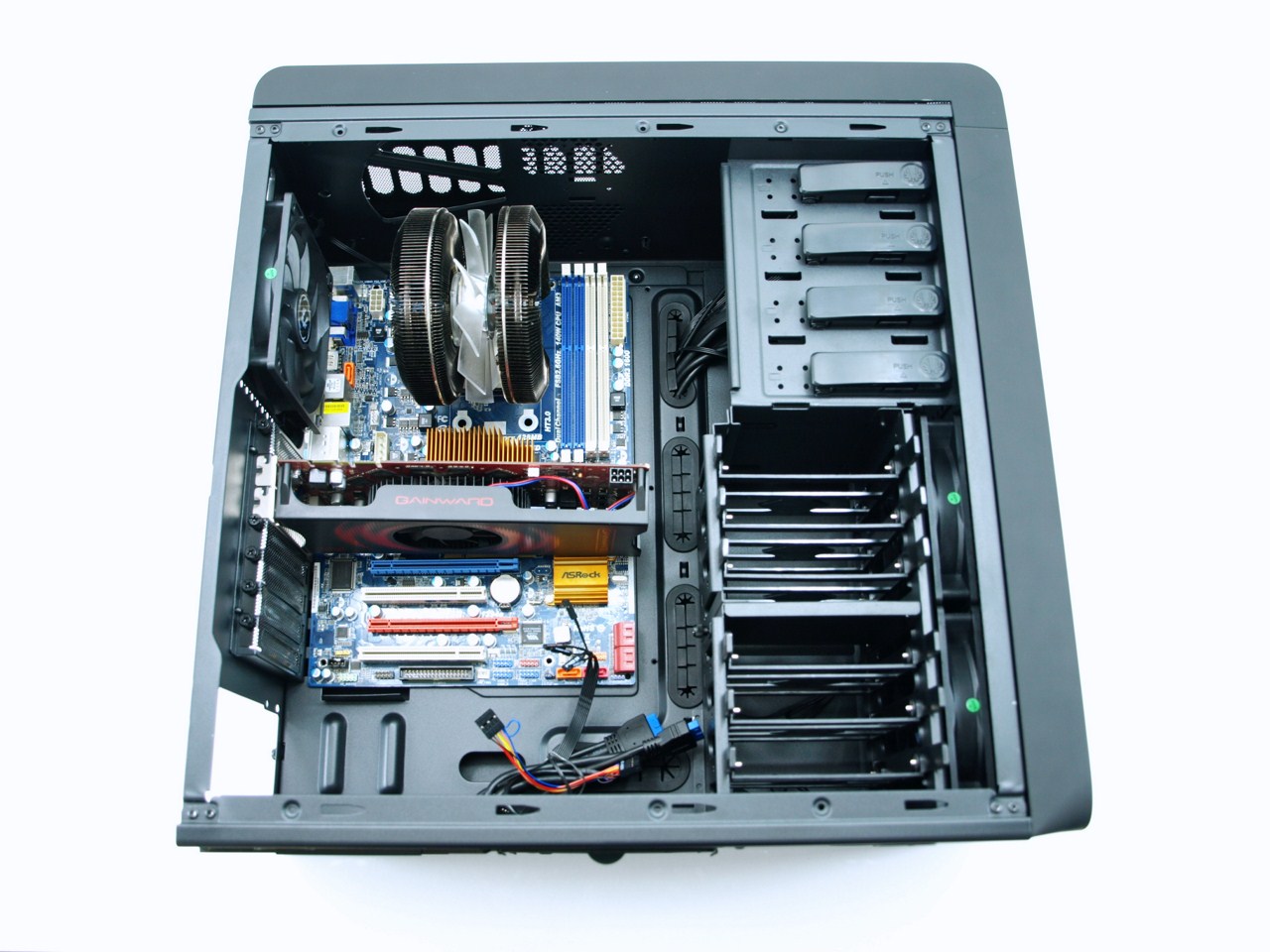

Thanks to the lack of side fans there's also plenty of space for large CPU Coolers up to 170mm in height.





bitfenix raider 039t

By default the RAIDER can hold pretty much every single GPU out there (580/6970) but in order to use one of the long mGPU (590/6990) cards you will need to remove the left cover of the top drive cage.





bitfenix raider 040t

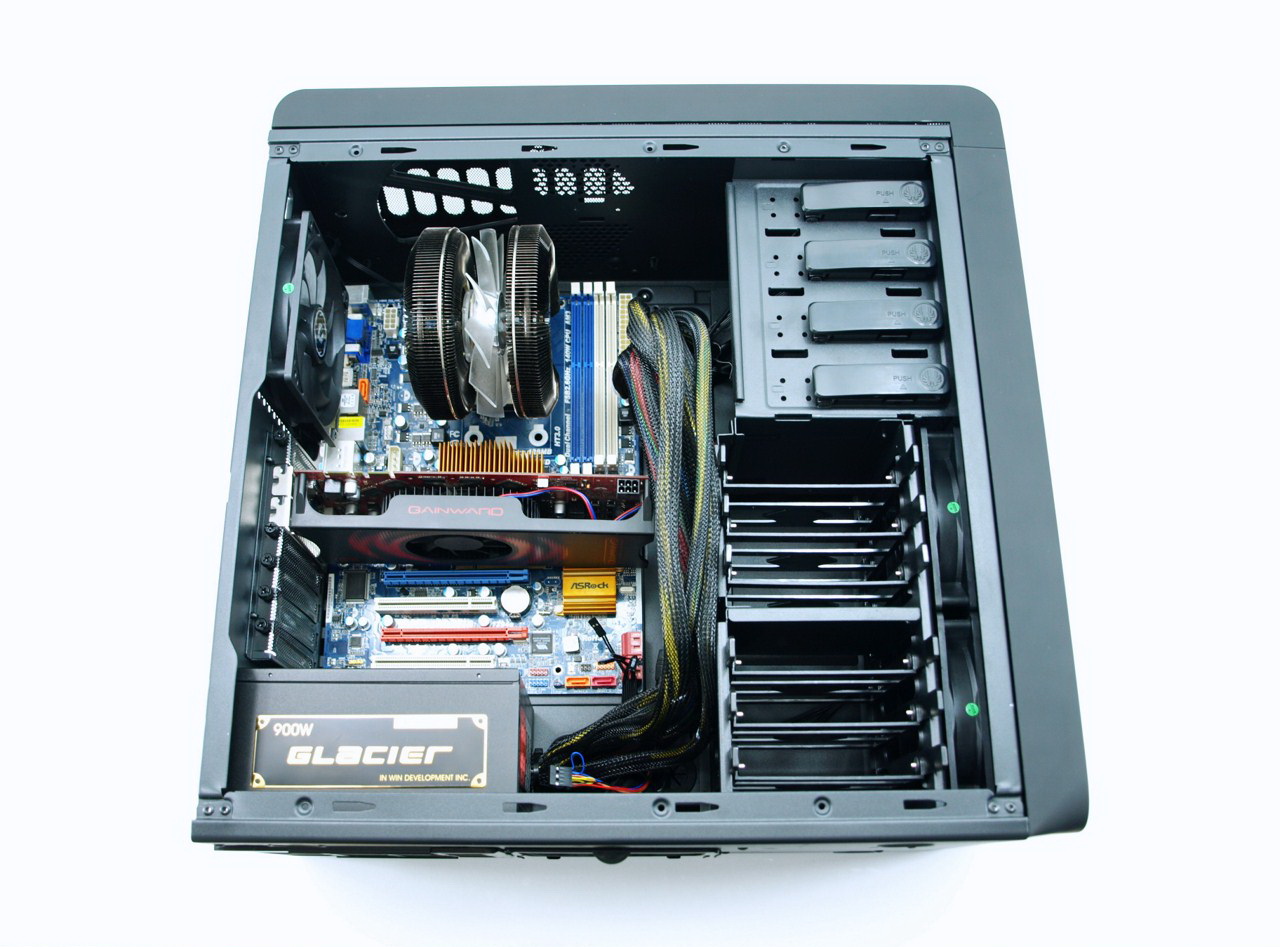

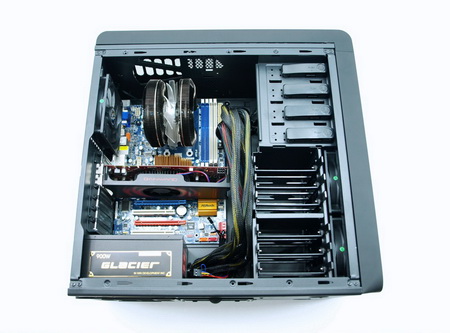

You can mount any PSU regardless of size, however really long ones will cover the cable management hole at the bottom.
