BUILDING THE SYSTEM

As always, the purpose of this section is not to build a functional system but rather to showcase what you can expect from the case at hand in terms of interior space.

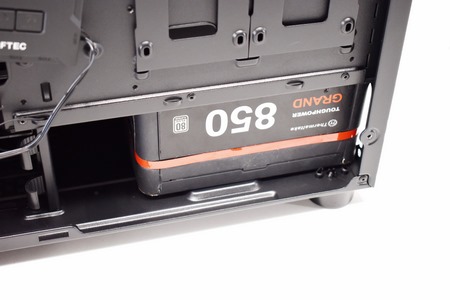

Since the drive cage is fixed you can only mount PSU's up to 220mm in length (1KW output).

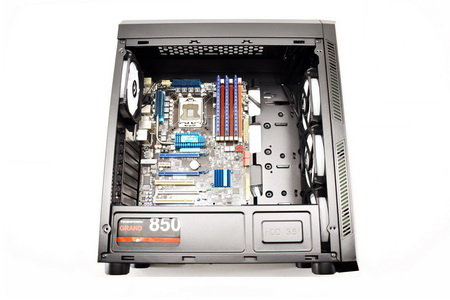

Not much room left after you mount the motherboard but still more than enough for even the thicker radiator (240/280mm) at the front.

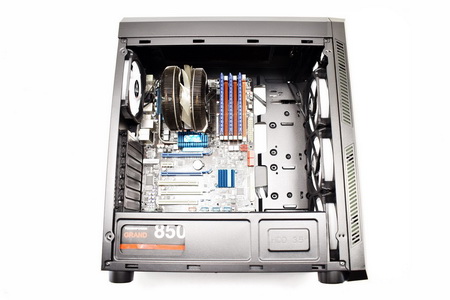

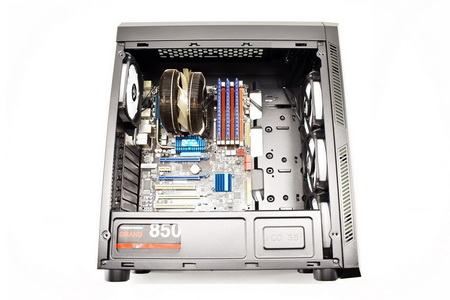

With enough room for up to 166mm tall CPU coolers you should be able to mount most high-models currently in the market.

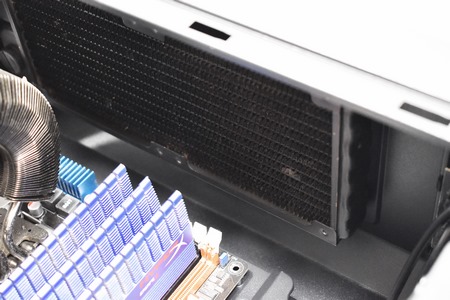

Even though at the top there's only room for an 240mm radiator (or two 120mm fans) what's impressive is the amount of space CHIEFTEC has left between that and the motherboard (so there's little chance you will have clearance issues here even with thick radiators).

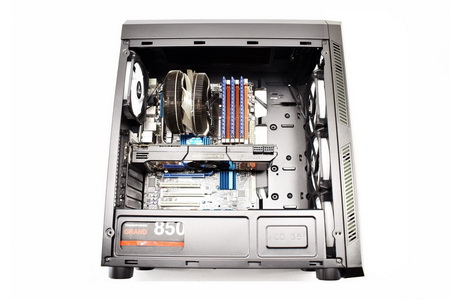

349mm for graphics cards (as long as you don't mount a radiator at the front) is again enough for most current high-end models around.
