THE Y40 EXTERIOR

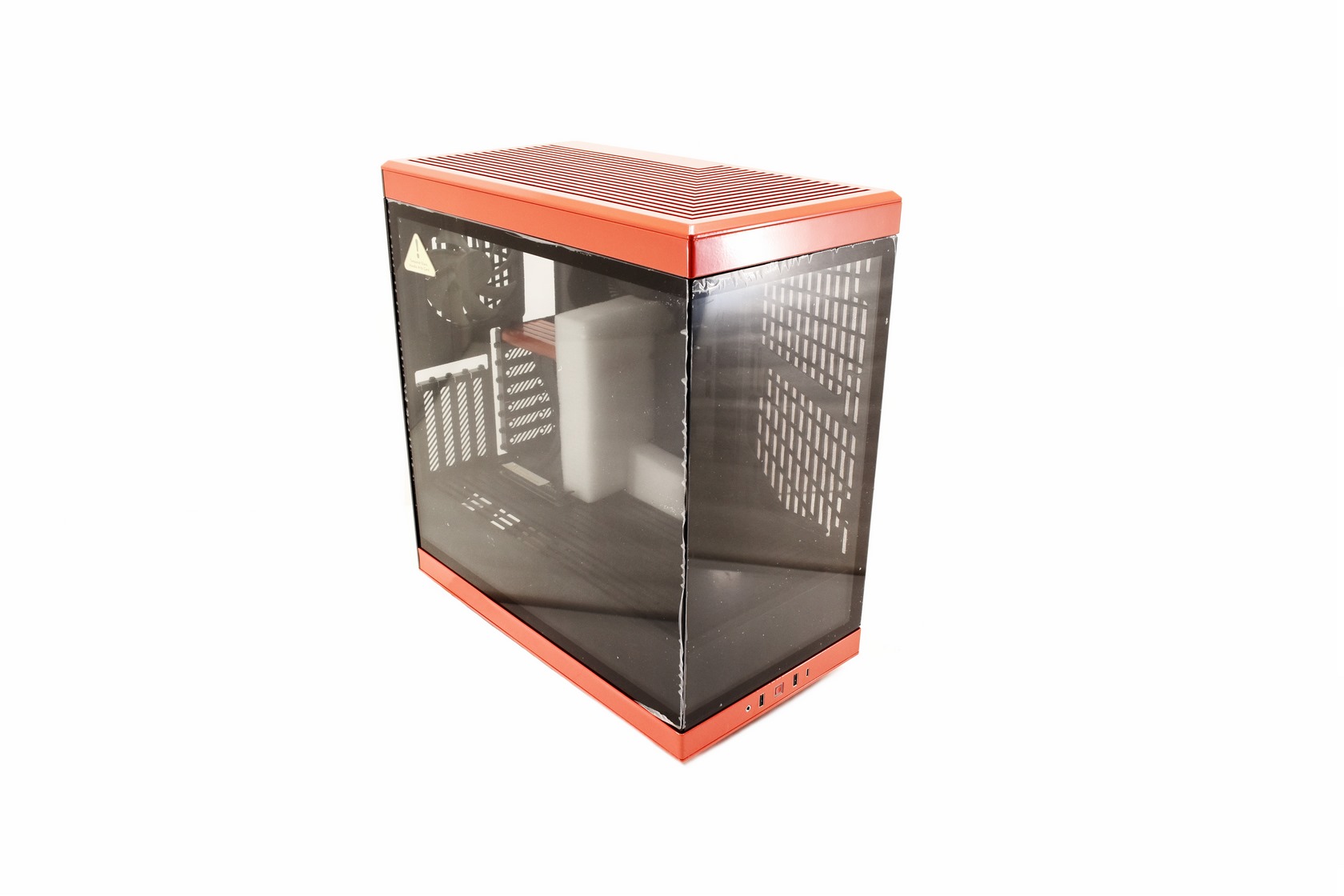

Measuring just 439mm in height, 240mm in width and 472mm in length the Y40 is not that smaller compared to the Y60 (interior space amounts to 50 litres).

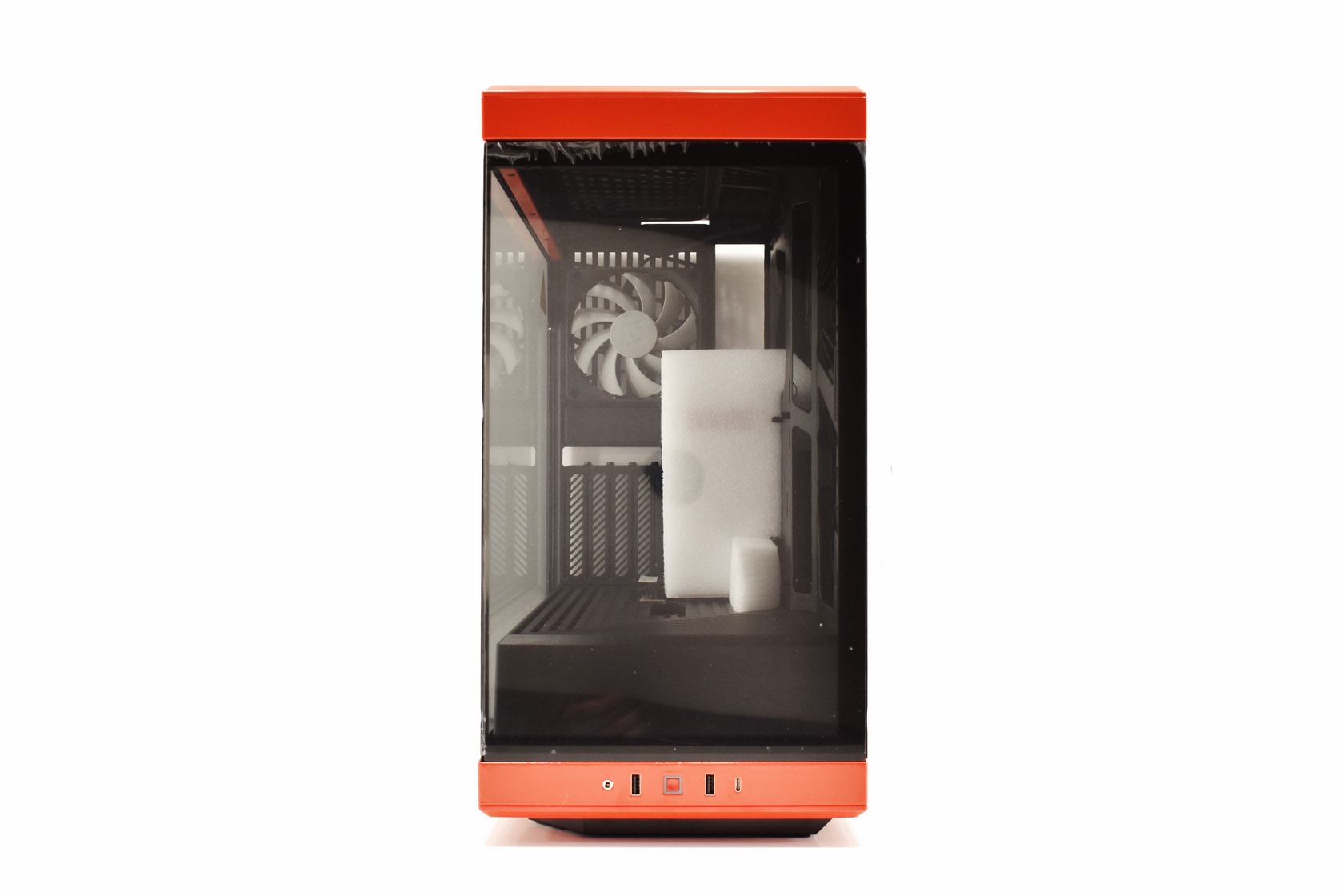

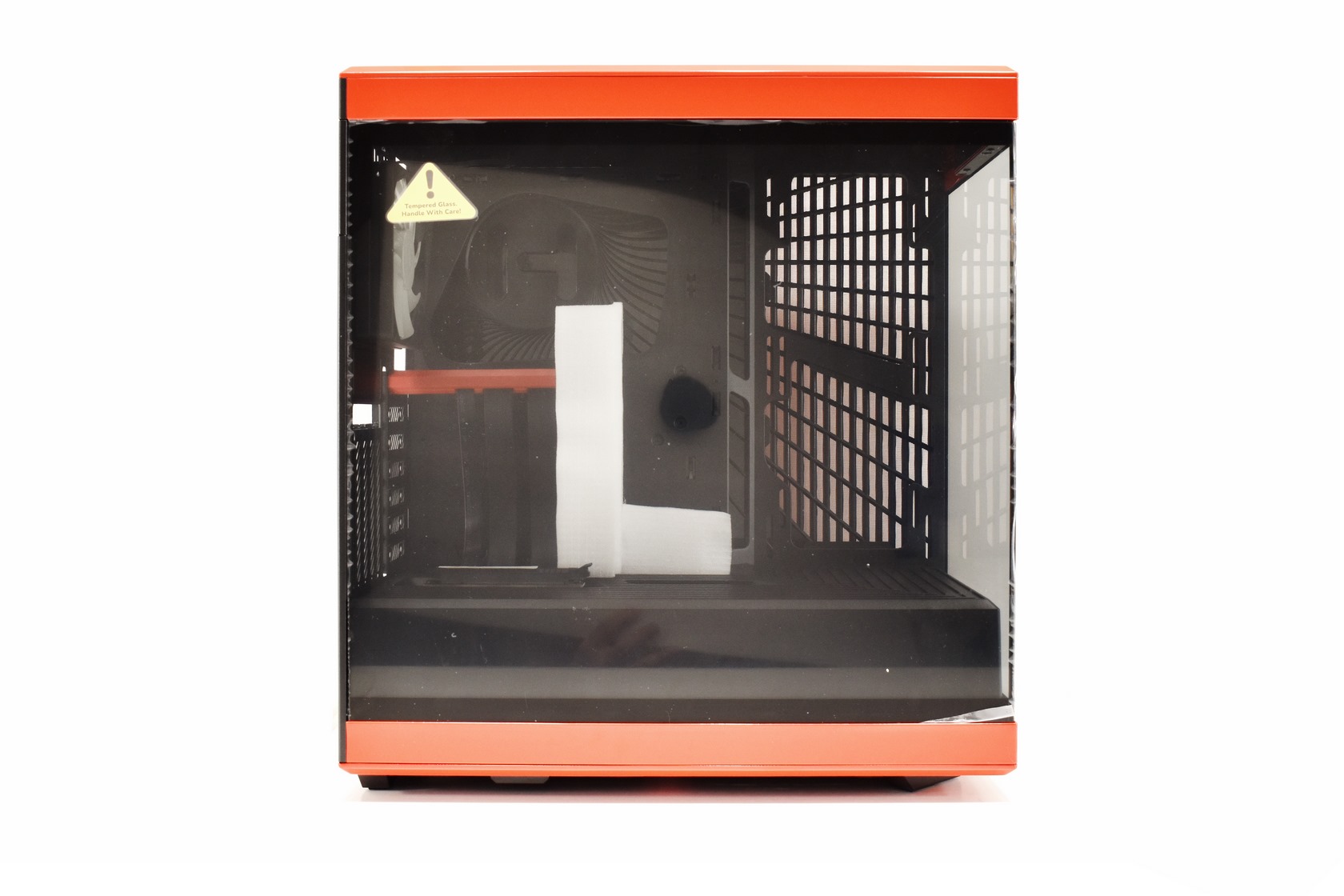

Thanks to the 2-piece tempered glass panoramic design you can easily see everything inside the case, except the rear of course.

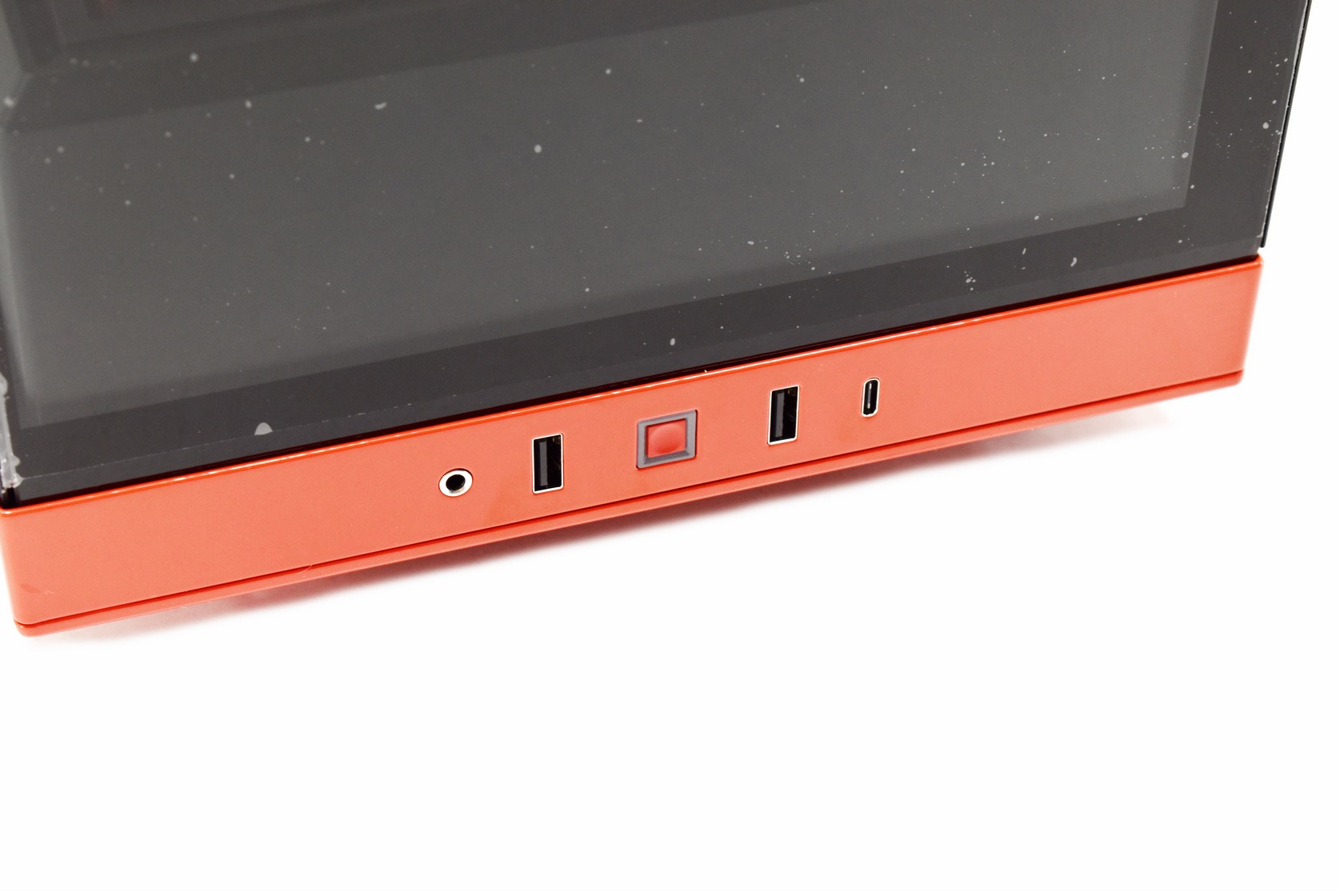

At the lower front we find the on/off power button and LED, two USB 3.0 ports, USB-C 3.2 Gen 2 port and a 3.5mm audio in/out (this is why there's a y-splitter in the bundle).

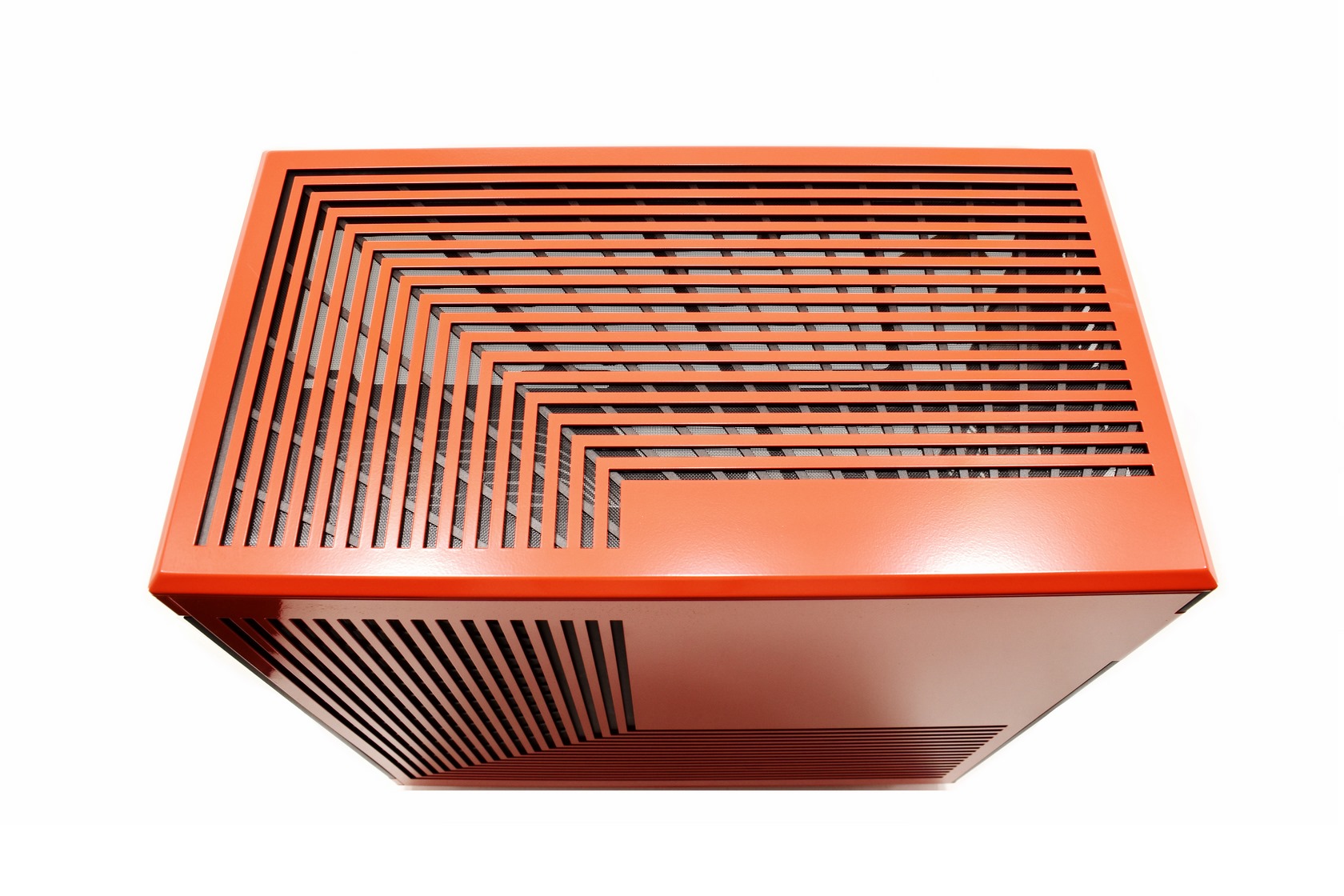

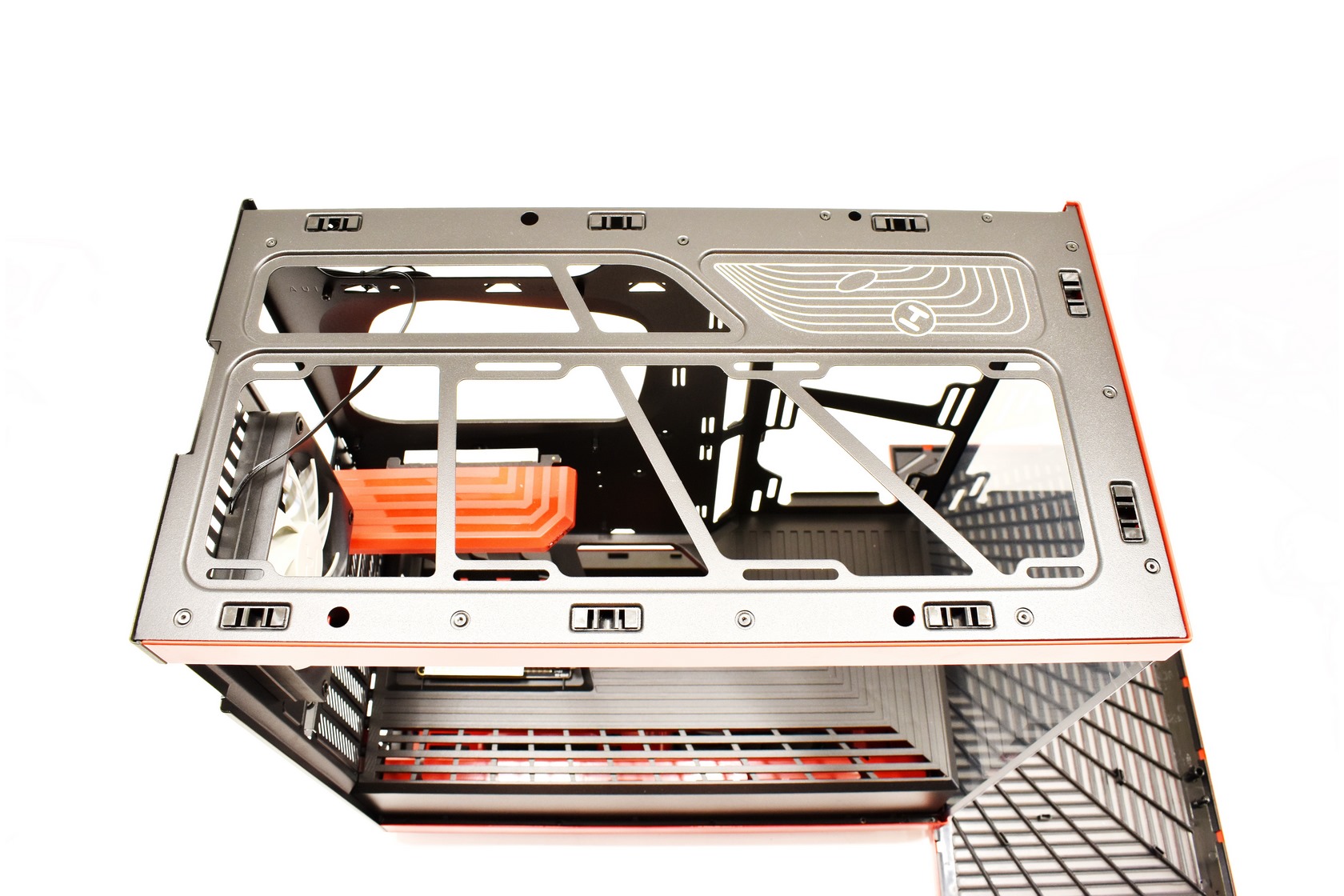

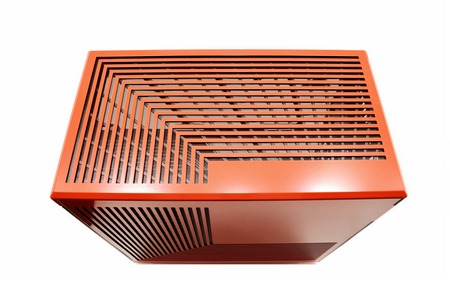

The top if perforated (also acts as a dust filter) and can be easily removed just by pulling upwards to reveal the fan/radiator mount (just like with the Y60 i do suggest removing the side panels first however).

Here you can mount up to 3x120mm fans or an 240/280/360mm radiator.

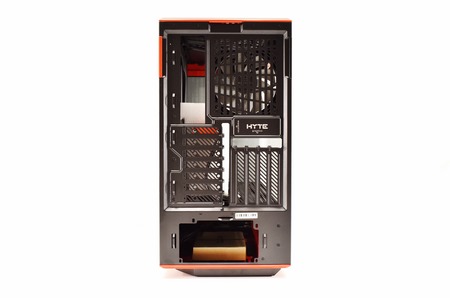

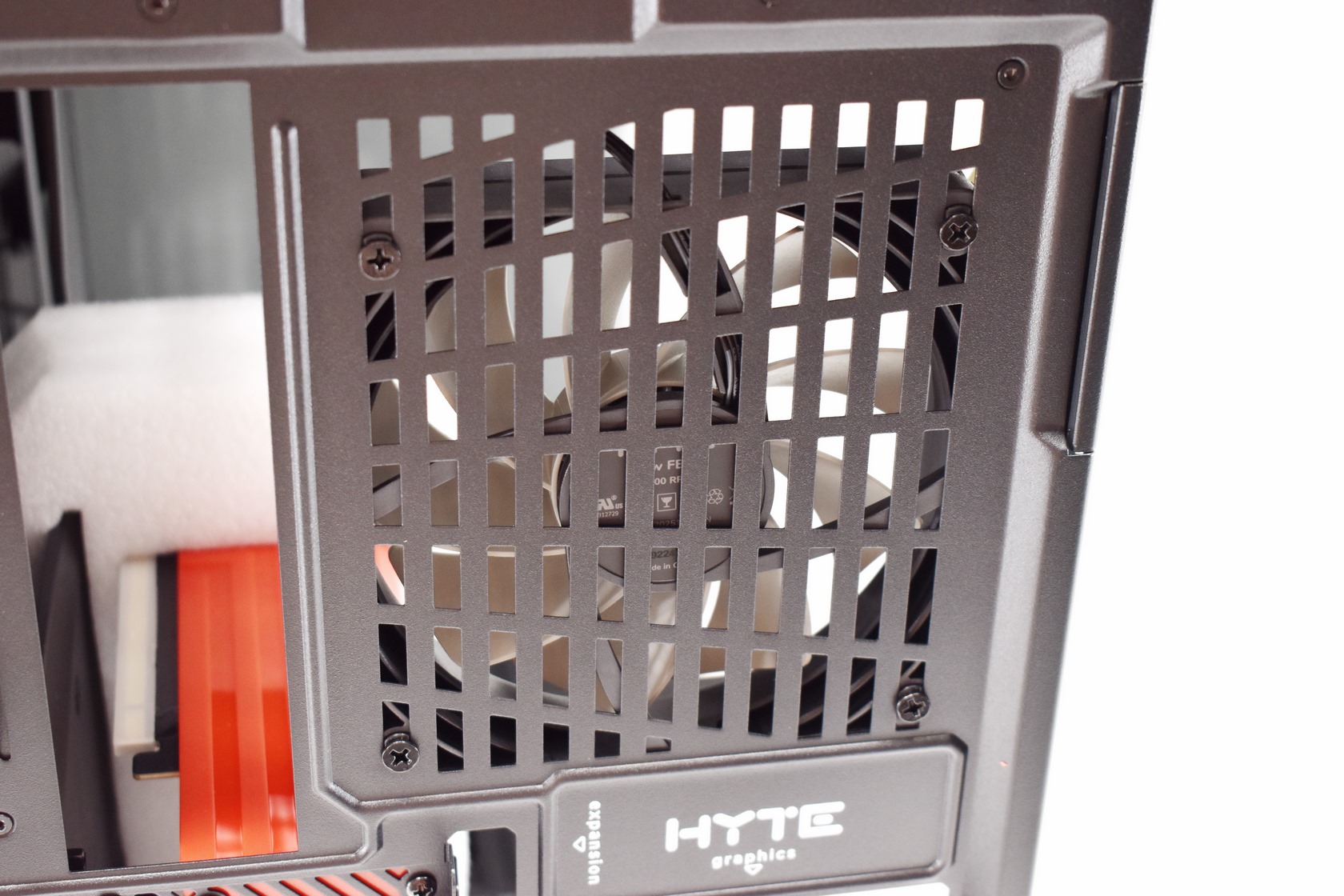

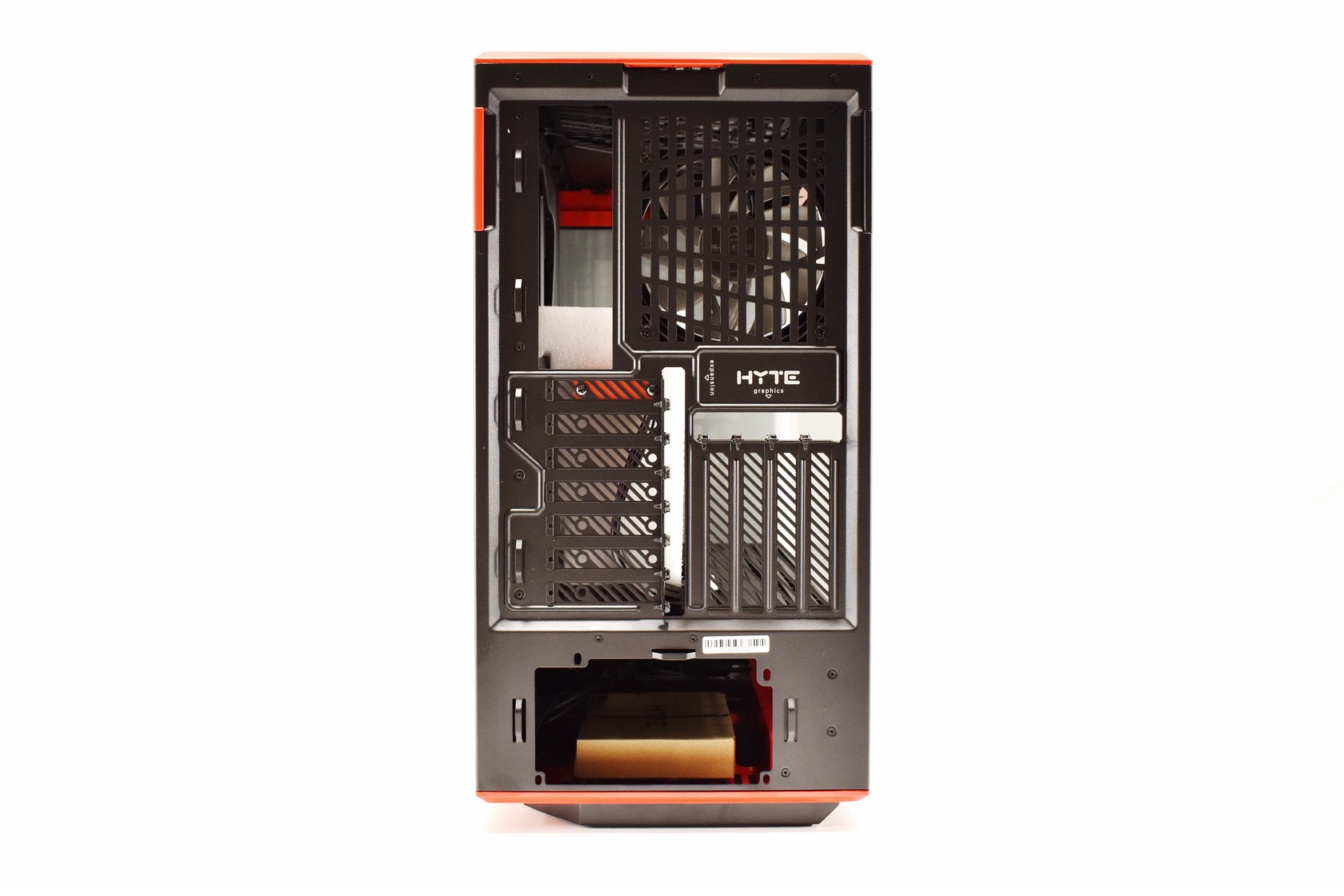

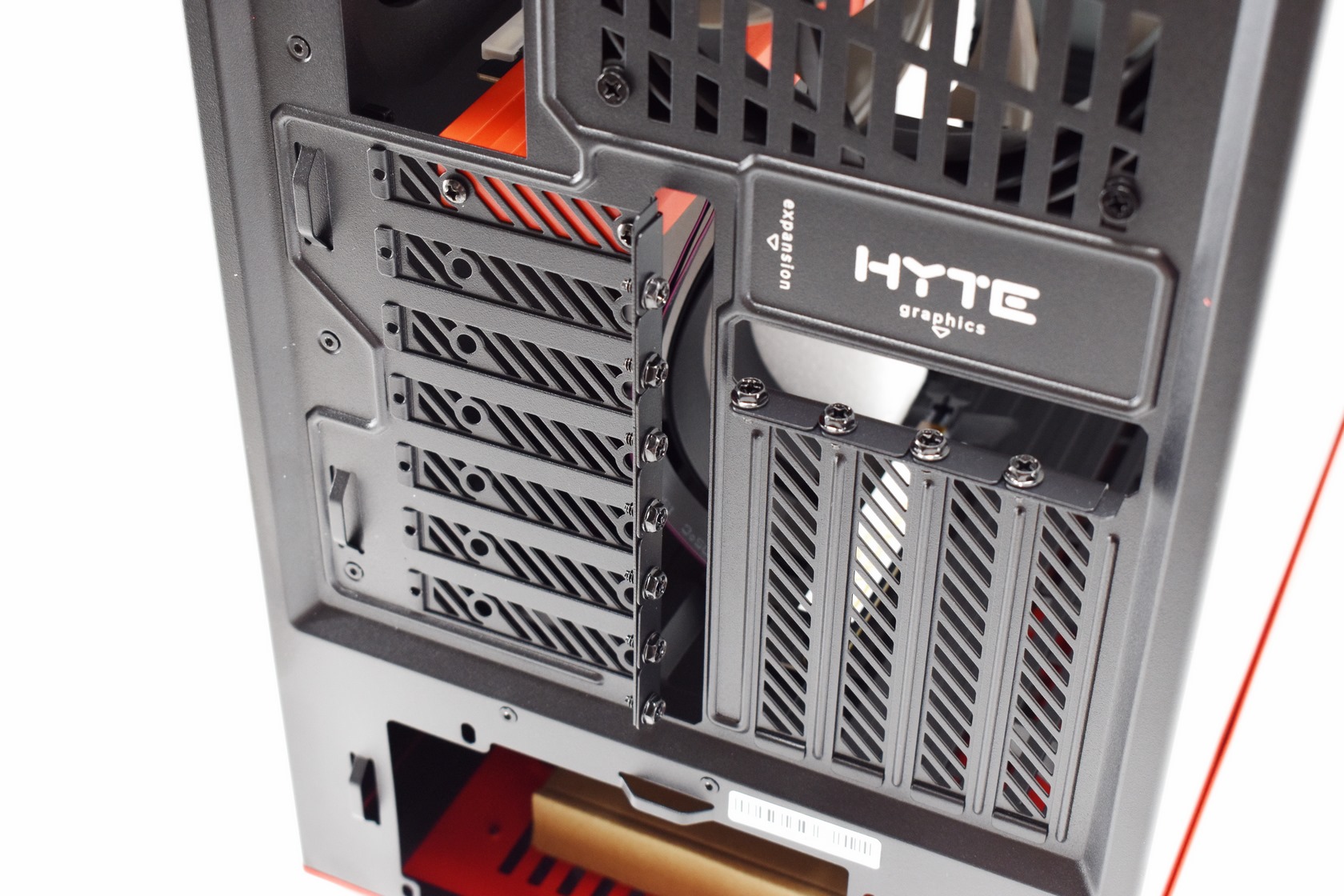

Turning the case around we find an 120mm exhaust fan, 7 low profile horizontal PCI expansion slots, 4 vertical PCI expansion slots and the PSU area.

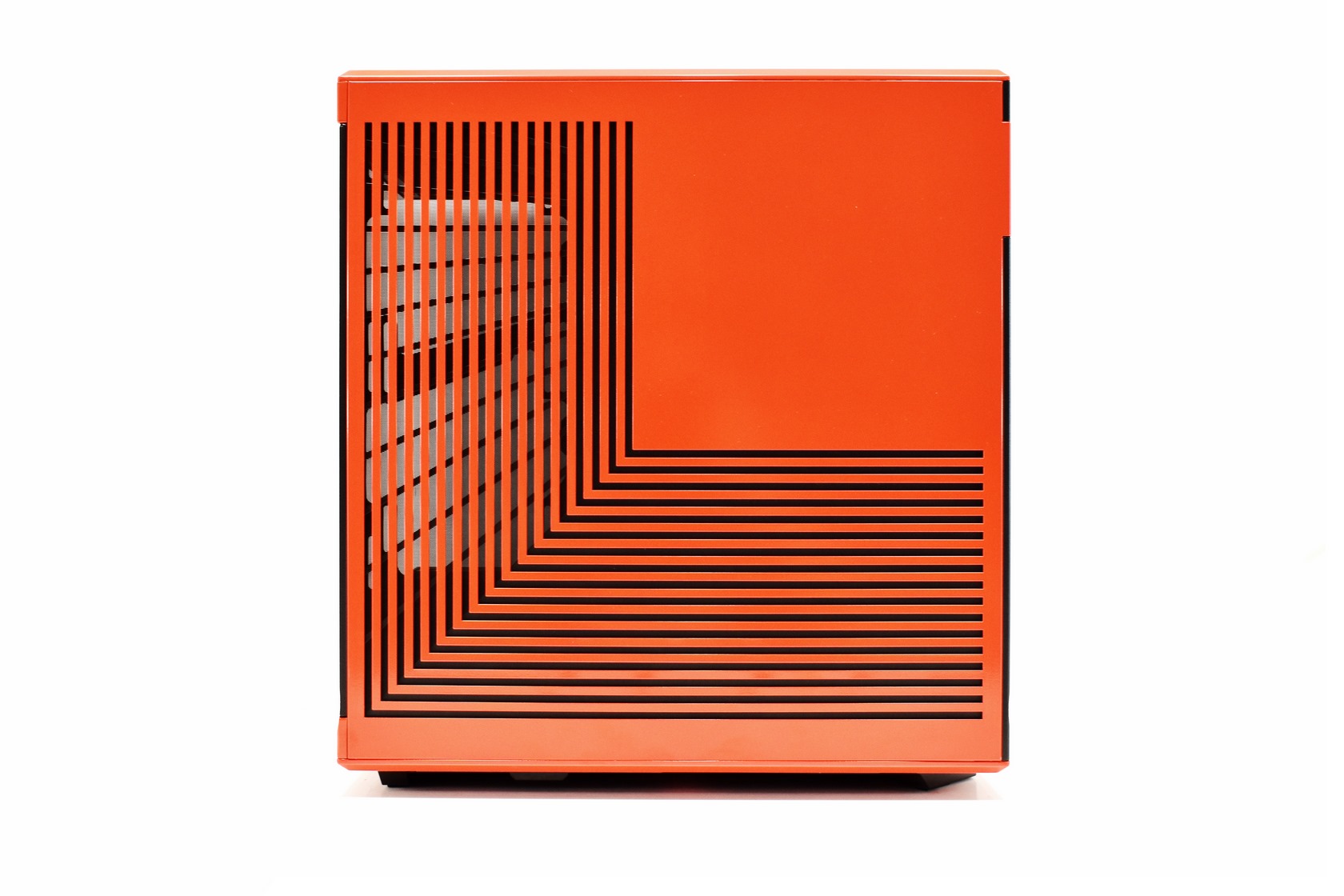

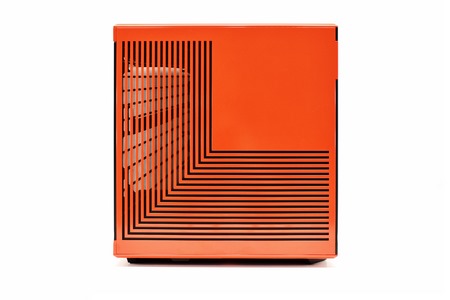

Τhe right side panel is partially perforated and again it has a dust-filter attached on the interior.

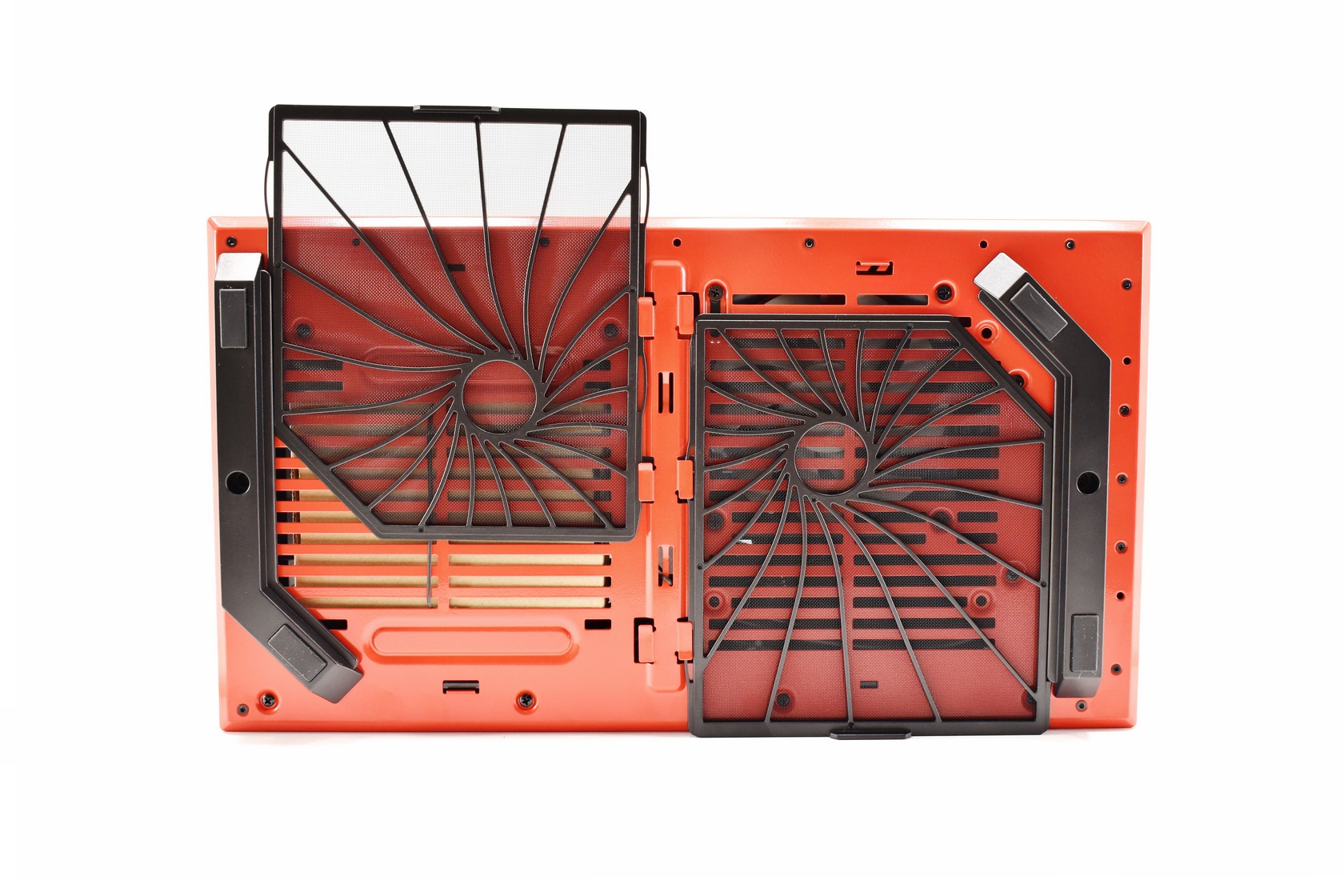

At the bottom of the Y40 we find two removable dust filters (one is right beneath the 2nd 120mm fan).
