BUILDING THE SYSTEM

As always, the purpose of this section is not to build a functional system but rather to showcase what you can expect from the case at hand in terms of interior space.

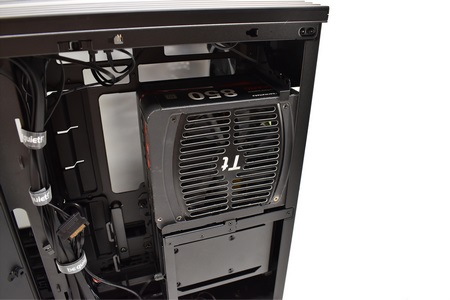

With enough room for up to 225mm long power supply units at the rear chamber you should be able to use every model currently in the market.

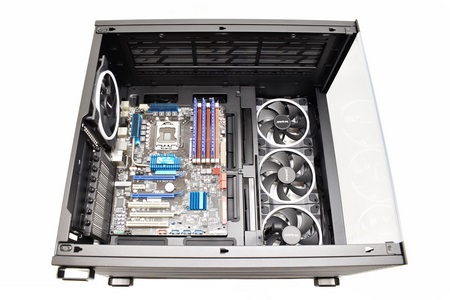

Same goes for the motherboard since a regular ATX sized one is a lot smaller than the XL-ATX model one can fit here.

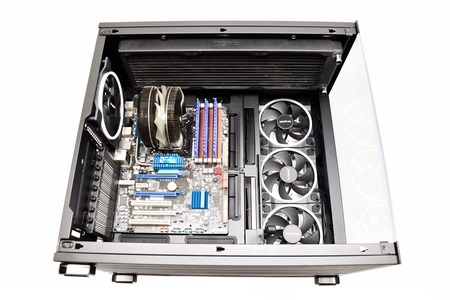

There aren't that many 190mm tall CPU air coolers out there but it's always good to have that option.

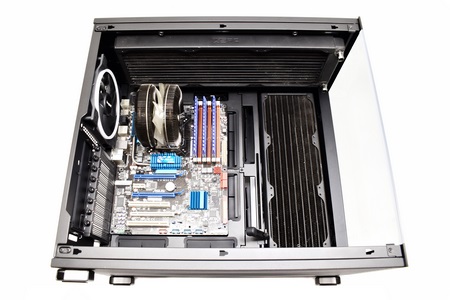

Regardless of what radiator you may have if it's up to 420mm in length you can fit it either at the top or bottom of the case.

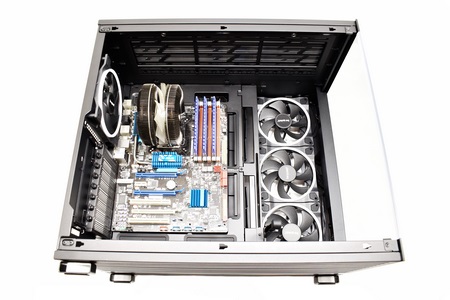

By replacing the 140mm fans located on the left side you can even mount an 360mm radiator there, regardless of thickness (this however also depends on your graphics card).

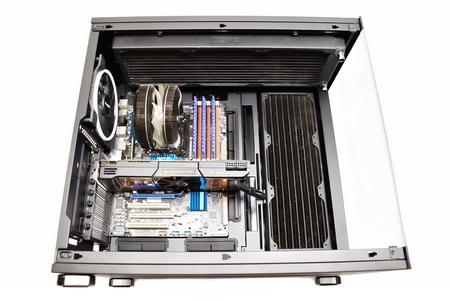

If you don't use a radiator on the left side or if it's around 57mm thick you can still mount graphics cards up to 495mm in length.
