BUILDING THE SYSTEM

As always, the purpose of this section is not to build a functional system but rather to showcase what you can expect from the case at hand in terms of interior space.

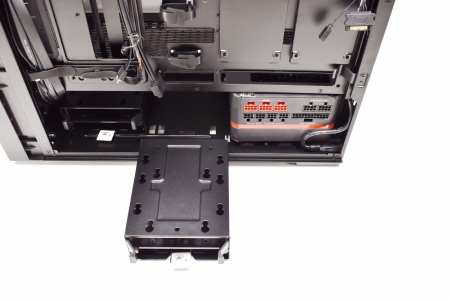

Depending on PSU orientation you may need to remove one of the two drive cages as seen above (the PSU ports should either be facing the cages or the shroud, facing backwards like I placed them is not ideal).

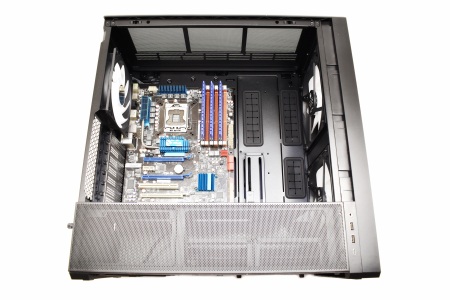

The Lancool 217 INF is an E-ATX compatible case so ATX boards leave plenty of room around them.

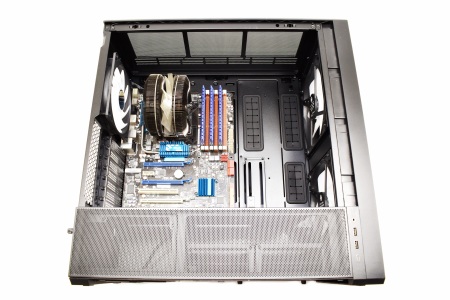

With enough headroom for CPU coolers up to 180mm tall you should be able to fit most available models in the market.

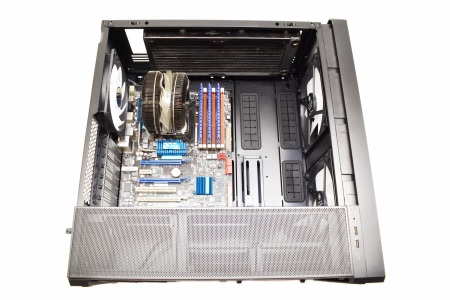

At the top you can mount either an 280mm or an 360mm radiator (I mounted an 280mm one for this review).

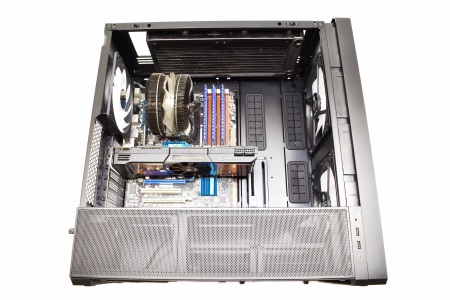

With most GPUs currently at around 300-340mm long having space for an 380mm model means you can fit anything inside the Lancool 217 INF.

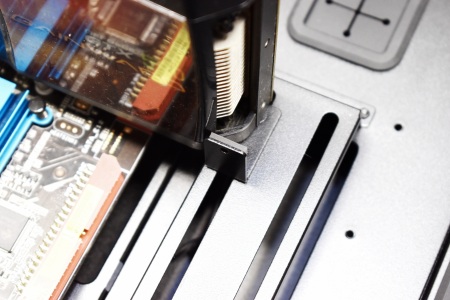

The GPU support bracket is mostly aimed towards cards that are 300mm long and above.
