BUILDING THE SYSTEM

As always, the purpose of this section is not to build a functional system but rather to showcase what you can expect from the case at hand in terms of interior space.

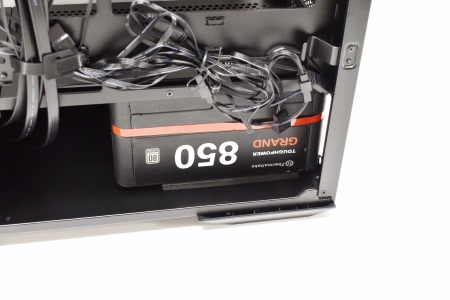

Even if you were to mount an 3.5” drive at the front end of the case you’d still have enough room for most (if not all) PSU models in the market today.

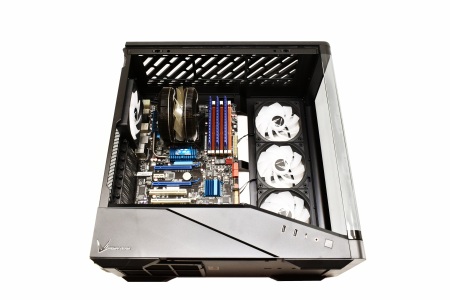

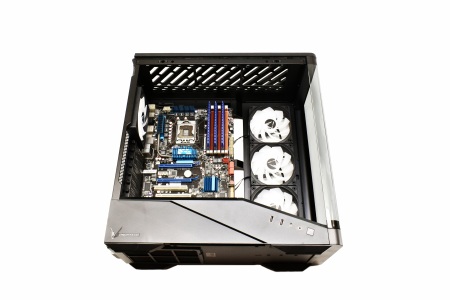

With enough room for even E-ATX sized motherboards space inside the Crystal U9 PA is plenty.

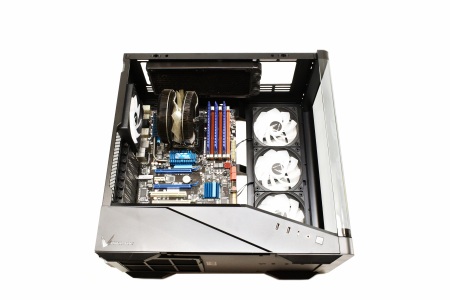

You can install CPU air coolers up to 182mm in height so again, this should be enough for any model out there.

Even though you should be able to mount a radiator on the left fan mounting area (which would limit your GPU length) officially you can only mount a single radiator on top (240/360mm).

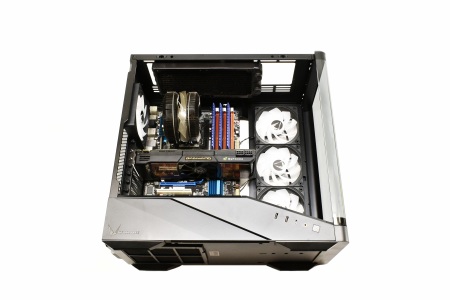

With room for up to 420mm long graphics cards you should be able to fit anything inside the Crystal U9 PA.

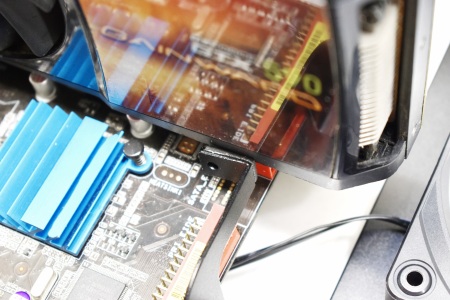

The graphics card support bracket wasn’t implemented properly but it does help.
