THE COOLCUBE MAXI INTERIOR

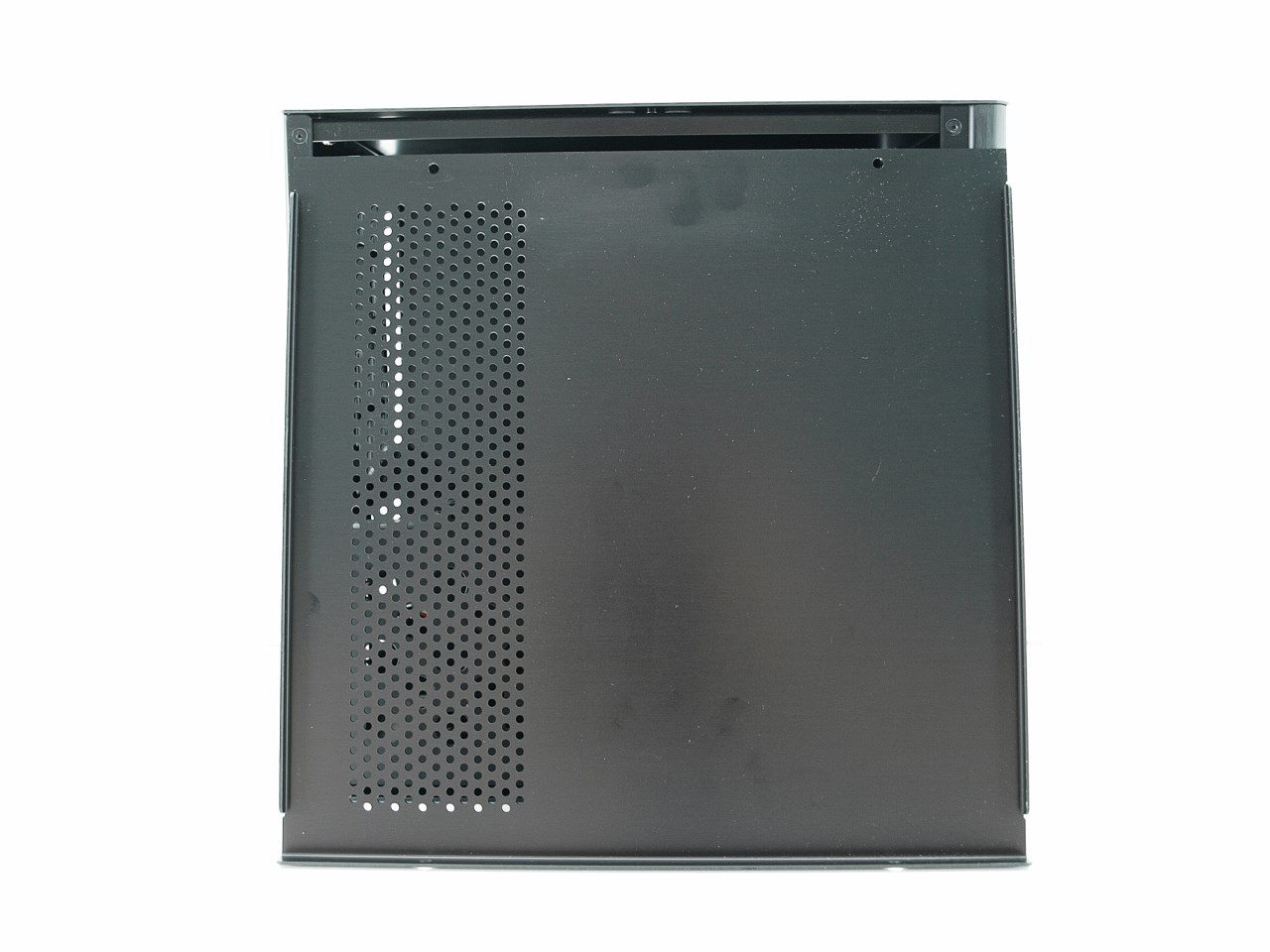

coolcube maxi 15t

Once you remove the left side panel you will understand why the Coolcube MAXI has no fans preinstalled. You see in order to keep both weight and cost low Cooltek has used quite thin aluminum plates for the sides which may not be able to keep noise levels into a minimum (but then again most people i know that use such tiny cases hardly ever install more than 1 or 2 fans).





coolcube maxi 16t

Right behind the left side panel we see the HDD cage which is perfectly aligned with the perforated section so they can get as much air as possible.

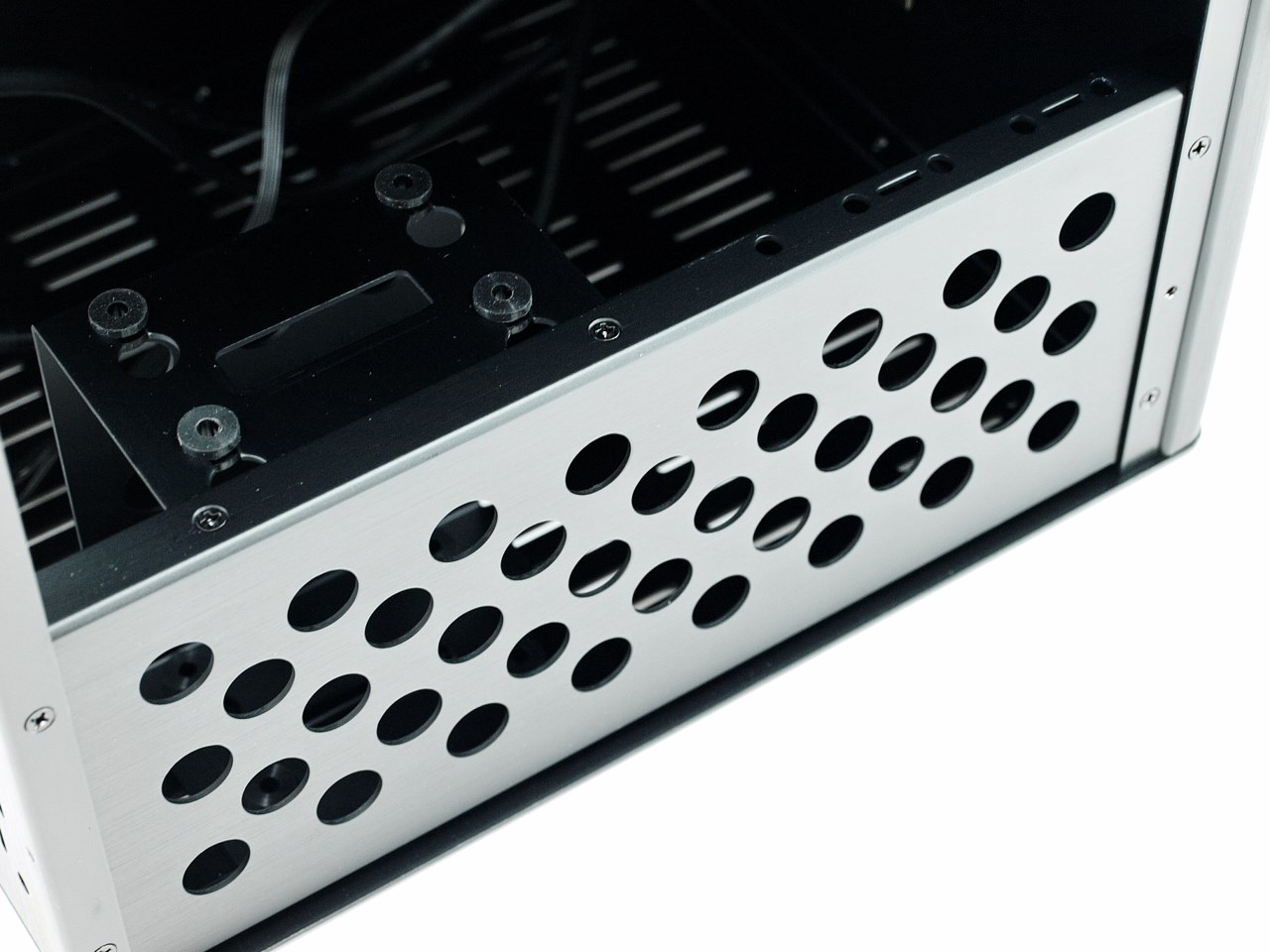

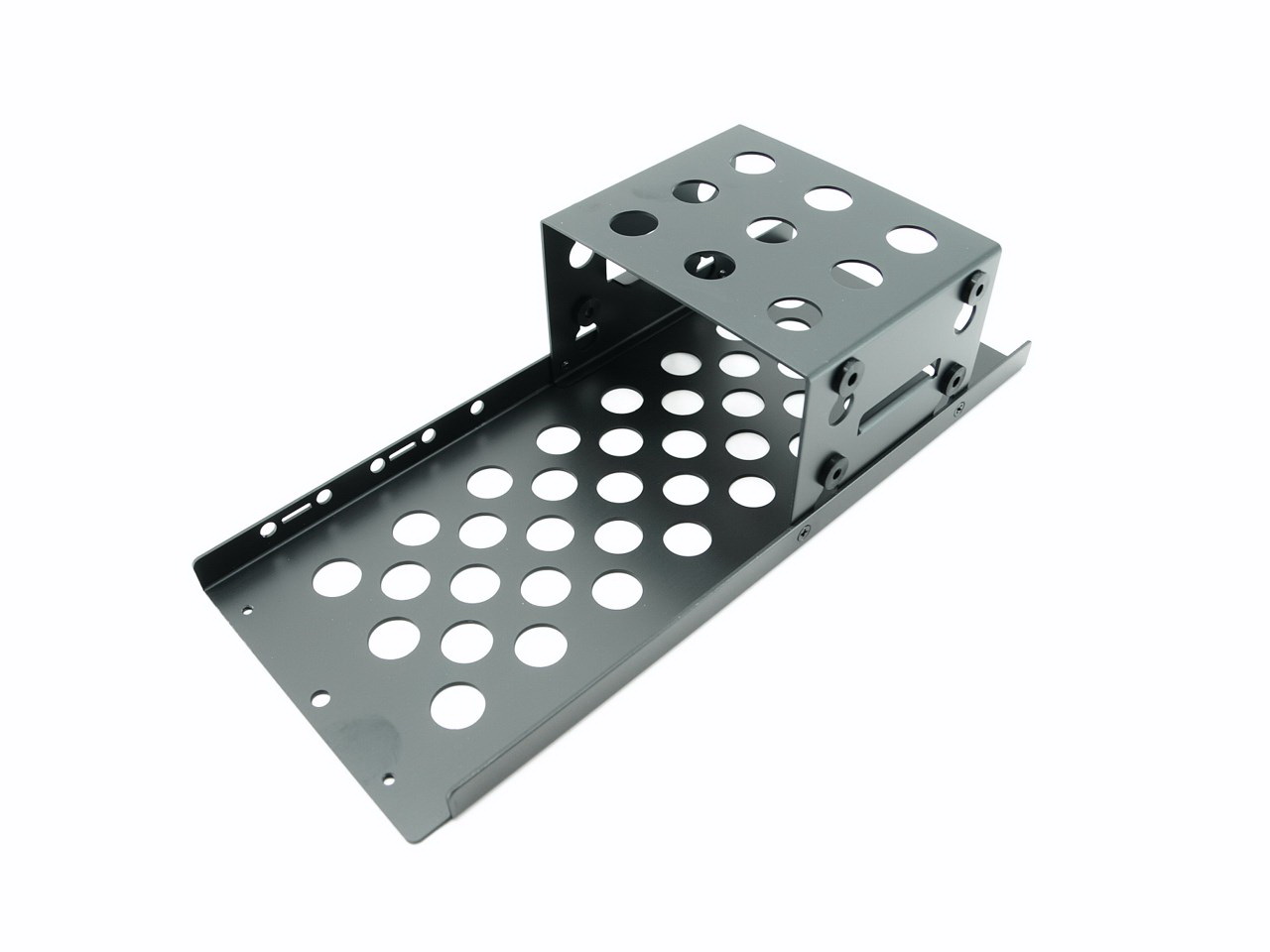

coolcube maxi 17t

This cage gives you room for up to two 3.5" drives.

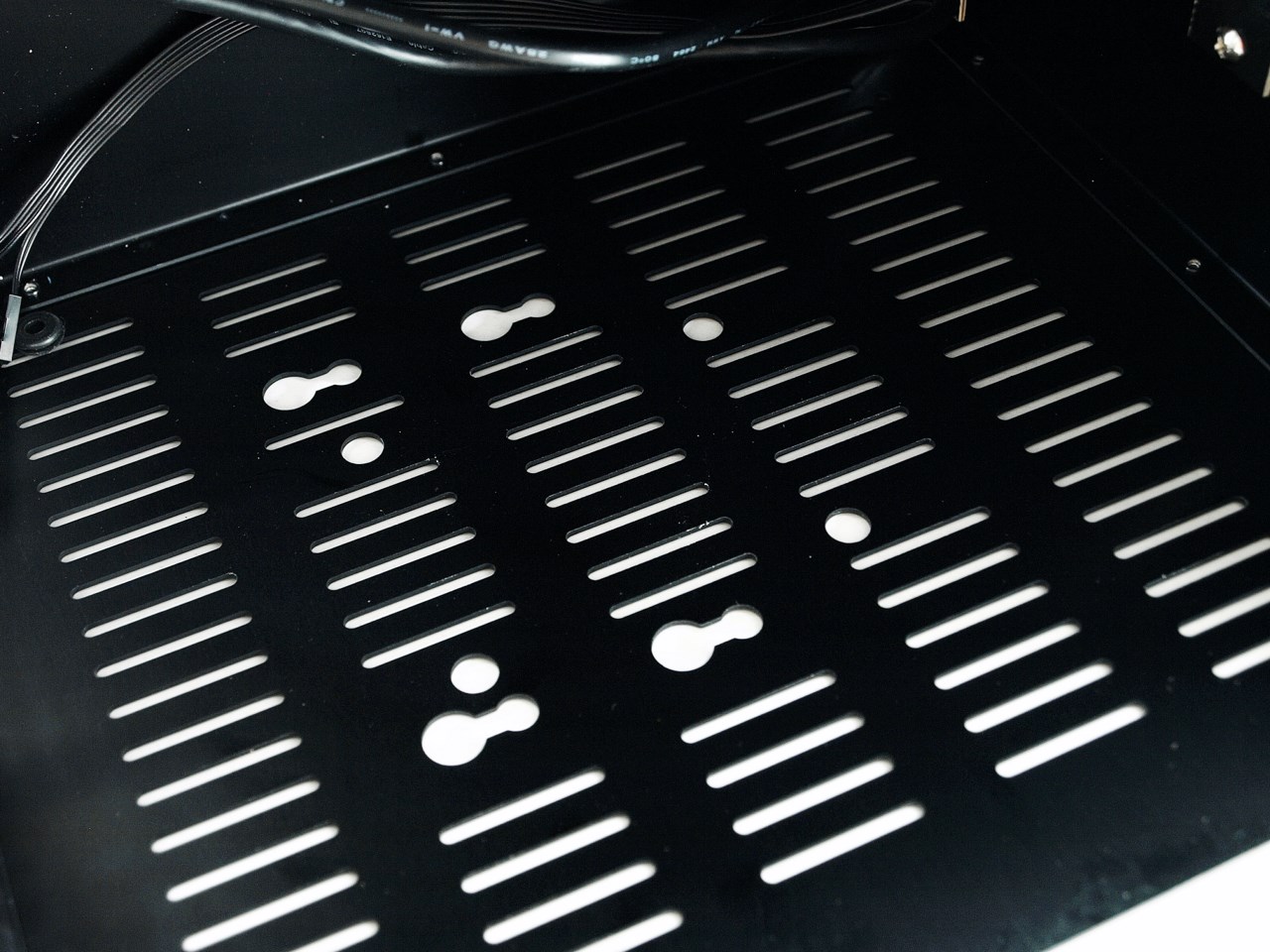

coolcube maxi 18t

There's room however for a third 3.5" (or 2.5") drive at the bottom of the case if the above two are simply not enough.

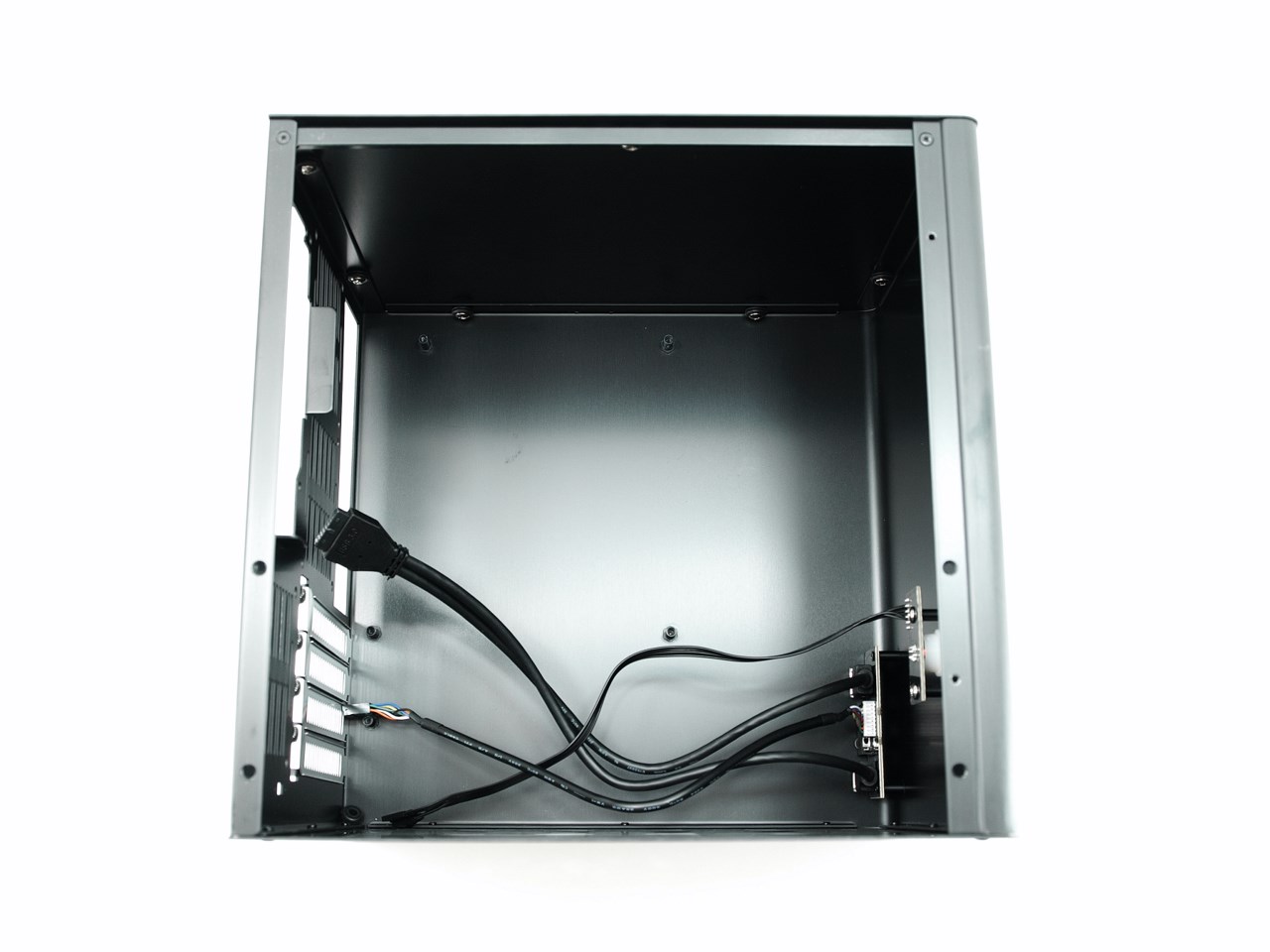

coolcube maxi 19t

After taking the cage out of the way we see that the interior of the Coolcube MAXI is quite spacious for its size.

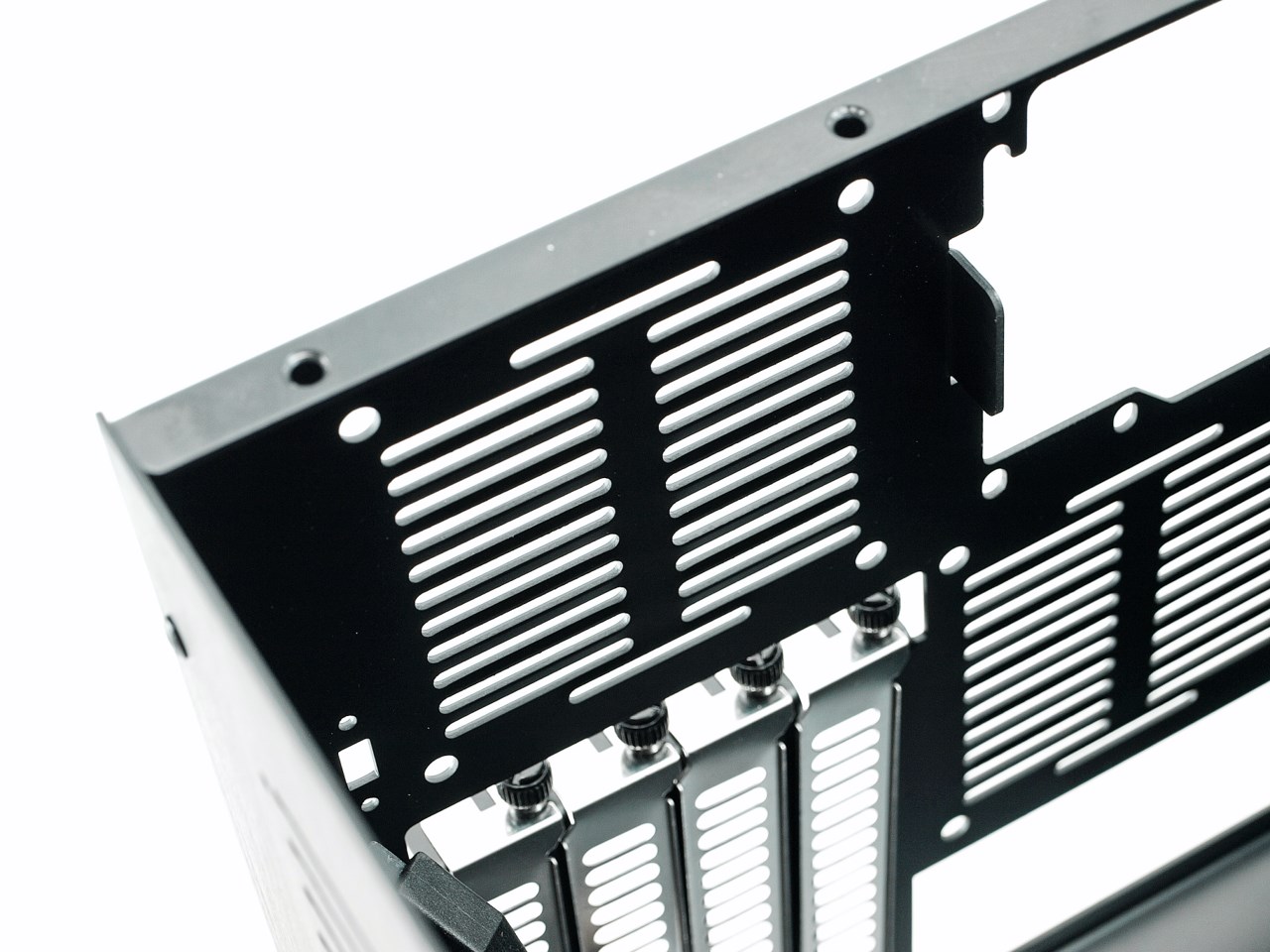

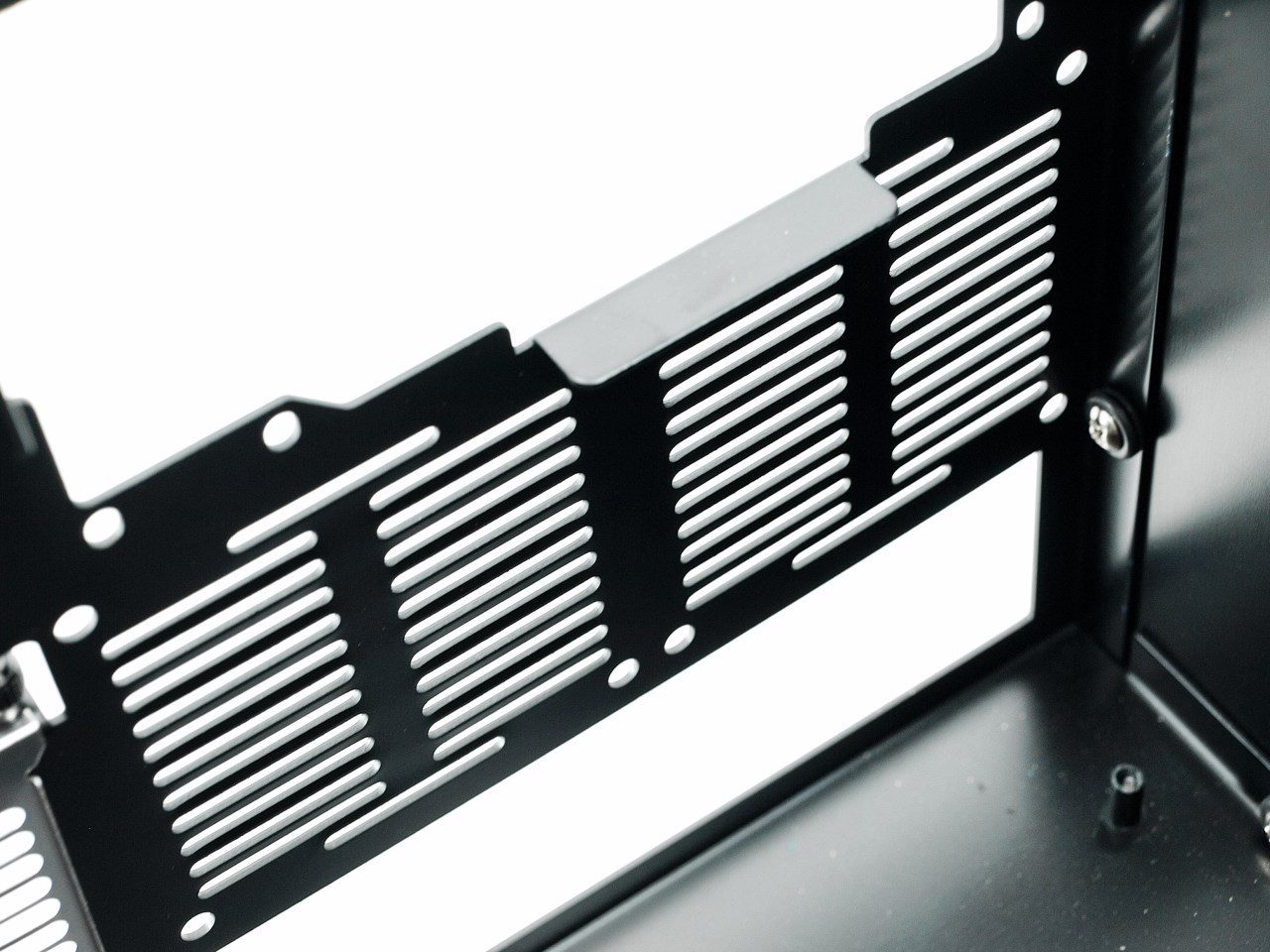

coolcube maxi 20tcoolcube maxi 21t
In the above pictures we see the 3 available 80mm fan spots and a small opening right above the PCI expansion slots which can be used with a speed control switch (something that Cooltek may offer in the future).

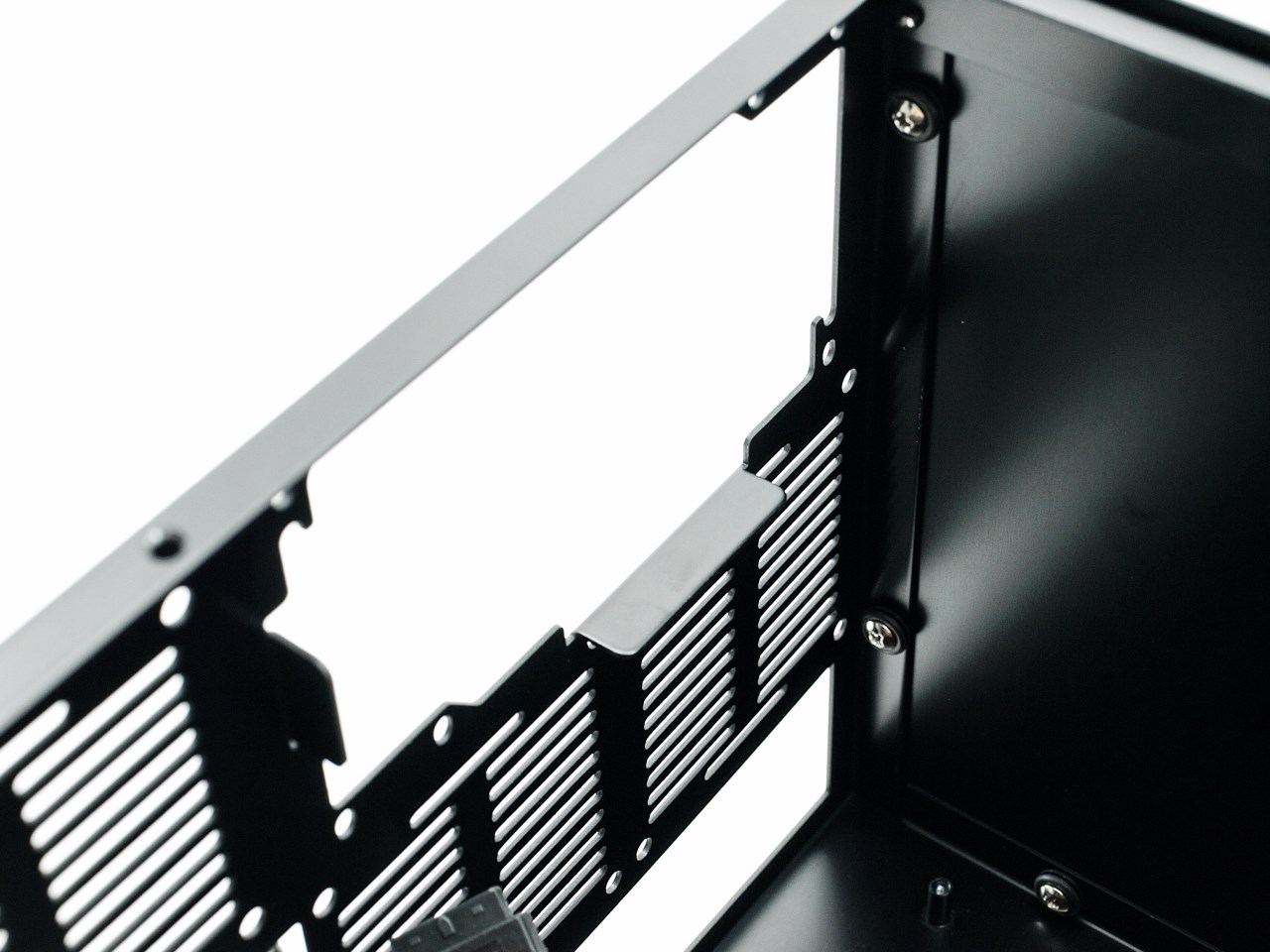

coolcube maxi 22t

The PSU area is right above the two 80mm fan spots so i'd probably have those two push air from the interior and the one in the bottom suck air in.

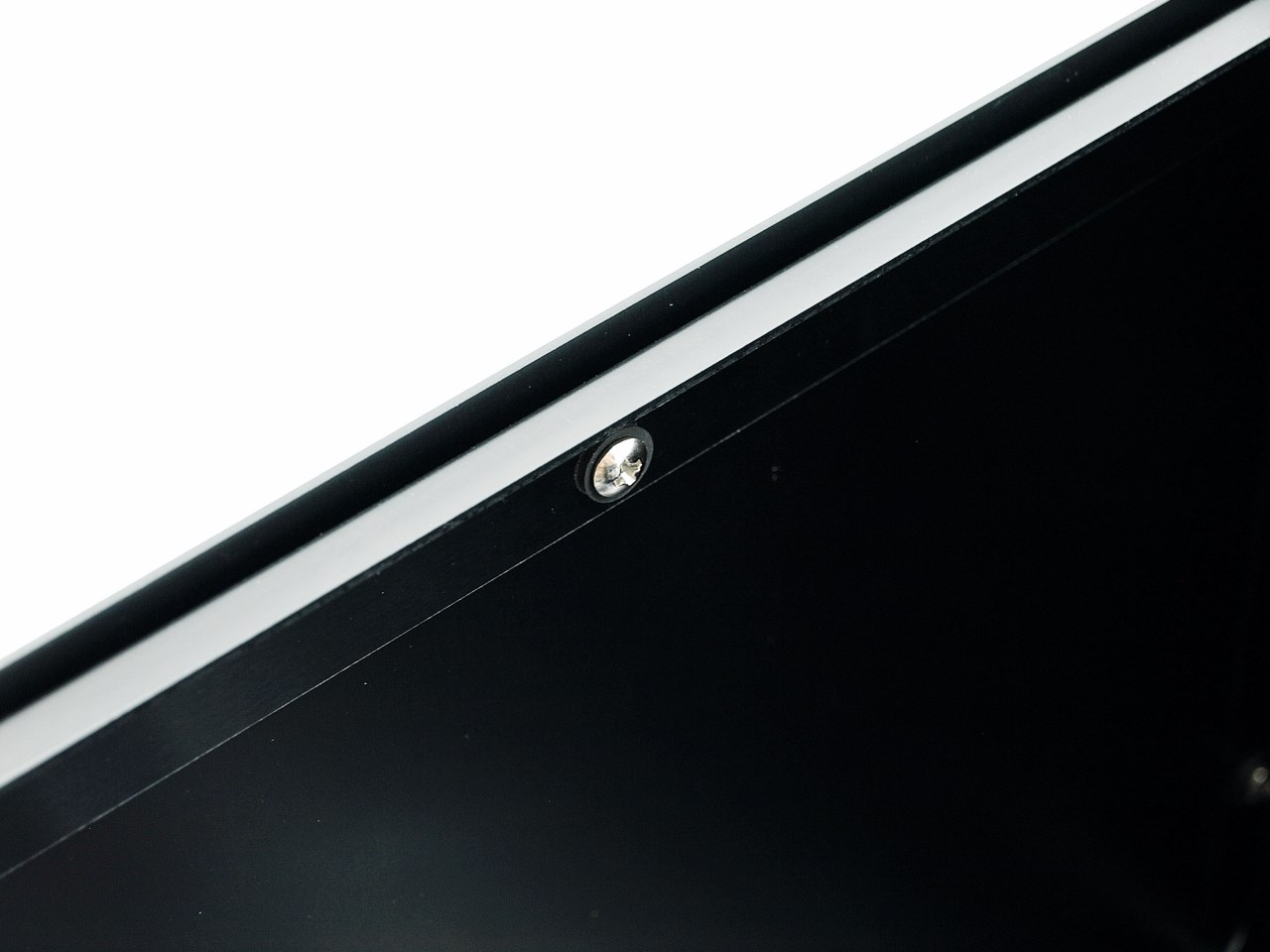

coolcube maxi 23t

If you want you may also remove the top panel to make it easier for you to install the mainboard.
